BRAND : PIONEER
ITEM NO.: DAC500
ORIGIN : CHINA

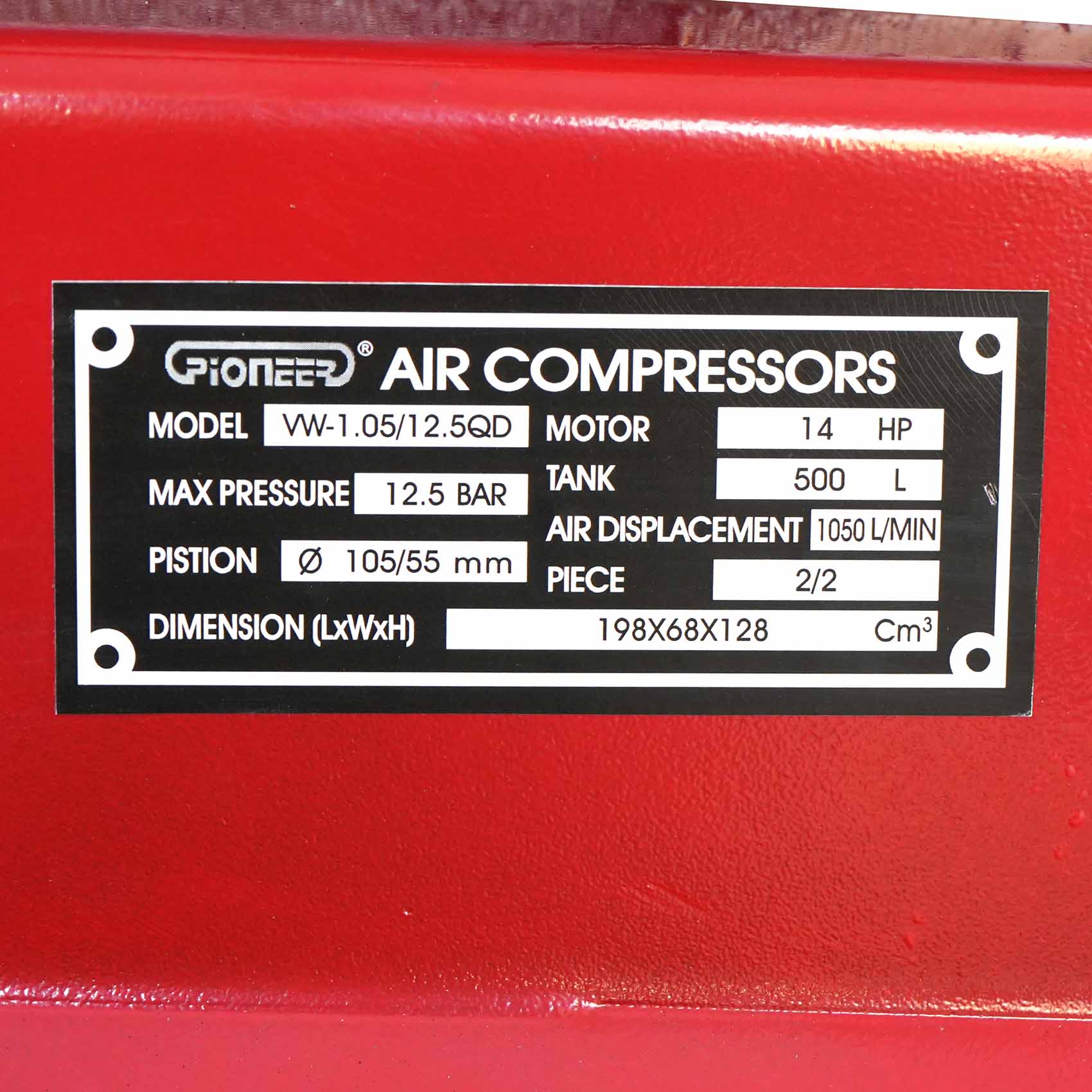

MODEL : VW-1.05/12.5 QD
MAX PRESSURE : 12.5 BAR
PISTION : Ø105/55 MM
AIR DISPLACEMENT : 1050 L/MIN

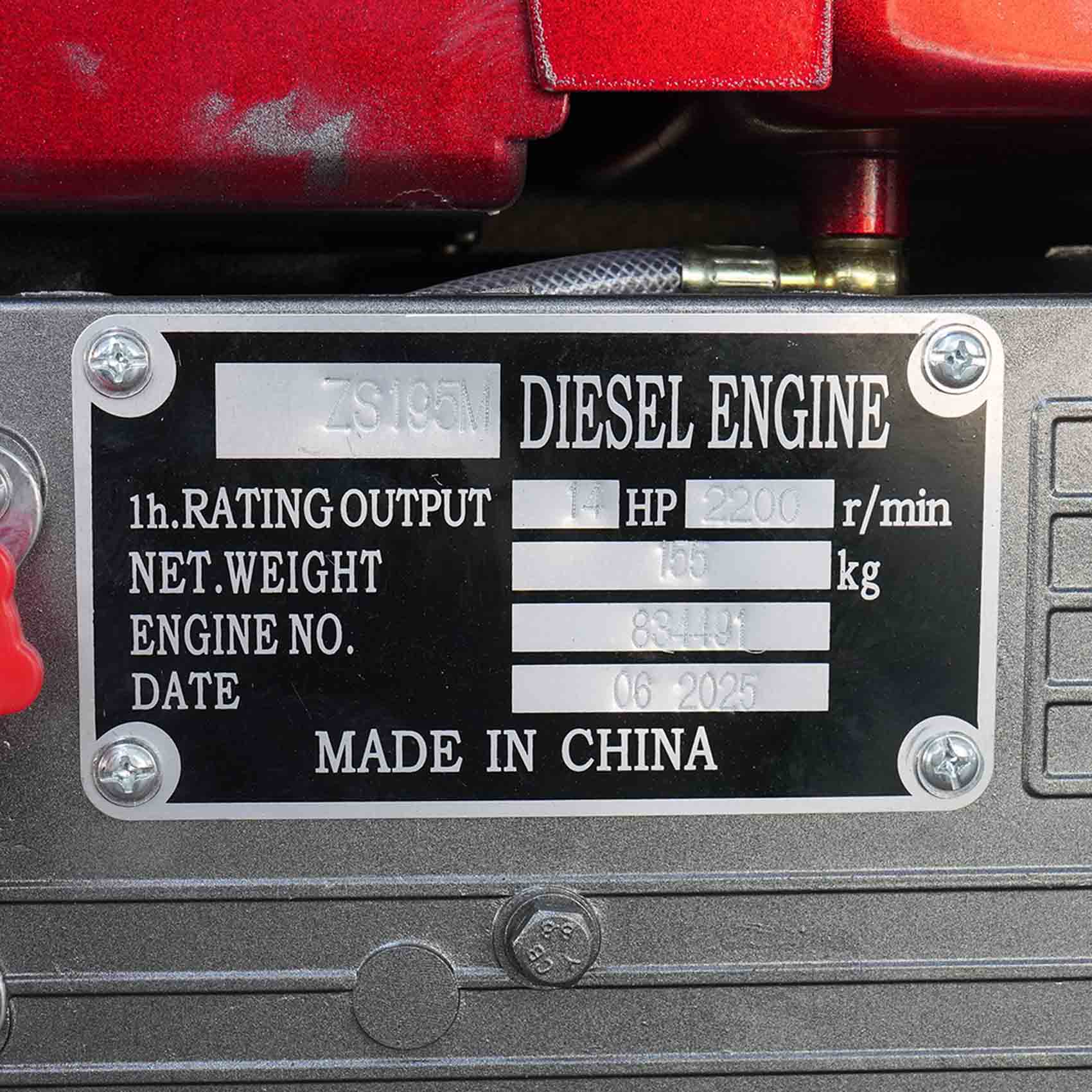

ENGINE MODEL : S195
ENGINE TYPE : SINGLE-CYLINDER, FOUR-STORKE, WATER-EVAPORATIVE, HORIZONTAL TYPE WITH SWIRL COMBUSTION CHAMBER
CAPACITY : 500L
1H. RATING OUTPUT : 14 HP - 2200 R/MIN
INJECTION PUMP : NO.1 INDIVIDUAL TYPE PLUNGER PUMP(11-00) PLUNGER DIA. 8.5 MM
INJECTOR : PLATE-CLAMPED, SINGLE-ORIFICE NEEDLE TYPE NOZZLE ZS4S1A
AIR FILTER : MODEL 80, OIL BATH, TWO-STAGE STEEL WOOL TYPE OR MODEL S1100 THREE-STAGE TYPE (FOR SPECIAL ORDER)
FUEL FILTER : C0506 B PAGE-ELEMENT TYPE
OIL PUMP : JZX 1014 INNER AND OUTER ROTOR TYPE
GOVERNOR : STEEL BALL CONTRACTING SPRING FULL RANGE SPEED TYPE
FLYWHEEL GENERATOR : MODEL S F F-45 (6V,45W) OR MODEL YF131(14V,100W)(FOR SPECIAL ORDER)
MUFFER : NO.3 BAFFLE, TWO-STAGE EXPANSION
FUEL CORRECTOR ( FUEL LIMITER)(FOR SPECIAL ORDER) : AUTOMATICALLY DENSIFIED, TWO-SPRING IN SERIES
CYLINDER BORE : 95 MM
PISTON STROKE : 115 MM
TOTAL DISPLACEMENT : 0.815 L
1-HR. RATED OUTPUT (KW(PS)/R/MIN) : 9.7 (13.2)/2000 - 8.82(12)/2000
COMPRESSION RATIO : 20
INJECTION TIMING (REFERRING TO CRANK ANGLE) : 18° ±1°
INJECTION PRESSURE VALVE CLEARANCES IN COLD STATE : 12.75+0.98 MPA ( 130+10 KGF/CM²)
INTAKE VALVE : 0.35±0.05 MM
EXHAUST VALVE (VALVE TIMING(REFERRING TO CRANK ANGLE) : 0.45±0.05 MM
INTAKE VALVE OPENS : 17° BEFORE T.D.C.
INTAKE VALVE CLOSES : 43° AFTER B.D.C.
EXHAUST VALVE OPENS : 43° BEFORE T.D.C.
EXHAUST VALVE CLOSES : 17° AFTER B.D.C.
TYPE OF LUBRICATION : COMBINDED PRESSURE WITH SPLASHING
TYPE OF STARTING : HAND CRANKING
FUEL TANK CAPACITY : 16L
TOTAL OIL CAPACITY : 3.6L
HOPPER CAPACITY : 18L
OVERALL DIMENSIONS : L 821 X W 497 X H 671 MM
PACKAGING WEIGHT : W 67 X H 139 X L 190 CM
NET WEIGHT : ≤155 KG
No reviews yet. Be the first to review this product!
| Item Code | CHIDAC500 |
|---|---|
| Barcode | 6291116311881 |
| Brand | PIONEER |
| Category | DIESEL & PETROL AIR COMPRESSORES |
| Made In | MADE IN CHINA |
| Warranty | 6 MONTHS |

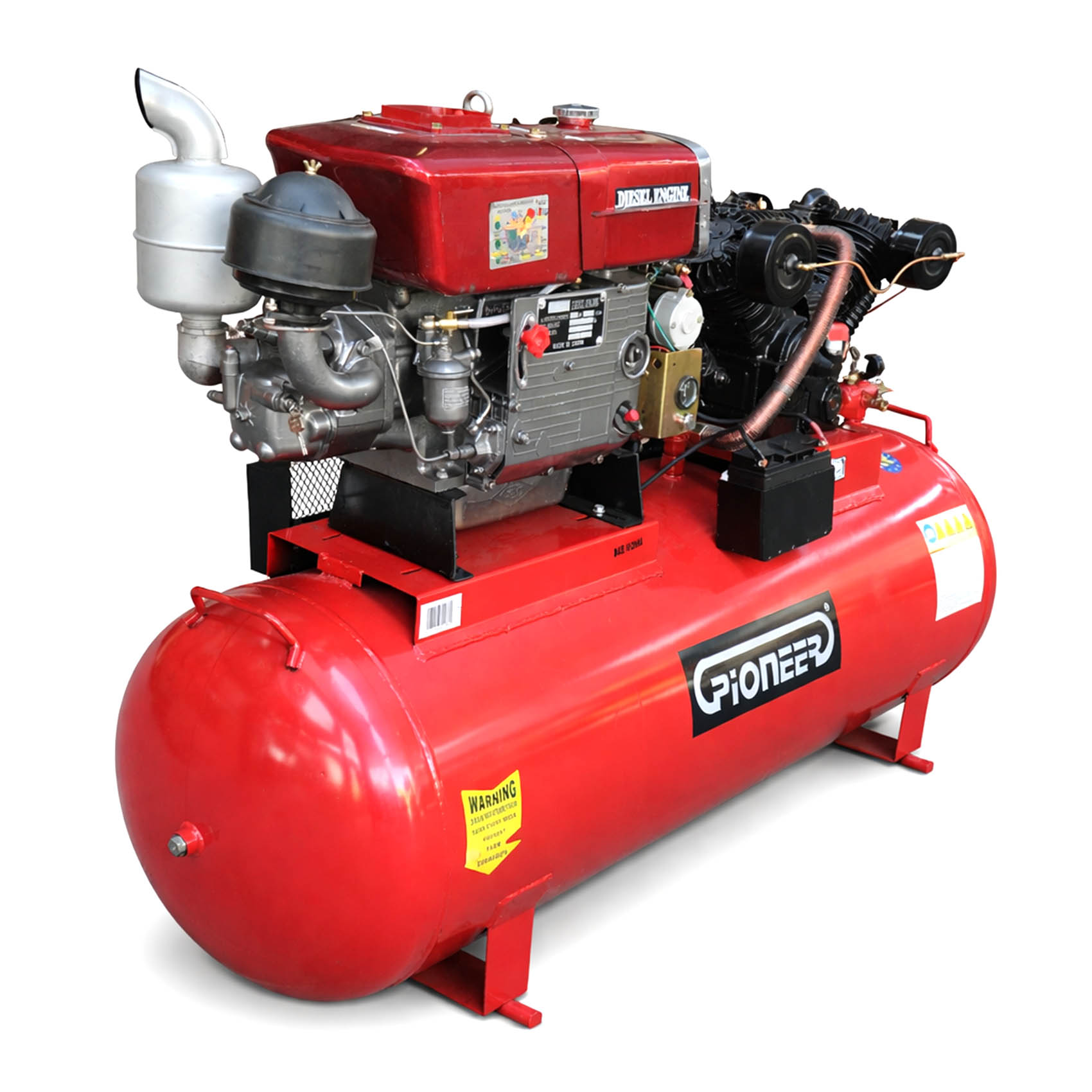

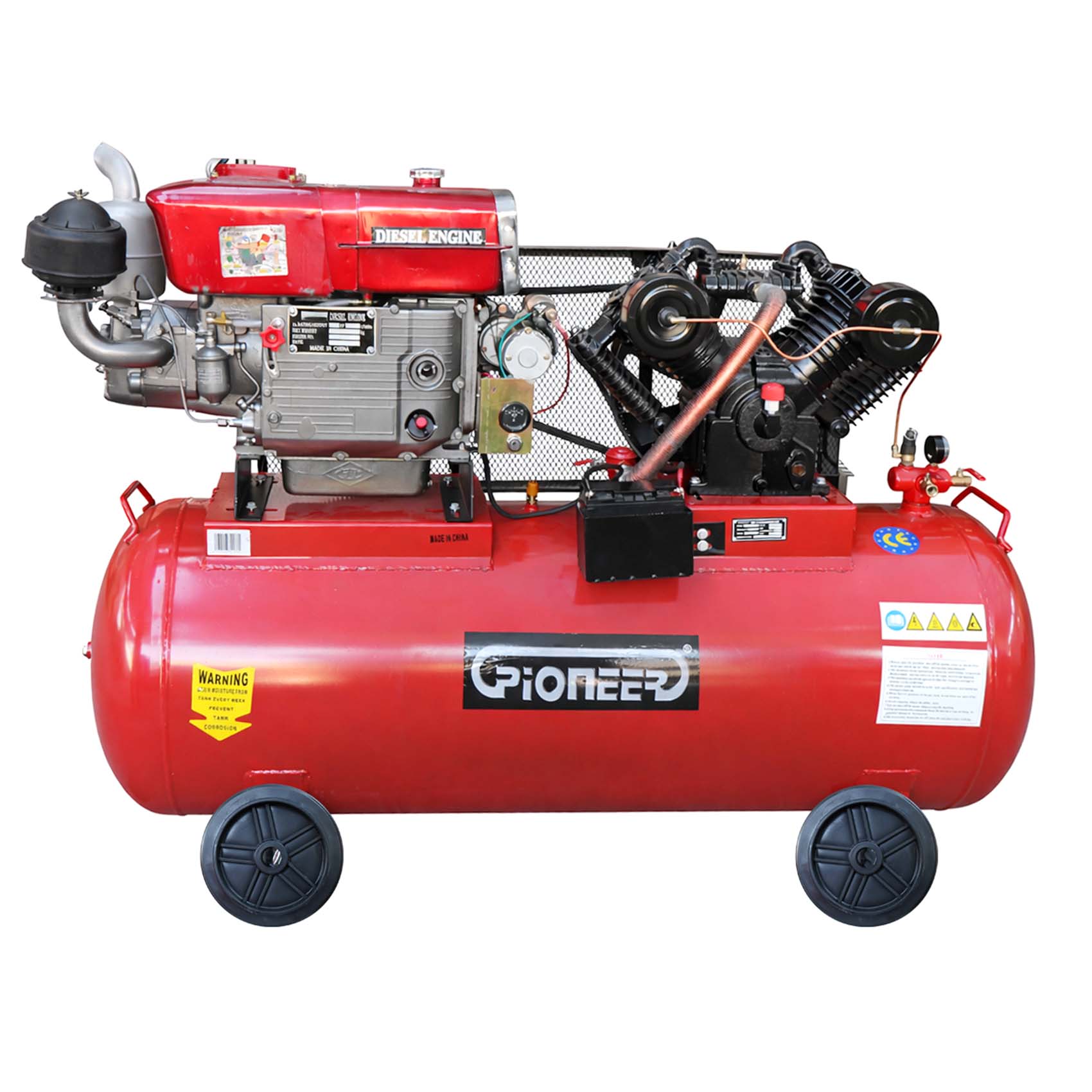

The PIONEER 500L Diesel Air Compressor is a powerful and reliable solution designed for construction sites, garages, workshops, and industrial applications. Built for heavy-duty performance, this diesel-powered air compressor delivers consistent high-pressure air even in locations where electricity is not available.
This diesel air compressor is designed to generate high-pressure compressed air for operating pneumatic tools and industrial equipment. It is ideal for remote areas and heavy-duty job sites where electrical supply is limited or unavailable.
