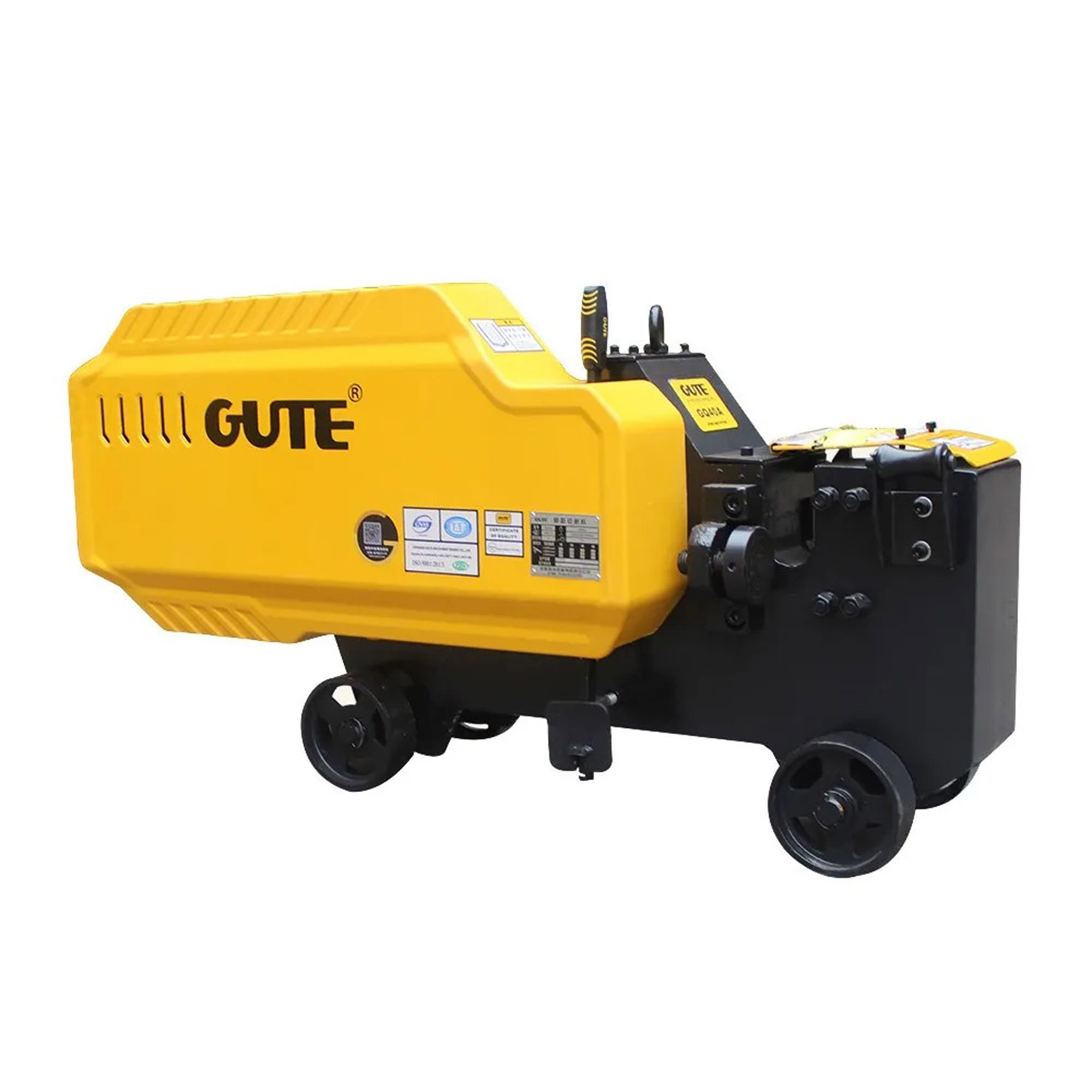

GUTE 6-34MM 380V AUTOMATIC STEEL BAR CUTTER MACHINE 3 PHASE 3KW GQ40A HEAVY-DUTY IRON REBAR CUTTER WITH 4 WHEELS | 2800 R/MIN | 32 T/MIN

BRAND : GUTE

ITEM NO.: GQ40A

ORIGIN : CHINA

VOLTAGE : 380V

PHASE : 3

RATING : S1

POWER : 3 KW-2P

CURRENT : 6.31 A

CUTTING CAPACITY : 6-34 MM

FLAT STEEL CUTTING CAPACITY : 60X15 MM

NOISE : ≤80 DB(A)

ANGLE BELT TYPE : 1600B

OIL VOLUME : 7L

MOTOR TYPE : HXG100L-2

MOTOR POWER : 3KW-2P

INS.CL : F

IP : 54

CONNECTION : Y

MOTOR ROTATION SPEED : 2870 R/MIN

CUTTING SPEED : 32 T/MIN

CERTIFICATION: CE,ISO 9001:2000

STANDARD : JB/T10391-2008

MACHINE SIZE : 1280X460X700MM

NET WEIGHT : 380KG

GROSS WEIGHT : 420

. GQ40A ADOPTS GEARS,  SHAFTS, CONNECTION ROD AND BLADES MADE OF HIGH-QUALITY ALLOYED STEEL WITH REQUIRED HEAT TREATMENT (QUENCHING/ TEMPERING/ HIGH FREQUENCY) AND 15MM THICK EXTERNAL CASE TO ENSURE RELIABLE PERFORMANCES ALSO UNDER HEAVY LOADS AND LONG WORKING LIFE.

. CONNECTION ROD HAS HIGH HARDNESS DEGREE ON ATTACHING PART WITH THE BLADE, ITS INTERNAL SIDE IS MADE OF TIN-BRONZE TO AVOID ABRASIONS WHILE TOUCHING THE CRANKSHAFT.

. THICK BLADES TO ENSURE ACCURATE CUTTING WITH ALL KINDS OF STEEL BAR (SQUARE BLADE OR MOON-SHAPE BLADE OPTION WITH PRESS-SPRING).
