BRAND : PIUSI
ITEM NO.: F00491000
ORIGIN : ITALY
METERS : K600
INLET / OUTLET : 1” BSP
FLUID : DIESEL/HVO/XTL
APPLICATION : LOGISTIC, MINING & CONSTRUCTION, INDUSTRIAL
TEMPERATURE : 16°C
FLOW RATE : 10 - 100 L/MIN - 2,64 - 26,4 GPM
PRESSURE : 30 BAR - 426 PSI
MATERIALS : GEARS: TECHNOPOLYMER - BODY: ALUMINIUM
N°2 X 1,5V (INCLUDED) : YES
FLANGE : YES
INLET FILTER : YES
WEIGHT : 2 KG (4.4 LBS)
PACKAGING SIZE : 200X120X140 MM ( 7,9"X4,7"X5,5")
BETTER VISIBILITY
ADJUSTABLE FLANGES
EASY-TO-READ BIG DISPLAY
ROTATING DISPLAY
STANDARD BATTERY
PULSE-OUT VERSION AVAILABLE
IP66

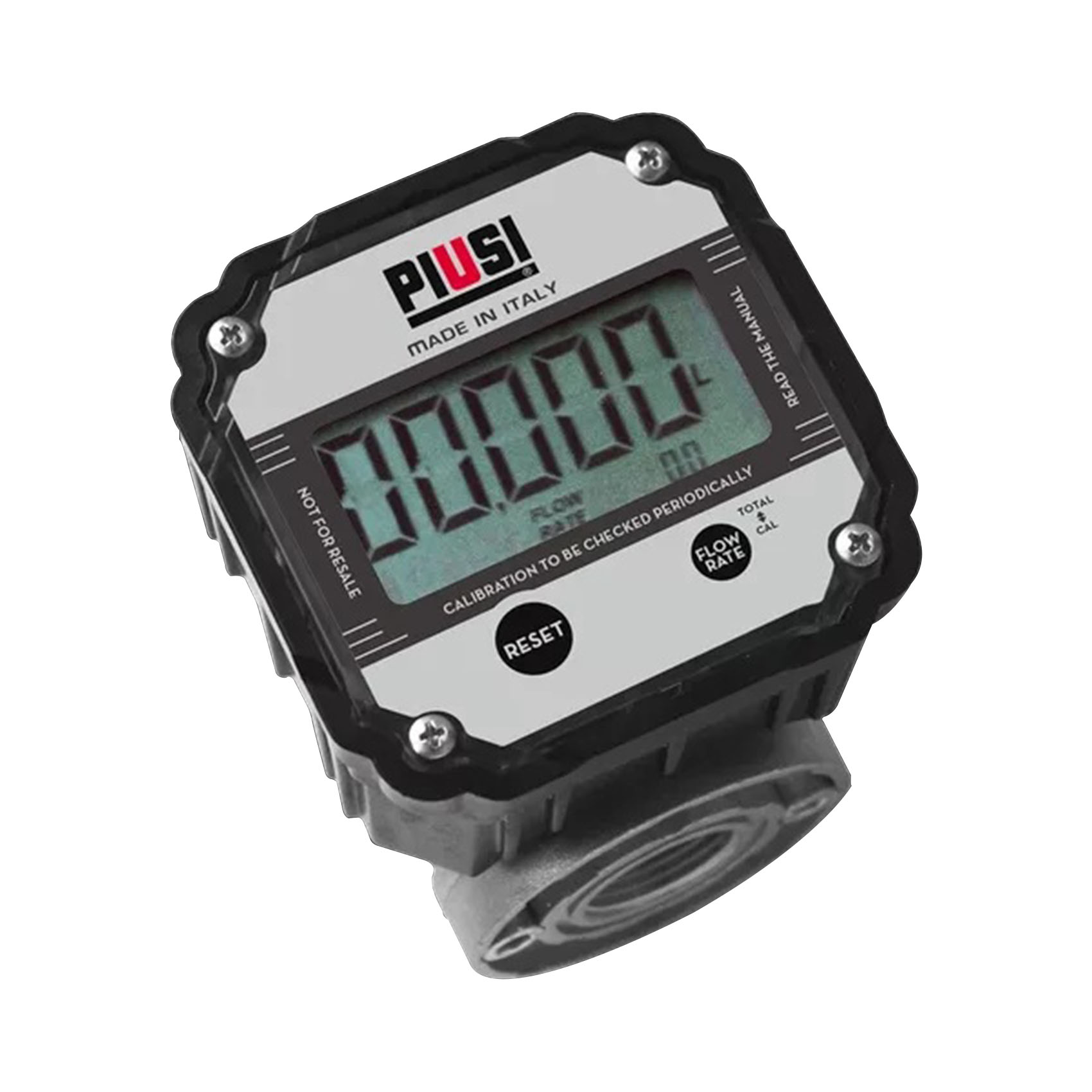

THE PIUSI K600 B/3 IS AN OVAL GEAR METER SUITABLE FOR MONITORING THE DELIVERY
OF DIESEL, BIODIESEL AND ANTIFREEZE. THIS SPECIAL VERSION INCLUDES A LARGE 80MM
BUILT-IN DIGITAL DISPLAY THAT CAN BE ROTATED TO SUIT EVERY APPLICATION. AMONG ITS
FEATURES: 5-DIGIT PARTIAL TOTAL AND RESETTABLE TOTAL. PULSER VERSION AVAILABLE
PIUSI K600 B/3 IS AN ELECTRONIC DIESEL FLOW METER SUITABLE FOR MONITORING THE QUANTITY OF DIESEL OR LUBRICATING OIL DISPENSED. FOR NON-COMMERCIAL USE, THE UNIQUENESS OF K600 B/3 IS TO HAVE A LARGER, EASY TO READ DISPLAY SIZED 80 MM, WITH A PARTIAL TOTAL OF 5 DIGITS (H=24 MM) WITH FLOATING POINT FROM 0.001 TO 999.99 TOTAL, NOT RESETTABLE TO 8 DIGITS (H=5 MM) FROM 1 TO 99999999.
THE K600 B/3 FLOW METER CONSISTS OF OVAL GEARS IN ACETAL RESIN FOR PRECISE MONITORING OF THE DISPENSED QUANTITY OF DIESEL. THE STRUCTURE OF THE FLOW METER IS SOLID AND ROBUST WITH AN ALUMINIUM MEASURING CHAMBER AND THE INTEGRATED SUCTION FILTER SAFEGUARDS THE INTEGRITY OF THE FLOW METERS. IT GUARANTEES A SAFE DISPENSING WITHOUT IMPURITIES, WHICH MAY RESULT IN UNPLEASANT BLOCKS WHILE DISPENSING.
HIGH PRECISION : THE K600 B/3 FLOW METER FOR DIESEL ENSURES A MONITORING ACCURACY OF +/- 0.5% FOR A MAXIMUM FLOW RATE OF 100 L/MIN. THESE FEATURES COMPLETE THE K600/3 FLOW METER:
REPEATABILITY 0.2%
PRESSURE DROP < 0.5 BAR AT THE MAX. FLOW RATE.
IP66 PROTECTION AGAINST DUST AND WATER.
K600 B/3 : THE PULSE OUT VERSION IS ALSO AVAILABLE ON REQUEST. IT IS DIVIDED INTO TWO TYPES OF FLOW METERS, WHICH DIFFER ACCORDING TO THE TYPE OF INSTALLATION. THE K600 B/3 FLOW METER HAS A DISPLAY AND CAN BE INSTALLED IN THE FLUID TRANSFER SYSTEM, WHILE K600 B/3 PULSE-OUT HAS NO DISPLAY AND CAN BE CONNECTED VIA A 10-METRE CONNECTION WIRE TO THE REMOTE FLOW METER. ITS APPLICATION IS RECOMMENDED IN CASE YOU WANT TO MONITOR THE QUANTITY DISPENSED NOT DIRECTLY ON THE SYSTEM, BUT FROM THE OFFICE
SAY HELLO TO PRECISION WITH THE K600 B/3: A DIGITAL DIESEL FLOW METER FEATURING AN EASY-TO-READ DISPLAY FOR ACCURATE MONITORING.
No reviews yet. Be the first to review this product!
| Item Code | ITLPIUF00491000 |
|---|---|
| Barcode | 8050031025864 |
| Brand | PIUSI |
| Category | FLOW METERES |
| Made In | MADE IN ITALY |
| Warranty | 6 MONTHS |
The PIUSI K600 Digital Flow Meter is designed to accurately monitor and record the quantity of diesel and compatible fuels dispensed through a fuel transfer system. It helps users control fuel consumption, improve efficiency, and prevent fuel losses in non-commercial and industrial applications.
