BRAND : PIONEER
ITEM NO.: WS50-12
ORIGIN : CHINA
MODEL NUMBER : WS 90
VOLTAGE: 24V
ACCURACY : ±0.5%
HOSE LENGTH : 15MTER 1'' HOSE
FLOW RATE : 9 TO 90L/MIN
RATE POWER : 0.55KW
RANGE OF PRICE : 0.01 TO 9999
PRESET MIN VALUE : 0.01 TO 0.99L
TOTALIZER RANGE : 000 TO 99999999999.99
INCLUDES :
PRODUCT LIST :
1 X 15 METER 3/4” HOSE REEL
1 X BIG RATE PUMP 24V
1 X PISTON FLOW METER
1 X FUEL NOZZLE, 11A, 3/4’’
1 X SUCTION HOSE, LENGTH: 4M WITH COUPLINGS
1 X RELAY
1X PULSER
1 X KEYBOARD, METAL MATERIAL
1 X DISPLAY
ALL PAINTING BODY
PACKAGE: STANDARD EXPORT WOODEN BOX
. VERSATILE FLUID COMPATIBILITY: SUITABLE FOR DIESEL, KEROSENE, HVO, AND XTL.
. HIGH FLOW RATE: DISPENSES FUEL AT RATES FROM 9 TO 90 LITERS PER MINUTE.

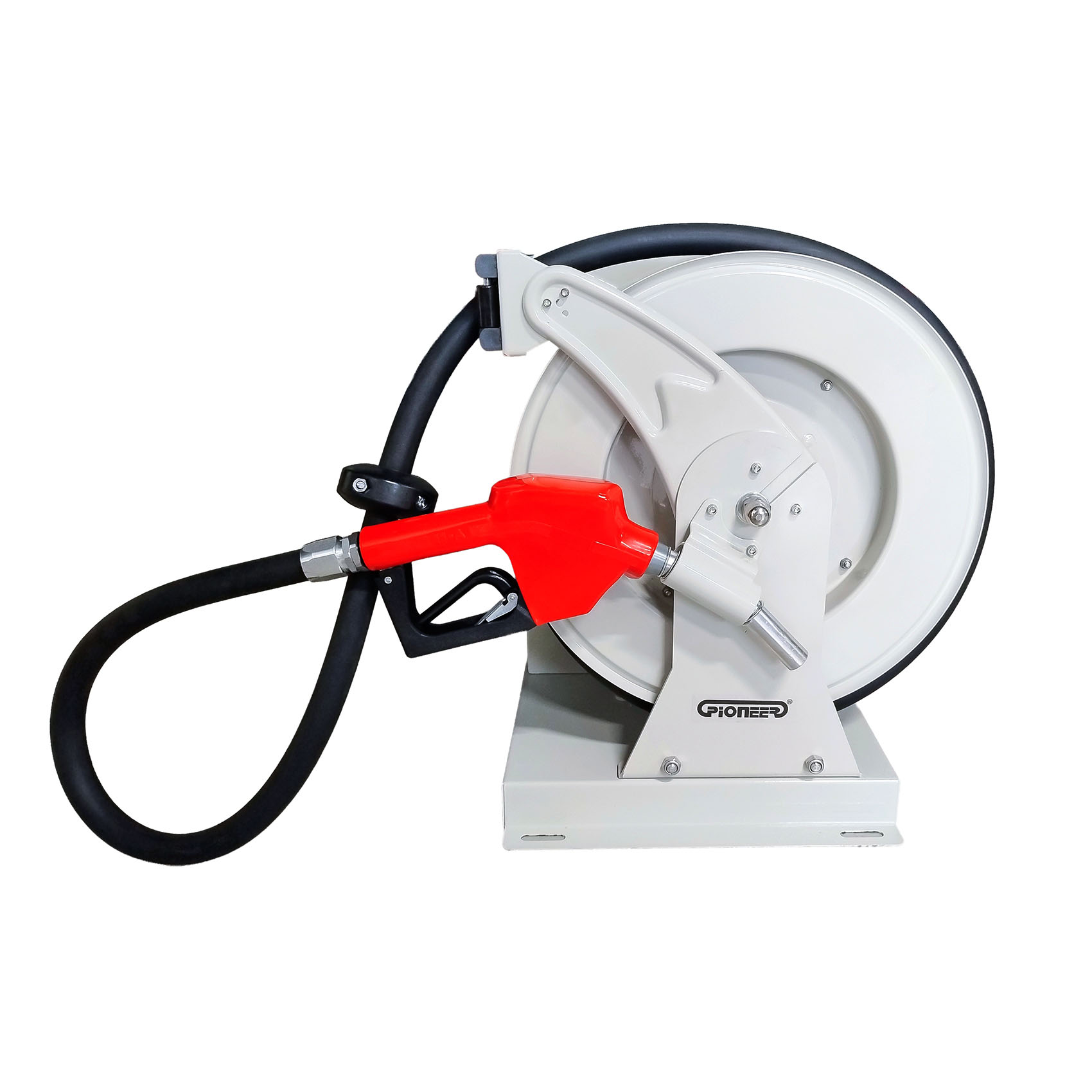

. LONG HOSE REACH: COMES WITH A 15-METER HOSE REEL FOR EXTENDED REACH.
. FLEXIBLE POWER OPTIONS: OPERATES ON 24V POWER SUPPLIES.
. PORTABLE DESIGN: MOBILE AND EASY TO TRANSPORT, IDEAL FOR ON-THE-GO FUELING NEEDS.

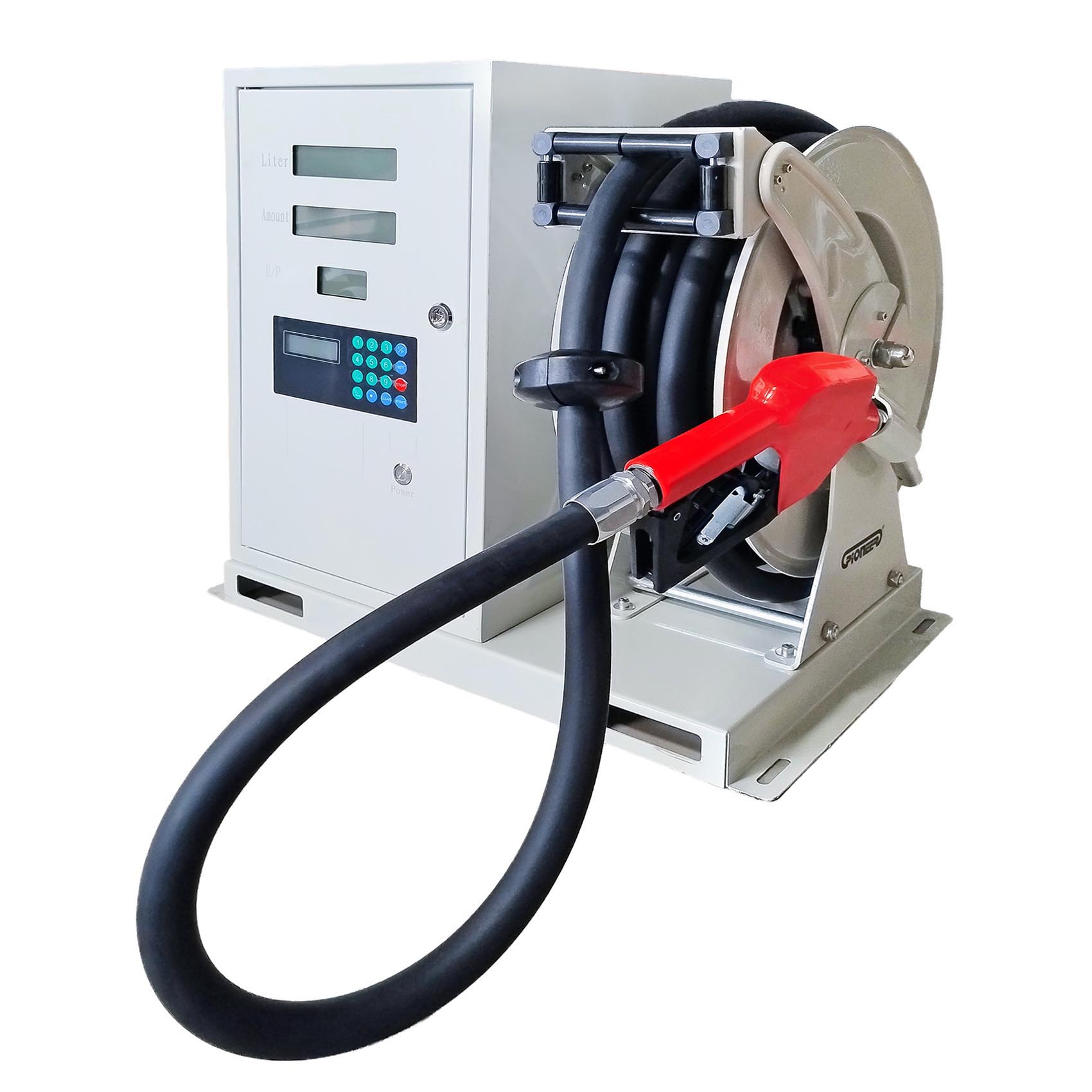

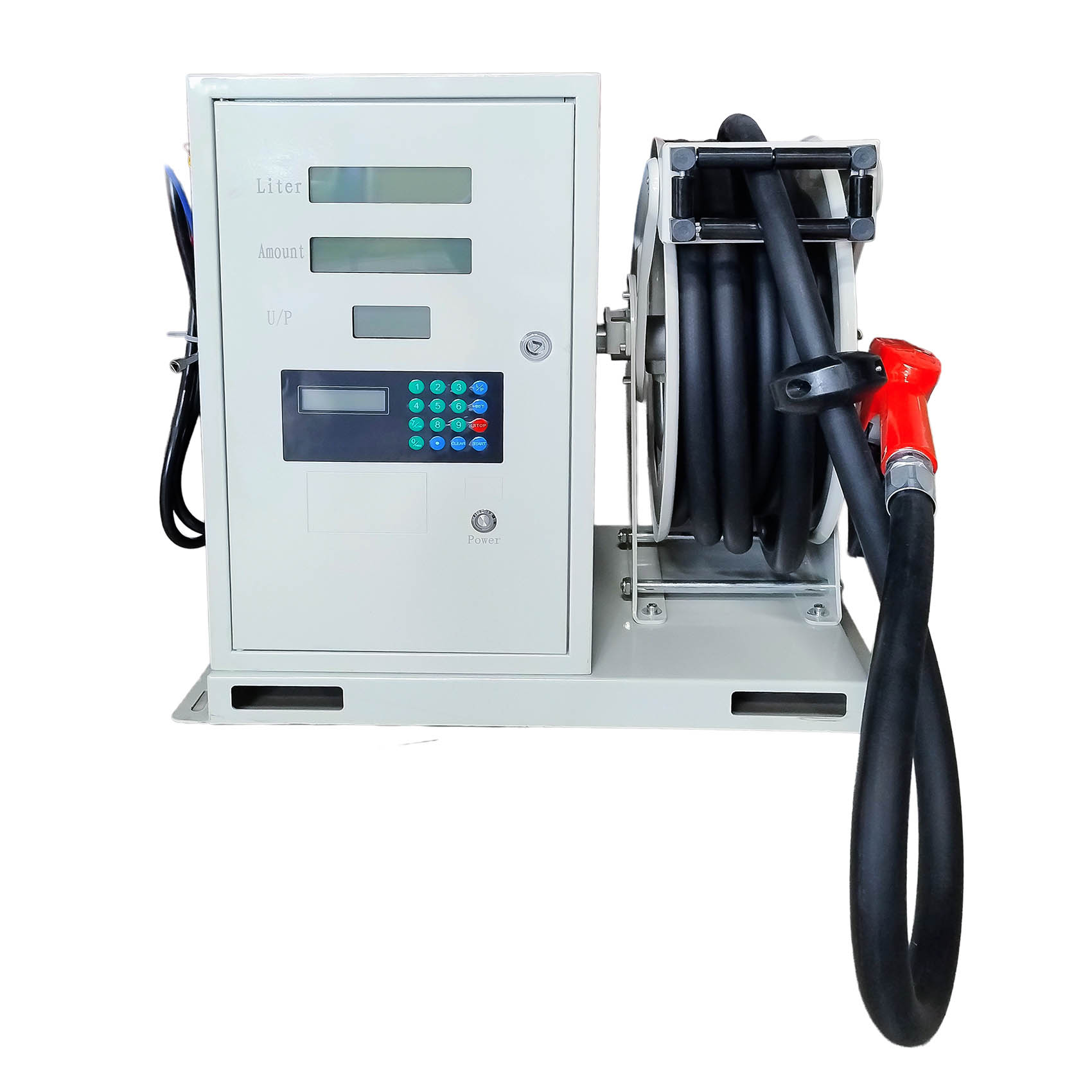

WS50 TYPE SMALL FUEL DISPENSER WITH HOSE REEL IS DESIGNED FOR DIESEL AND KEROSENE , CAN BE INSTALLED ON GROUND, ON WALL, BESIDE THE TANK OR ON TRUCK. NOZZLE HOLDER WITH SWITCH, WHICH CONNECT TO THE BOARD.
| Item Code | CHININWS50-24 |
|---|---|
| Barcode | 6295123309589 |
| Brand | PIONEER |

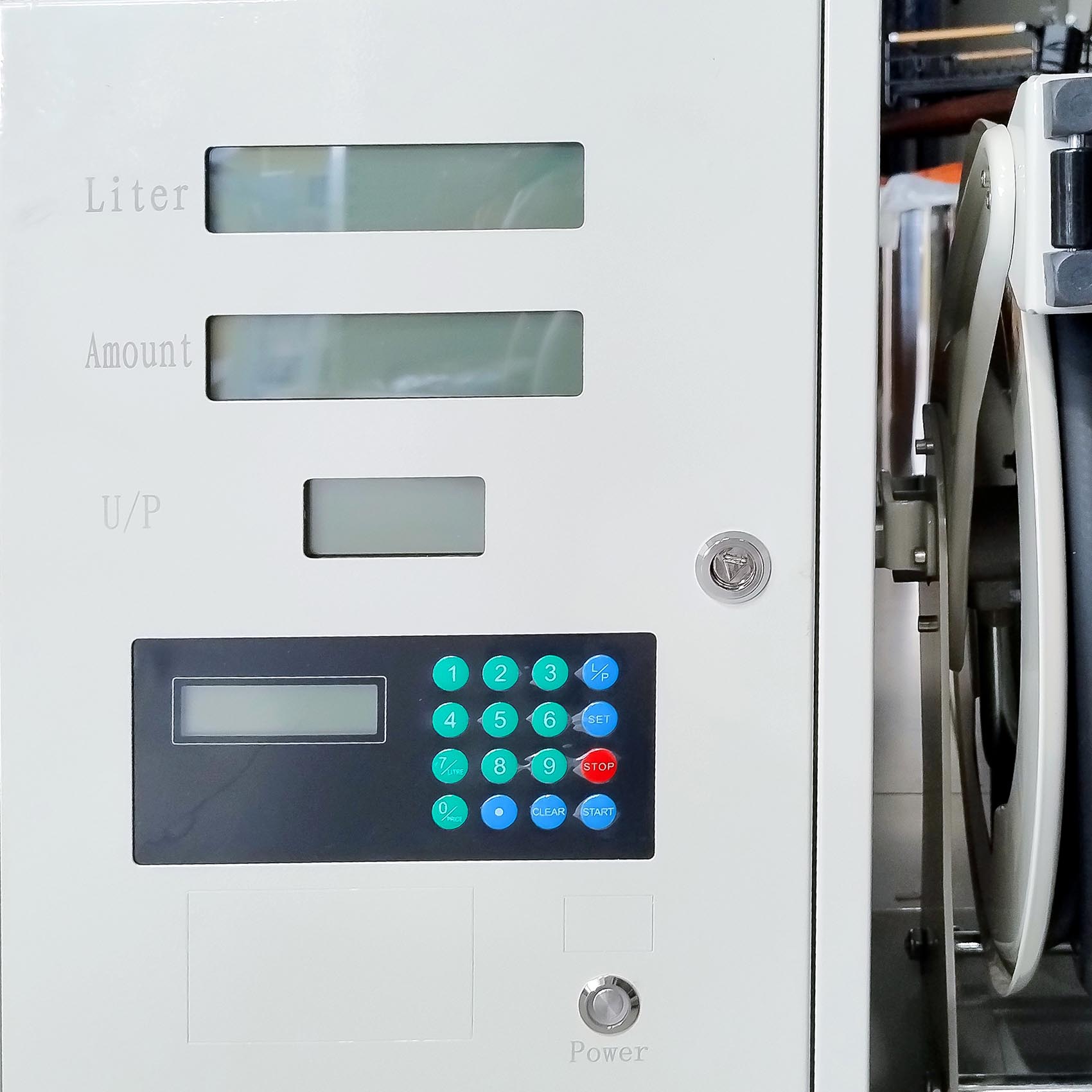

Connect the unit to a 24V power source (such as a vehicle battery or DC supply). Attach the suction hose to the fuel tank and ensure all couplings are secure. Pull out the 15m hose from the reel and hold the fuel nozzle. Use the keypad to preset the desired fuel quantity if needed. Activate the nozzle to start dispensing. The display shows real-time flow and totalized readings. After use, switch off the system and return the hose to the reel.
This mobile fuel dispenser is designed for accurate and efficient fuel transfer in remote or mobile environments. It enables controlled dispensing of diesel, gasoline, kerosene, and advanced fuels like HVO and XTL, making it ideal for on-site fueling operations.
This unit offers a complete mobile fueling solution with precision and flexibility. Its ability to handle multiple fuel types, combined with high flow rate and preset functionality, makes it ideal for businesses that require accurate fuel control. The portable design ensures convenience for field operations and remote locations.
It supports diesel, gasoline, kerosene, HVO, and XTL fuels.
Yes, it operates on 24V DC power and is designed for portable and on-the-go fueling applications.
Yes, it includes a keypad for presetting fuel quantities for accurate dispensing.
It comes with a 15-meter hose reel for extended reach.
The system offers high accuracy with ±0.5% precision.
