BRAND : PIUSI
ITEM NO.: F0030403D
ORIGIN : ITALY
INLET OUTLET : 1" BSP
TYPE OF FLUID : OIL SAE 10W40
WORKING PRESSURE : 12 BAR / 170 PSI
MAX FLOW RATE : 9 L/MIN / 2.4 BAR
MOTOR : 230V - 50/60 HZ - SINGLE-PHASE
POWER WATT : 800/950
ABSORPTION : 3.8/4.6 A
POWER : 800/950 W
RPM : 1450/1750
TEMPERATURE : 19 °C
RELATIVE HUMIDITY : MAX. 90%
BYPASS VALVE : YES
VISCOSITY : UP TO 2000 CST
VISCOMAT GEAR: HIGH-SUCTION OIL TRANSFER PUMP FOR MEDIUM-HIGH VISCOSITY FLUIDS. PERFECT OIL TRANSFER PUMP FOR OIL AND DIESEL.
NOISE LEVEL : BELOW 77 DB
MATERIAL : BODY: ALUMINIUM - GEARS: SINTERED STEEL - SHAFT: STEEL - BYPASS: BRASS
INCLUDES : VISCOMAT GEAR PUMP - ANTI-SIPHON KIT - INSTRUCTION MANUAL
PACKAGING DIMENSIONS : 350X200X280 MM
WEIGHT : 9 KG
. STURDY STRUCTURE
. INDUCTION THERMAL-PROTECTED MOTOR
. OVERLOAD PROTECTION
. IP 55

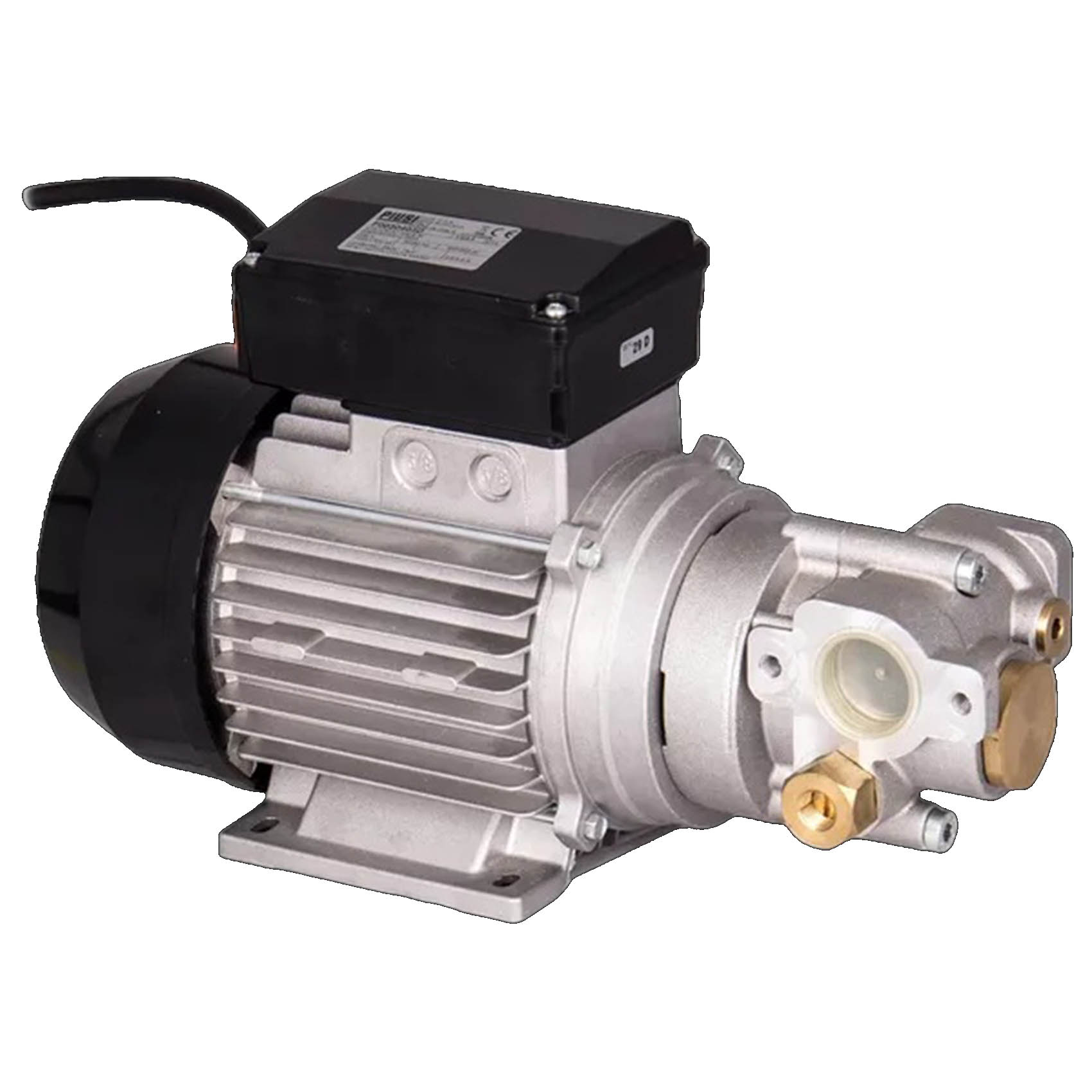

THE PIUSI VISCOMAT GEAR IS AN ELECTRIC GEAR PUMP SUITABLE FOR TRANSFERRING HIGH VISCOSITY OILS. THE BUILT-IN ADJUSTABLE BYPASS ALLOWS TO REGULATE THE DELIVERY PRESSURE.
HIGH PERFORMANCE
THE HIGH VISCOSITY OF THE LUBRICATING OIL, UNLIKE OTHER TYPES OF FLUIDS, NEEDS TO BE TRANSFERRED WITH GREATER STRENGTH. FOR THIS REASON, THE VISCOMAT GEAR OIL TRANSFER SYSTEM IS CHARACTERIZED BY THE SELF-PRIMING GEAR PUMP, CAPABLE OF SUPPORTING AND GUARANTEEING A STEADY FLOW RATE AND CONSISTENCY IN THE FLOW DISPENSED WITH HIGH VISCOSITY, UP TO 2000 CST WITH A FLOW RATE OF UP TO 14 L/MIN. THE CONTINUOUS OPERATION GUARANTEES HIGH SUCTION CAPACITY WITH PRESSURE UP TO 25 BAR. THE INTERNAL PROFILE GEAR PUMP HAS BEEN DESIGNED AS A VALID AND MODERN SOLUTION ABLE TO MEET THE DIFFERENT NEEDS OF PUMPING LUBE OILS IN THE AUTOMOTIVE FIELD.
RELIABLE
THE SINTERED STEEL ROTOR FEATURES GEARS THAT PROVIDE GOOD STRENGTH TO THE ROTOR DURING TRANSFER.
IF YOU ARE LOOKING FOR A HIGH PERFORMANCE OIL TRANSFER PUMP, CHOOSE THE QUALITY MADE IN PIUSI.
No reviews yet. Be the first to review this product!
| Item Code | ITLPIUF0030403D |
|---|---|
| Barcode | 8050031030677 |
| Brand | PIUSI |
| Category | LUBRICATION EQUIPMENTS |
| Made In | MADE IN ITALY |
The PIUSI VISCOMAT electric gear oil pump is simple to operate and designed for efficient oil transfer. Connect the inlet and outlet hoses securely to the pump, ensuring proper fittings. Fill the suction line if needed, then power the unit using a compatible single-phase electrical connection. Once switched on, the self-priming system will begin transferring oil smoothly. The built-in bypass valve allows you to adjust pressure for controlled flow. Always monitor the operation and switch off the pump after use.
This pump is specifically designed for transferring medium to high viscosity lubricating oils. It is ideal for automotive workshops, industrial applications, garages, and maintenance facilities where efficient and reliable oil movement is required. The pump ensures consistent flow even with thicker oils, making it suitable for demanding lubrication tasks.
The PIUSI VISCOMAT gear pump stands out for its reliability, performance, and durability. Designed and manufactured in Italy, it delivers high efficiency when handling thick lubricating oils. Its strong construction, consistent flow performance, and safety features make it a trusted choice for professionals. Whether for automotive workshops or industrial lubrication systems, this pump ensures long-lasting operation and dependable results.
