BRAND : DECA
ITEM NO.: 285980(287180)
ORIGIN : ITALY
PROCESS : MMA DC
TECHNOLOGY : INVERTER
MAINS VOLTAGE 50/60 HZ : 1 X 230V ± 30%
ABSORBED POWER 60% – MAX : 3,3 – 6,5 KW
FUSE : 20A
MINIMUM GENERATOR SIZE : 8 KW
EFFICIENCY : > 80%
WELDING PERFORMANCE :
MMA CURRENT RATE : 10 – 200A
MMA DUTY CYCLE MAX CURRENT (40°) : 200A @ 30%
MMA DUTY CYCLE 60% (40°) : 135A
MMA DUTY CYCLE (20° DECA) MAX : 200A @ 60%
MMA DUTY CYCLE (20° DECA) 60% : 160A @ 80%
OPEN CIRCUIT VOLTAGE : 92V
WELDING WIRES / ELECTRODES :
RUTILE ELECTRODE : 1,6 – 5,0 Ø MM
BASIC ELECTRODE : 2,0 – 5,0 Ø MM
TIG ELECTRODE : 1,0 – 4,0 Ø MM
CHARACTERISTICS :
PORTABLE : YES
SPECIFICALLY SUITABLE FOR GENERATOR : YES
OUTPUT CONNECTIONS : DX 25 MMQ

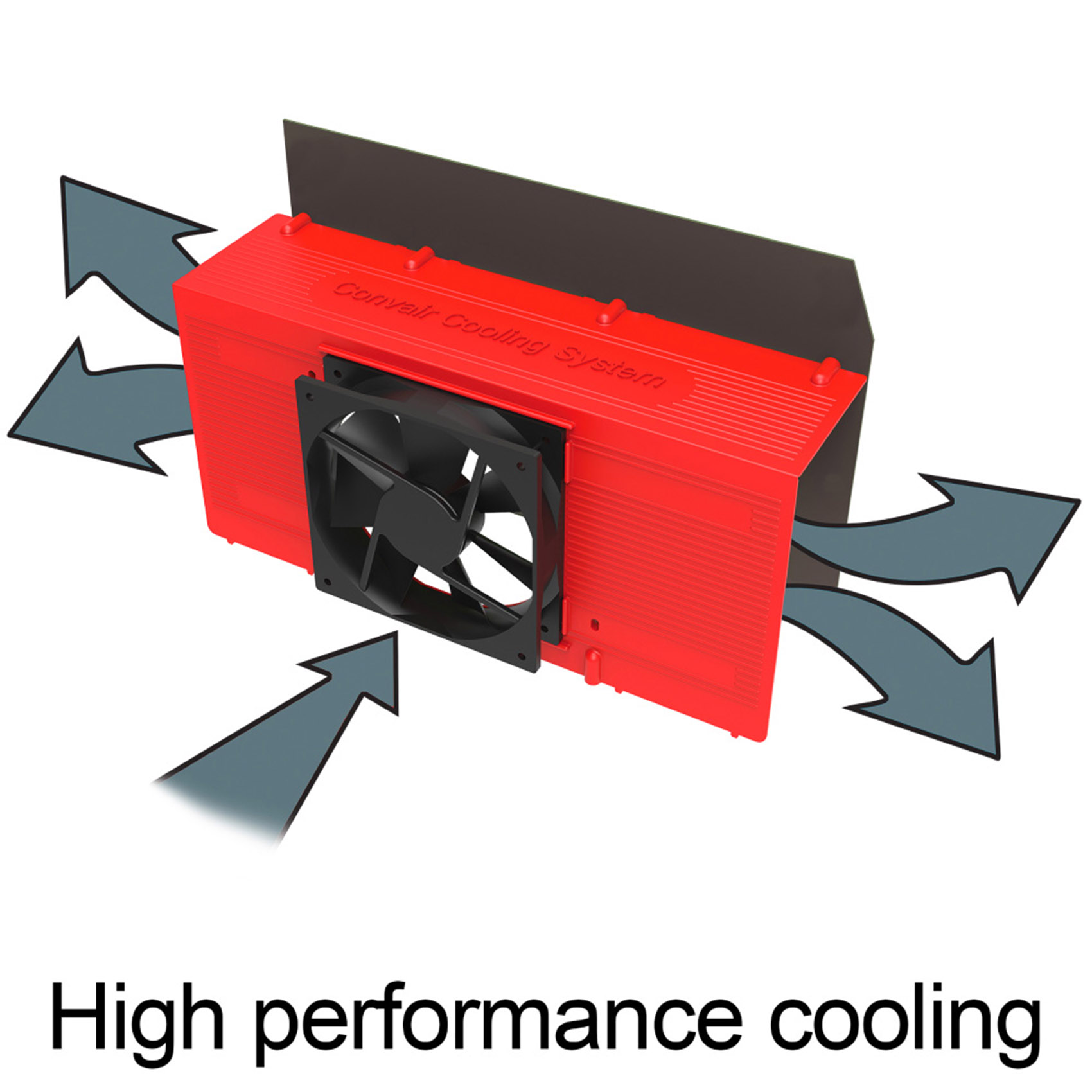

FAN COOLING : YES
THERMOSTATIC PROTECTION : YES
FUNCTIONS
MMA HOT START : YES
MMA ARC FORCE : YES
ANTI-STICKING : YES
TIG SCRATCH : YES
WEIGHT AND DIMENTION :
DIMENSIONS : L 365 X W 160 X H 273 MM
WEIGHT APPROX : 5,20 KG

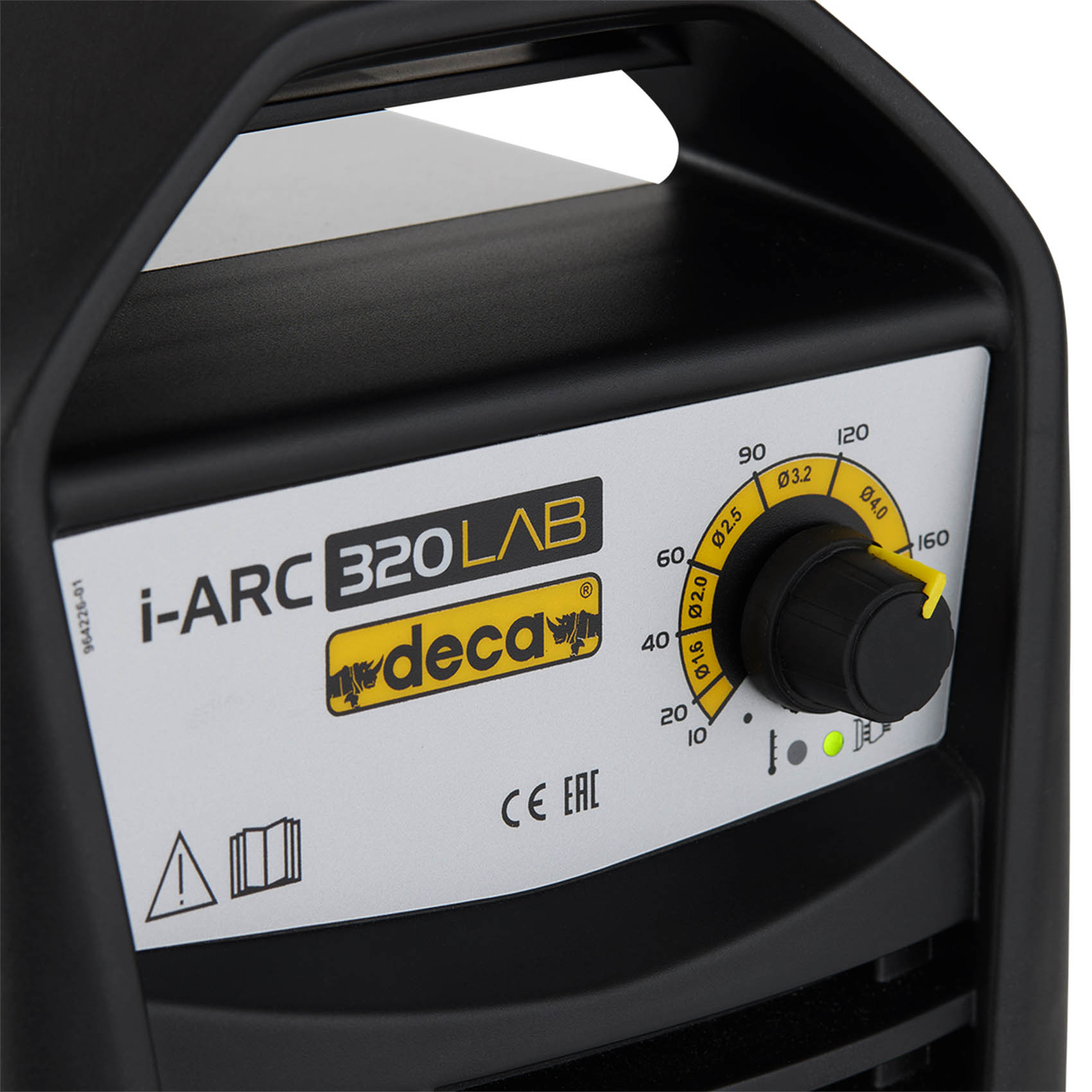

I-ARC 320 LAB EVO IS AN INVERTER WELDING MACHINE FOR MMA AND TIG PROCESSES, SUITABLE FOR BOTH WORKSHOP AND OUTDOOR USE: IT IS IDEAL FOR MAINTENANCE. POWERFUL AND RELIABLE, IT IS THE WELDING MACHINE THAT NEVER DISAPPOINTS ITS USERS.
THE WELDING QUALITY AND PERFORMANCE ARE TOP-NOTCH FOR ITS SEGMENT. THE MICROPROCESSOR CONTROL ENSURES EXCELLENT IGNITION PROPERTIES AND STABLE ARC PERFORMANCE IN ANY WELDING POSITION.
COMPACT AND ROBUST, ITS ERGONOMIC DESIGN MAKES IT PERFECT FOR TRANSPORT.
I-ARC 320 LAB EVO DELIVERS 200 AMPS IN DIRECT CURRENT FOR WELDING WITH ELECTRODES RANGING FROM 1.6 TO 5.0MM IN DIAMETER AND BOASTS AN EXCELLENT DUTY CYCLE FOR ITS CATEGORY.
IT IS COMPATIBLE WITH RUTILE AND BASIC ELECTRODES AND CAN WELD VARIOUS METALS, INCLUDING STEEL, STAINLESS STEEL, CAST IRON, ETC. THE MACHINE OPERATES ON A SINGLE PHASE POWER SUPPLY OF 230 VOLTS AND IT IS PARTICULARLY SUITABLE FOR OPERATIONS IN THE ABSENCE OF AN ELECTRICAL NETWORK, POWERED BY A GENERATOR.
. HOT START: PROVIDES ADDITIONAL AMPS FOR THE FIRST FEW SECONDS DURING ARC IGNITION, HELPING TO REACH THE RIGHT TEMPERATURE FOR THE WELD POOL.
. ARC FORCE: REDUCES THE RISK OF STICKING THE ELECTRODE TO THE WORKPIECE.
. ANTI-STICKING: IF THE ELECTRODE STICKS TO THE WORKPIECE, THE WELDING CURRENT IS REDUCED TO A FEW AMPS, MAKING IT EASIER TO DETACH THE ELECTRODE.
TIG WELDING WITH SCRATCH STARTING, USING A TORCH WITH A TAP TO CONTROL THE SHIELDING GAS, ALLOWS MINUTE WORK ON SMALL THICKNESS MILD STEEL AND STAINLESS STEEL SHEETS.

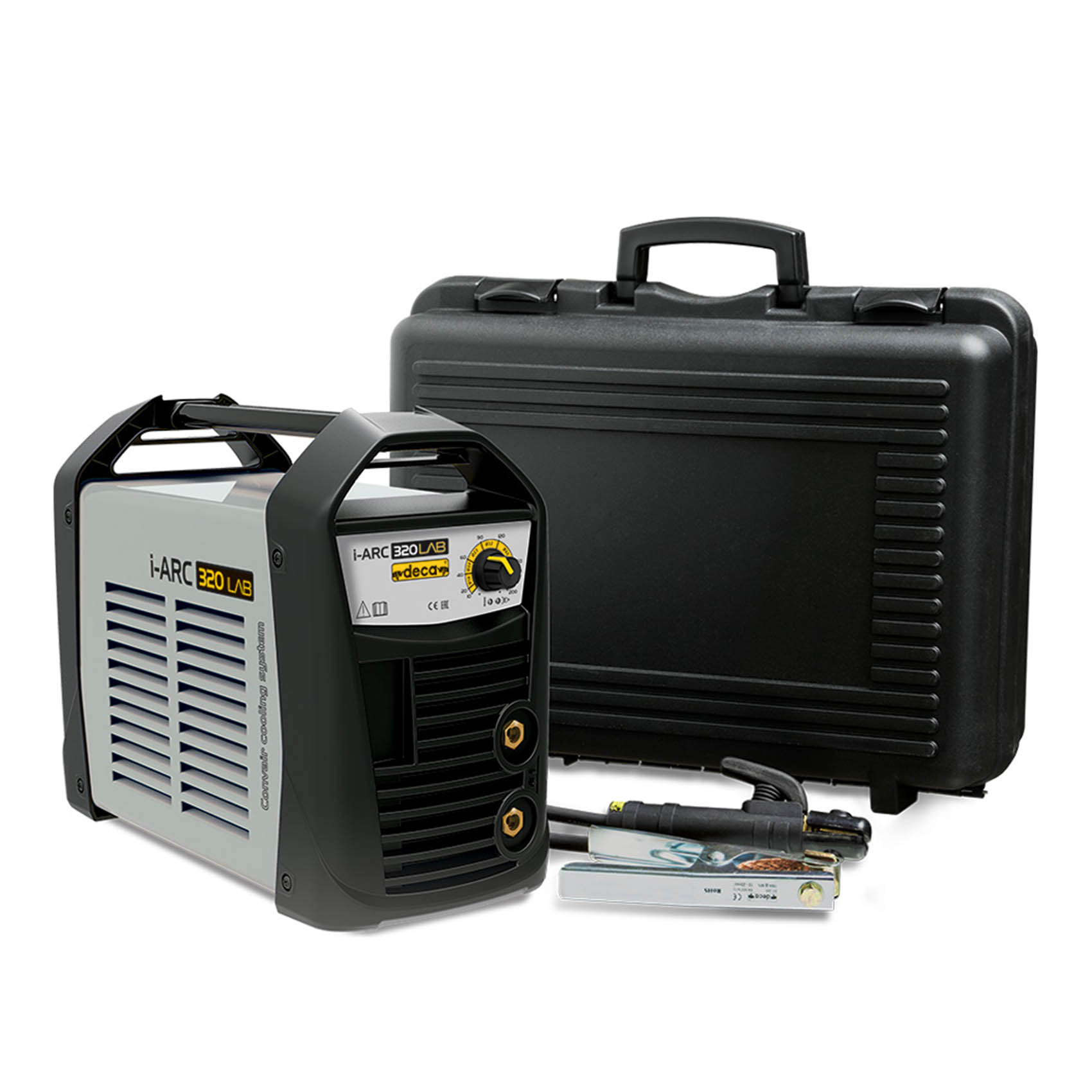

STANDARD EQUIPMENT: WELDING CABLES (16MMQ), (1,7M + 2,3M), GROUND CLAMP, ELECTRODE HOLDER AND CARRYING CASE FOR EASY TRANSPORT.
| Item Code | DECA287180 |
|---|---|
| Barcode | 8011399035513 |
| Brand | DECA |
The DECA I-ARC 320 LAB EVO Inverter Welding Machine is a powerful and portable professional welding machine designed for MMA (Stick) and TIG Scratch welding applications. Manufactured in Italy, this inverter welder combines advanced microprocessor-controlled technology with a lightweight and compact design, making it suitable for workshop fabrication, industrial maintenance, construction sites, field repairs, and generator-powered welding jobs.
Designed to deliver stable arc performance and excellent welding quality, the I-ARC 320 LAB EVO provides reliable operation on various metals including mild steel, stainless steel, and cast iron. Whether working indoors or outdoors, professionals can depend on consistent welding performance and user-friendly operation.
This inverter welding machine is designed to perform high-quality MMA and Scratch TIG welding for maintenance work, metal fabrication, repair jobs, construction projects, agricultural equipment servicing, workshop production, and industrial applications. It is particularly useful in locations where only generator power is available.
The DECA I-ARC 320 LAB EVO offers professional-grade welding performance in a compact and highly portable package. Its Italian engineering ensures reliability, durability, and consistent arc quality. Generator compatibility allows welding even in remote locations, while advanced functions such as Hot Start, Arc Force, and Anti-Stick make welding easier for both experienced professionals and skilled technicians. Its robust construction and dependable performance make it an excellent long-term investment for demanding industrial environments.
The machine supports both MMA (Stick) welding and Scratch Start TIG welding, making it suitable for a wide range of maintenance and fabrication applications.
Yes. The DECA I-ARC 320 LAB EVO is specifically designed to operate efficiently with compatible generators, making it ideal for outdoor and remote job sites.
It can weld mild steel, stainless steel, cast iron, and other compatible ferrous materials using suitable electrodes.
Inverter technology provides stable arc performance, better energy efficiency, reduced machine weight, smoother welding, and improved portability compared to conventional welders.
Hot Start improves arc ignition, Arc Force stabilizes the welding arc and prevents sticking during welding, while Anti-Stick reduces welding current if the electrode sticks, making removal easier.
Yes. Its professional-grade inverter technology, durable construction, and reliable performance make it ideal for industrial, commercial, and workshop applications.
