BRAND : DECA
ITEM NO.: 330700
ORIGIN : ITALY
PROCESS : CHARGE
TECHNOLOGY : INVERTER
MAINS VOLTAGE 50/60 HZ : 1 X 230 / 115V AUTOSETTING
MAXIMUM POWER ABSORBED : 2,1 / 1,1 KW
NOMINAL BATTERY VOLTAGE : 12 VOLT
BATTERY CAPACITY, MIN – MAX : 20 ÷ 2400 AH / 20 ÷ 1200 AH
AUTOMOTIVE BATTERY TYPES : PB: WET, MF, EFB, AGM, GEL, CACA, START&STOP, LIFEPO4, TRACTION
AVERAGE CHARGING CURRENT : (230V) 2 > 120 AMP / (115V) 2 > 60 AMP
CHARGING PROGRAMS : WET – AGM – GEL – RECOVERY – DESULPHATION – CUSTOM: LIFEPO4 – TRACTION
MULTISTAGE CHARGE : 9
END-OF-CHARGE : FLOAT / PULSE
CHARGING VOLTAGE : 13,0 > 15,0 VOLT
DESULPHATION VOLTAGE LIMIT : 13,0 > 15,8 VOLT
SAFE CHARGE OVERVOLTAGE LIMIT. DIN 40839 : YES
POWER SUPPLY FOR THE DIAGNOSTIC : (230V) 120A @100% / (115V) 60A @100% – 13 > 15 VOLT
POWER SUPPLY FOR BATTERY CHANGE : 13 VOLT
POWER SUPPLY FOR SHOW ROOM : (230V) 120A @100% / (115V) 60A @100% – 12 > 15 VOLT
POWER SUPPLY : (230V) 1 > 120A @100% / (115V) 1 > 60A @100% – 6 > 16 VOLT
WEIGHT APPROX : 5.25 KG
DIMENSIONS L X W X H MM : L 351 X W 352 X H 103 MM
CHARACTERISTICS :
DISPLAY LCD : YES
POLARITY INVERSION WARNING : YES
OUTPUT CONNECTIONS : DX 25 MMQ
SERIAL PORT COM 1 FOR PRINTER : YES
SD CARD READER : YES
REVERSE POLARITY / SHORT CIRCUIT PROTECTION : YES
THERMOSTATIC PROTECTION : YES
CABLES LENGTH : 2 – 8M
HIGH EFFICIENCY : YES
FUNCTIONS :
Battery diagnostics during charge : YES
Battery desulphation : YES
Recovery/Equalization : YES
Automatic restart after power failure : YES
Batteries charge maintainer : YES
Power supply : YES
Showroom power supply : YES
Battery support during diagnostic : YES
Battery change mode : YES
Customizable menu : YES
Language selection : YES
Cable length calibration : 2 > 8m
MASTERBOX INFORMATION :
PACKAGE DIMENSION : L 440 X W 165 X H 490 MM
PACKAGE WEIGHT : 7.83 KG
PIECES PER PALLET : 33
SD 120 INVERTER STABILIZED POWER SUPPLY UNIT CONTROLLED BY MICROPROCESSOR WITH UP TO 120 AMP OUTPUT ON CONTINUOUS DUTY. MUST HAVE PRODUCT FOR EVERYDAY PROFESSIONAL WORKSHOP USE.
THE PERFECT CHOICE FOR:
BATTERY SUPPORT: IT SUSTAINS AUTOMOTIVE BATTERIES DURING DIAGNOSTIC AND FLASHING CONTROL UNITS WITH CONSTANT CHARGING VOLTAGE WITHOUT ANY PEAKS.
ADVANCED BATTERY CHARGER: SUITABLE FOR MOST MODERN LEAD BATTERIES: WET, AGM, AGM POWER, GEL, START&STOP AND LFP (LIFEPO4), TRACTION BATTERIES. “I-U0” CHARGING CHARACTERISTIC WITH FLOATING MAINTENANCE. CUSTOMIZABLE MULTI STEP CHARGING PROGRAM. BATTERY EQUALIZATION AND DESULPHATION FUNCTIONS.
SHOWROOM MODE: IT MAINTAINS BATTERIES IN SHOWROOM VEHICLES, WITH “LOCKUP” FUNCTION TO AVOID IMPROPER USE AND AUTOMATIC START UP.
BATTERY CHANGE MODE: IL MAINTAINS AN ELECTRICAL POWER SUPPLY TO PRESERVE THE VEHICLE’S MEMORY SETTINGS.
MULTIPURPOSE POWER SUPPLY: BOTH VOLTAGE AND CURRENT CAN BE ADJUSTED.
SD 120 CONCENTRATES THE MOST MODERN TECHNOLOGY:
EASY TO USE: YOU CAN CHOOSE WHICH FUNCTION TO KEEP CLOSE AT HAND. THE MENUS ARE MULTI-LANGUAGE.
HIGH EFFICIENCY THANKS TO PFC TECHNOLOGY.
AUTOMATIC FAN COOLING SYSTEM. IT ENSURES LONG SERVICE SD AND BEST PERFORMANCE OF THE ELECTRONIC DEVICE.
LENGTH CABLE CALIBRATION: YOU CAN CONNECT CABLES OF DIFFERENT LENGTH (UP TO 8M).
HEAVY DUTY CABLE CONNECTORS.
AUTOMATIC RESTART.
SD-CARD READER: TO UPDATE THE SOFTWARE ADDING NEW CHARGING PROGRAMS.
SERIAL PORT COM1 TO CONNECT A PRINTER.
STANDARD EQUIPMENT: 2M CABLE WITH FULLY INSULATED CLAMPS.
| Item Code | DECA330700 |
|---|---|
| Barcode | 111100015052 |
| Brand | DECA |

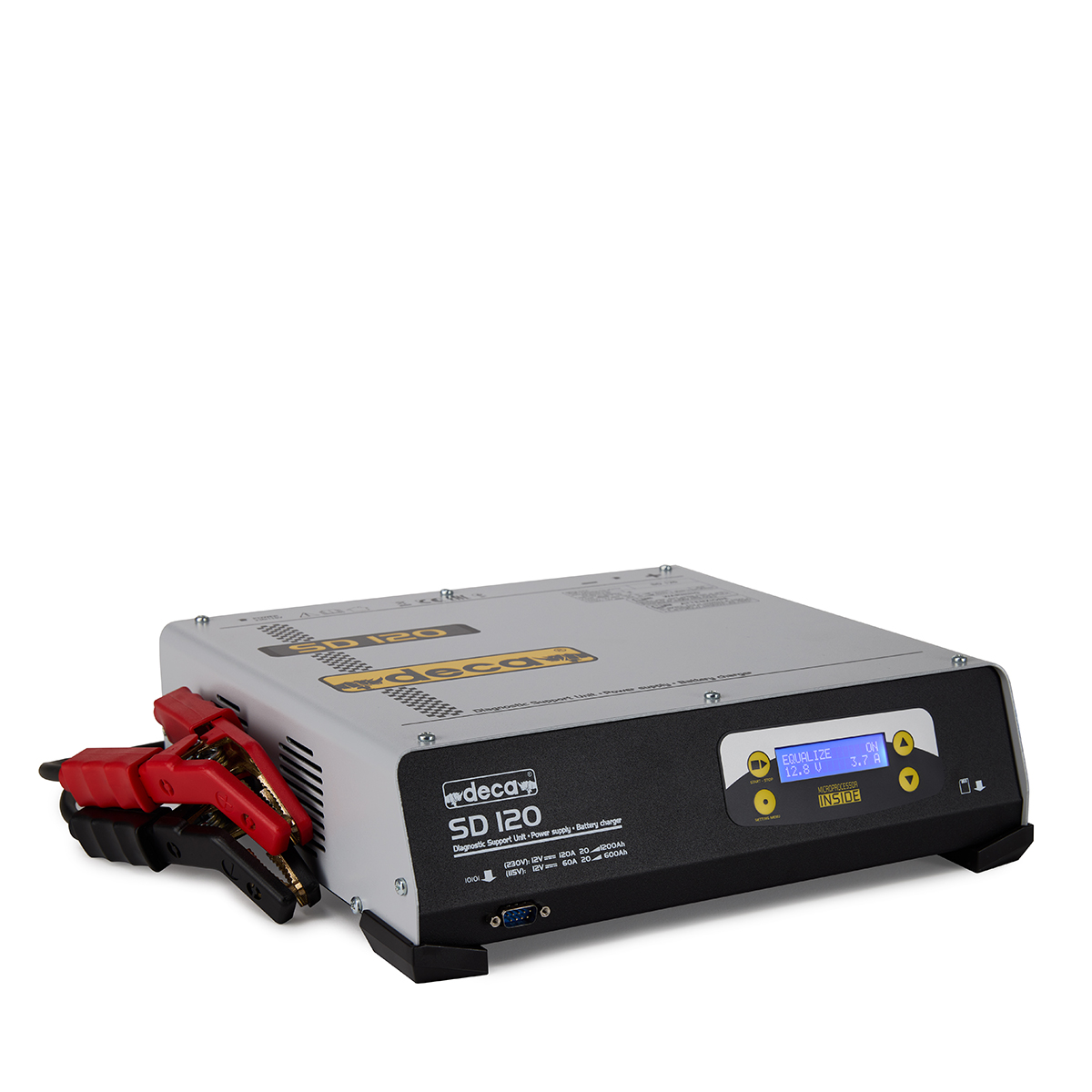

The DECA SD120 is a professional Italian-made inverter battery charger, battery booster and stabilised power supply designed for modern automotive workshops, dealerships and service centres. Delivering up to 120A continuous output, it supports charging, maintaining and powering a wide range of 12V batteries, including WET, MF, EFB, AGM, AGM Power, GEL, Ca/Ca, Start-Stop, LiFePO4 (LFP) and Traction batteries.
Powered by an advanced microprocessor with intelligent multi-stage charging technology, the SD120 provides safe, efficient battery charging while also serving as a stable power supply during vehicle diagnostics, ECU programming, battery replacement and showroom display. Its professional-grade features, multilingual interface and software update capability make it an essential tool for modern automotive service professionals.
The DECA SD120 is designed to provide intelligent battery charging, battery maintenance, battery recovery and stabilised DC power for modern vehicles. It protects vehicle electronics during diagnostics and battery replacement while ensuring batteries remain fully charged, healthy and ready for reliable operation.
The DECA SD120 supports WET, MF, EFB, AGM, AGM Power, GEL, Ca/Ca, Start-Stop, LiFePO4 (LFP) and Traction batteries, making it suitable for most modern 12V automotive battery technologies.
Yes. Its Battery Support mode delivers a stable voltage supply, protecting sensitive electronic systems during diagnostics, ECU programming and software updates.
Yes. The built-in desulphation and equalisation functions help improve the condition and performance of suitable lead-acid batteries while extending their service life.
Battery Change mode maintains continuous electrical power while replacing a vehicle battery, helping preserve radio settings, ECU memory and other electronic configurations.
The SD120 is widely used in automotive workshops, dealerships, fleet maintenance facilities, battery service centres, diagnostic workshops and professional garages where intelligent charging and stable power supply are essential.
