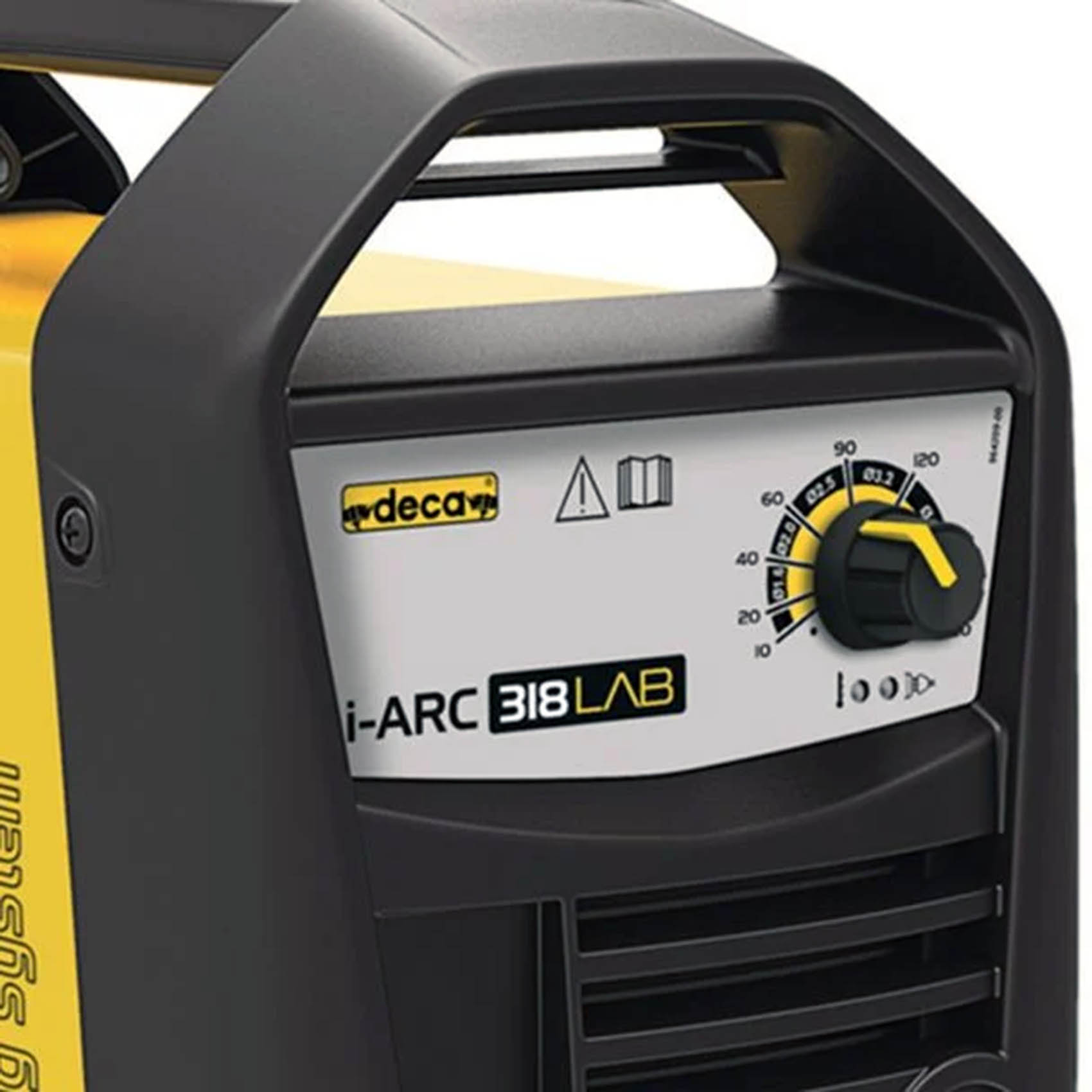

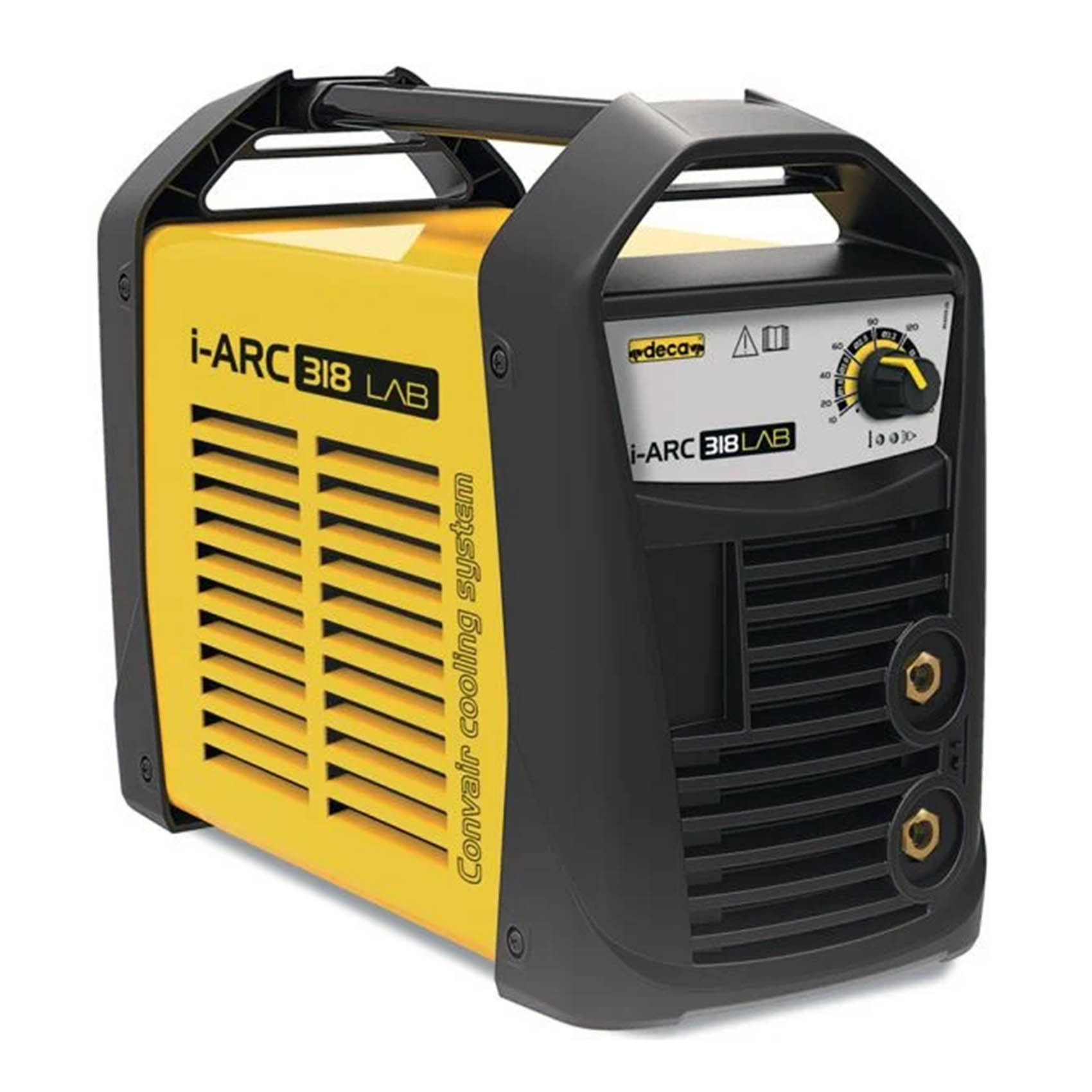

DECA 230V DC WELDING MACHINE I-ARC 318 LAB 285880 | 10 - 180A | 1PH -50/60HZ | 3.3/5.4 KW | MAINTENANCE, LIGHT AND HEAVY METAL WORKING, CONSTRUCTION SITE | MADE IN ITALY

BRAND : DECA

ITEM NO.: 285880

ORIGIN : ITALY

MODEL : I-ARC 318 LAB MMA DC

INPUT VOLTAGE : 1 PH - 230V 50/60 HZ

WELDING CURRENT RANGE : 10 - 180A

DECA USE 20°C : 180A - 67%, 160A - 80%

DUTY CYCLE 40°C EN 60974-1 : 180A - 20%, 130A - 60%

OPEN CIRCUIT VOLTAGE : 92V

ABSORBED POWER : 60% / MAX : 3.3 / 5.4 KW

FUSE : 25A

GENERATOR : +/- 30% (7 KW)

ELECTRODES : RUTILE 1,6 - 4,0 Ø MM - BASIC 2,0 - 4.0 Ø MM - TIG 1,0 - 4.0 Ø MM

OUTPUT CONNECTION : DX 25 MMQ

THERMOSTATIC PROTECTION : ●

HOT START : ●

ANTI-STICKING : ●

ARC FORCE : ●

TIG : SCRATCH

FAN COOLED : CONVAIR COOLING SYSTEM

DIMENSIONS : 365 X 160 X 273 MM

WEIGHT ~ 5.3 KG

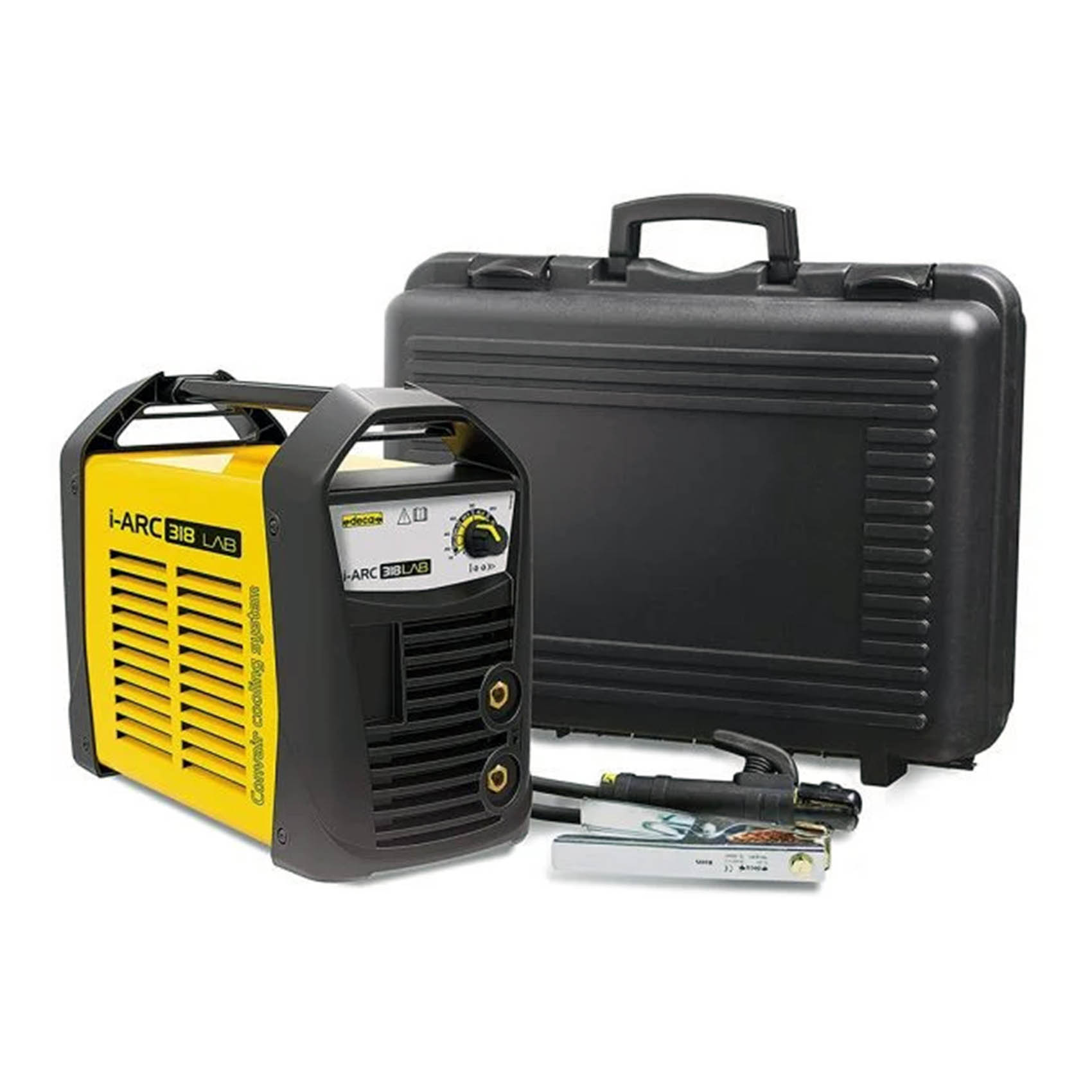

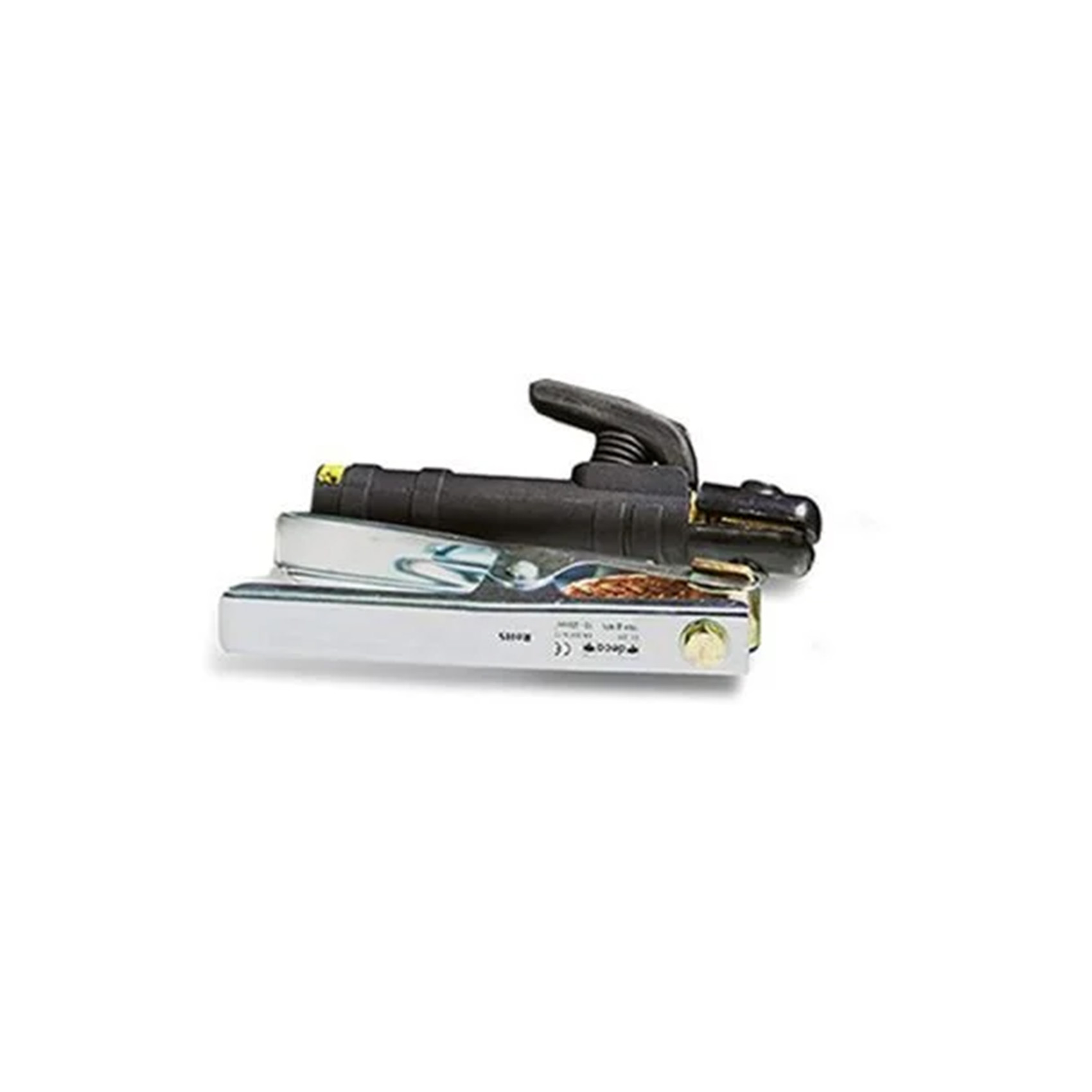

SUPPLIED ACCESSORIES :

010303 : 25 MM² 2,3 M

010311 : 25 MM² 1,7 M

. TOUGH HOUSING

. COMPACT AND HANDY

. RUTILE, BASIC ELECTRODES AND TIG

. SPECIALE GENERATORE

. GENERATOR USE

I-ARC 3 REPRESENTS THE TOP OF THE RANGE OF SINGLE-PHASE WELDING MACHINES FOR COATED ELECTRODES. THEY MEET ALL PROFESSIONAL AND SPECIALIST WELDING NEEDS AND THEY ARE GUARANTEED BY THE LAB EXCELLENCE BRAND.
