BRAND : DECA
ITEM NO.: 247500
ORIGIN : ITALY
PROCESS : MULTIPROCESS
TECHNOLOGY : INVERTER
MAINS VOLTAGE 50/60 HZ : 1 X 230V ± 30%
ABSORBED POWER 60% – MAX : 2.8 – 4.5 KW
FUSE : 16A
EFFICIENCY : > 80%
WELDING PERFORMANCE :
MIG CURRENT RATE : 10 – 200A
MIG DUTY CYCLE MAX CURRENT (40°) : 180A @ 25%
MIG DUTY CYCLE 60% (40°) : 100A
MMA CURRENT RATE : 10 – 160A
MMA DUTY CYCLE MAX CURRENT (40°) : 150A @ 25%
MMA DUTY CYCLE 60% (40°) : 100A
TIG CURRENT RATE : 10 – 200A
TIG DUTY CYCLE MAX CURRENT (40°) : 180A @ 25%
TIG DUTY CYCLE 60% (40°) : 100A
OPEN CIRCUIT VOLTAGE : 96V
WELDING WIRES / ELECTRODES :
WIRE STEEL : 0.6 – 0.8 – 0.9 -1.0 Ø MM
WIRE INOX : 0.8 – 1.0 Ø MM
WIRE ALMG 5 : 0.8 – 1.0 – 1.2 Ø MM
WIRE ALSI 5 : 0.8 – 1.0 – 1.2 Ø MM
WIRE CUSI 3 : 0.8 – 1.0 Ø MM
WIRE CUAL 8 : 0.8 – 1.0 Ø MM
WIRE FLUX CORED (STEEL) : 0.8 – 0.9 – 1.0 -1.2 Ø MM
RUTILE ELECTRODE : 1.6 – 4.0 Ø MM
BASIC ELECTRODE : 2.0 – 4.0 Ø MM
WITH WHEELS :
WIRE SPOOLS : 200/300
DISPLAY : YES
WIRE FEEDER : 2 X D.30 MM
REVERSED POLARITY FOR FLUX WIRES : YES
EURO TORCH CONNECTOR : YES
SELENOID VALVE : 1
OUTPUT CONNECTIONS : DX 25 MMQ
SD CARD READER : YES
GAS BOTTLE TROLLEY : H 110 CM MAX
FAN COOLING : YES
THERMOSTATIC PROTECTION : YES
FUNCTIONS :
WELDING AMP / VOLT : YES
STANDARD PACKAGE OF WELDING PROGRAMS : YES
SYNERGIC WELDING : YES
ADJUSTABLE HOT START : YES
ELECTRONIC INDUCTANCE : YES
BURN BACK : YES
MMA HOT START : YES
ADJUSTABLE ARC FORCE : YES
ANTI-STICKING : YES
TIG LIFT : YES
ANTI-STICKING : YES
ADJUSTABLE DOWNSLOPE : YES
WEIGHT AND DIMENTION :
WEIGHT APPROX : 29 KG
DIMENSIONS L X W X H MM : L 777 X W 407 X H 792 MM
MASTERBOX DETAILS :
PACKAGE DIMENSION: L X W X H MM : L 800 X W 300 X H 650 MM
PACKAGE WEIGHT : 33.50 KG
PIECES PER PALLET : 8

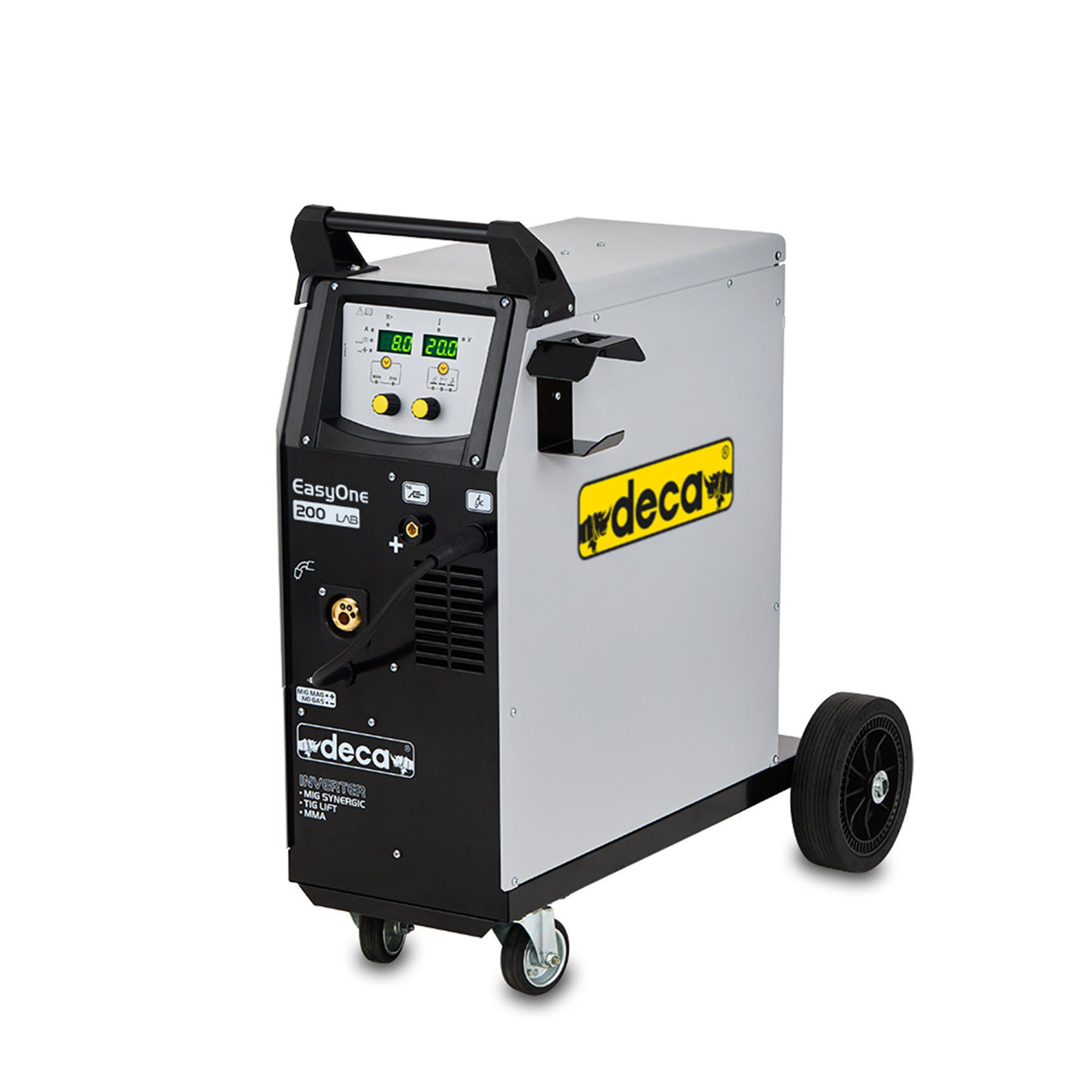

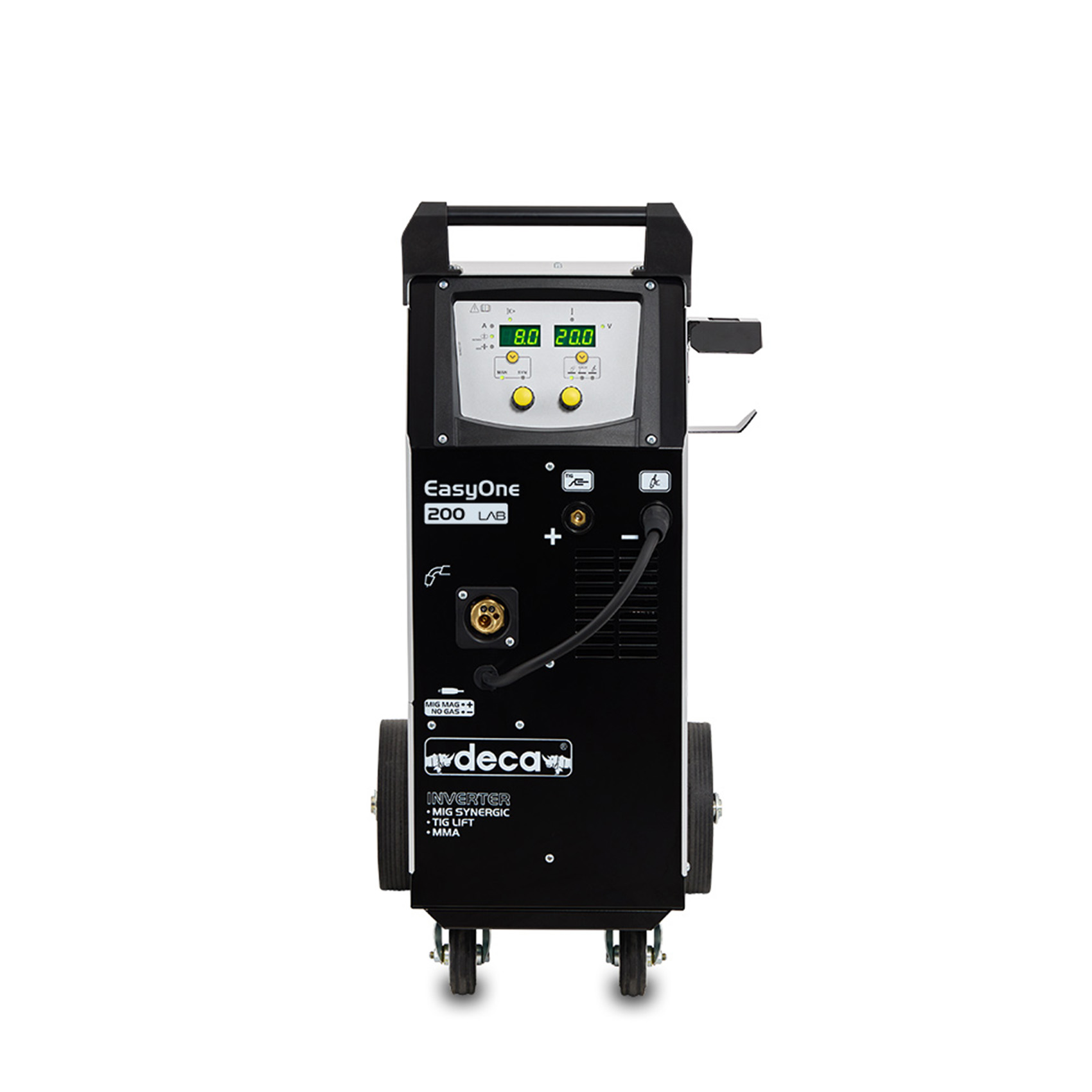

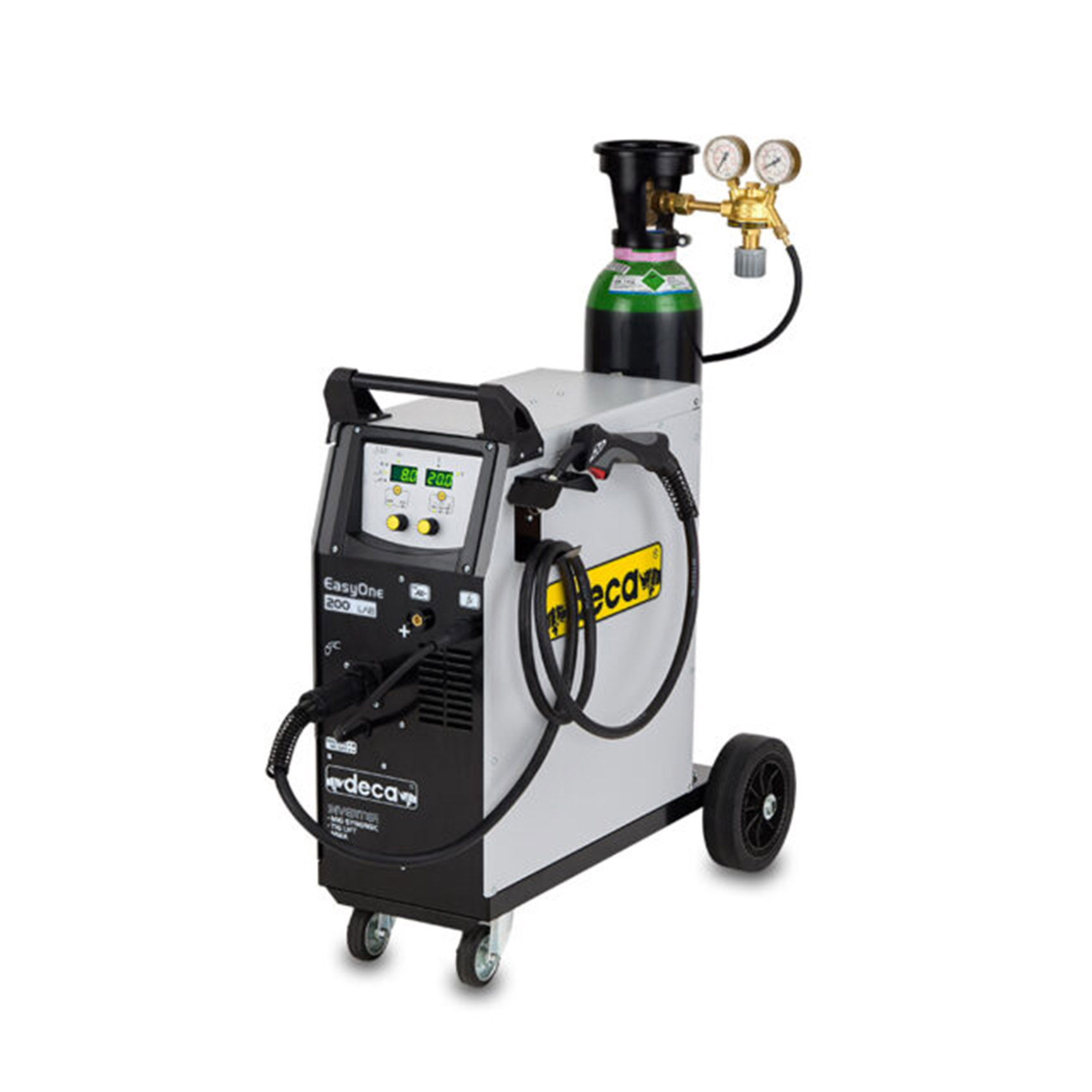

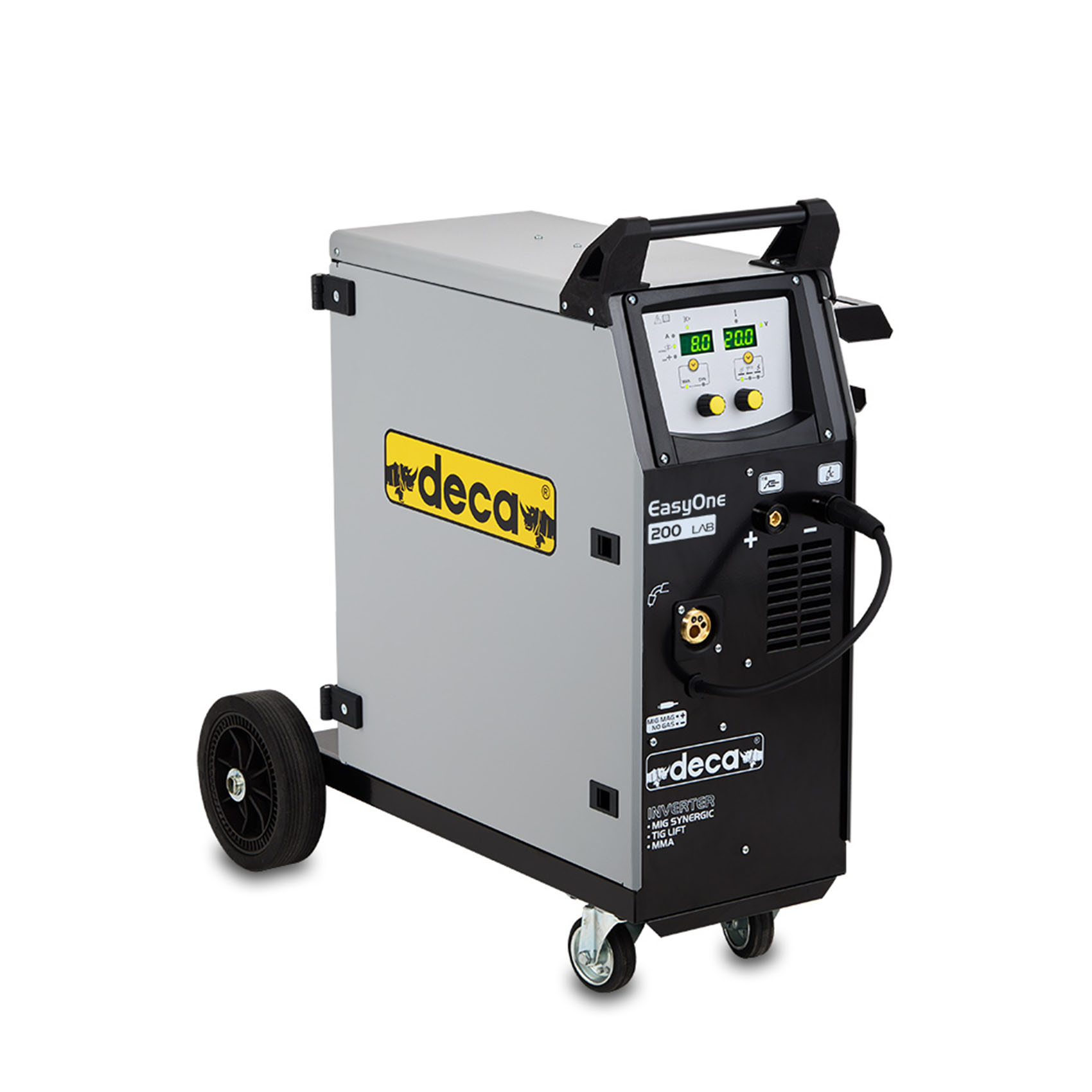

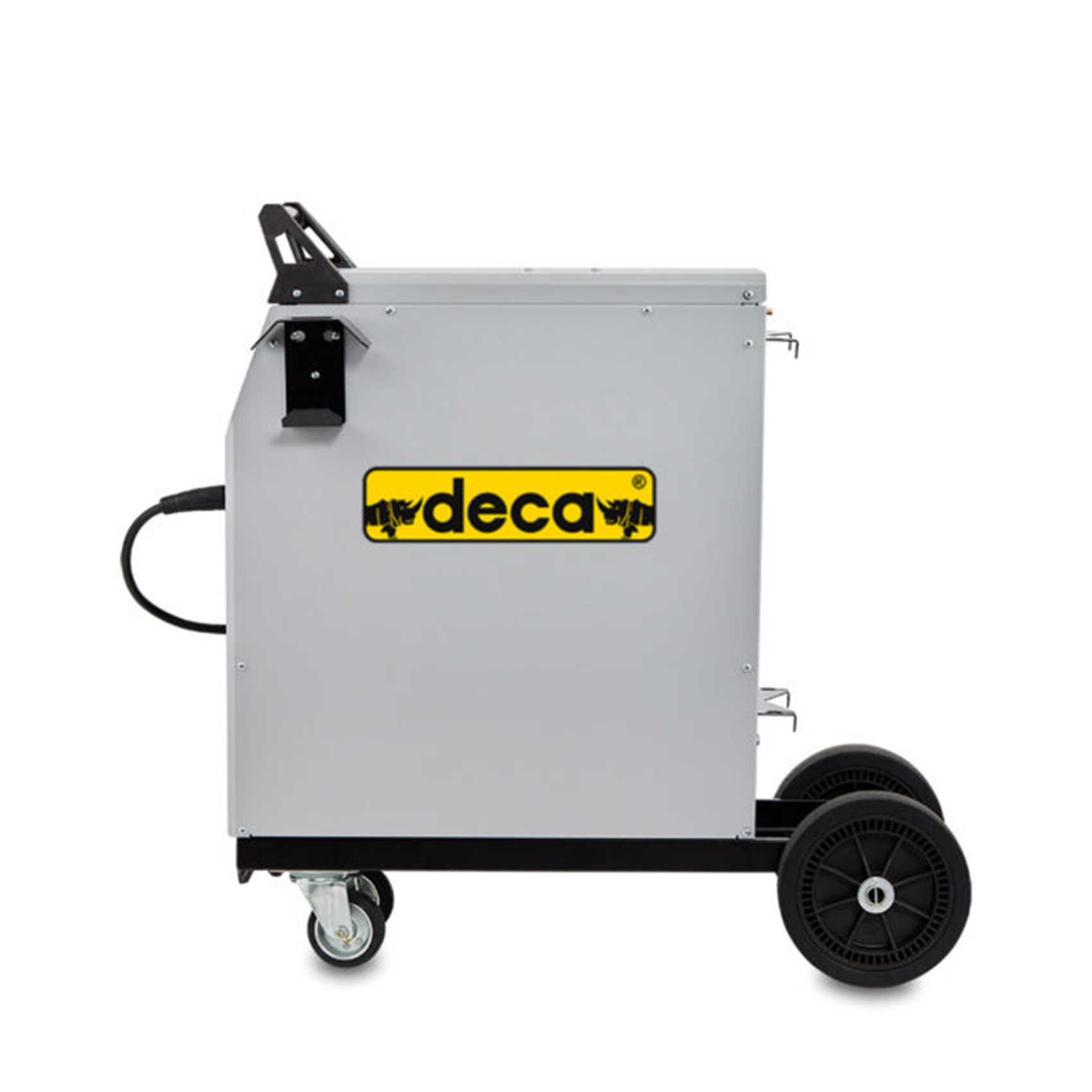

EASY ONE 200 LAB IS THE IDEAL MULTIPROCESS WELDING MACHINE FOR AUTOMOTIVE REPAIR ACTIVITIES IN SMALL WORKSHOPS OR BODY SHOPS.
THE MACHINE IS EASY TO ADJUST AND ALWAYS READY TO WELD WHEN NEEDED.
THE 2025 VERSION FEATURES A REDESIGNED CASING FOR GREATER CONVENIENCE WHEN CHANGING THE SPOOL WHILE ALSO REINFORCING THE BODY.
IN SYNERGIC MIG/MAG MODE, THE EASY ONE 200 LAB IS PERFECT FOR WELDING MILD STEEL, STAINLESS STEEL, ALUMINUM, AND FOR USING BRAZING WIRES. ITS INTUITIVE INTERFACE MAKES WELDING OPERATIONS EXTREMELY SIMPLE AND QUICK. JUST SELECT THE APPROPRIATE SYNERGIC PROGRAM FOR THE TASK AT HAND (WIRE DIAMETER AND MATERIAL, SHIELDING GAS), AND THE MACHINE AUTOMATICALLY SETS THE OPTIMAL WELDING CONDITIONS. THE OPERATOR ONLY NEEDS TO ADJUST THE THICKNESS OF THE MATERIAL.
THIS MODEL DELIVERS 200 AMPS IN DIRECT CURRENT (DC) AND OPERATES ON A SINGLE-PHASE VOLTAGE OF 230 VOLTS.
WELDING: MIG/MAG, FLUX, MMA, AND TIG LIFT.

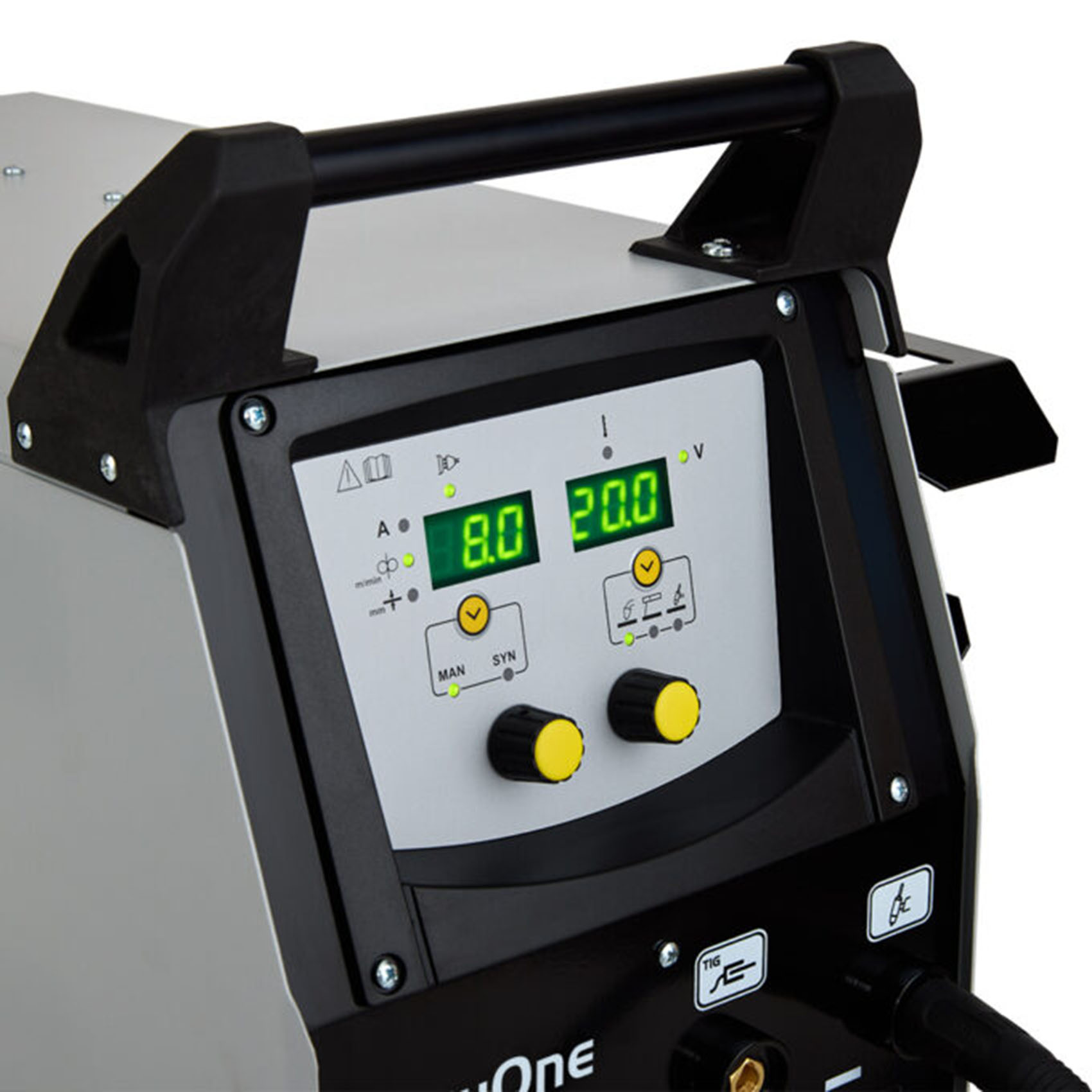

EXTREMELY SIMPLE CONTROL PANEL FOR USE IN SYNERGIC OR MANUAL MODE.
SYNERGIC MIG WELDING: ALL MAIN WELDING PARAMETERS ARE INTERCONNECTED AND OPERATE IN SYNERGY.
BRAZING TO JOIN THIN OR COATED STEELS WHILE PRESERVING THE INTEGRITY OF GALVANIZED AND HIGH-STRENGTH STEELS (AHSS).
2-ROLL WIRE FEEDER FOR PERFECT WIRE DELIVERY.
POLARITY INVERSION FOR WELDING WITH CORED WIRES.
STANDARD PROGRAM PACKAGE FOR OVER 20 TYPES OF MATERIALS, DIAMETERS, AND GASES (STEEL, ALSI, ALMG, CUSI3, CUAL8, CRNI).
SOFTWARE UPDATE VIA SD-CARD.
CONVENIENT TOOL COMPARTMENT, SEPARATE FROM THE WIRE SPOOL HOUSING.
STANDARD EQUIPMENT: DE M15A TORCH – 180A 3M (010583) (NOZZLE Ø 0.8MM), ROLLERS (Ø 0.6 / 0.8MM FE), 16MM² CABLE WITH GROUND CLAMP (2.7M), GAS HOSE (1.5M).
| Item Code | DECA247500 |
|---|---|
| Barcode | 8011399001969 |
| Brand | DECA |
The DECA EASY ONE 200 LAB is a professional Italian-made multiprocess inverter welding machine developed for automotive repair, fabrication workshops, maintenance professionals and industrial applications. Designed for MIG/MAG, Flux-Cored, Lift TIG and MMA welding, it delivers outstanding welding performance on mild steel, stainless steel, aluminium and brazing wires with an intuitive synergic control system that makes welding faster, easier and more precise.
Ideal for small workshops and body shops, the EASY ONE 200 LAB automatically optimises welding parameters through its advanced synergic technology. Simply select the material, wire diameter and shielding gas, then adjust the material thickness while the machine automatically configures the optimal welding settings for consistent, high-quality welds.
The DECA EASY ONE 200 LAB is designed to provide an all-in-one welding solution for professional users who require versatile welding capabilities across multiple materials. It simplifies welding operations through intelligent synergic controls while delivering excellent weld quality for fabrication, maintenance, automotive repairs and light industrial manufacturing.
The machine supports MIG/MAG, Flux-Cored, Lift TIG and MMA welding, making it suitable for a wide variety of professional welding applications.
Yes. The EASY ONE 200 LAB is designed to weld mild steel, stainless steel, aluminium and brazing wires using dedicated synergic welding programs.
Synergic welding automatically adjusts the main welding parameters based on the selected material, wire diameter and shielding gas, making setup faster while delivering consistent welding quality.
Yes. It has been specifically developed for automotive repair workshops and body shops, including brazing applications for galvanised and advanced high-strength steels.
It is ideal for professional welders, fabrication workshops, automotive technicians, maintenance engineers, contractors and businesses requiring a reliable multiprocess welding machine.
