DECA WELDING MACHINE 8011399035162
Hover to zoom
DECA

WELDING MACHINE

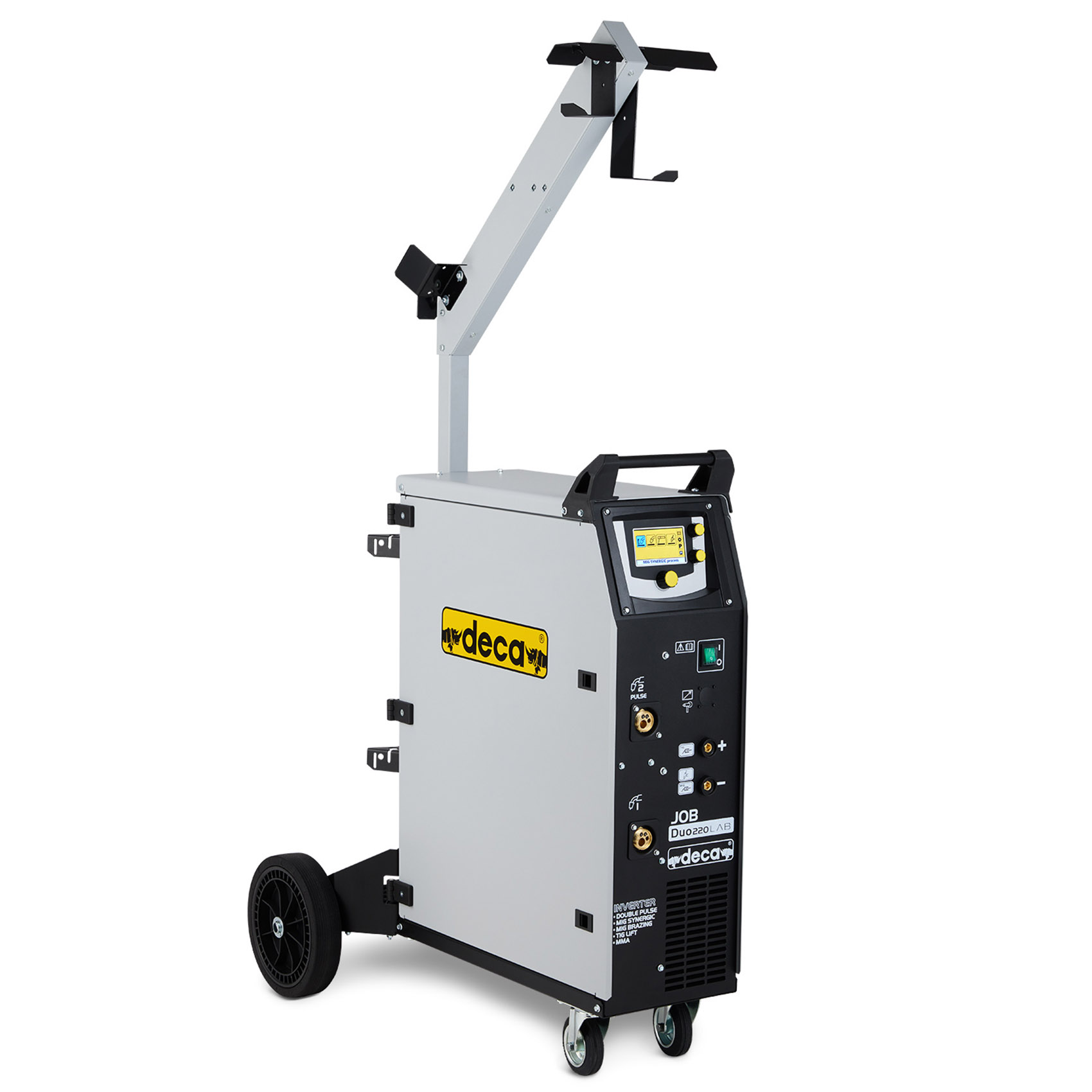

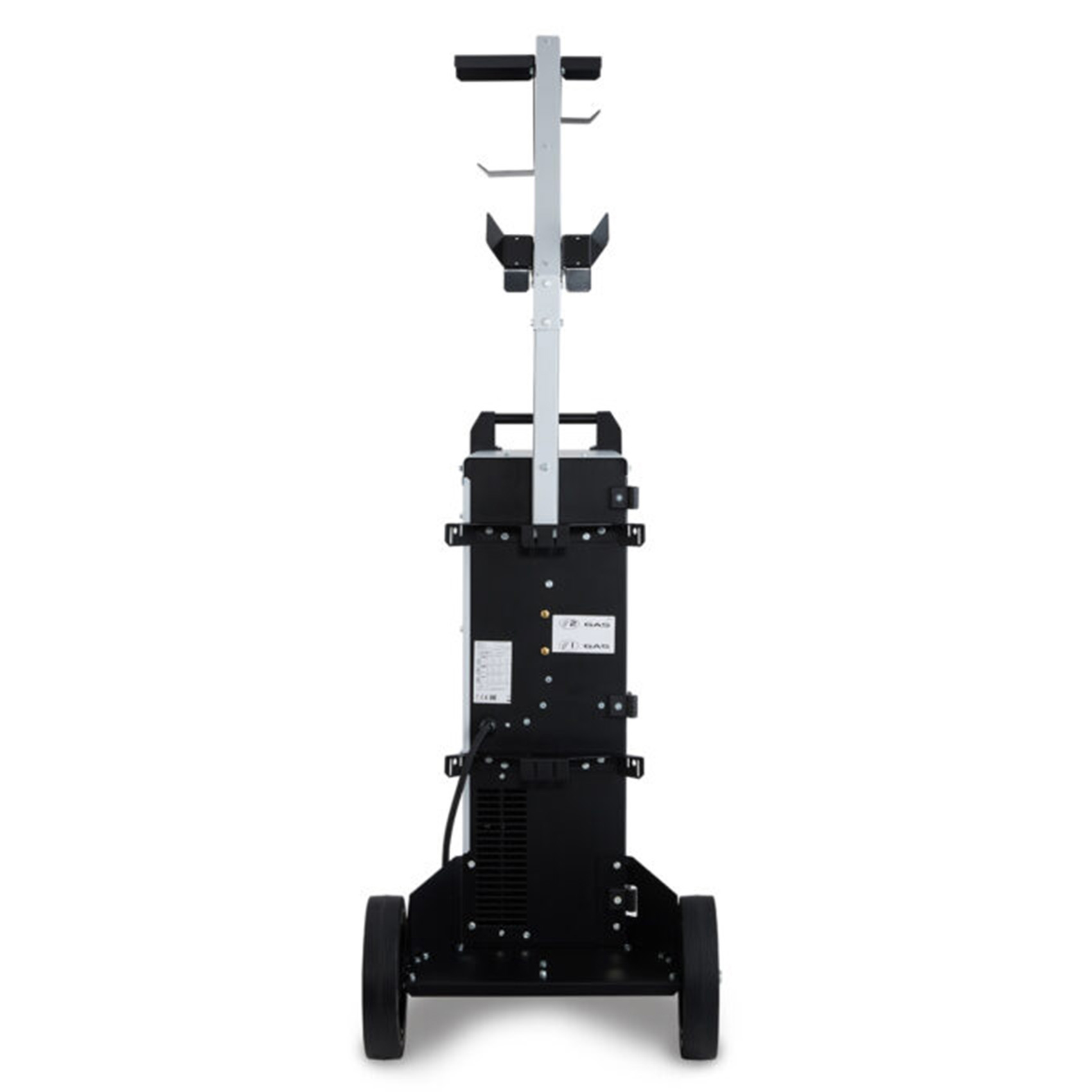

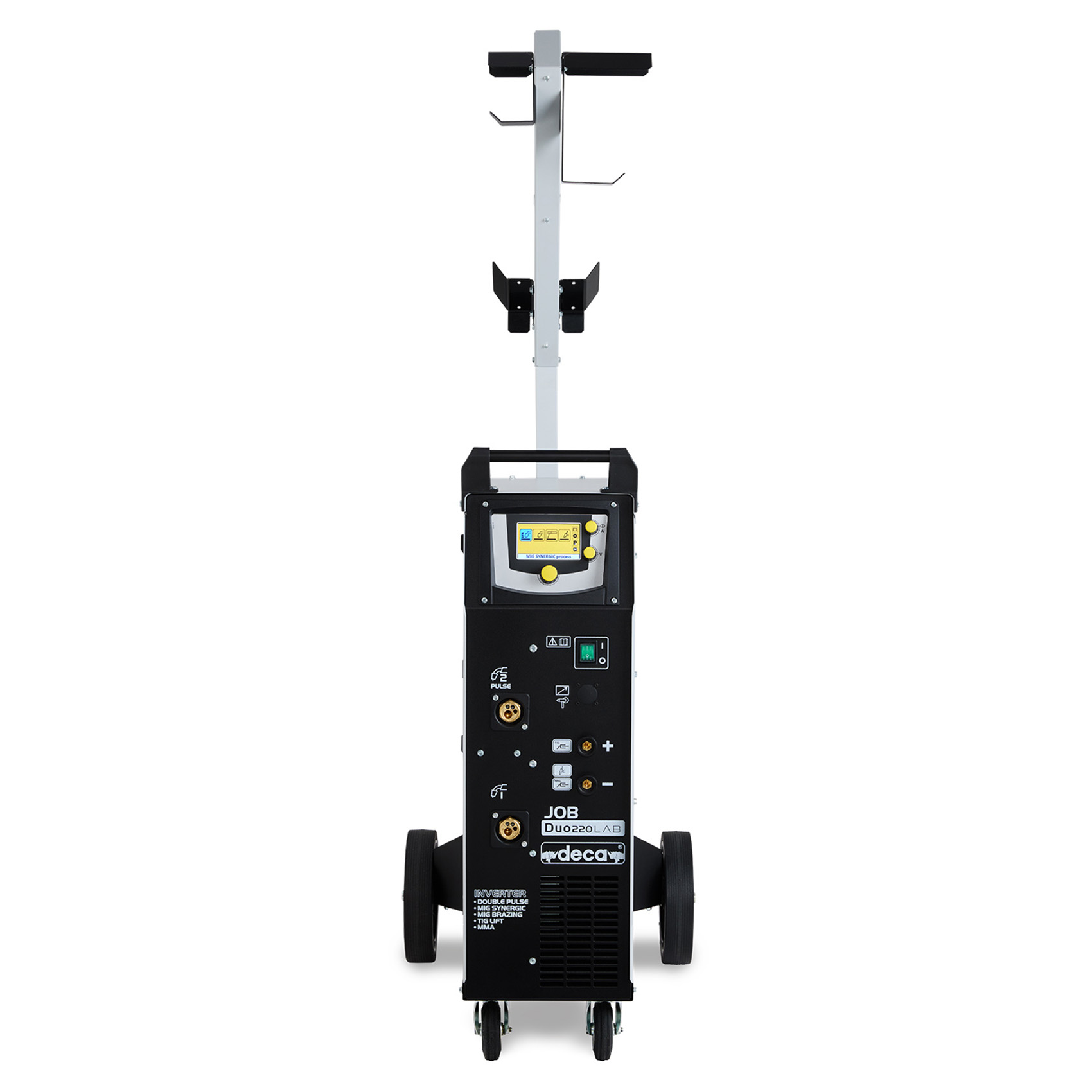

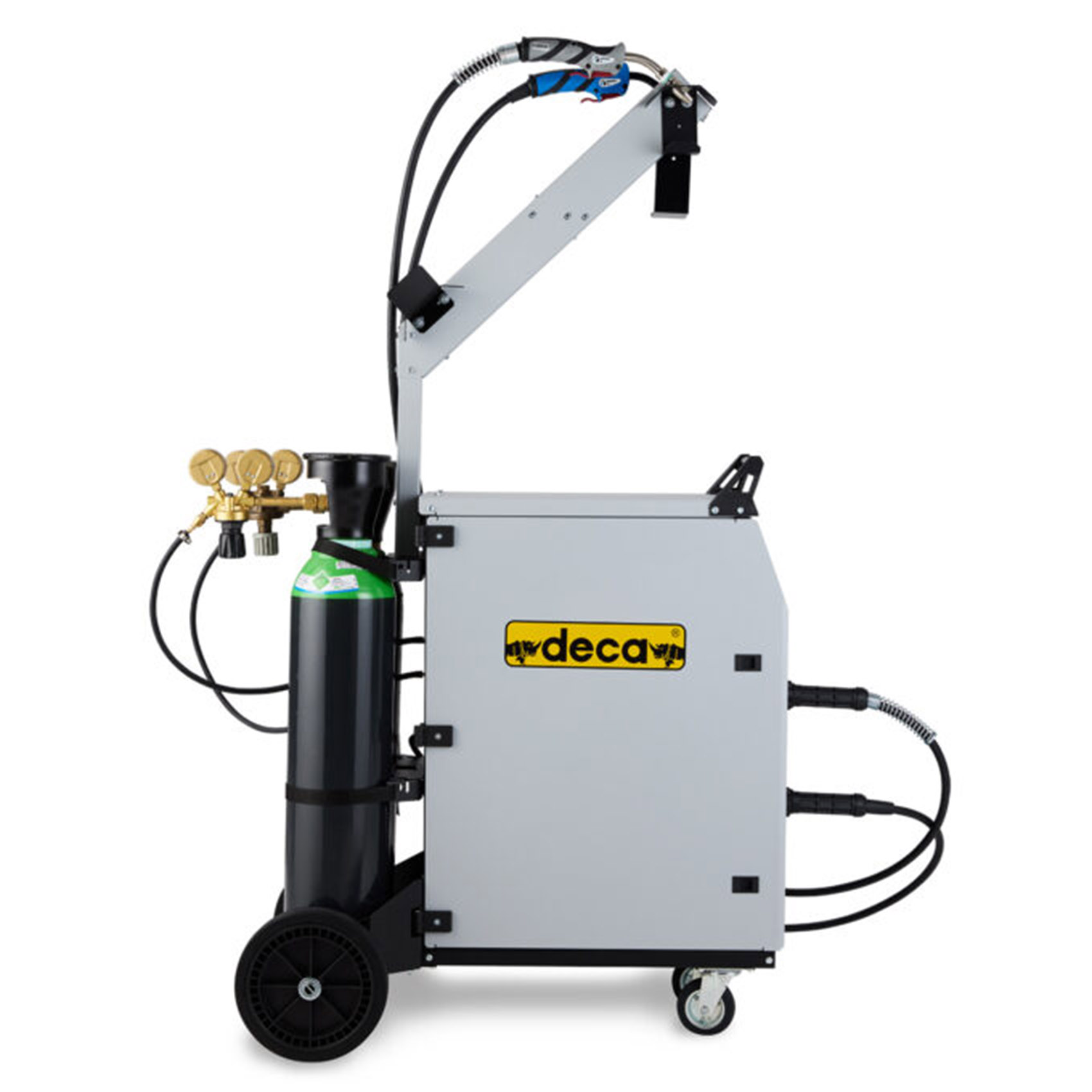

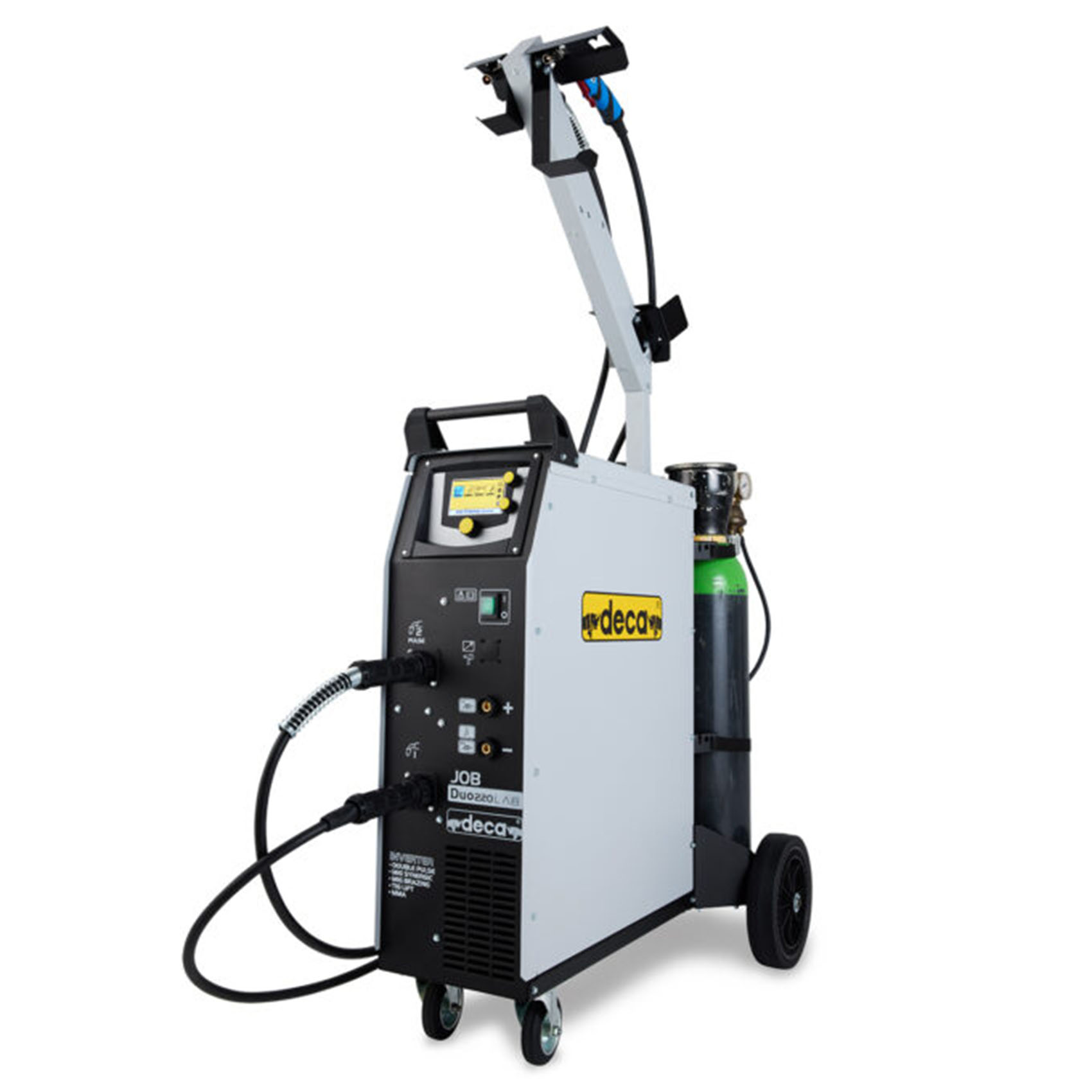

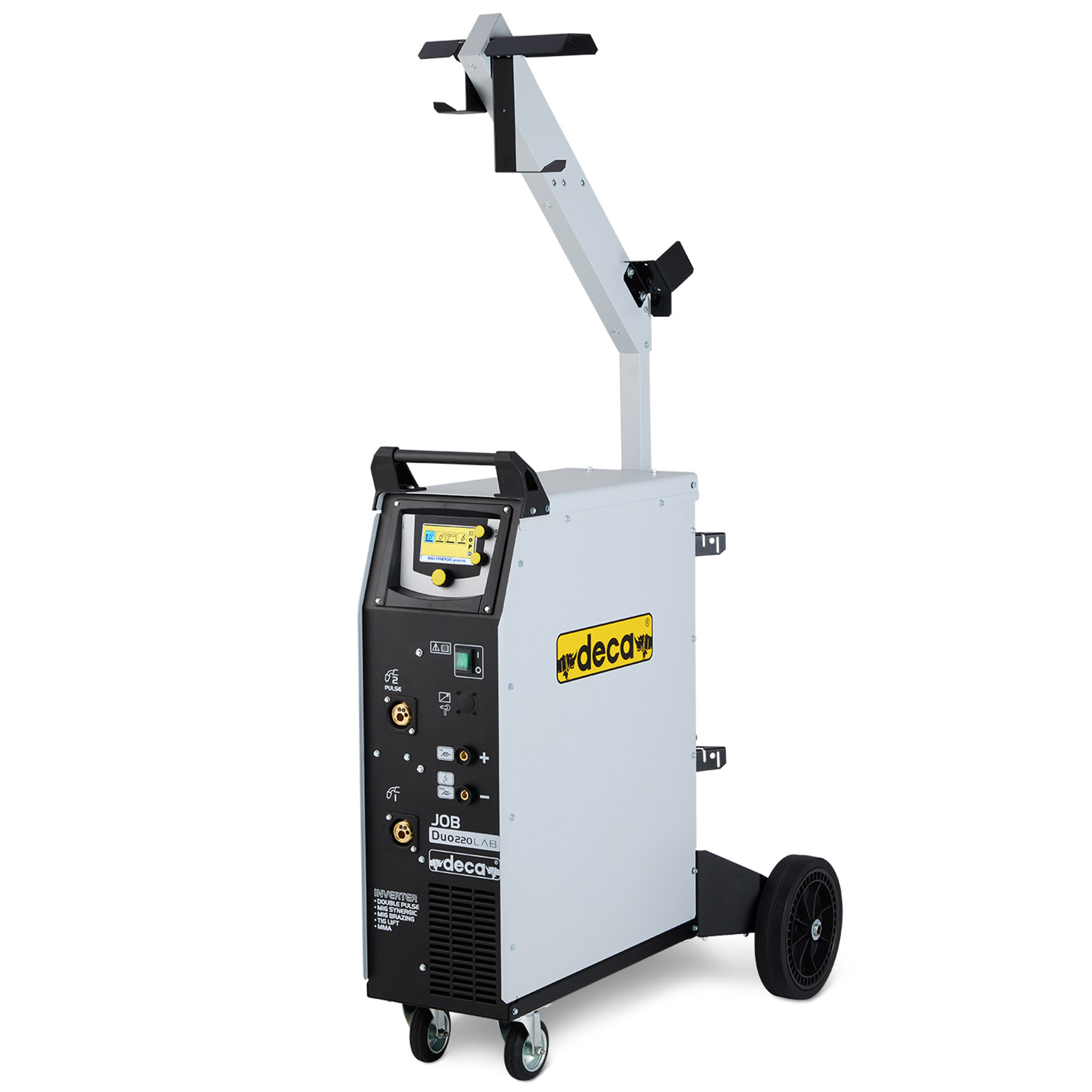

DECA 230V MULTIPROCESS WELDING MACHINE 250900 EJOB DUO 220 LAB | MIG/TIG 10 - 220A, MMA 10 - 160A | 1PHX50/60HZ | MIG PULSE AND DOUBLE PULSE | MULTICOLOR GRAPHIC DISPLAY | SD CARD READER | MADE IN ITALY

SKU: DECA250900 Barcode: 8011399035162 Category: WELDING & CUTTING MACHINES
AED 12,500.00
In Stock
6 MONTHS
Free Delivery
MADE IN ITALY
15 Days Return
Cash on Delivery
Expected Delivery: 29-07-2026
Max: 12
Deca

Description

BRAND : DECA

ITEM NO.: 250900

ORIGIN : ITALY

INPUT VOLTAGE: 50/60HZ : 1 ~ 230V +/- 30%

ABSORBED POWER: 60% / MAX : 3.3 / 6.3 KW

FUSE : 25A

GENERATOR MIN.: 9KW

EFFICENCY : > 80%

WELDING CURRENT : MIG/TIG 10 - 220A, MMA 10 - 160A

DUTY CYCLE (40°C EN 60974-1) : MIG/TIG 220A - 20%, MMA 160A - MIG/TIG 30% _ 140A - 60%, MMA 130A - 60%

OPEN CIRCUIT VOLTAGE : 88V

WIRES :

STEEL SG2 SG3 : 0.6 - 0.8 - 1.0 Ø MM

INOX AISI ER308 / ER316 / ER309 : 0.8 - 1.0 Ø MM

AL.MG 5 : 0.8 - 1.0 - 1.2 Ø MM

AL.SI 5 : 1.0 - 1.2 Ø MM

CU.SI 3 / CU.AL 8 : 0.8 - 1.0 - 1.2 Ø MM

WIRE SPOOL :  200 - 300 X 2 Ø MM

ELECTRODES : 1.6 - 4.0 Ø MM


SUPPLIED ACCESSORIES :

230A - 3M: (UGELLO/TIP 1,0MM) + AL 1,0 / 1,2MM

180A - 3M: (UGELLO/TIP 0,8MM) + FE 0,6 / 0,8MM

16 MMQ - 2.7M; + GAS 3M


WEIGHT AND DIMENTION :

DIMENSIONS : 860 X 560 X 1000 MM

WEIGHT : 48.5 KG


FEATURES :

. MULTICOLOR GRAPHIC DISPLAY.

. SD CARD READER.

. 4 ROLLS WIRE FEEDER.


MIG FEATURES :

. PROGRAM RECALL BY TORCH TRIGGER.

. SYNERGIC WELDING.

. MIG PULSE AND DOUBLE PULSE.

. USER JOBS SAVING.

. ADJUSTABLE PRE GAS, POST GAS.

. WIRE APPROACH SPEED.

. ADJUSTABLE HOT START.

. ADJUSTABLE ELECTRONIC INDUCTANCE.

. ADJUSTABLE BURN BACK.

. TORCH TRIGGER MODE: 2/4T / SPOT / STITCH.

. WIRE LOADING.

. GAS TEST.


MMA FEATURES :

. ADJUSTABLE HOT START, ARC FORCE.

. ANTI-STICKING.


TIG FEATURES :

. TIG WITH LIFT ARC STRIKING (TORCH WITH GAS VALVE).

. ANTI-STICKING.

. ADJUSTABLE SLOPE DOWN. ARRANGED FOR :

. POTENTIOMETER TORCH.

. SPOOL GUN.

Related Products

View All

No related products found.

Specifications

Item Code DECA250900
Barcode 8011399035162
Brand DECA

About Product

DECA EJOB DUO 220 LAB Multiprocess Welding Machine – Professional MIG, TIG & MMA Welding Solution

The DECA EJOB DUO 220 LAB is a professional-grade multiprocess inverter welding machine engineered in Italy for fabricators, workshops, maintenance professionals and industrial users who require exceptional welding performance from a single compact system. Designed to perform MIG/MAG, Pulse MIG, Double Pulse MIG, Lift TIG and MMA welding, it delivers outstanding welding quality on carbon steel, stainless steel, aluminium and special alloys.

Its intelligent synergic controls, multicolour graphic display and advanced digital functions simplify machine setup while ensuring precise, repeatable welding results. Whether working on automotive body repairs, stainless fabrication, aluminium structures or industrial maintenance, this machine offers the flexibility and productivity demanded by professionals.

How to Use

  1. Connect the machine to a suitable 230V single-phase power supply.
  2. Select the required welding process (MIG, Pulse MIG, Double Pulse MIG, TIG Lift or MMA).
  3. Install the appropriate welding wire or electrode according to the material being welded.
  4. Connect the shielding gas when performing MIG or TIG welding.
  5. Select the material type and welding parameters using the multicolour graphic display.
  6. Load the wire using the automatic wire loading function.
  7. Wear suitable welding PPE before starting.
  8. Begin welding while fine-tuning parameters such as inductance, burn back, gas timing and Hot Start if required.
  9. Save frequently used settings for faster future operation.

Purpose

The DECA EJOB DUO 220 LAB is designed to provide one complete welding solution capable of handling multiple welding applications without requiring separate machines. It enables professional users to weld mild steel, stainless steel, aluminium and specialised materials with exceptional arc stability, clean weld appearance and high productivity.

Key Features

  • Professional multiprocess welding system combining MIG, Pulse MIG, Double Pulse MIG, TIG Lift and MMA.
  • Advanced synergic control automatically optimises welding parameters.
  • Pulse and Double Pulse technology produces cleaner, stronger welds with reduced spatter.
  • Large multicolour graphic display for intuitive operation.
  • 4-roll wire feeding mechanism ensures smooth and stable wire delivery.
  • User job memory allows quick recall of frequently used welding settings.
  • Adjustable electronic inductance for improved arc control.
  • Programmable gas pre-flow and post-flow settings.
  • Adjustable burn back and wire approach speed.
  • Supports spool gun for efficient aluminium welding.
  • SD card reader for software updates and machine management.
  • Italian engineering delivers durability and long-term reliability.

Why Choose DECA EJOB DUO 220 LAB?

  • One machine replaces several individual welding systems.
  • Suitable for steel, stainless steel, aluminium and brazing applications.
  • Excellent welding quality with minimal spatter.
  • Professional digital controls improve welding consistency.
  • Ideal for demanding fabrication and repair work.
  • Advanced Pulse welding technology improves weld penetration and appearance.
  • Easy parameter selection reduces setup time.
  • Reliable Italian manufacturing trusted by professionals worldwide.

Who Should Buy This?

  • Professional welders
  • Metal fabrication workshops
  • Automotive repair centres
  • Industrial maintenance teams
  • Manufacturing facilities
  • Stainless steel fabricators
  • Aluminium fabrication specialists
  • Engineering contractors
  • Construction companies
  • Technical training institutes

Where Is It Used?

  • Metal fabrication workshops
  • Automotive body repair facilities
  • Industrial manufacturing plants
  • Maintenance departments
  • Steel fabrication industries
  • Stainless steel production units
  • Aluminium fabrication workshops
  • Construction projects
  • Shipbuilding and marine maintenance
  • Agricultural equipment repair
  • Mechanical engineering workshops

Frequently Asked Questions (FAQs)

Can this machine perform multiple welding processes?

Yes. It supports MIG/MAG, Pulse MIG, Double Pulse MIG, Lift TIG and MMA welding, making it suitable for a wide range of professional applications.

Is this machine suitable for aluminium welding?

Yes. It supports aluminium welding and is compatible with a spool gun for improved aluminium wire feeding.

What is Pulse MIG welding used for?

Pulse MIG welding provides better heat control, cleaner welds, reduced spatter and improved welding quality on stainless steel and aluminium.

Can beginners use this welding machine?

Although designed for professionals, the synergic welding function simplifies parameter selection, making it easier for less experienced operators to achieve excellent results.

Which industries commonly use this machine?

It is widely used in fabrication, manufacturing, automotive repair, maintenance, construction, engineering, stainless steel processing and aluminium fabrication industries.
