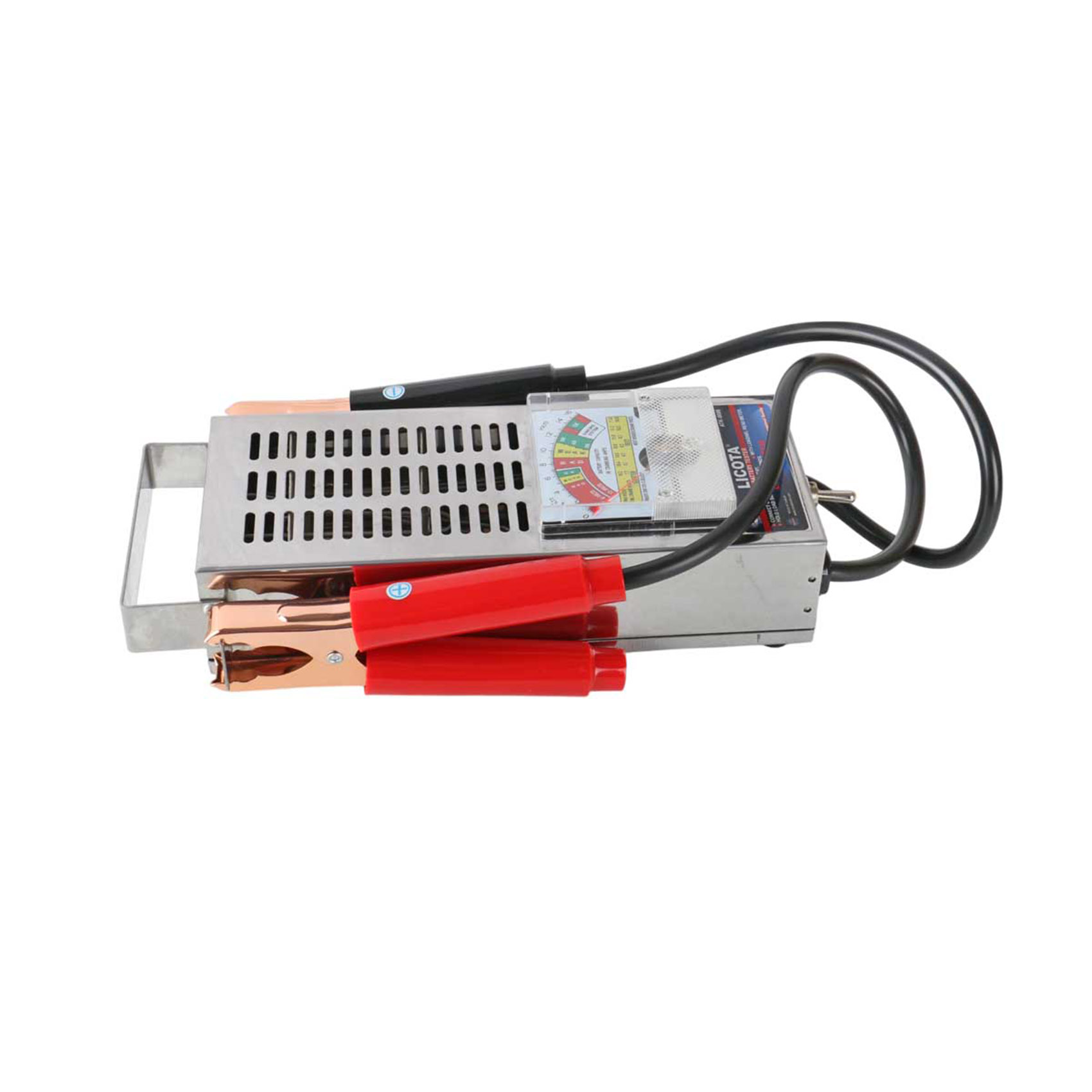

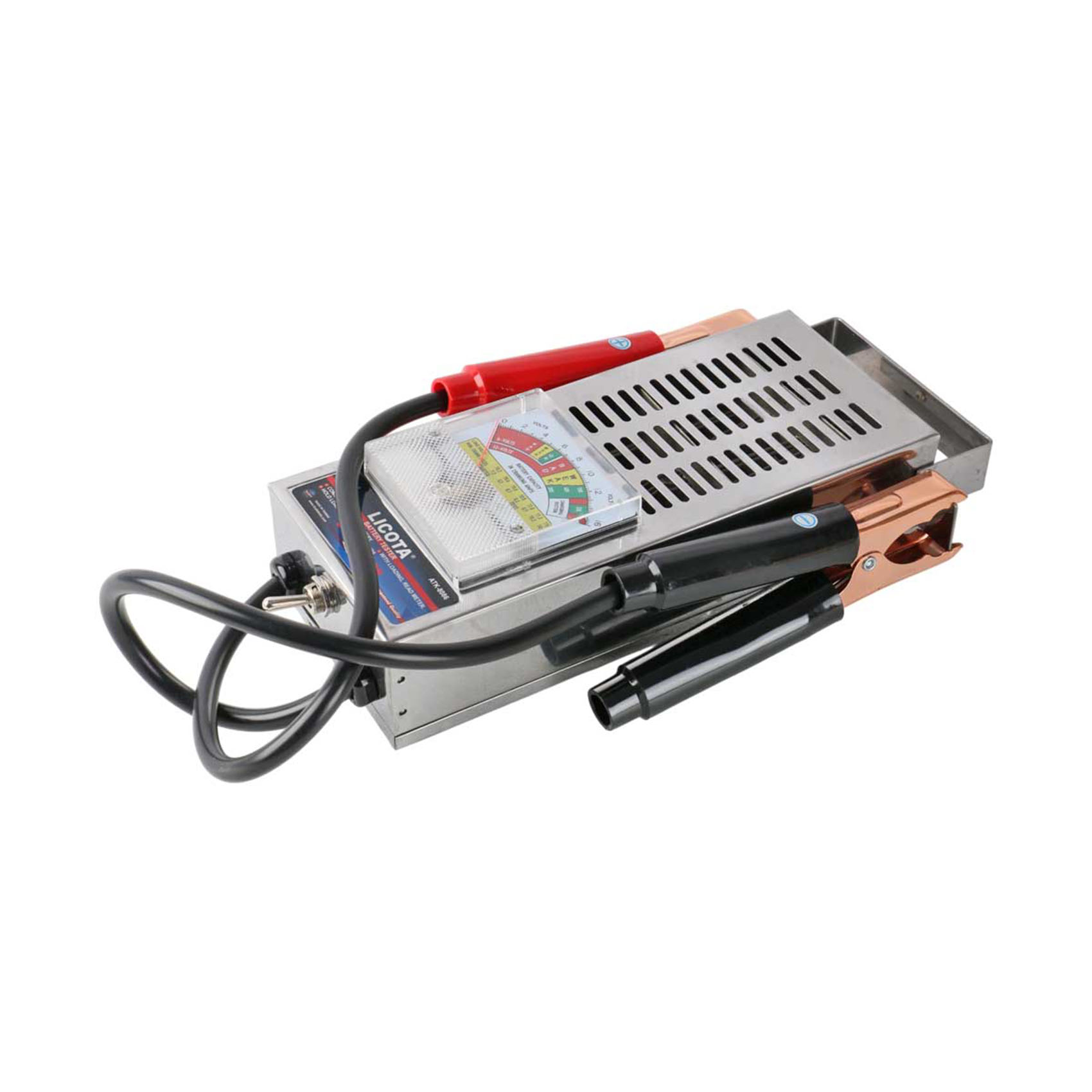

LICOTA 6-12V PROFESSIONAL ANALOG BATTERY LOAD TESTER STAINLESS STEEL ATK-8086 | IDEAL FOR CARS - VANS - RVS AND FARM VEHICLES | TEST STATE OF CHARGE - CRANKING ABILITY - CHARGIG SYSTEM OUTPUT - STARTER MOTOR TEST | MADE IN TAIWAN

BRAND : LICOTA

ITEM NO.: ATK-8086

ORIGIN : TAIWAN

VOLTAGE : 6-12 VOLTS.

USAGE : IDEAL FOR CARS - VANS - RVS AND FARM VEHICLES

TEST : STATE OF CHARGE - CRANKING ABILITY - CHARGIG SYSTEM OUTPUT - STARTER MOTOR TEST

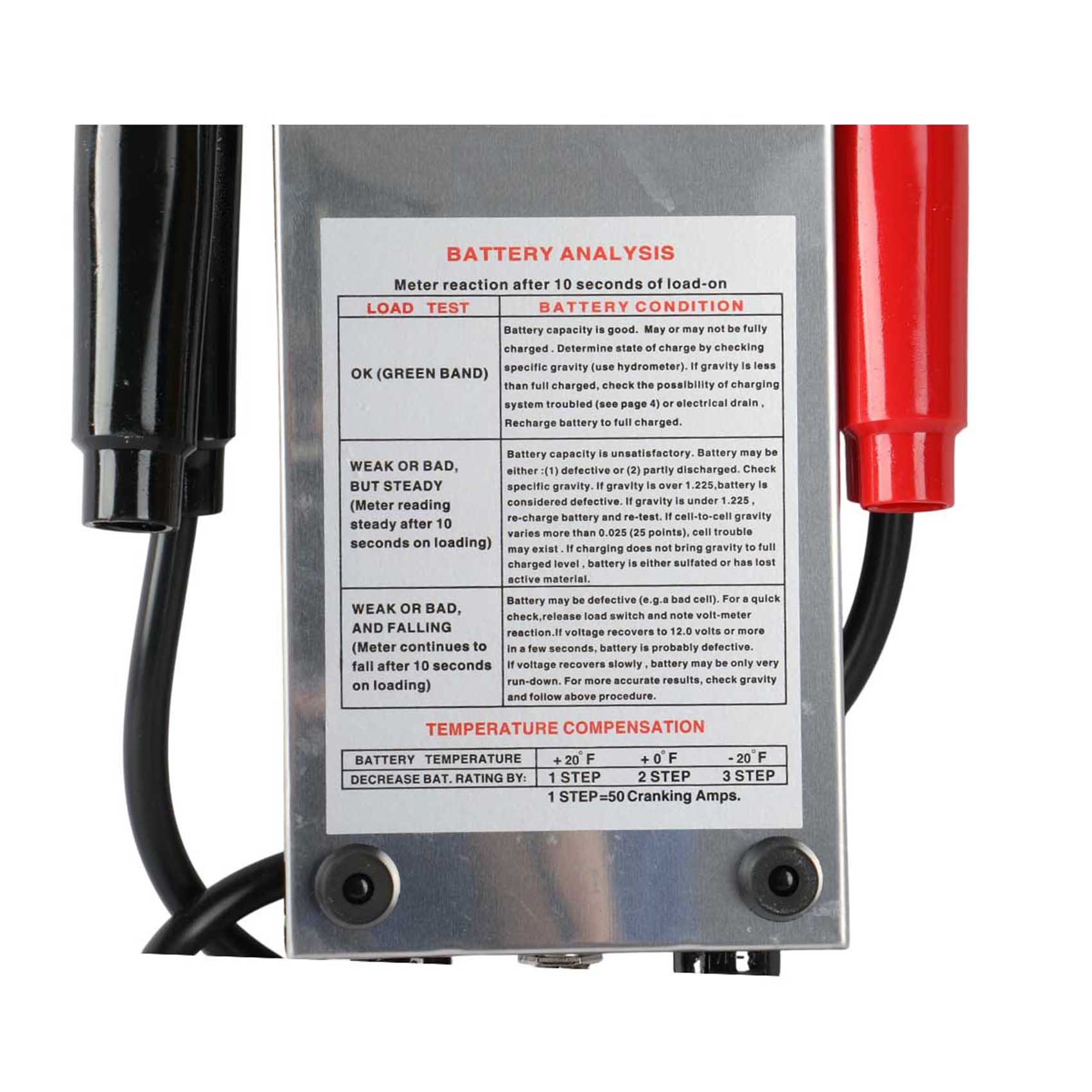

BATTERY TEMPERATURE : +20°F _ 0°F _ - 20 °F

DECREASE BAT. RATING BY : 1 STEP - 2 STEP - 3 STEP (1 STEP = 50 CRANKING AMPS.)

VERTION : ANALOG

DIMENSIONS : L 35 X W 17 X H 9 CM

WEIGHT : 1.18 KG

. COPPER WIRES AND CONNECTORS

· ERGONOMIC DESIGN

. EASY-TO-READ READINGS

. INSULATED CABLES AND COLOR CODED CLAMPS.

. STAINLESS STEEL CASE

THE DEVICE IS INTENDED FOR TESTING ON-BOARD ELECTRICS OF A CAR, LEAD ACID BATTERIES, AS WELL AS ENGINE STARTING AND BATTERY CHARGING SYSTEMS. THE DESIGN IS EQUIPPED WITH A SYSTEM THAT

ALLOWS ASSESSING THE STATE OF THE BATTERY IN THE LOAD SIMULATION MODE (LOAD CHARACTERISTIC). WITH THIS DEVICE, IT IS POSSIBLE TO CARRY OUT ACCURATE LOAD TESTS BOTH WITH A 100% CHARGED

BATTERY AND WITH A BATTERY WITH 40% CHARGE AND IN THE TEMPERATURE RANGE FROM -18 TO + 66°C. SUITABLE FOR DIAGNOSTICS OF BATTERIES WITH
