Brand: MASTERCOOL
Model: COMMANDER4100-E-X
Product Type: Automatic Automotive A/C Refrigerant Recovery, Recycling and Recharging Machine
Refrigerant Type: R1234yf
Application: Automotive Air Conditioning and Hybrid Vehicle A/C Servicing
Operating Mode: Fully Automatic or Manual
Voltage: 220V for COMMANDER4100-E-X
Frequency: 50/60 Hz
Vacuum Pump Capacity: 6 CFM (142 L/min)
Compressor: Hermetically Sealed, 12 cc, High Pressure
Refrigerant Recovery Rate: 98.5% at 21–24°C, under 30 minutes
Refrigerant Cylinder Capacity: 30 lb (12.5 L), Refillable
Scale Resolution: 0.02 lb (10 g)
Oil Scale Resolution: 0.01 lb (5 g)
Charging Accuracy: ±0.5 oz (±15 g) at 21–24°C
Working Temperature Range: 10–49°C
Filter System: One filter for cleaning and water removal
Hose Length: 96 in (250 cm)
Couplers: Manual R1234yf
Pressure Gauges: Class 1.0
Cylinder Temperature Sensor: Integrated
Cylinder Heater: Standard Equipment
Display: 10-inch Colour Touchscreen
Refrigerant Identifier: Not Included
Automatic Vacuum Leak Test: Programmable
Oil Discharge: Automatic
Air Purge: Automatic and Manual
Printing: E-printing capability
Connectivity: Wi-Fi capable
Shipping Dimensions: 38 × 32 × 53 in (L × W × H)
Shipping Weight: 233 lb
Country of Origin: USA
The MASTERCOOL COMMANDER4100-E-X Automatic R1234yf Hybrid RRR Machine is designed for professional automotive workshops and vehicle air conditioning service centres. It performs refrigerant recovery, recycling and recharging for compatible R1234yf automotive A/C systems, including hybrid vehicle applications.

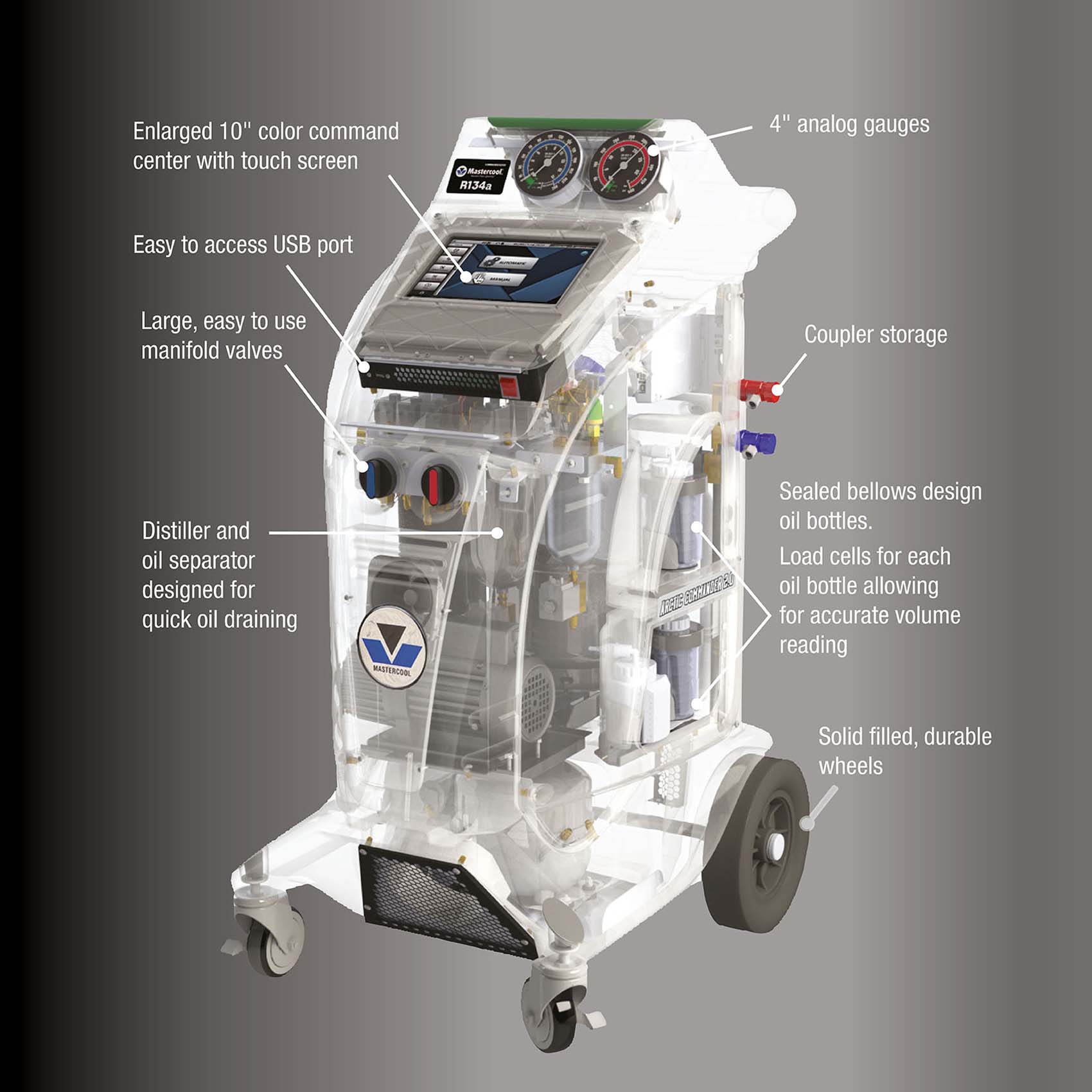

The machine features a 10-inch colour touchscreen for intuitive operation, automatic and manual service procedures, a refrigerant database, programmable vacuum leak testing, automatic oil discharge, air purge functions and electronic printing capability. Its 6 CFM vacuum pump and integrated cylinder temperature sensor support efficient A/C servicing.
The COMMANDER4100-E-X operates on 220V power and is supplied without a refrigerant identifier. It is suitable for workshops that require an automated solution for routine refrigerant recovery, recycling and recharging operations on compatible vehicle air conditioning systems.
**What is it used for?**
- Recovering refrigerant from compatible vehicle A/C systems.
- Recycling recovered R1234yf refrigerant for reuse in accordance with applicable service procedures.
- Recharging vehicle air conditioning systems with the required refrigerant quantity.
- Performing vacuum leak tests on automotive A/C systems.
- Supporting air conditioning maintenance in professional automotive and hybrid vehicle workshops.
**Why choose this machine?**
- Automatic and manual service modes.
- Large 10-inch colour touchscreen.
- Programmable automatic vacuum leak testing.
- Automatic oil discharge and air purge.
- Integrated 6 CFM vacuum pump.
- Refillable 30 lb refrigerant cylinder.
- Wi-Fi capability and electronic printing support.
**Important:** This E-X version does not include a refrigerant identifier. Confirm vehicle compatibility, local electrical requirements and the required refrigerant identification procedure before use.
| Item Code | USAMCC4100E-X |
|---|---|
| Barcode | 700376136913 |
| Brand | MASTERCOOL |
The MASTERCOOL COMMANDER4100-E-X is an automatic automotive air conditioning refrigerant recovery, recycling and recharging machine designed for professional vehicle service workshops. Compatible with R1234yf automotive A/C systems, including suitable hybrid vehicle applications, this machine combines automatic and manual operating modes with a 10-inch colour touchscreen, a 6 CFM vacuum pump and 220V operation. It is designed to help technicians perform routine A/C service operations efficiently and accurately.
This R1234yf hybrid RRR machine is used to recover refrigerant from compatible automotive air conditioning systems, recycle recovered refrigerant, evacuate the A/C circuit using a vacuum pump, and recharge the system with the required refrigerant quantity. It also supports vacuum leak testing and related service operations to help technicians maintain vehicle air conditioning performance.
Follow the manufacturer's operating manual and the vehicle manufacturer's A/C service procedure. The general workflow is as follows:
Confirm that the vehicle uses R1234yf refrigerant and that the A/C system is compatible with the machine. Park the vehicle safely and follow the required workshop safety precautions.
Connect the correct R1234yf service hoses and couplers to the vehicle's designated A/C service ports according to the machine manual.
Select the appropriate recovery procedure on the touchscreen and allow the machine to recover refrigerant from the A/C system into its designated internal cylinder.
Use the vacuum pump and the machine's available vacuum leak-test function as directed by the manufacturer. Investigate any suspected leaks and repair them before recharging.
Enter or select the specified refrigerant charge quantity and perform the approved recharge procedure. Use the vehicle manufacturer's specified charge weight and service requirements.
Disconnect the couplers using the prescribed procedure, check system operation, review the service results and maintain the machine according to its operating manual.
Safety note: R1234yf requires dedicated compatible service equipment and appropriate ventilation and personal protective equipment. Never mix refrigerants. Hybrid and electric vehicles may require special compressor-oil handling procedures. This model does not include a refrigerant identifier, so follow the manufacturer's refrigerant verification and contamination-control procedures.

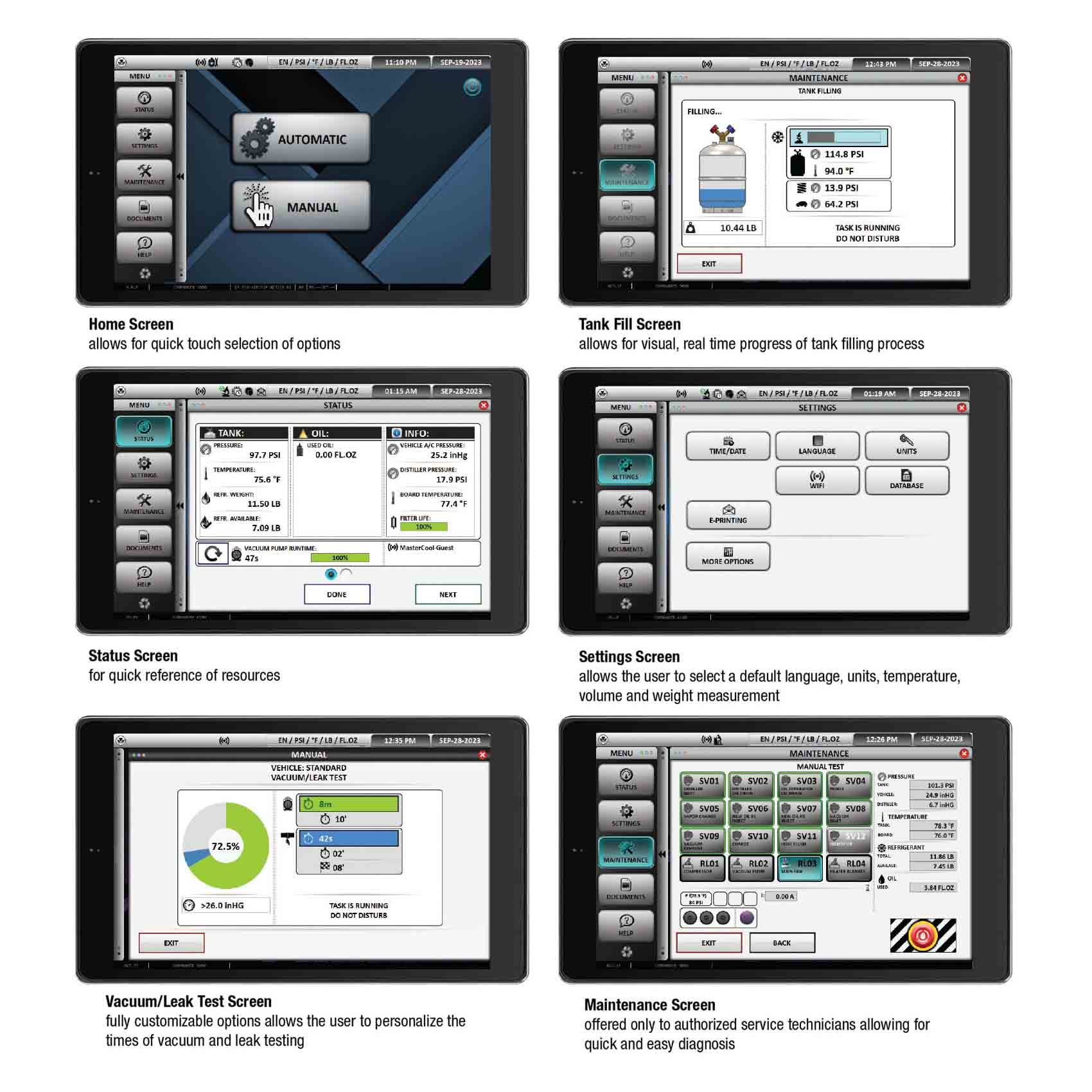

Provides an intuitive interface for selecting service procedures and operating the machine.
Supports automated service cycles and manual operation when required by the technician.
Supports evacuation of compatible A/C systems during the servicing process.
Provides a programmable vacuum leak-test function to help assess system tightness.
Monitors the refrigerant cylinder temperature as part of the machine's operating system.
Offers connectivity and electronic printing features for supported service workflows.
The MASTERCOOL COMMANDER4100-E-X is intended for suitably equipped automotive workshops, vehicle air conditioning repair centres, dealership service departments and professional maintenance facilities. It can be used when servicing compatible vehicle A/C systems that require R1234yf refrigerant, subject to the machine's approved application and the vehicle manufacturer's instructions.
It is an automatic automotive A/C refrigerant recovery, recycling and recharging machine designed for compatible R1234yf systems, including suitable hybrid vehicle applications.
This model is designed for R1234yf refrigerant. It should not be used with other refrigerants unless the manufacturer explicitly approves the application.
Yes, for compatible hybrid vehicle A/C systems. Technicians must follow the vehicle manufacturer's procedures, especially for compressor-oil compatibility and electrical safety.
Yes. It supports automatic and manual operating modes, allowing technicians to select the appropriate procedure for the service task.
The vacuum pump evacuates the A/C circuit during servicing to remove air and moisture before refrigerant charging, in accordance with the approved service procedure.
No. The COMMANDER4100-E-X configuration described here does not include a refrigerant identifier. Follow the manufacturer's requirements for verifying refrigerant and preventing cross-contamination.
The supplied product information specifies 220V operation. Confirm the exact electrical requirements and compatibility with the workshop power supply before installation.
It is intended primarily for professional automotive service workshops. Proper training, compatible service connections, safety equipment and correct refrigerant-handling procedures are essential.
The MASTERCOOL COMMANDER4100-E-X combines automatic and manual service functions, a touchscreen interface and vacuum evacuation capabilities in one machine for professional automotive A/C maintenance. It is a practical option for workshops servicing compatible R1234yf vehicles and hybrid applications.
MASTERCOOL COMMANDER4100-E-X — Automatic R1234yf Hybrid RRR Machine
Designed for refrigerant recovery, recycling and recharging in professional automotive A/C service environments.
