Brand: PIONEER
Model: PC-3
Product Type: Electronic Automatic Water Pump Controller
Voltage: 220–240V AC
Frequency: 50/60Hz
Maximum Current: 10A
Maximum Pressure: 10 BAR
Starting Pressure : 1.5 BAR
Maximum Working Temperature: 60°C
Protection Rating: IP54
Control Type: Electronic Automatic Control
Country of Origin: China

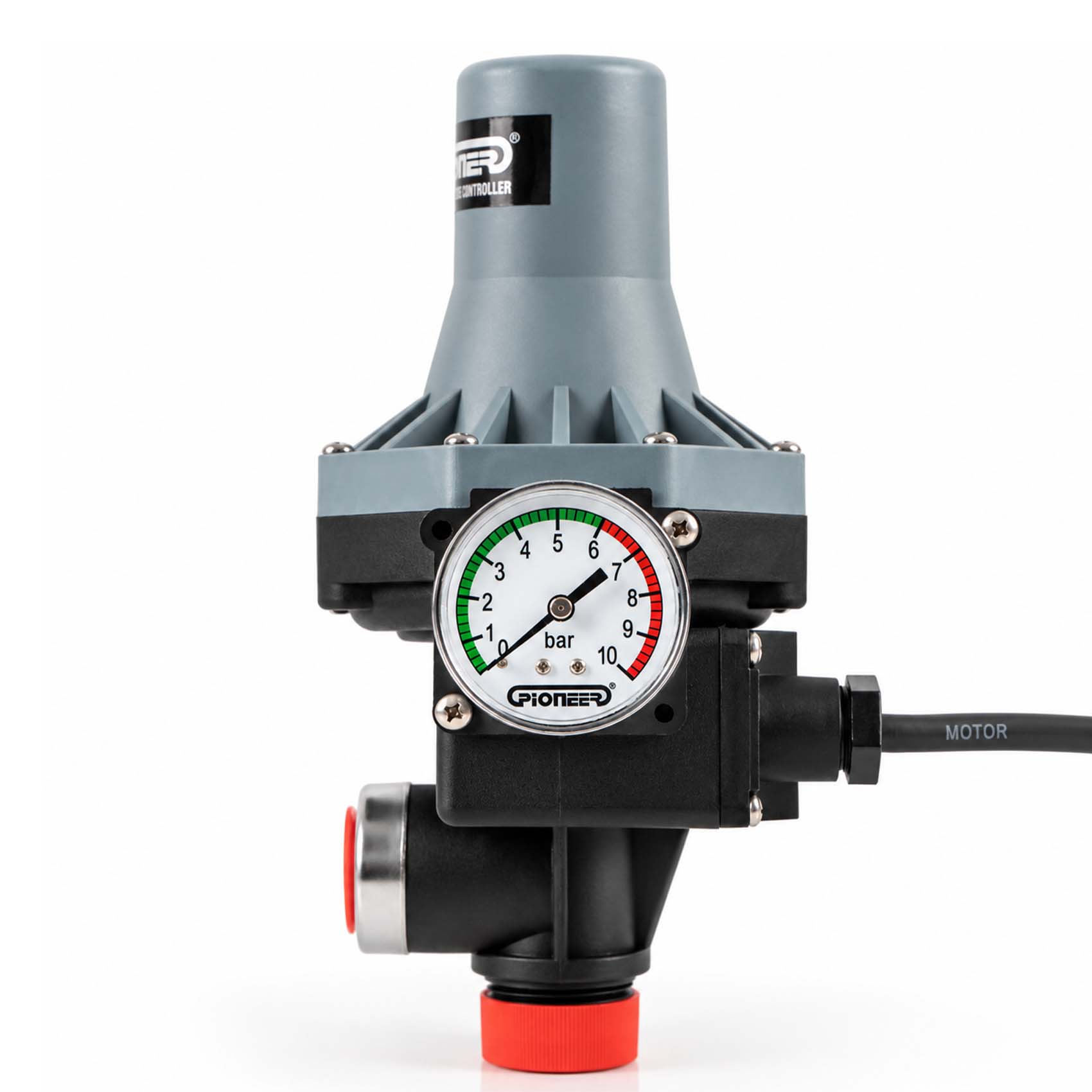

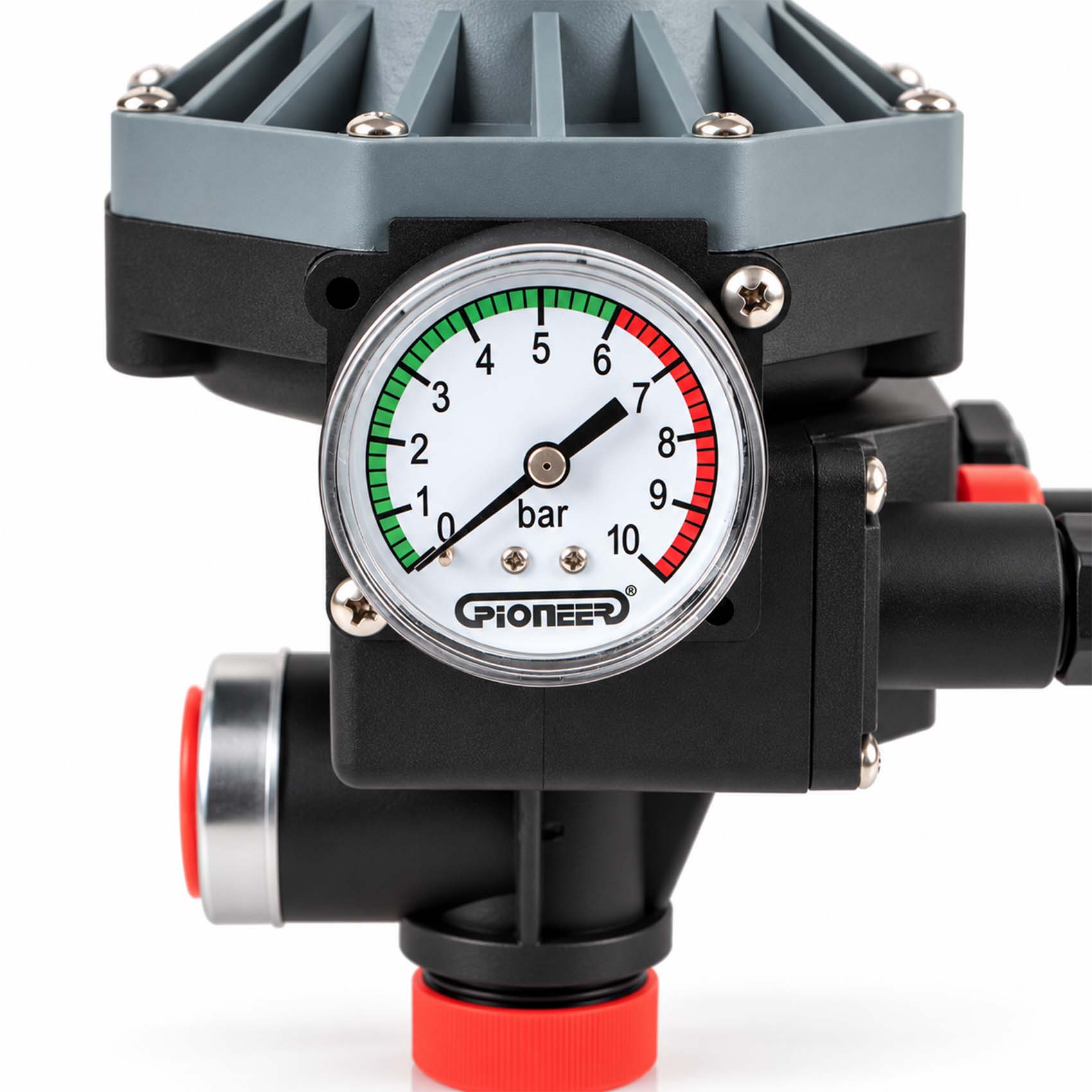

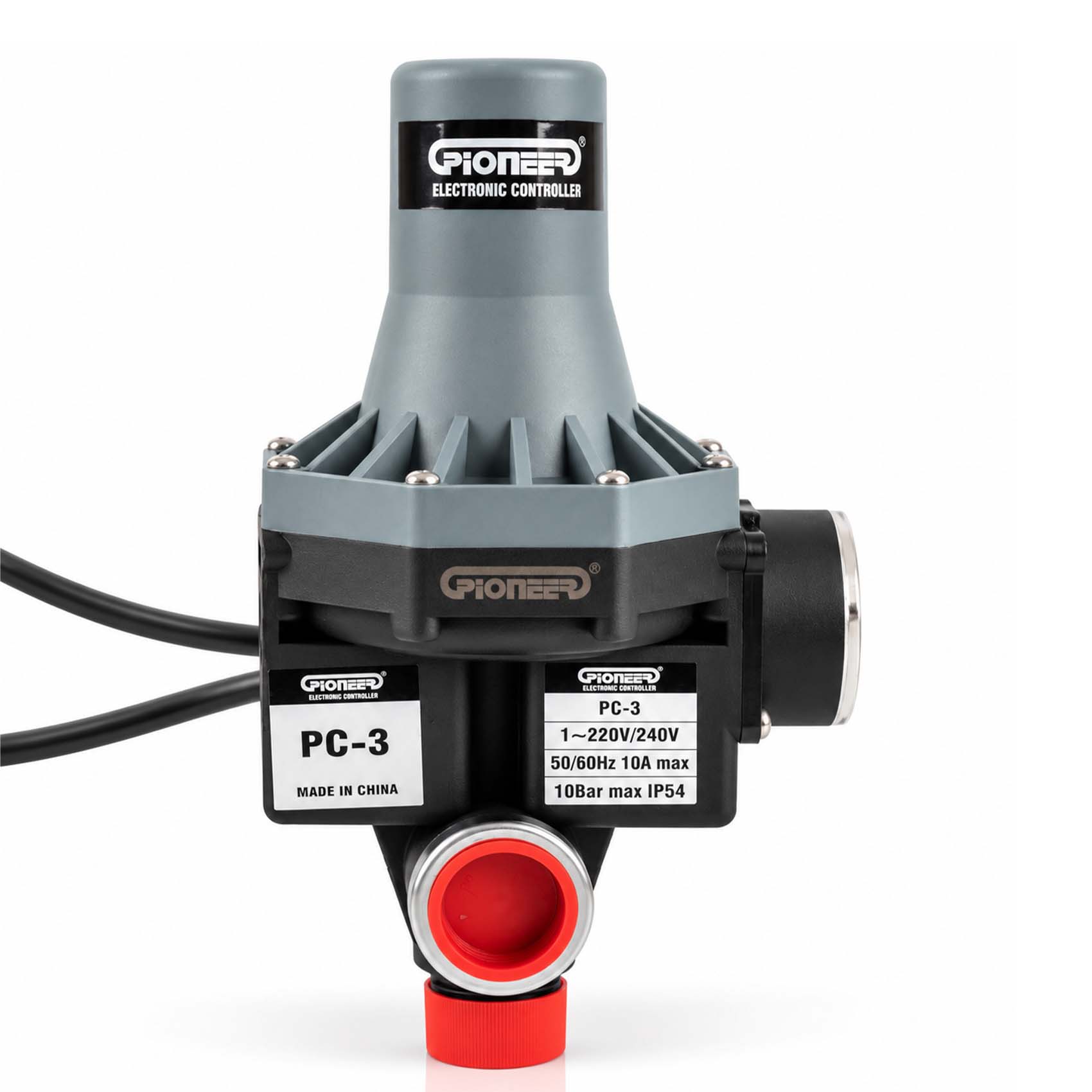

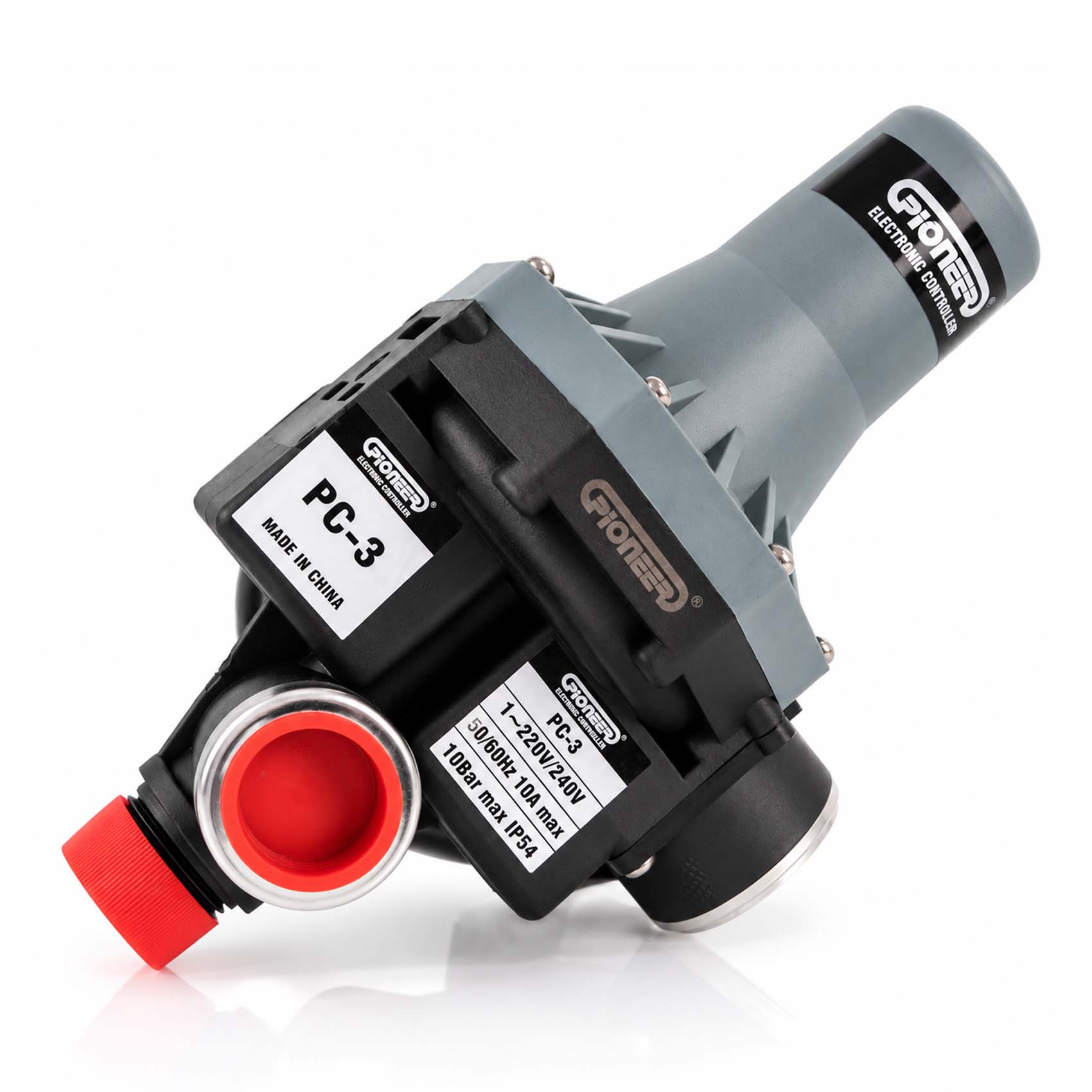

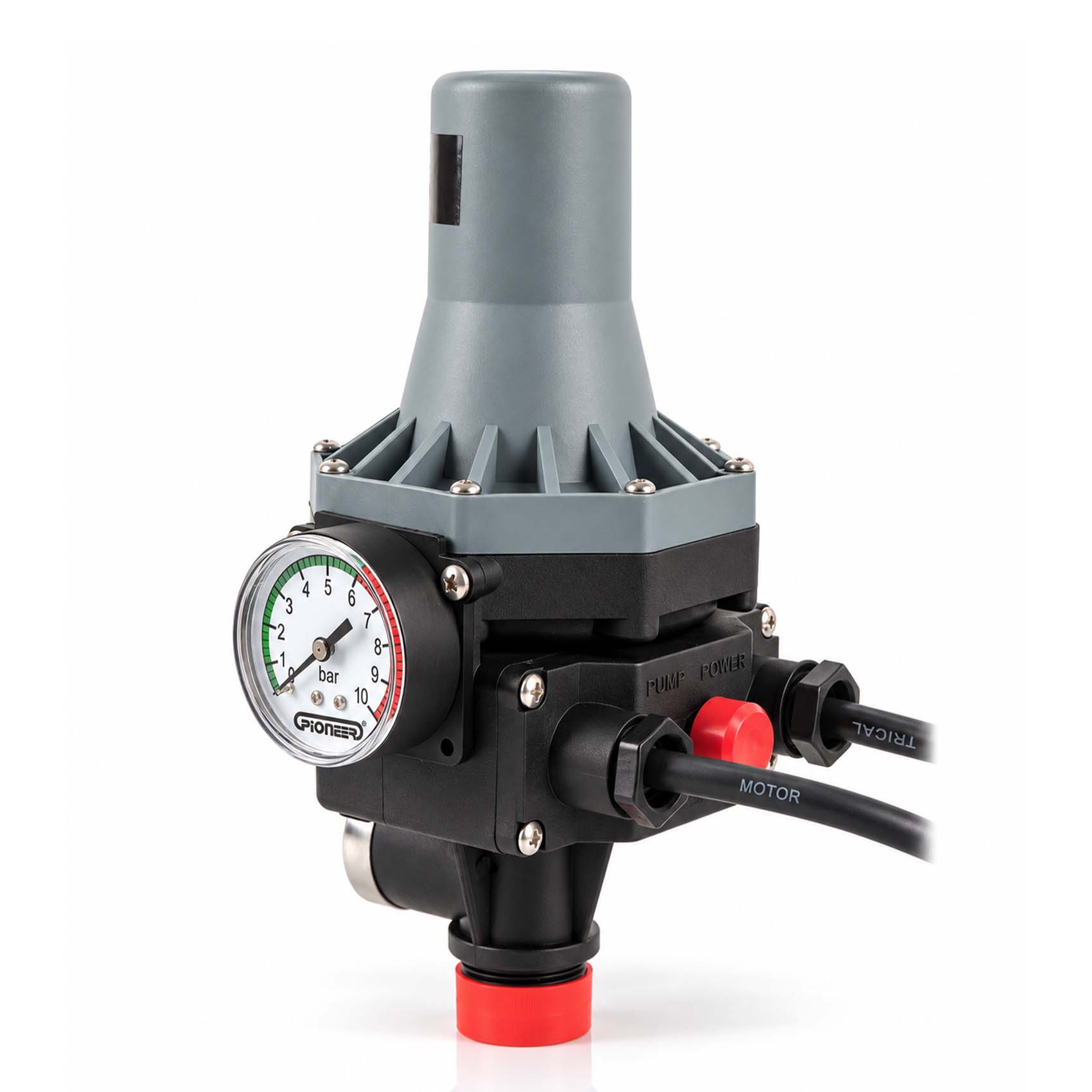

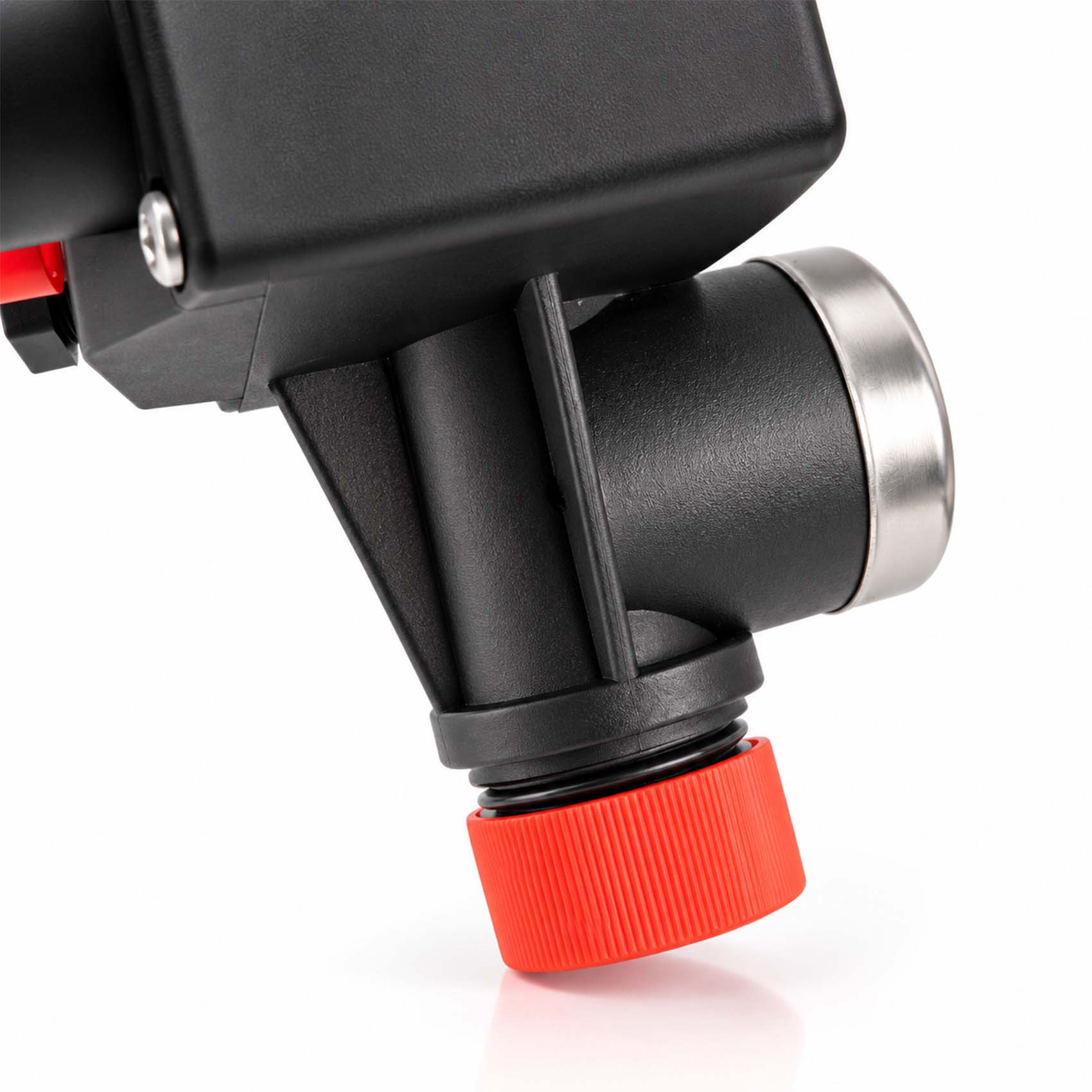

The PIONEER PC-3 Electronic Automatic Water Pump Controller helps manage the operation of compatible water pumps in water supply and pressure-boosting systems. It is designed to automatically control pump operation according to the system's pressure or flow conditions, reducing the need for manual switching.
This controller is rated for a 220–240V AC power supply at 50/60Hz, with a maximum current of 10A and a maximum pressure rating of 10 bar. Its IP54 protection rating provides protection against dust ingress and water splashes under specified test conditions.
A variety of self-priming pumps, jet pumps, centrifugal pumps, and garden pumps.
Other water supply systems:
Ordinary wells and tube wells
Household water booster
High-building water booster
Irrigation systems
| Item Code | CHISILPC-3 |
|---|---|
| Barcode | 6295123350727 |
| Brand | PIONEER |
The PIONEER PC-3 Electronic Automatic Water Pump Controller is designed to automate the operation of compatible water pumps in domestic water supply, pressure-boosting and irrigation systems. It helps control pump starting and stopping according to the system's operating conditions, reducing the need for manual switching. With a 220–240V power supply rating, a maximum current of 10A and IP54 protection, it is a practical control solution for compatible water installations.
The main purpose of the PIONEER PC-3 is to control the operation of a compatible water pump automatically. Instead of manually switching the pump on and off, the controller responds to the relevant pressure or water-flow conditions supported by its design.
It is intended to help manage water delivery in systems where maintaining a convenient and reliable water supply is important. The controller does not pump water by itself; it must be installed with a compatible water pump.
Confirm that the controller is suitable for your pump type, voltage, current, operating pressure and plumbing arrangement.
Connect it to the compatible pump and water piping according to the manufacturer's installation instructions. Check that all connections are secure and leak-free.
Ensure the pump and water supply are correctly prepared. Prime the pump if required and follow the manufacturer's instructions to prevent dry running.
Once installation and electrical safety checks are complete, test the system and confirm that the pump starts and stops as intended.
Inspect connections periodically and follow the manufacturer's maintenance instructions. Isolate the power supply before any servicing.
Safety reminder: Installation involves mains electricity and pressurised water. Use a qualified technician and suitable electrical protection. Do not exceed the controller's rated current or pressure, and do not assume dry-run protection is available unless confirmed by the manufacturer.
The PIONEER PC-3 offers an electronic approach to controlling compatible water pumps. It can be useful when a water supply installation requires automatic pump operation rather than continuous manual switching.
For compatible household pump installations supplying water to taps and plumbing fixtures.
For suitable pump systems used to improve water delivery where existing supply pressure is insufficient.
For compatible pump arrangements drawing water from suitable wells, subject to pump and controller requirements.
For compatible water pump installations supplying irrigation systems in gardens and other suitable areas.
For suitable building water systems where the pump and controller ratings meet the installation requirements.
The PC-3 may be compatible with certain self-priming pumps, jet pumps, centrifugal pumps and garden pumps. Compatibility must be confirmed for the specific pump and installation.
Consider the PIONEER PC-3 for compatible water pump installations requiring electronic automatic control. Confirm pump compatibility and operating requirements before purchase.
Product information is based on the supplied label and description. Always follow the manufacturer's installation instructions and verify compatibility before use.
