BRAND : PIONEER
ITEM NO.: JZC350DH
ORIGIN : CHINA
FUEL : DIESEL
CAPACITY : 560L
LIFTING METHODS: HYDRAULIC TIPPING HOPPER
DRUM SIZE : Φ1460×1850 MM
HP : 16
DRUM ROTATION SPEED : 14RPM
PRODUCTIVITY : 10-14M³/H
FEEDING HEIGHT : 1400MM
POWER OF WATER PUMP : 0.75KW
PRESSURE OF GEAR PUMP : 20MPA
MAX TRAILING SPEED : 20KM/H
DISPLACEMENT OF HYDRAULIC PUMP : 25 ML/R
ACCURACY OF WATER SUPPLY ERROR : ≤ 2%
VIBRATING AMPLITUDE : 0.9MM
MAX. SIZE OF AGGREGATE : 60 MM
TYRE SIZE : 6.50-16
START : STARTS WITH KEYS
ENGINE CF1100M : WATER-COOLED DIESEL ENGINE
RATED OUTPUT : 12.13 KE
R/MIN : 2200
OVERALL SIZE (L×W×H) : L 3150 × W 2200 × H 3200 MM
PACKING SIZE (L×W×H) : L 2300 × W 2000 × H 2500MM
TOTAL WEIGHT : 1600 KG
. CHASSIS- MOUNTED BIG WATER TANK
. STEEL FLEXIBLE GUIDE WHEEL
. ROBUST AND STRONG TRAILING ROD
. HYDRAULIC TANK WITH LARGE VOLUME

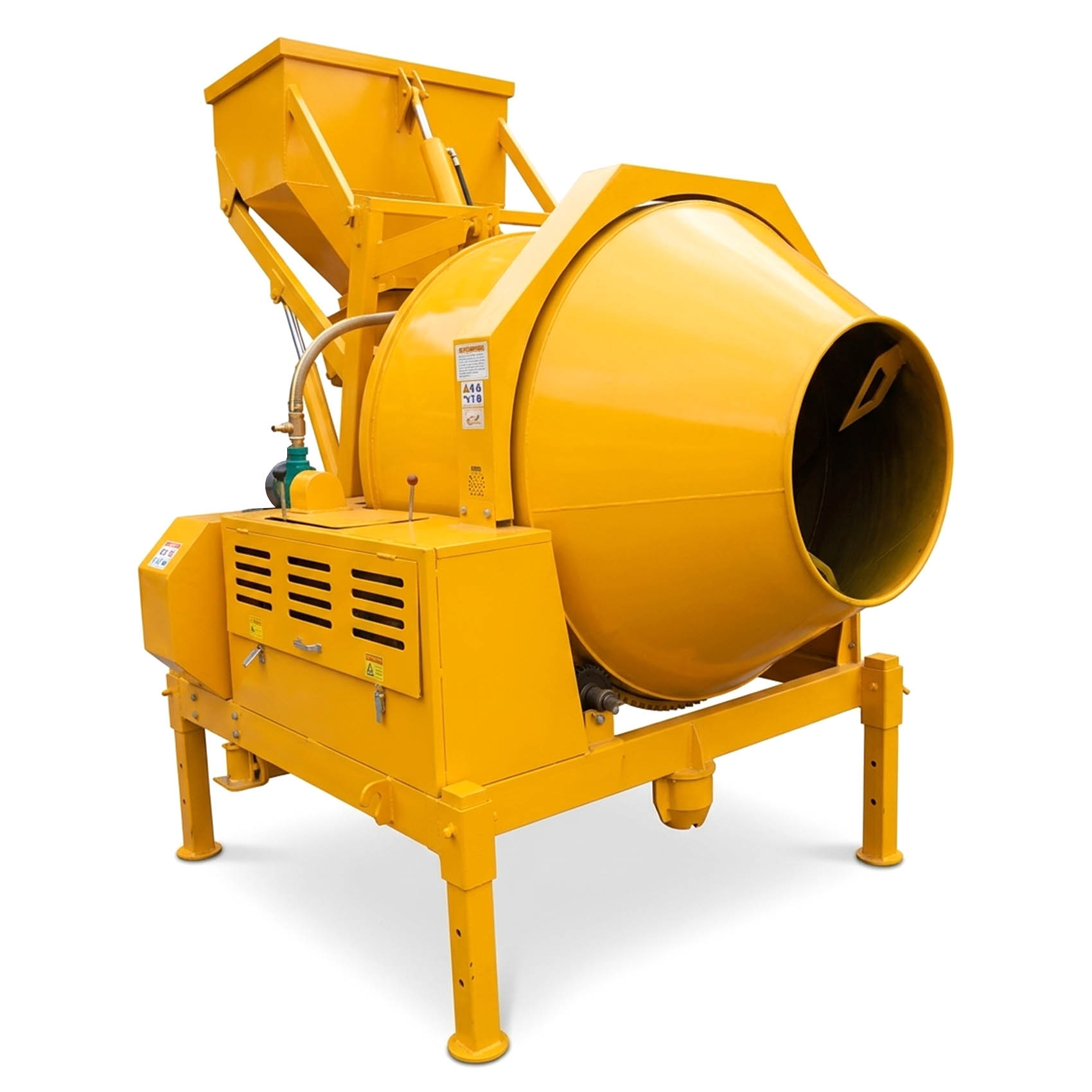

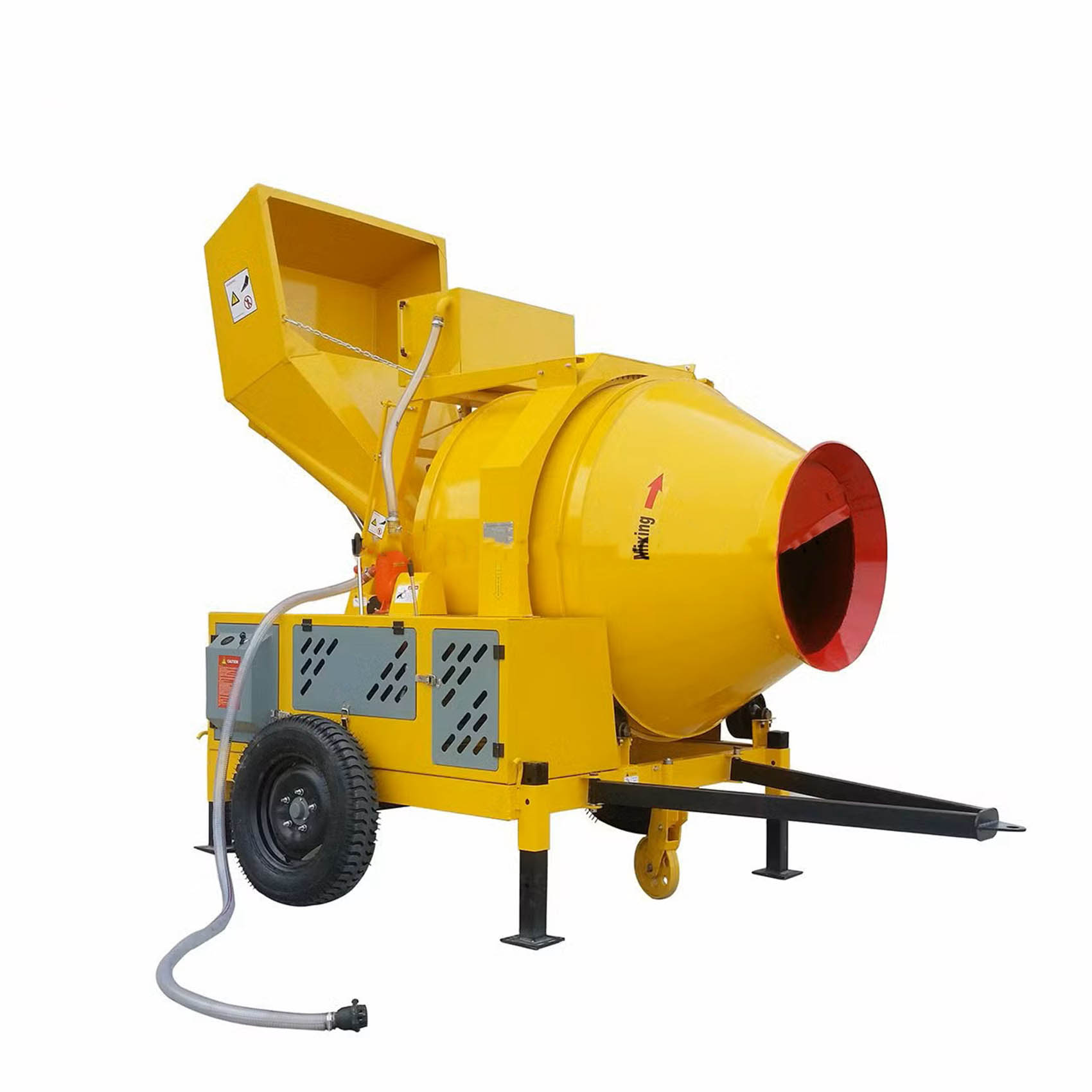

JZC350-DH CONCRETE MIXER WITH DIESEL ENGINE POWER AND HYDRAULIC TIPPING HOPPER IS A SELF LOADING CONCRETE MIXER OF DOUBLE CONICAL DRUMS WHICH DISCHARGE CONCRETE BY REVERSE-ROTATION, SUITABLE FOR MIXING PLASTIC AND SEMI-DRY & HARD CONCRETE WITH THE SIZE OF AGGREGATE UP TO 60MM. MIXING IS CARRIED OUT WHEN THE MIXING DRUM ROTATES IN NORMAL DIRECTION, AND DISCHARGE IS PERFORMED WHEN THE MIXING DRUM ROTATES IN REVERSED DIRECTION. EACH TIME, THE MIXING DRUM CAN HANDLE 0.35 CUBIC METERS OF CONCRETE. THE JZC350-DH CONCRETE MIXER IS PARTICULARLY SUITABLE FOR CIRCUMSTANCES LIKE ORDINARY CONSTRUCTION SITES, ROAD CONSTRUCTION, BRIDGE WORK AND SMALL-SIZED PREFABRICATED-COMPONENT FACTORIES ETC.
| Item Code | CHIPCMDJZC350DH |
|---|---|
| Barcode | 6291116315339 |
| Brand | PIONEER |
The PIONEER JZC350DH Diesel Concrete Mixer is a heavy-duty self-loading concrete mixing machine engineered for construction sites, road projects, bridge works, infrastructure development, and prefabrication facilities. Equipped with a powerful 16 HP water-cooled diesel engine, hydraulic tipping hopper, and key-start ignition system, this mixer delivers efficient concrete production of up to 10–14 m³ per hour. Its large 560-liter drum capacity, robust chassis, integrated water system, and hydraulic lifting mechanism make it an ideal solution for professional contractors seeking reliable and productive concrete mixing performance.
Position the mixer on stable ground and ensure all safety checks are completed before operation. Fill the onboard water tank and inspect the diesel fuel level. Start the machine using the key-start system. Load cement, sand, aggregate, and water into the hydraulic tipping hopper. Activate the hydraulic feeding system to transfer materials into the rotating drum. Allow the drum to mix the materials thoroughly until a uniform concrete mixture is achieved. Reverse the drum rotation to discharge the concrete at the desired location. Clean the drum and hopper after use to maintain performance and extend equipment life.
The PIONEER JZC350DH is designed to efficiently mix and produce concrete for construction, roadwork, bridge building, foundations, industrial projects, and precast concrete production. Its self-loading and hydraulic feeding capabilities help reduce labor requirements while improving productivity on job sites.
The PIONEER JZC350DH offers an excellent balance of productivity, durability, and ease of operation. Its hydraulic loading system significantly improves efficiency while reducing operator effort. The diesel-powered engine ensures reliable performance in remote job sites without electrical power, while the large drum capacity enables continuous concrete production for medium and large-scale construction projects.
The mixer features a large 560-liter drum designed for efficient concrete production on construction sites.
The machine is powered by a 16 HP water-cooled diesel engine with key-start ignition for reliable operation.
The PIONEER JZC350DH can produce approximately 10 to 14 cubic meters of concrete per hour depending on operating conditions.

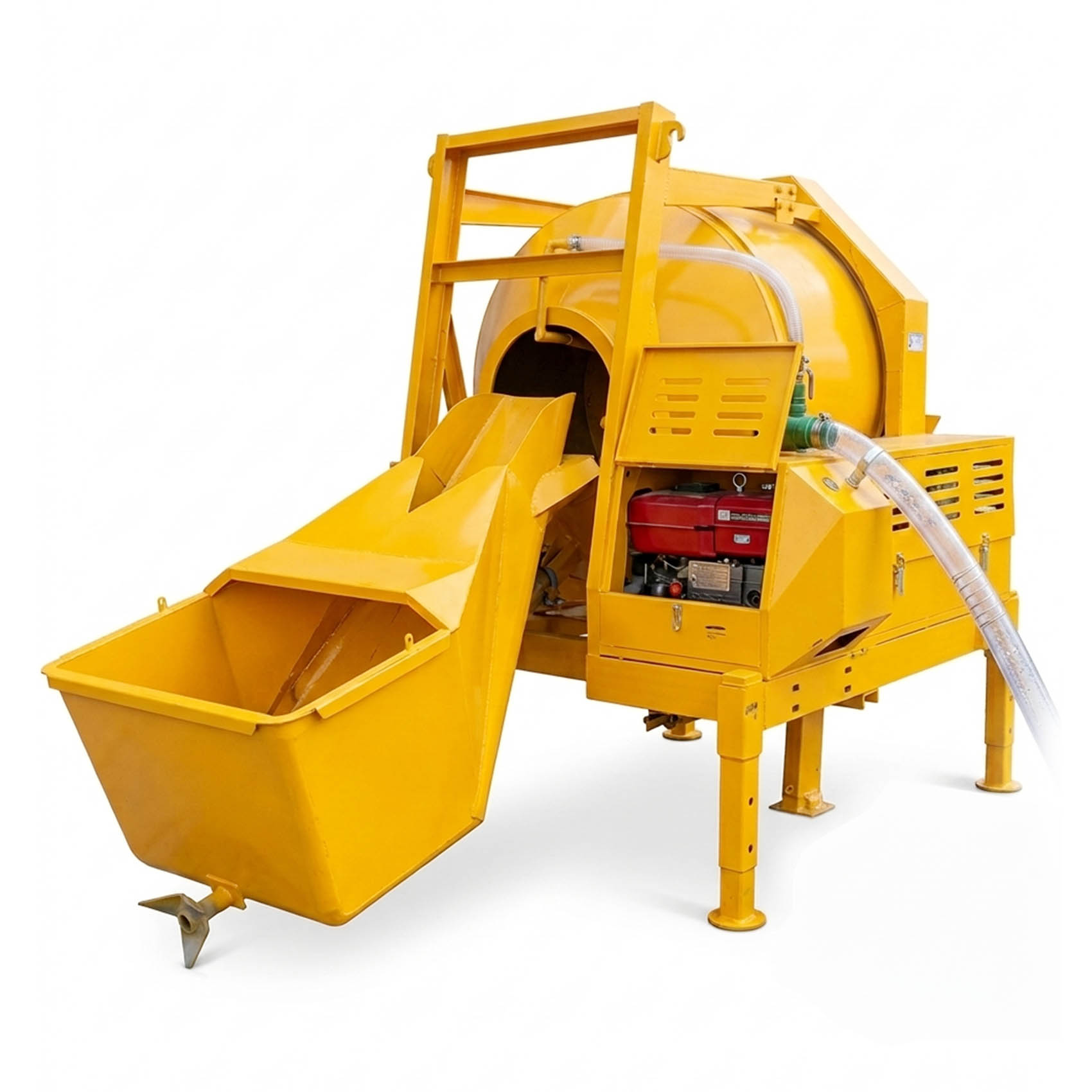

The hydraulic tipping hopper simplifies material loading, reduces manual effort, and improves overall mixing efficiency.
It is ideal for construction sites, road works, bridge projects, foundations, infrastructure development, industrial construction, and precast concrete production.
