Brand : PIONEER
Product Type : Air Compressor Pump
Model:MY2090
Configuration: V-Type
Power:7.5 HP
Piston:90 mm × 2 PCS
Application: Air Compressor
Origin: China
Package Dimension :L - 46.5 CM X W - 38.5 CM X H - 46.5 CM
Gross Weight : 24.5 KG
Net Weight : 23 KG

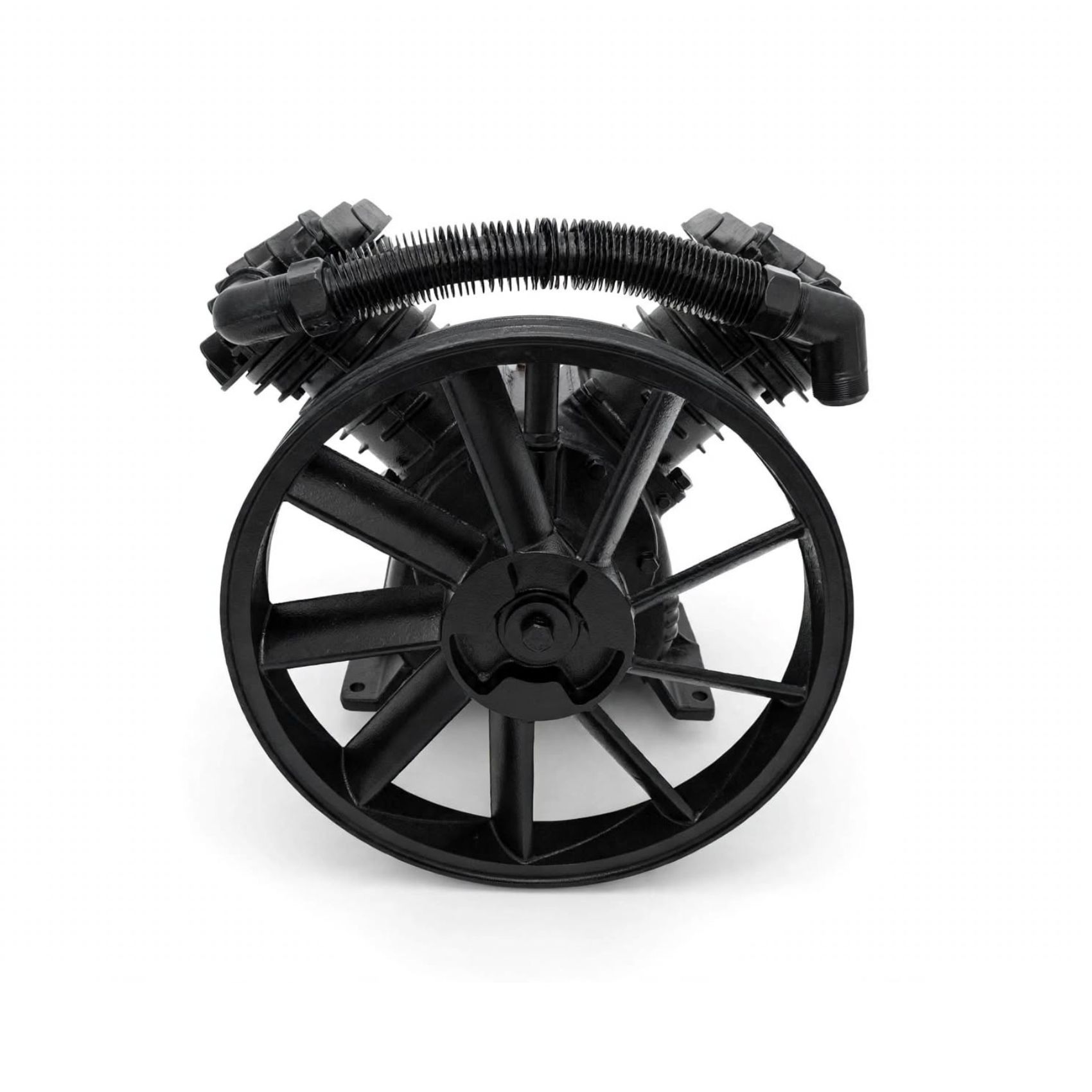

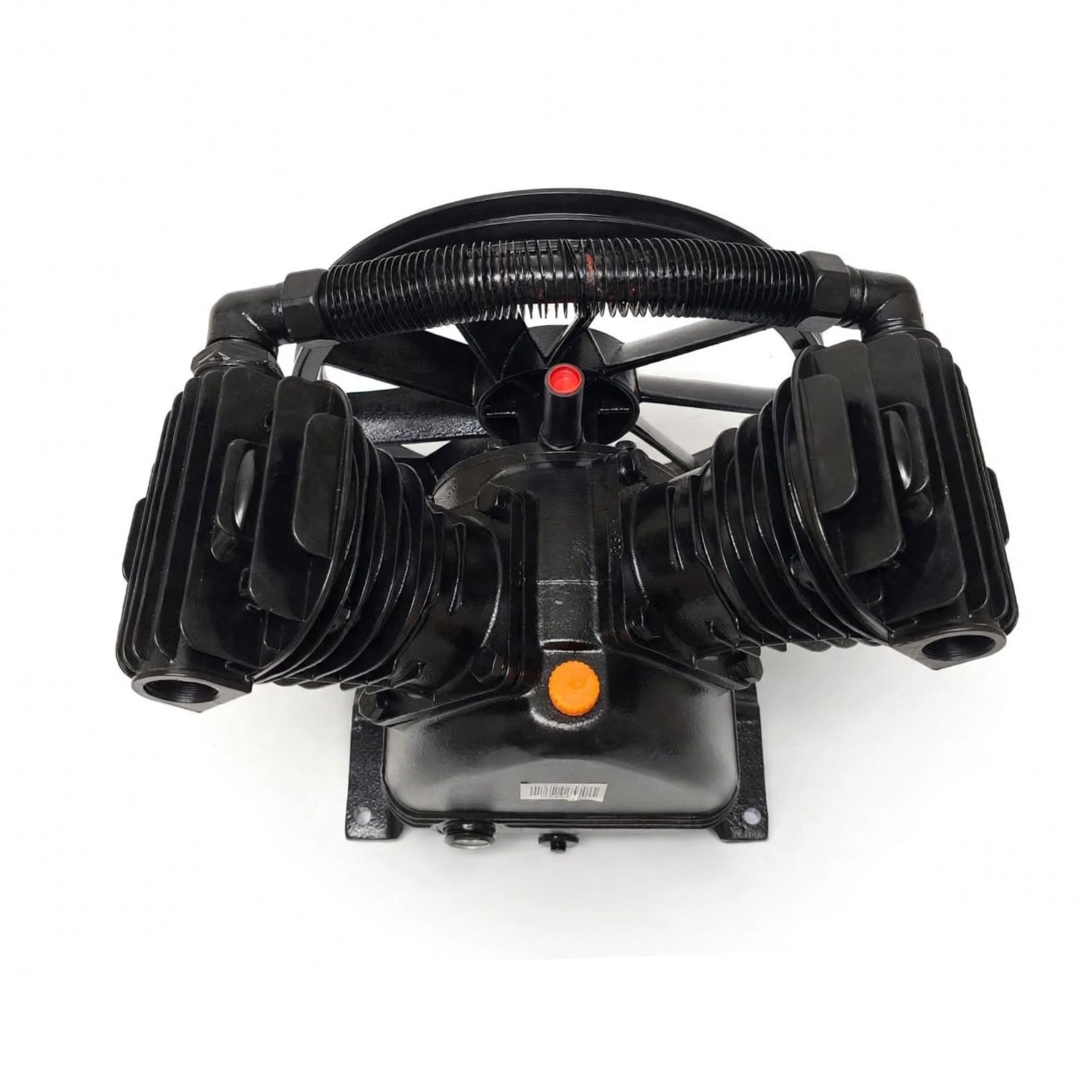

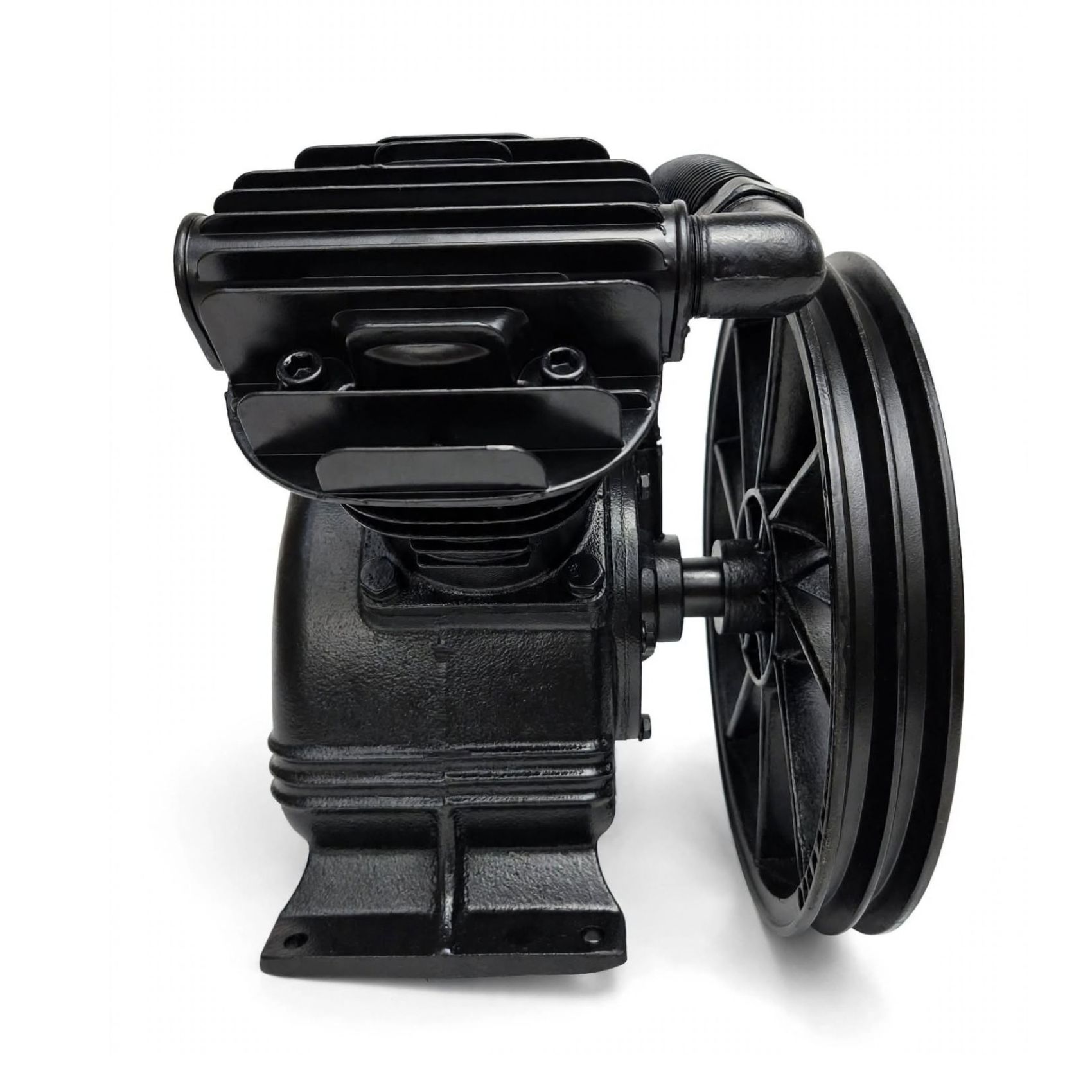

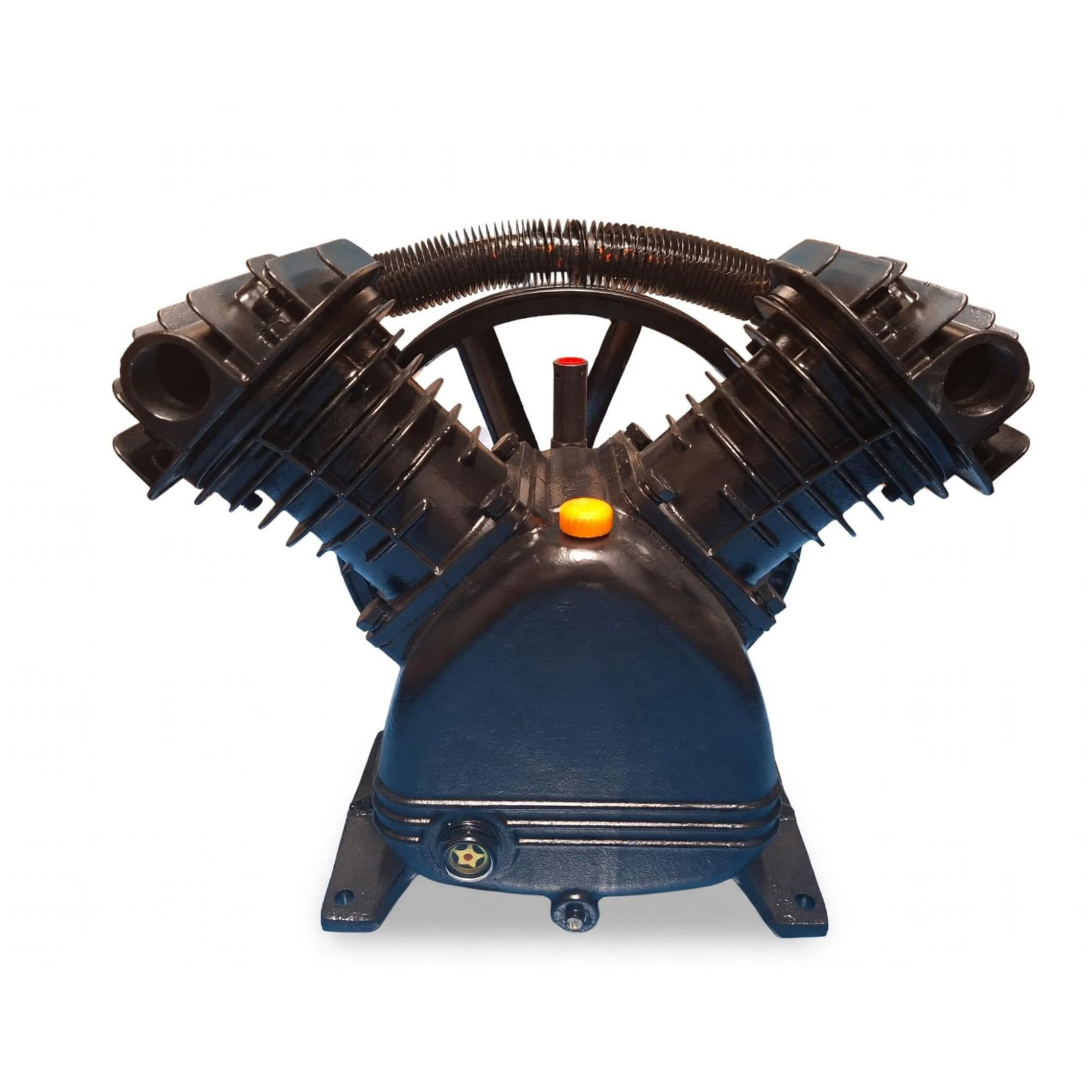

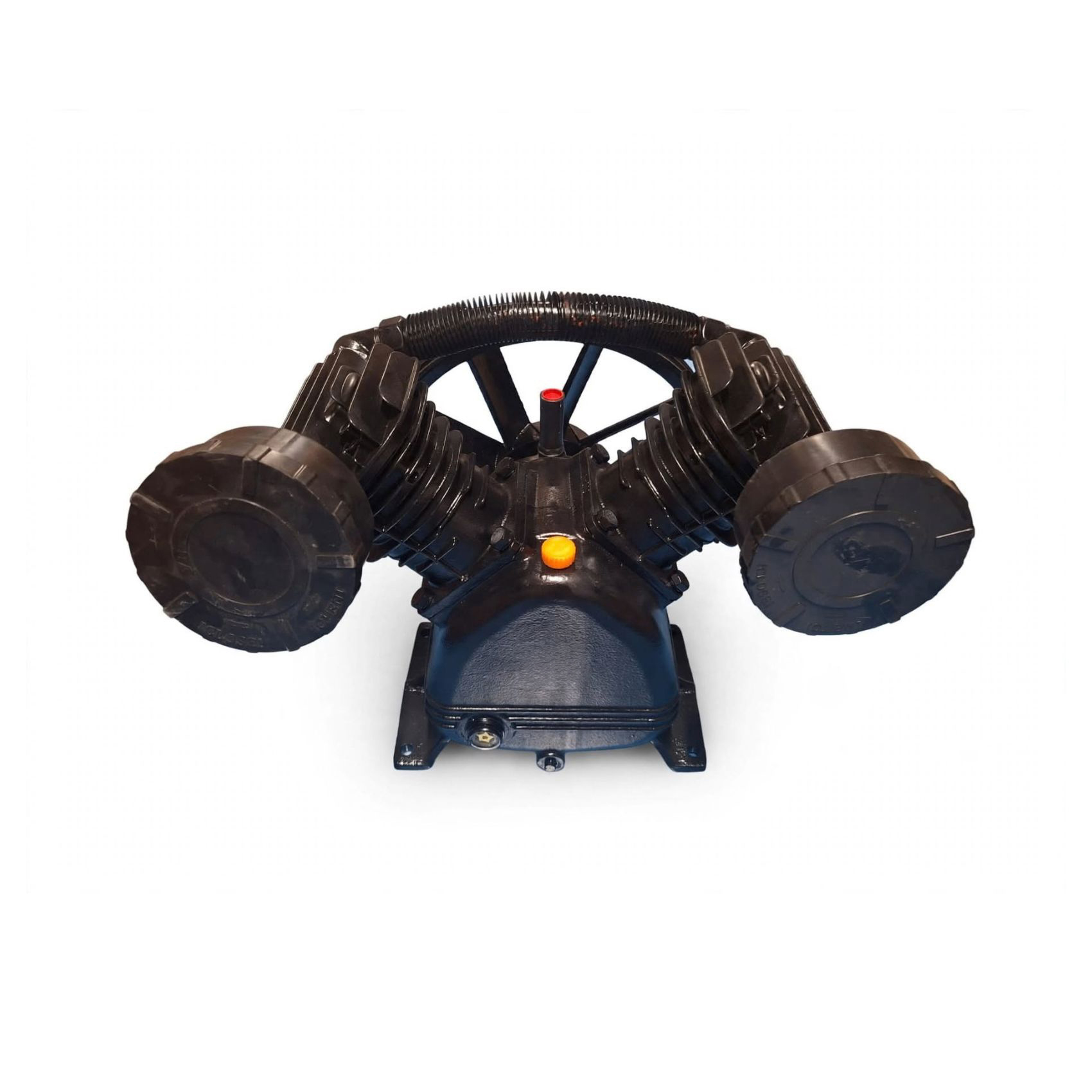

The PIONEER MY2090 7.5HP V-Type Air Compressor Pump is a heavy-duty compressor pump designed to provide reliable compressed-air generation for compatible air compressor systems. Its V-type configuration and twin-piston design make it suitable for demanding workshop, automotive, maintenance, and industrial air-compression applications.
The MY2090 pump is associated with the 7.5 HP PIONEER air compressor system and features two 90 mm pistons. The corresponding MY2090-8 compressor specification lists an air displacement of 670 L/min and a maximum pressure of 10 bar.
Important: The 500 L tank, 380V/50Hz electrical supply, 10 bar maximum pressure and 670 L/min air displacement belong to the MY2090-8 complete compressor specification. They should not automatically be presented as specifications of the pump head itself unless confirmed by the pump manufacturer's datasheet.
Compatibility Note: Please verify the model, mounting arrangement, pulley configuration, shaft dimensions and other pump specifications before purchasing a replacement pump.
| Item Code | CHIACP2090 |
|---|---|
| Barcode | 111100004126 |
| Brand | PIONEER |
The PIONEER MY2090 7.5HP V-Type Air Compressor Pump is a heavy-duty compressor pump designed for compatible air compressor systems. With its V-type configuration and twin-piston design, it provides a practical solution for workshops, automotive service centres, maintenance facilities, and industrial compressed-air applications.
The PIONEER MY2090 compressor pump is designed to be installed as part of a compatible air compressor system. It should be properly mounted to the compressor frame and connected to the appropriate motor, belt drive, air receiver, discharge line, and other required components according to the equipment design.
Before operation, make sure the pump is securely mounted, the drive system is correctly aligned, the lubrication system is properly serviced, and all air connections are secure. Operate the complete compressor system within the recommended limits of the equipment manufacturer.
The main purpose of the PIONEER MY2090 air compressor pump is to generate compressed air for a compatible compressor system. The piston mechanism compresses air and delivers it to the connected air receiver or compressed-air system.
It can be used as a replacement compressor pump when an existing compatible pump requires replacement due to wear, damage, or maintenance requirements.
The PIONEER MY2090 provides a practical replacement solution for compatible air compressor systems requiring a 7.5 HP V-type compressor pump. Its twin-piston configuration makes it suitable for applications where dependable compressed-air generation is required.
It is particularly useful for workshops and service facilities that need to maintain or replace the compressor pump of an existing compatible system rather than replacing the complete air compressor.
The PIONEER MY2090 Air Compressor Pump is suitable for:
The compressor pump can be used in compatible air compressor systems found in automotive workshops, mechanical service centres, industrial workshops, maintenance facilities, garages, and other locations where compressed air is required for pneumatic tools and equipment.
Before purchasing the PIONEER MY2090 compressor pump as a replacement, confirm compatibility with your existing compressor system. Check the compressor model, mounting arrangement, motor power, pulley and belt configuration, shaft dimensions, connection points, and other installation requirements.
The pump should be installed by a qualified technician or experienced service professional. Always follow the applicable manufacturer's installation, lubrication, maintenance, and operating instructions.
The PIONEER MY2090 is a 7.5 HP V-type air compressor pump designed for use with compatible air compressor systems. It features a twin-piston configuration for compressed-air generation.
Its purpose is to compress air and supply compressed air to a compatible air compressor system and receiver tank.
Yes, it can be used as a replacement pump when the existing compressor system is compatible with the MY2090 configuration and installation requirements.
The PIONEER MY2090 is a V-type piston air compressor pump with a twin-piston configuration.
It is suitable for automotive workshops, mechanical workshops, industrial maintenance facilities, garages, compressor service technicians, and businesses requiring a compatible replacement compressor pump.
Check your existing compressor model, mounting arrangement, motor power, pulley configuration, shaft dimensions, belt arrangement, and air connections to confirm compatibility before ordering.
