Brand: PIONEER
Product Type: Petrol Engine Water Pump
Model: ROP-2
Suction x Delivery Diameter : 2" X 2"
Pump Connection: 2 inch / 50 mm
Engine Brand: Honda
Engine Model: GX160
Engine Type: 4-Stroke Single Cylinder OHV Petrol Engine
Engine Power: 5 HP / 3.6 kW at 3600 rpm
Delivery Volume: 560 L/min / 147 gal/min
Total Head: 30 m / 98 ft
Pump Power / Speed: 2.3 kW / 3600 rpm
Pump Net Weight: 22 kg
Packing Details
Net Weight : 23 KG
Gross Weight : 24.2KG
Packing Size : 49.5 L X 38 W X 44 H - CM

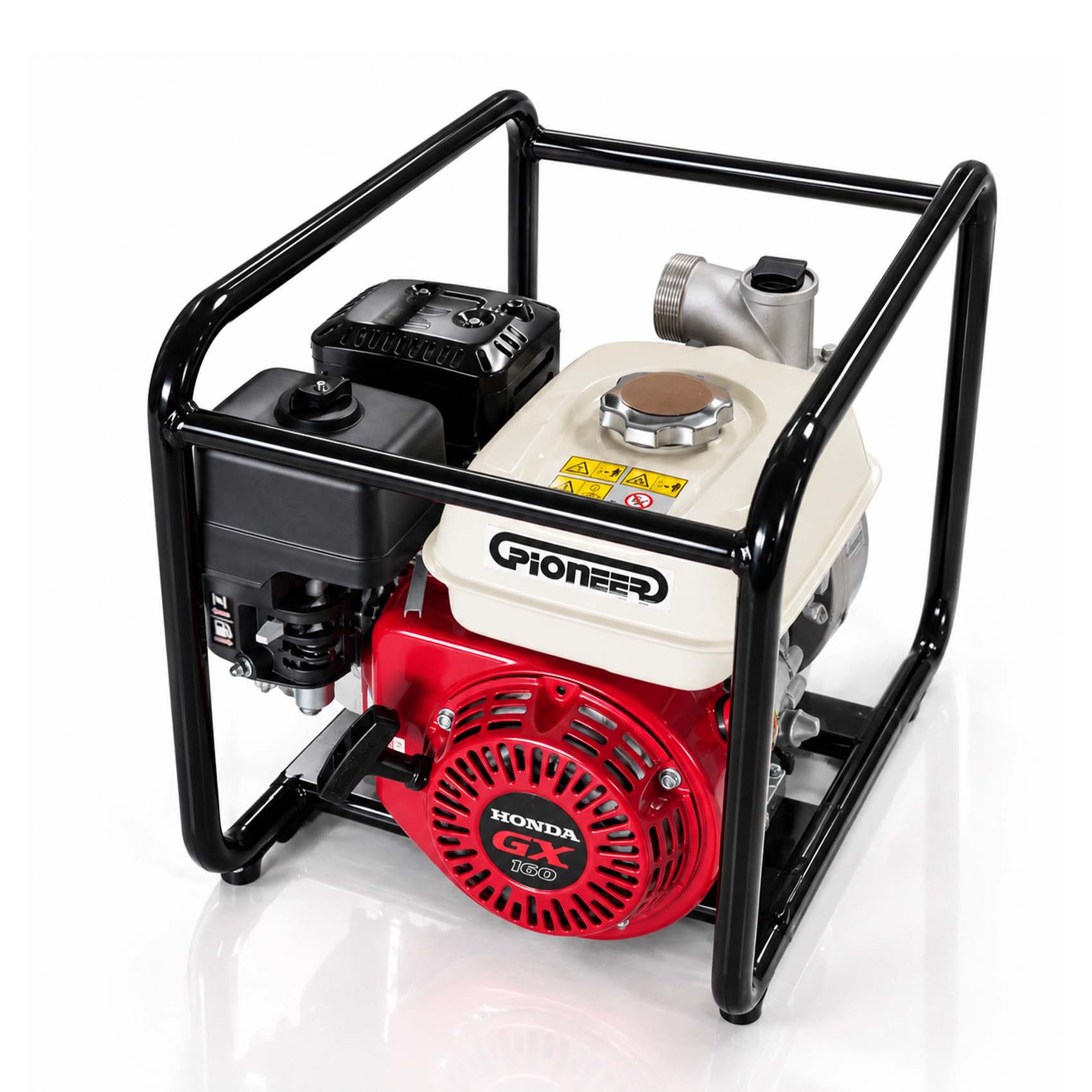

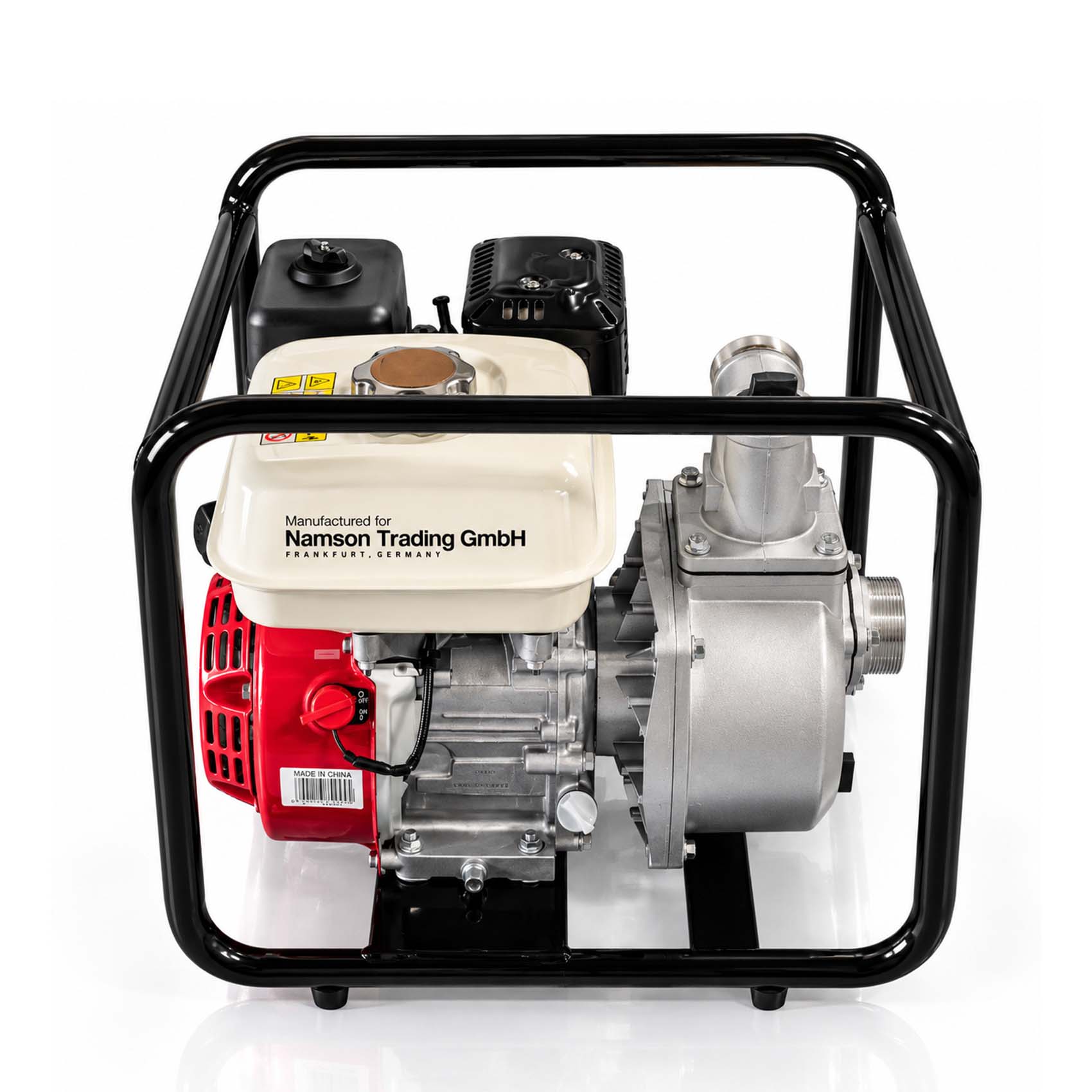

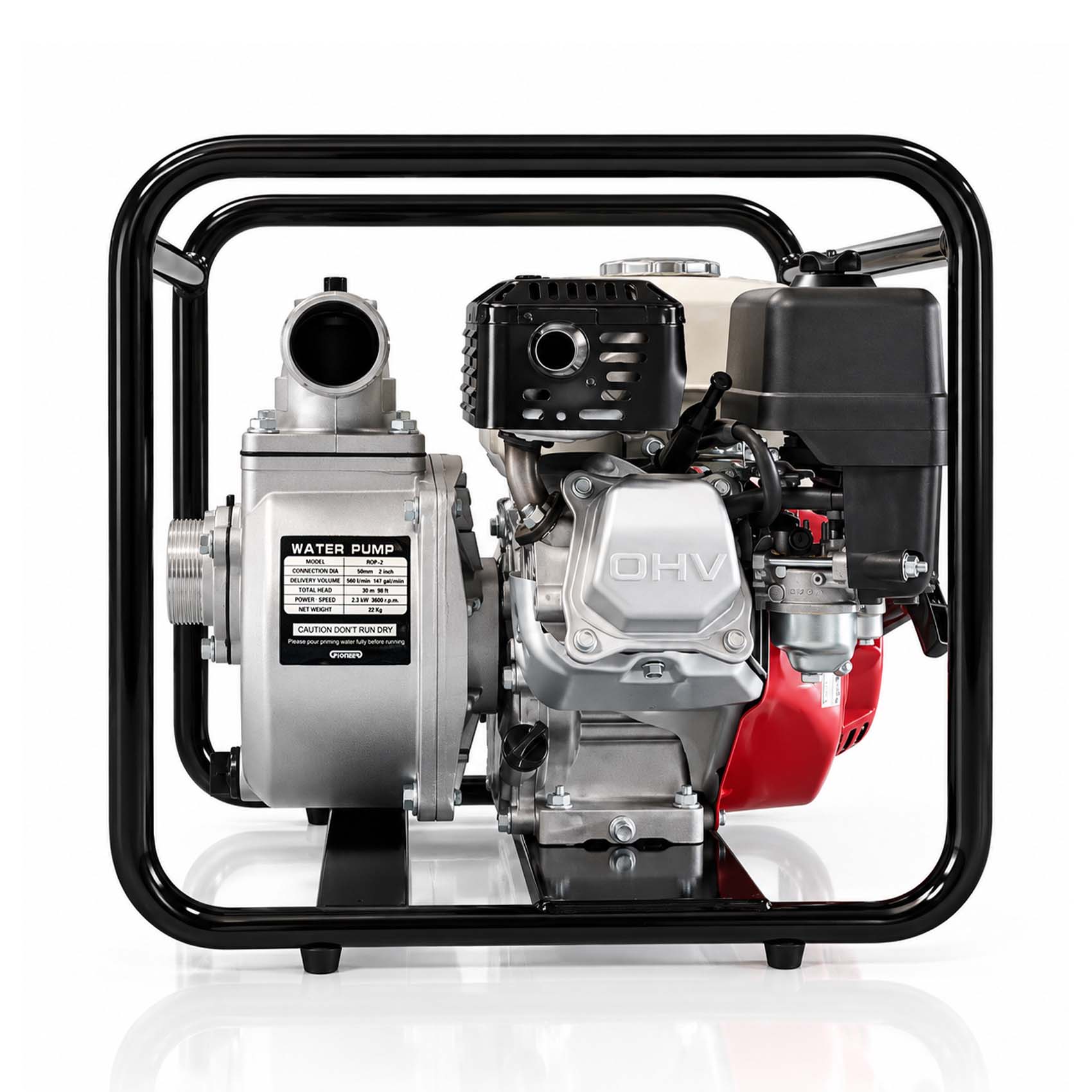

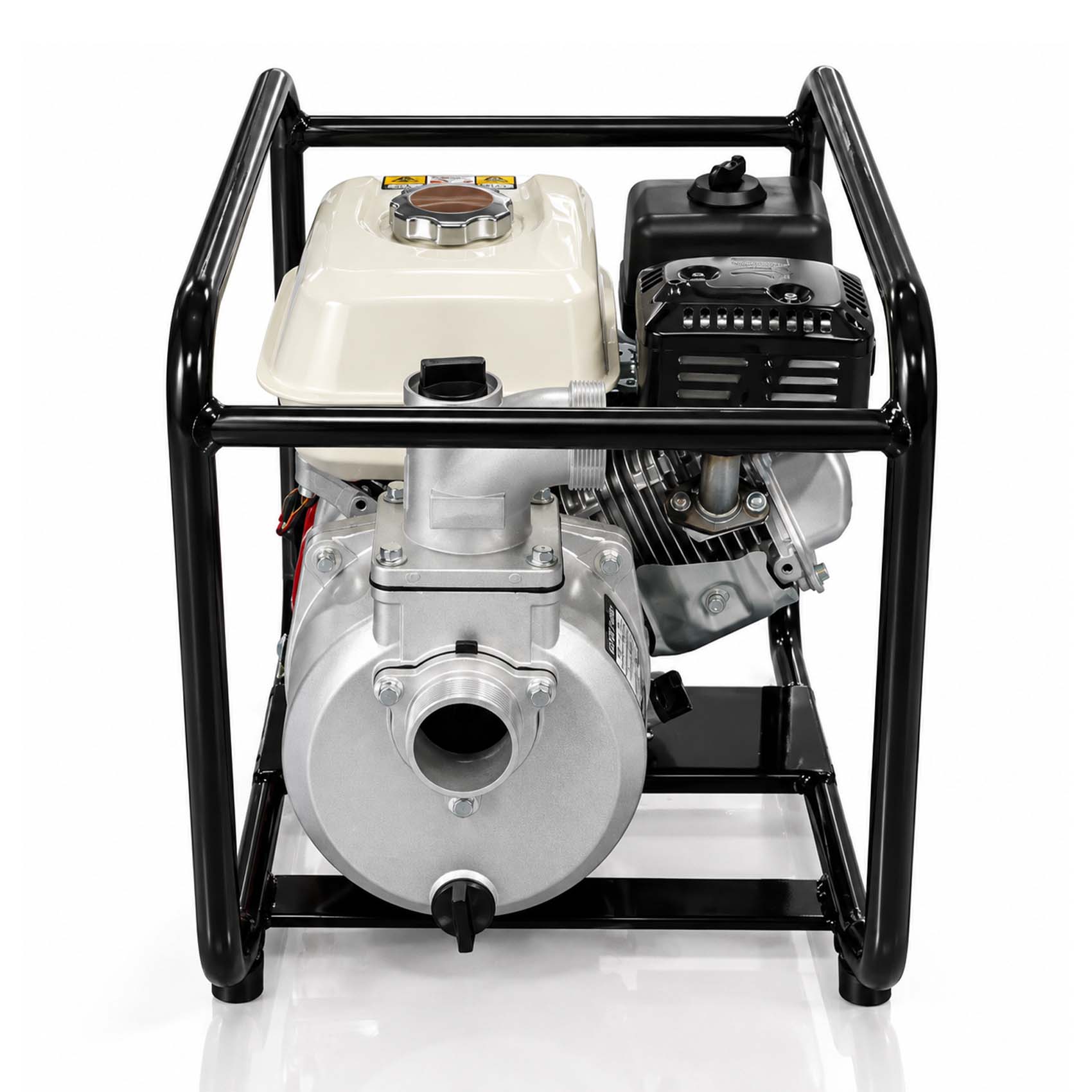

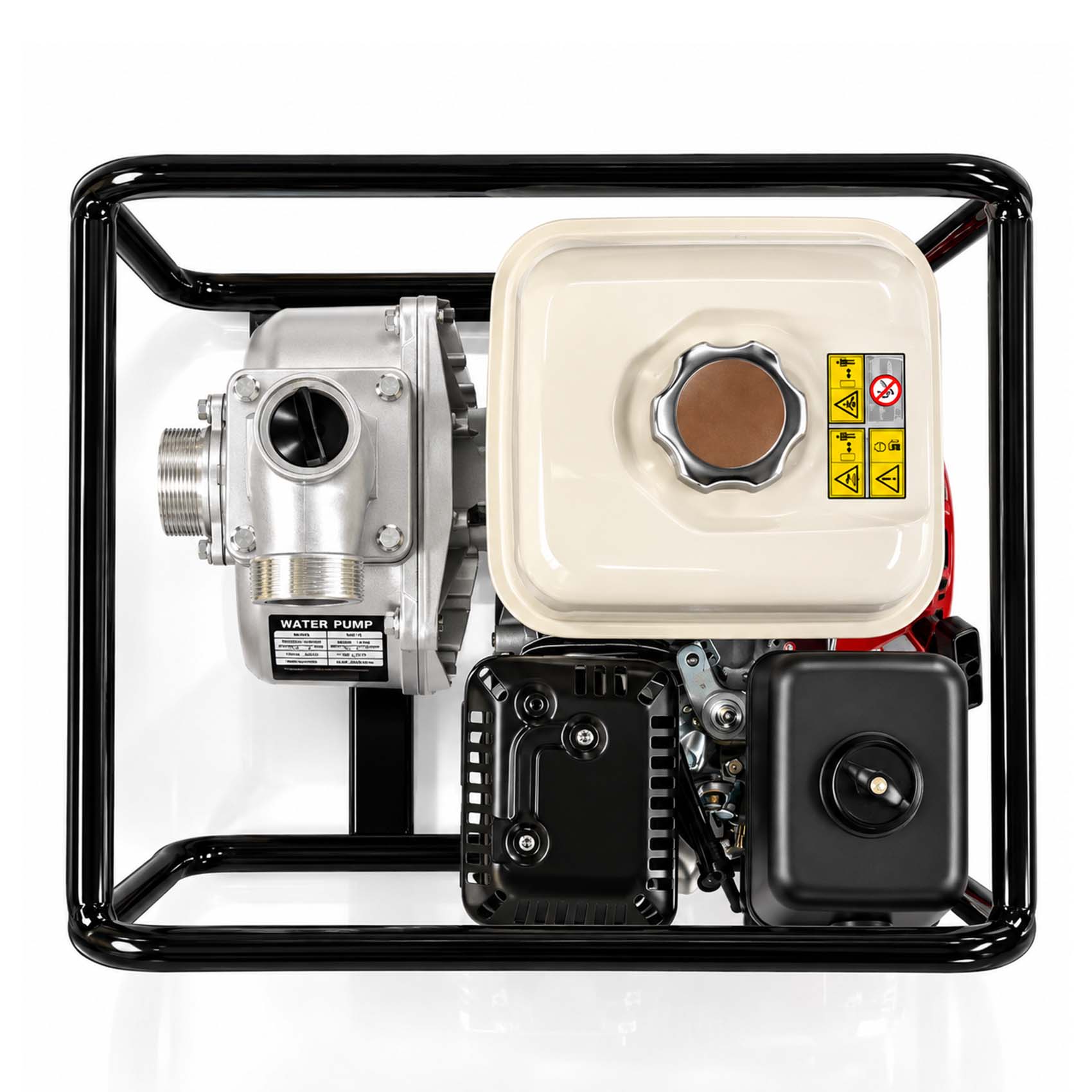

The PIONEER RAY ROP-2 2-Inch Water Pump with Honda GX160 Petrol Engine is a powerful petrol-driven water pump designed for applications requiring reliable water transfer and high-volume water delivery.
The ROP-2 features a 50 mm / 2-inch pump connection and provides a delivery volume of up to 560 L/min (147 gal/min) with a total head of 30 m (98 ft).

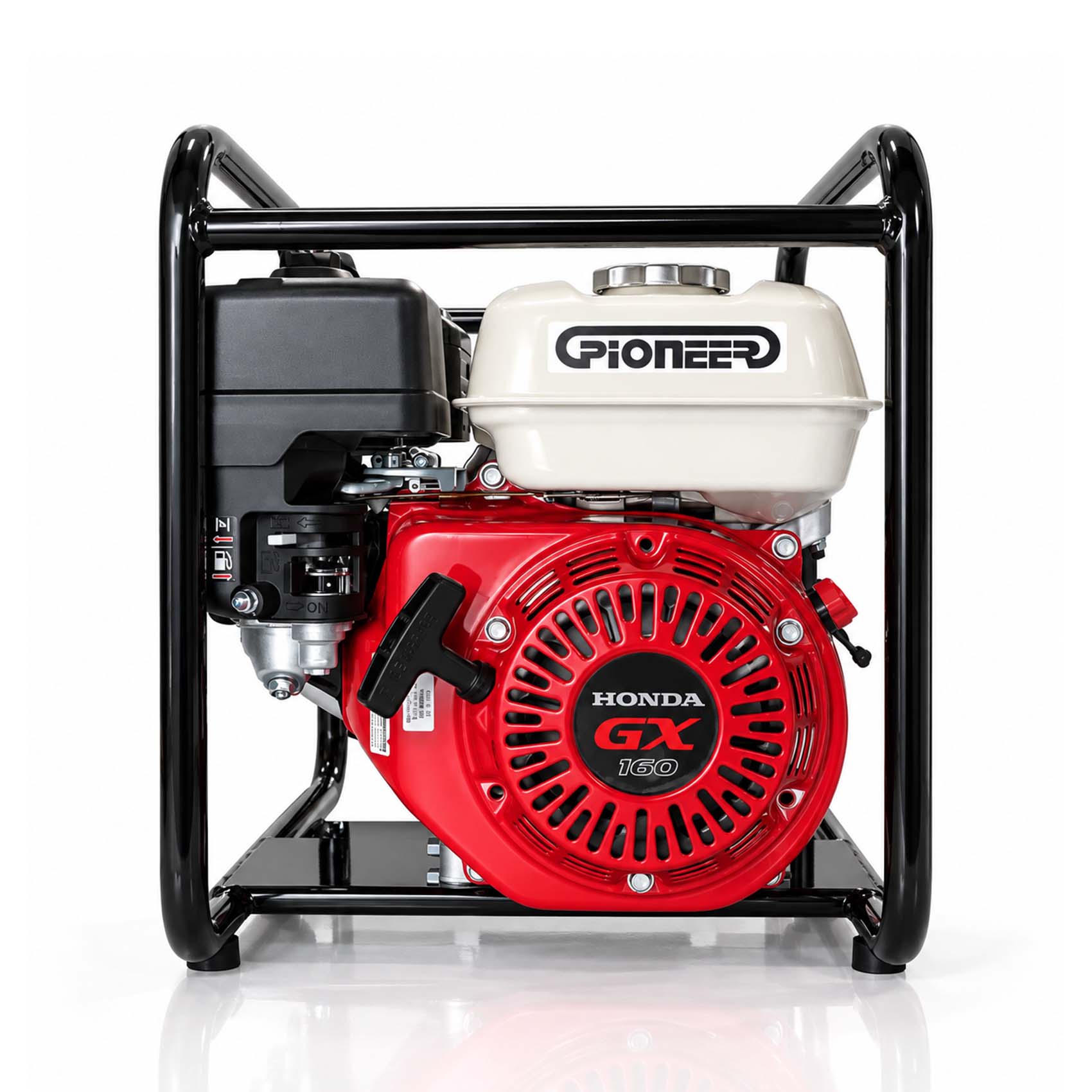

The pump is powered by a Honda GX160 4-stroke single-cylinder OHV petrol engine, offering 3.6 kW / 4.8 HP at 3600 rpm. The Honda GX160 is designed for demanding applications including pumps, generators, construction equipment, tillers, welders, and other industrial equipment.
Engine Specifications
Engine Model :Honda GX160
Engine Type:4-Stroke Single Cylinder OHV Petrol Engine
Cylinder :25° Inclined
Shaft :Horizontal
Cylinder Sleeve :Cast Iron
Bore × Stroke :68 × 45 mm
Displacement :163 cm³
Compression Ratio :9.0:1
Net Power :3.6 kW / 4.8 HP at 3600 rpm
Continuous Rated Power :2.5 kW / 3.4 HP at 3000 rpm
Continuous Rated Power :2.9 kW / 3.9 HP at 3600 rpm
Maximum Net Torque :10.3 Nm / 1.05 kgfm at 2500 rpm
Ignition System :Transistorised
Starter :Recoil
Fuel Tank Capacity :3.1 L
Fuel Consumption :1.4 L/h at 3600 rpm
Engine Oil Capacity :0.6 L
Engine Dimensions:312 × 362 × 346 mm
Dry Weight :15.1 kg
PIONEER ROP-2 Pump Specifications
Model :ROP-2
Connection Diameter :50 mm / 2 inch
Delivery Volume :560 L/min / 147 gal/min
Total Head :30 m / 98 ft
Power : 2.3 kW
Speed : 3600 rpm
Net Weight :22 kg
| Item Code | CHIPWPHE2 |
|---|---|
| Barcode | 6291116315391 |
| Brand | PIONEER |
The PIONEER RAY ROP-2 2-Inch Water Pump with Honda GX160 Petrol Engine is a petrol-powered water pump designed for reliable water transfer and high-volume pumping applications. With a 2-inch pump connection and a delivery capacity of up to 560 L/min, it is suitable for agricultural, construction, landscaping, maintenance, and general water-transfer applications.
The pump is powered by a Honda GX160 4-stroke single-cylinder OHV petrol engine, providing 4.8 HP / 3.6 kW at 3600 rpm. The combination of the PIONEER ROP-2 pump and Honda GX160 engine provides a practical solution for locations where an independent petrol-powered water pumping system is required.
Place the water pump on a stable and level surface before operation. Connect the appropriate suction hose to the 2-inch pump inlet and connect the discharge hose to the outlet. Make sure all hose connections are properly secured before starting the engine.

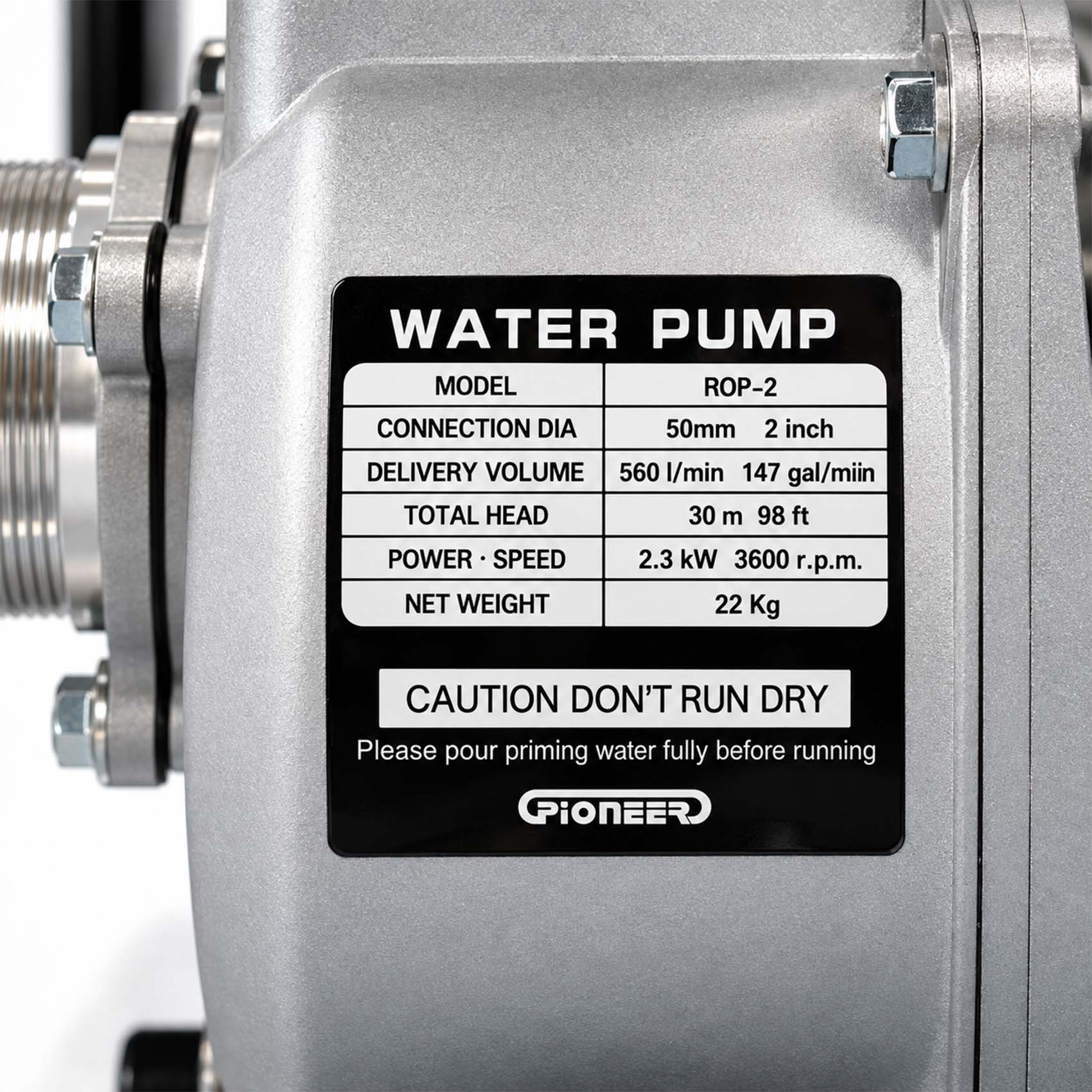

Check the engine fuel and oil levels before operation. The pump must be properly primed with water before starting. The pump nameplate specifically warns: “DON'T RUN DRY” and instructs the user to fill the pump with priming water before running.
Start the Honda GX160 engine using the recoil starter and operate the pump according to the required water-transfer application. After use, stop the engine and follow the appropriate maintenance and storage procedures.
The main purpose of the PIONEER ROP-2 water pump is to transfer water efficiently where a high-volume flow is required. The petrol engine allows the pump to operate independently of a mains electrical power supply.
It can be used for moving water between tanks, supplying water for agricultural applications, transferring water at construction sites, drainage-related work, landscaping, and other suitable water-pumping applications.
The PIONEER ROP-2 combines a 2-inch high-flow water pump with a Honda GX160 petrol engine, making it suitable for users who need a portable and independently powered water-transfer solution.
Its high water delivery capacity, 30 m total head, and reliable petrol engine make it suitable for a range of agricultural, construction, landscaping, maintenance, and general water-transfer applications.
The PIONEER ROP-2 water pump is suitable for users and businesses that require petrol-powered water transfer equipment, including:
The PIONEER ROP-2 can be used for a variety of water-transfer applications in agricultural fields, farms, construction sites, landscaping projects, maintenance facilities, outdoor locations, and other areas where portable water pumping is required.
The Honda GX160 is a 4-stroke single-cylinder OHV petrol engine designed for applications such as pumps, construction equipment, tillers, generators, welders, and other industrial equipment. In this PIONEER ROP-2 configuration, the engine provides the power required to operate the water pump.
Do not run the pump dry. Make sure the pump is fully primed with water before starting. Check the engine oil, fuel, hoses, connections, and general condition of the equipment before operation. Always operate and maintain the pump according to the applicable manufacturer instructions.
The PIONEER ROP-2 is a 2-inch petrol engine water pump equipped with a Honda GX160 engine and designed for water transfer and high-volume pumping applications.
The PIONEER ROP-2 uses a Honda GX160 4-stroke single-cylinder OHV petrol engine.
The PIONEER ROP-2 has a stated delivery volume of up to 560 L/min or 147 gal/min.
The PIONEER ROP-2 has a 50 mm / 2-inch pump connection.
The PIONEER ROP-2 has a stated total head of 30 m or 98 ft.
Yes. The pump is powered by a Honda GX160 petrol engine, allowing it to operate independently of a mains electrical power supply.
Yes. The pump must be properly filled with priming water before operation. The pump nameplate specifically warns not to run the pump dry.
It can be used for suitable water-transfer applications in agriculture, construction, landscaping, maintenance, farms, workshops, and other outdoor or industrial applications.
