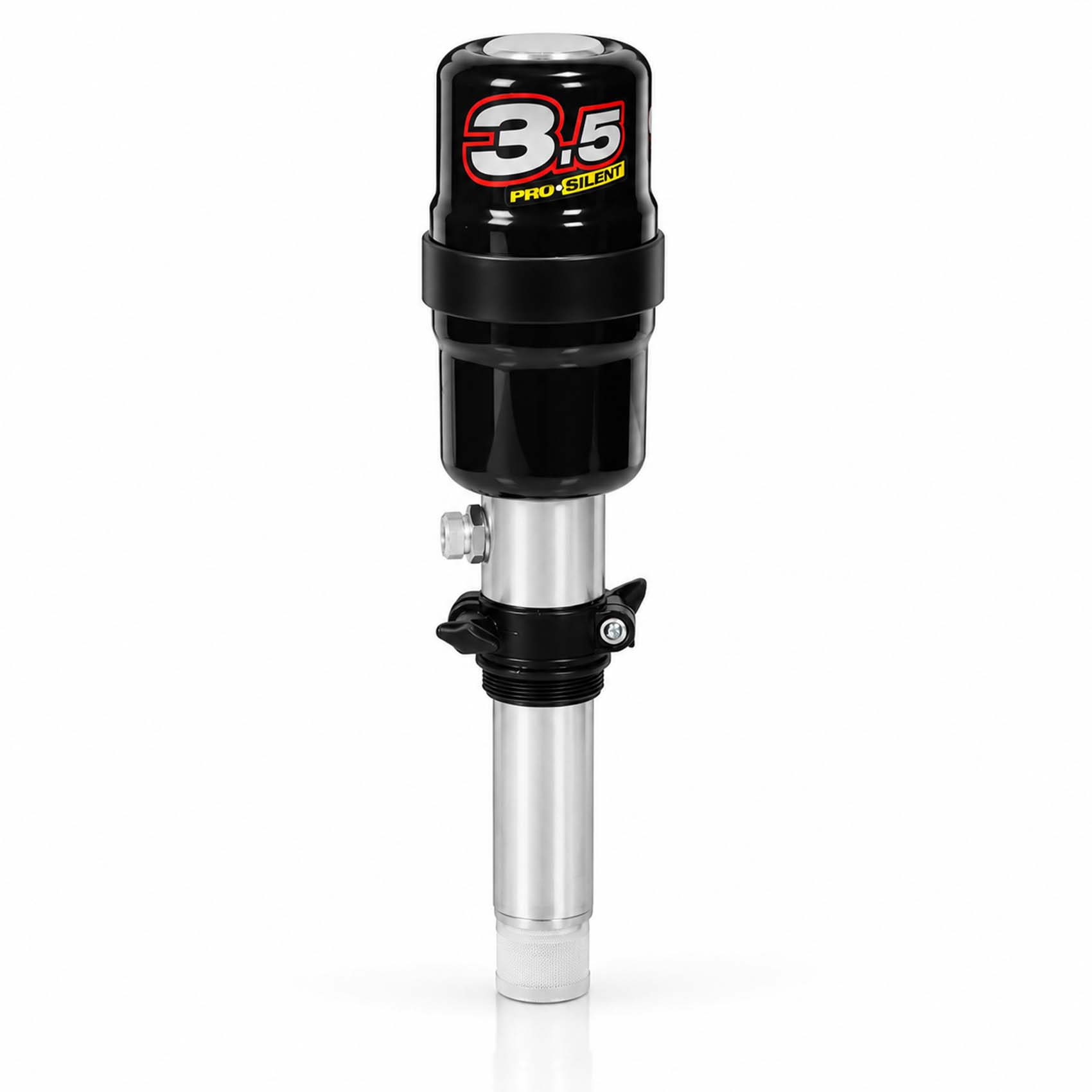

Brand- PIUSI
Origin –Italy
Pump type -Pneumatic piston pump
Application -Lubricating oil transfer
Pressure ratio -3.5:1
Maximum flow rate -21.5 L/min
Working air pressure -3–8 bar
Air consumption -200–250 L/min
Suction tube diameter -50 mm
Suction tube length -175 mm
Overall dimension A -445 mm
Weight -Approximately 3.5–4.5 kg, depending on catalogue/packaging data
Air inlet connection -Female 1/4" BSP
Oil suction connection -Female 1" BSP
Oil outlet connection -Male 1/2" BSP
Seals -NBR
| Item Code | ITLPIUF0021400A |
|---|---|
| Barcode | 8050031044124 |
| Brand | PIUSI |

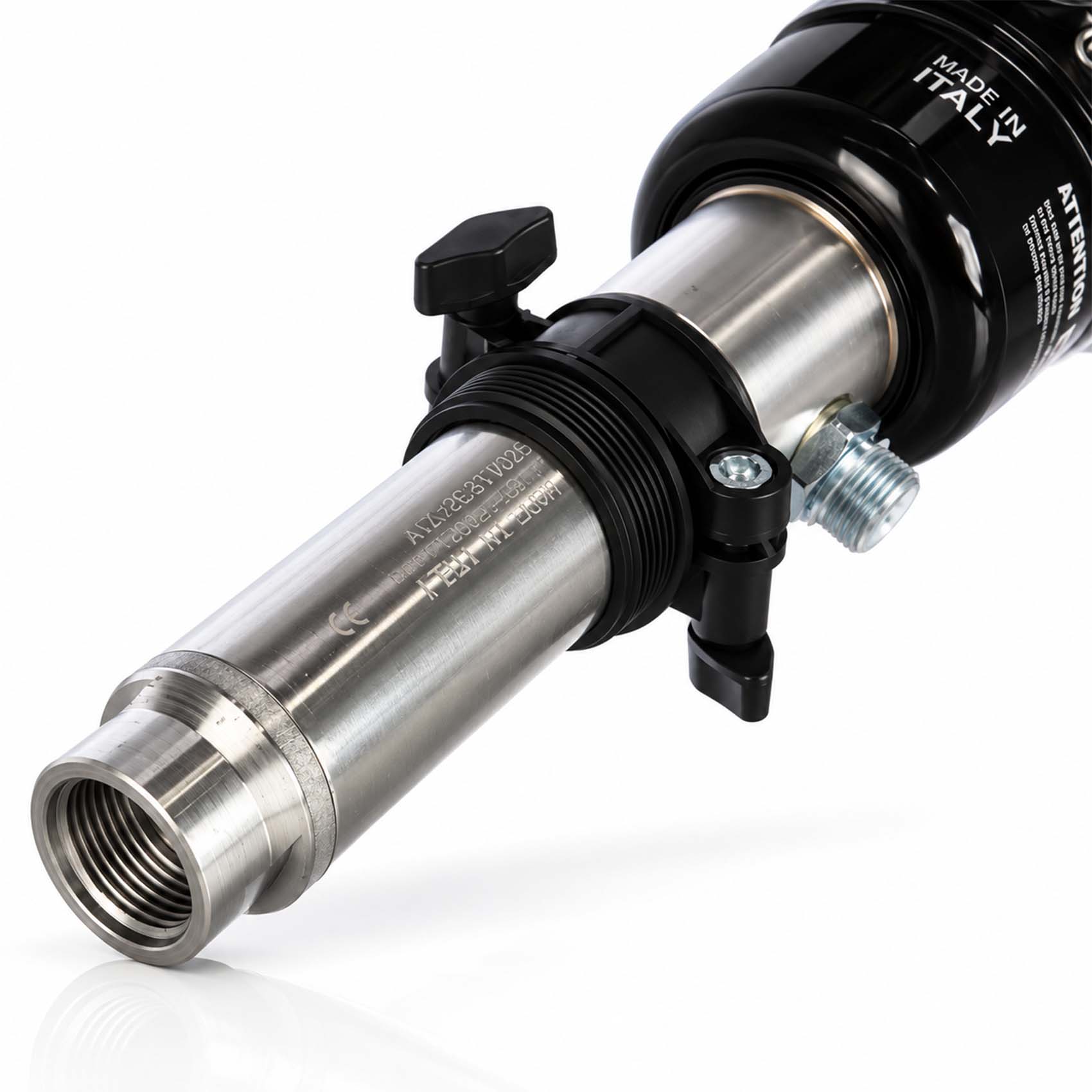

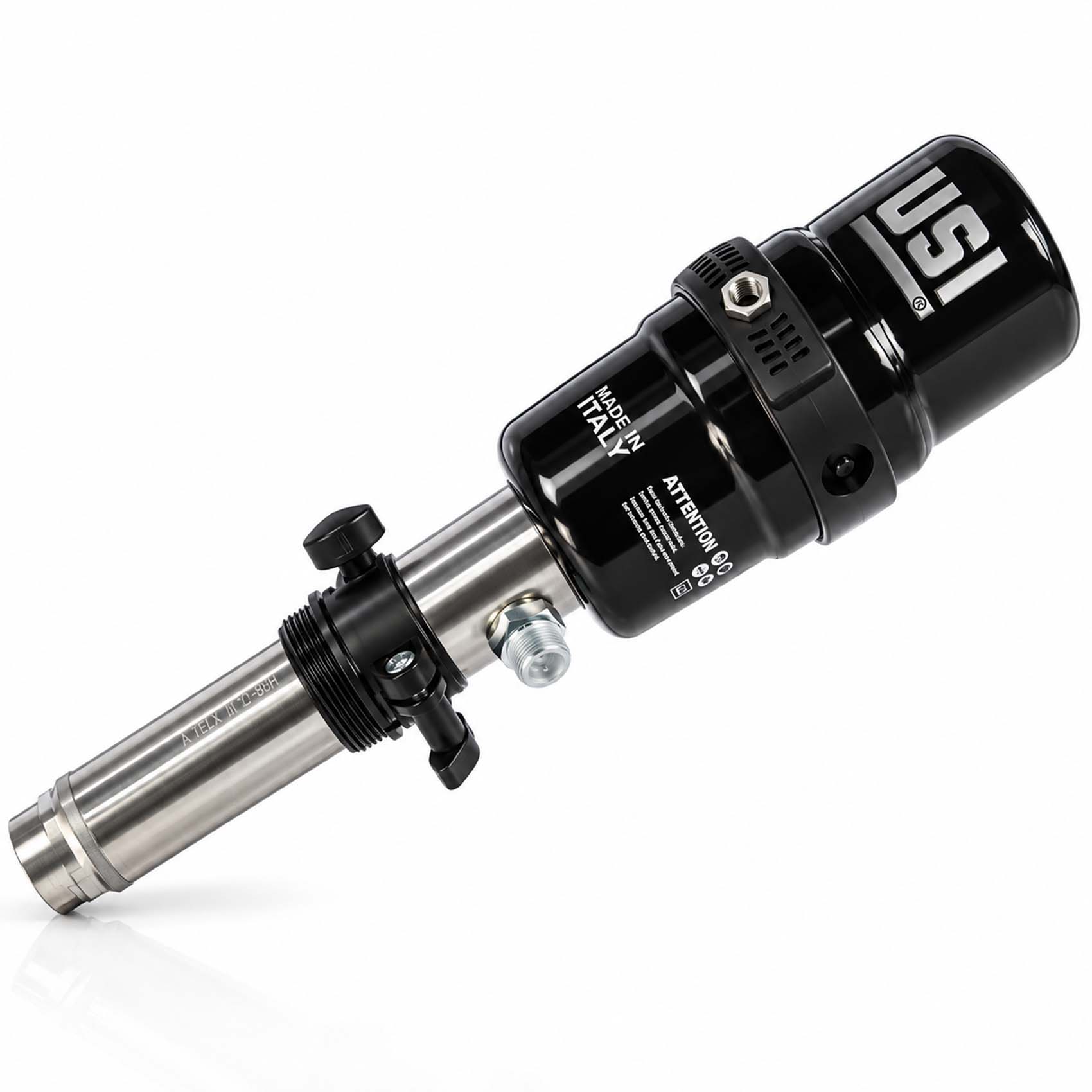

The PIUSI Air Oil Pump 3:1 Short Type F0021400A is designed for transferring lubricating oil efficiently in professional workshops, automotive service centres, industrial maintenance facilities and lubrication systems. Manufactured in Italy, this pneumatic piston pump uses compressed air to help deliver oil under pressure, making it a practical solution for regular oil handling and dispensing operations.
Designed for professional lubrication applications, this air-operated oil pump supports controlled oil delivery from suitable containers or storage systems. Its compact short-type configuration makes it a useful choice for installations where available mounting space and efficient lubricant handling are important.
The primary purpose of the PIUSI pneumatic oil pump is to transfer lubricating oil from a drum, tank or other compatible storage container to a dispensing point or lubrication system. It uses compressed air to operate its internal piston mechanism, helping supply oil for vehicle servicing, machinery maintenance and industrial lubrication tasks.
With its short suction tube design, this model is particularly suitable for compatible installations where a shorter pump assembly is required. It is intended for lubricating oil applications rather than general-purpose water pumping or fuel transfer.
Operates using a compressed-air supply, making it suitable for workshops equipped with pneumatic systems.
The air-powered piston mechanism generates oil delivery pressure suitable for compatible lubrication applications.
Provides a practical option for suitable oil containers and installations with limited vertical clearance.
Supports routine lubricant transfer and dispensing operations in automotive and industrial environments.
NBR seals support compatible oil-handling applications when used within the material's operating limits.
A PIUSI lubrication equipment solution manufactured in Italy for professional fluid-handling applications.
Follow the manufacturer's installation and operating instructions and ensure that the pump, lubricant, container and connected equipment are compatible before use.
Important safety note: Never exceed the pump's specified operating limits. Depressurize the system before maintenance, use appropriate personal protective equipment and never direct pressurized oil toward the body. Confirm the exact pressure ratio and operating limits in the manufacturer's documentation before installation.
Choosing the PIUSI Air Oil Pump 3:1 Short Type F0021400A can help streamline lubricant transfer in facilities that already use compressed-air equipment. Its pneumatic piston design, compact configuration and compatibility with suitable oil dispensing systems make it a practical option for regular workshop and maintenance operations.
For businesses looking to improve lubricant handling, reduce reliance on manual transfer methods and integrate oil delivery into an existing service setup, this pump offers a purpose-built alternative to manual oil pumps. Correct sizing, installation and maintenance are essential for dependable operation.
Transferring engine oil and other compatible lubricants during vehicle maintenance and servicing.
Supplying compatible lubricants for routine equipment servicing and maintenance operations.
Supporting lubricant dispensing in commercial vehicle workshops and fleet service facilities.
Integrating with compatible oil storage, delivery hoses and dispensing equipment.
The PIUSI Air Oil Pump 3:1 Short Type F0021400A is designed for compatible lubricating oil transfer in professional workshop and industrial environments. Confirm the model's specifications, operating requirements and installation compatibility before purchase.
