BRAND : PORTOTECNICA
ITEM NO.: IDAF40536
ORIGIN : ITALY
OPERATING PRESSURE : 30-190 BAR/3-19 MPA
FLOW RATE : 900 L/H
INLET WATER MAX. TEMPERATURE : 50 Β°C
POWER SUPPLY : 3PH-400V-50HZ/9,5 A
ABSORBED POWER : 5,1 KW
MOTOR POLE : 4-1400 RPM
REMOTE CONTROL : DTS
PUMP/HEAD/PISTONS : IPC PLUNGER/BRASS/CERAMIC
DIMENSION (LXWXH : L 68 X W 48 X H 32 CM
WEIGHT : 55 KG
STANDARD EQUIPMENT
CODE: IPIP40014 : GRIP G6000 BAYONET
CODE: LCLC40004 : EXTENSION P70 INOX BAYONET
CODE: UGLN49987 : H.P NOZZLE 1/4 UG.15045
CODE: TBAP25324 : HIGH PRESSURE HOSE 10 M
. BY-PASS - BYP
. THERMOSTATIC VALVE - TSV
. DELAYED TOTAL STOP - DTS
. MICRO LEAKAGE CONTROL - MLC
. FLOODING PREVENTION SYSTEM - FPS
. NOOZLE CLOG CONTROL - NCC
. WORKING HOURS COUNTER - WHC
. DRY RUNNING PROTECTION - DRP
. INTELLIGENT PROPORTIONAL SWITCHING OFF - IPSF
. EASY ACCESS TO ALL COMPONENTS FOR AN EASY MAINTENANCE
. HIGH CAPACITY INLET WATER FILTER
. BY-PASS VALVE IS PROVIDED WITH 1 HOLDING METAL PLATE IN ORDER TO PROTECT IT FROM MECHANICAL STRESS
| Item Code | PORIDAF40536 |
|---|---|
| Barcode | 8013378098649 |
| Brand | PORTOTECNICA |

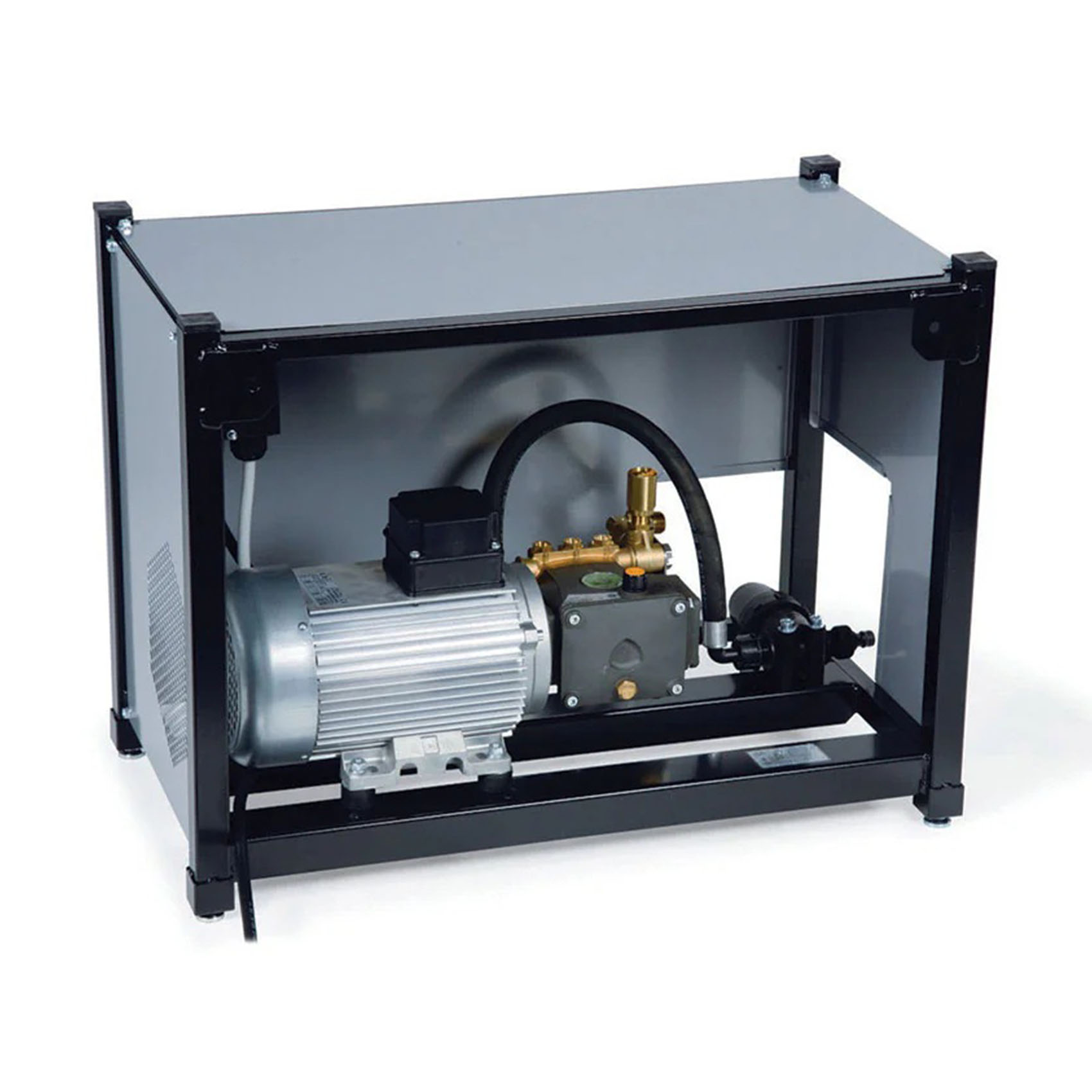

The PORTOTECNICA MLC-C D1915P IDAF40536 is a professional stationary cold water high-pressure washer engineered for continuous industrial and commercial cleaning operations. Manufactured in Italy, this advanced cleaning system delivers adjustable pressure from 30 to 190 bar with a high flow rate of 900 liters per hour. Powered by a robust 5.1 kW, 4-pole 1400 RPM motor, it incorporates intelligent protection technologies including Delayed Total Stop (DTS), Dry Running Protection (DRP), Flooding Prevention System (FPS), and Micro Leakage Control (MLC). Designed for reliability, efficiency, and easy maintenance, it is ideal for demanding cleaning applications in factories, workshops, vehicle wash bays, and industrial facilities.
Install the stationary unit in a suitable location with access to a three-phase 400V power supply and a clean water source. Connect the high-pressure hose, spray gun, lance, and nozzle securely. Open the water supply and switch on the machine. Select the appropriate pressure level according to the cleaning application. Direct the spray onto the surface while maintaining a safe working distance. Once cleaning is complete, release pressure, switch off the machine, and allow the intelligent control systems to manage the shutdown sequence.
The PORTOTECNICA MLC-C D1915P is designed for intensive cleaning of machinery, production equipment, vehicles, floors, industrial facilities, warehouses, workshops, and commercial properties. Its stationary design makes it ideal for locations requiring a permanent professional cleaning solution with consistent performance and high reliability.
The PORTOTECNICA MLC-C D1915P combines powerful cleaning performance with intelligent protection systems that maximize equipment lifespan and minimize downtime. Its industrial-grade pump, ceramic pistons, and advanced electronic controls deliver exceptional reliability even in demanding environments. The stationary configuration makes it ideal for facilities that require a dedicated cleaning station capable of handling daily professional cleaning tasks efficiently.
The machine delivers adjustable operating pressure from 30 bar up to a maximum of 190 bar for professional cleaning applications.
The unit provides a high flow rate of 900 liters per hour, making it suitable for intensive industrial cleaning tasks.
Dry Running Protection helps prevent pump damage by monitoring water supply conditions and protecting the system when insufficient water is detected.
Ceramic pistons offer exceptional wear resistance, durability, and longer pump life compared to conventional piston materials.
Yes. Its industrial motor, professional pump assembly, and advanced protection systems make it suitable for demanding continuous cleaning operations.
