BRAND : PIONEER
ITEM NO.: SGW220E
ORIGIN : CHINA
HP : 15
AC CIRCUIT BREAKER :
AC VOLTAGE : 220V
FREQUENCY : 50HZ
MAX. AMP : 220A
MIN. AMP : 50A
GENERATOR POWER : ~5 KW
DC CIRCUIT BREAKER :
VOLTAGE : DC 12V
AMP : 8.3A
FUEL : GASOLINE
FUEL TANK : ~25L
ENGINE TYPE 4 : STROKE SINGLE - CYLINDER, WITH AIR COOLING OF OHV
CURRENT INTENSITY (A) 50 - 230
SYSTEM OF START : ELECTRO/MANUAL
DEGREE OF PROTECTION : IP23
SOUND LEVEL : 97 DB
RUNTIME : ~8 H
CURRENT RANGE : 50-220A
DUTY CYCLE : 35%, 40%, 50%, 60%, 100%

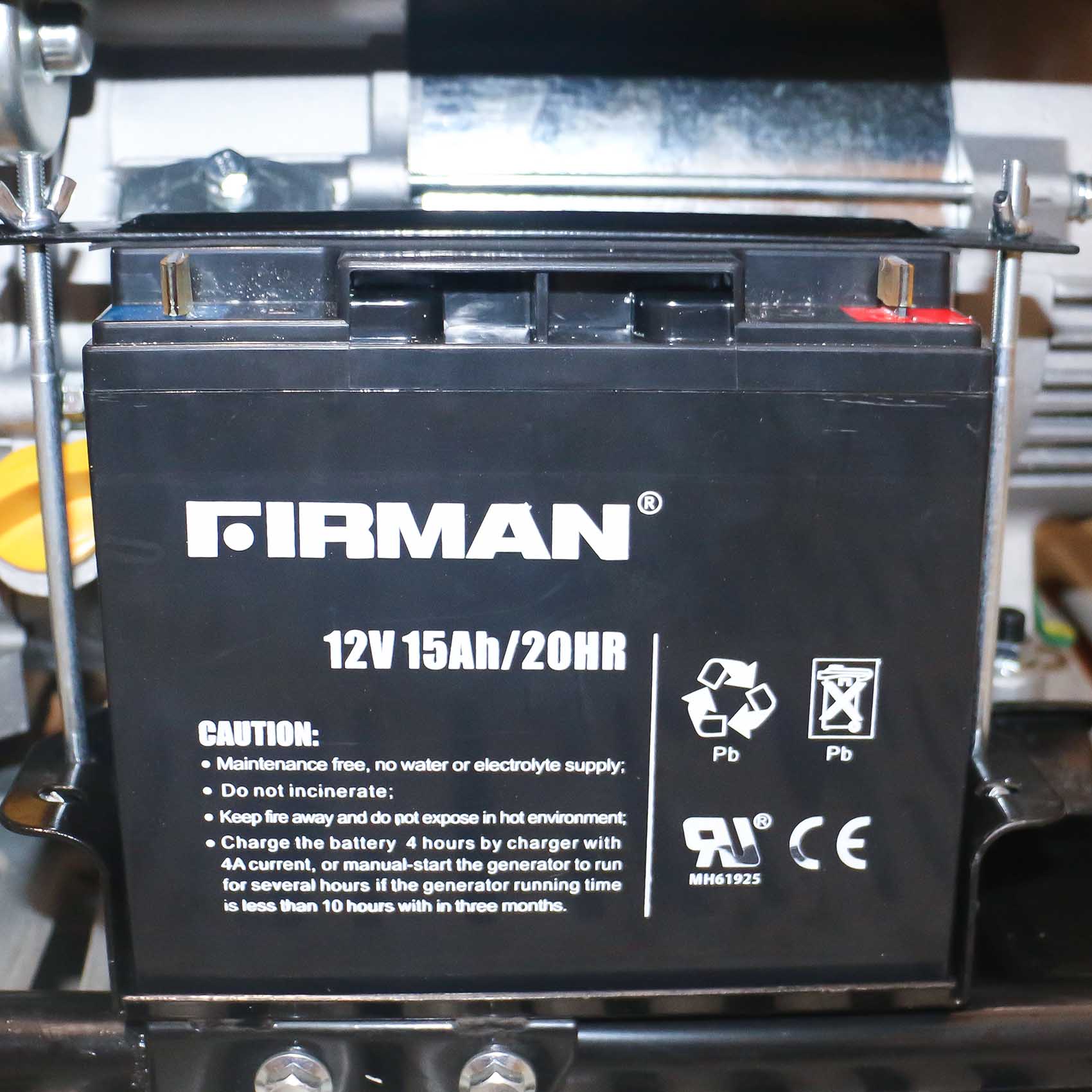

BATTERY : 12V, 15AH/20HR
PAKAGING DIMENSIONS : 695 X 560 X 575 MM
NET WEIGHT : 91 KG
GROSS WEIGHT : 94 KG

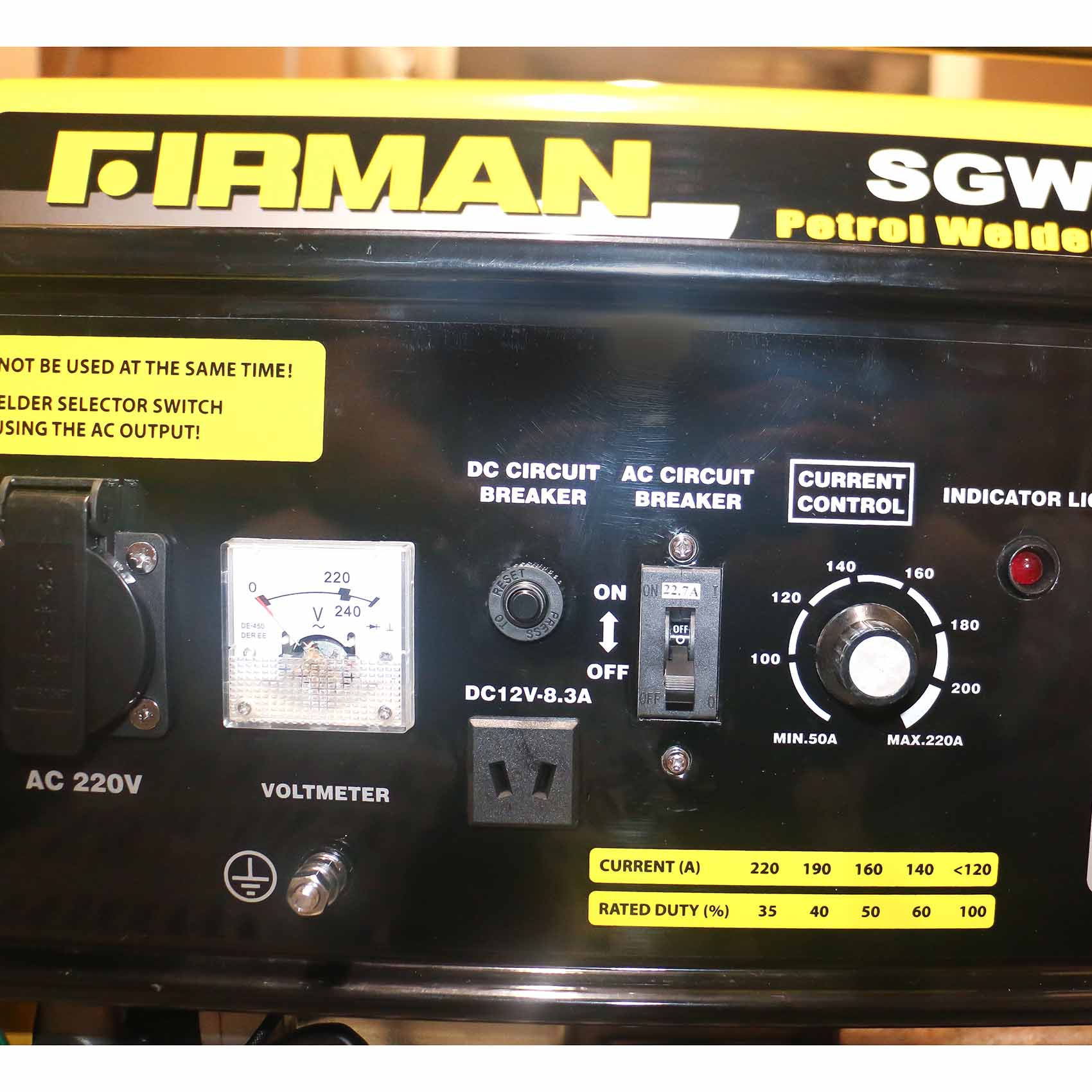

ON FRONT PART OF THE DIESEL GENERATOR ARE AVAILABLE :
POWER INDICATOR
2 SOCKETS (220V)
SAFETY LOCK OF A DIRECT CURRENT (PROTECTION AGAINST AN INPUT CURRENT)
VOLTMETER
AUTOSTARTER
ADJUSTMENT OF CURRENT INTENSITY FOR WELDING
PLUGS FOR WELDING
BIG PLUS IS THE FUEL INDICATOR WHICH ALLOWS TO CHECK THE CURRENT FUEL LEVEL AT ANY TIME.

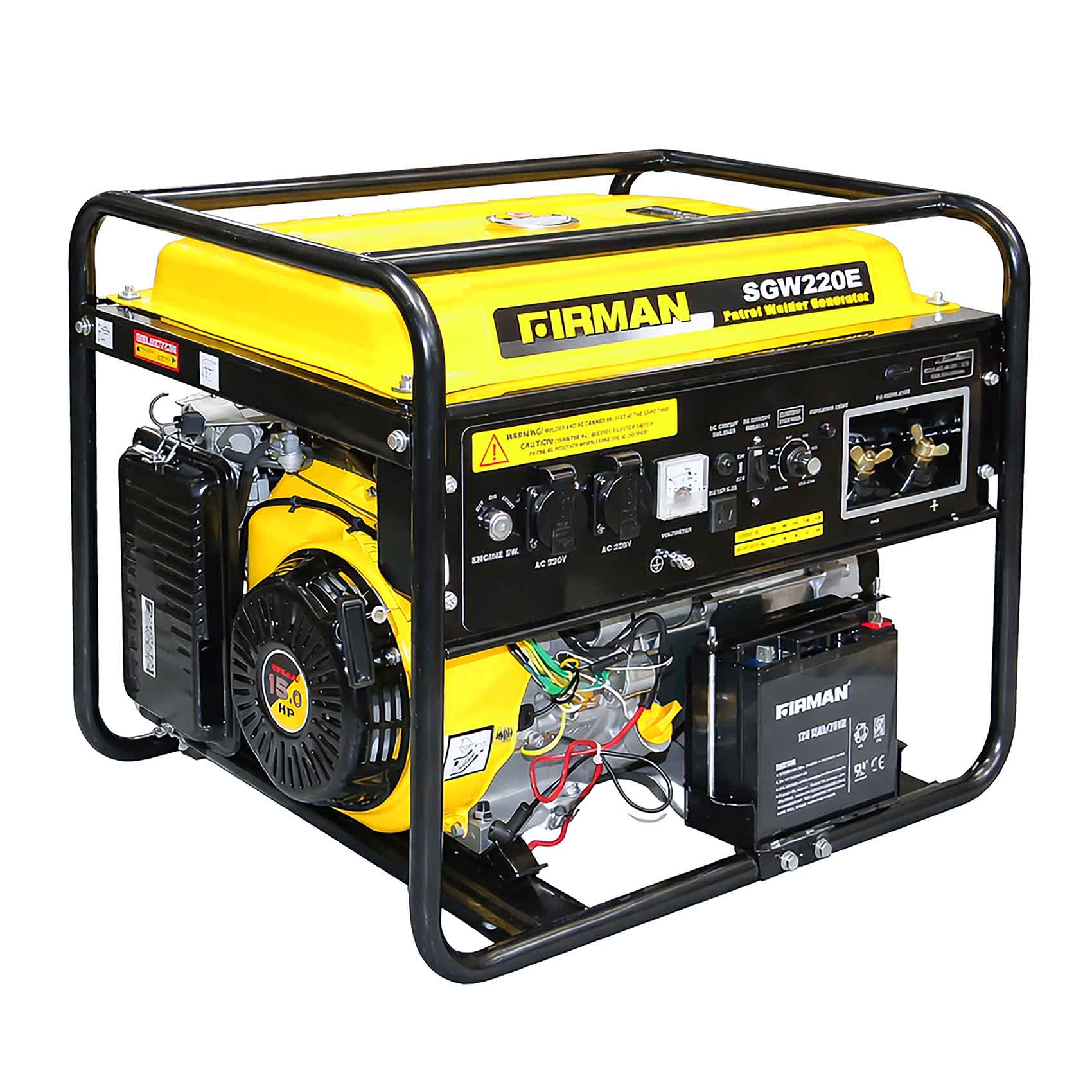

FEATURES OF THE FIRMAN SGW 230E GASOLINE - DRIVEN GENERATOR:
GENERATOR + WELDING
SAFETY LOCK FROM AN INPUT CURRENT
AUTOMOBILE ACCUMULATOR (12 V) GENERATOR CHARGER
THE POWERFUL GENERATOR FOR THE HOUSE AND WELD POWER PLANT.
| Item Code | CHIFIRSGW220 |
|---|---|
| Barcode | 4250920700726 |
| Brand | PIONEER |
Start by filling the fuel tank with gasoline and checking the oil level. Connect the welding cables securely to the generator terminals. Turn on the fuel valve, switch the ignition to ON, and start the machine using either the electric starter or manual recoil. Adjust the welding current based on your requirement (50A–220A). For power supply usage, simply plug your tools into the 220V sockets. Always monitor the voltmeter and fuel indicator during operation.
This machine combines a generator and welding unit in one device. It is designed to provide reliable electricity and welding capability in locations where power supply is unavailable or unstable. It is ideal for outdoor, industrial, and emergency applications.
This welding generator is a practical solution for professionals who need mobility and efficiency. Instead of carrying separate machines, this unit delivers both power generation and welding in one compact system. It saves time, space, and cost while ensuring consistent performance even in remote locations.
It is recommended to use either welding or power output at one time for optimal performance and safety.
This unit runs on gasoline, making it easy to refuel and widely accessible.
Yes, it is designed for outdoor applications such as construction, field repairs, and remote work.
It can operate for approximately 8 hours depending on load and usage conditions.
Yes, it includes AC/DC circuit breakers, overload protection, and a safety lock system.
