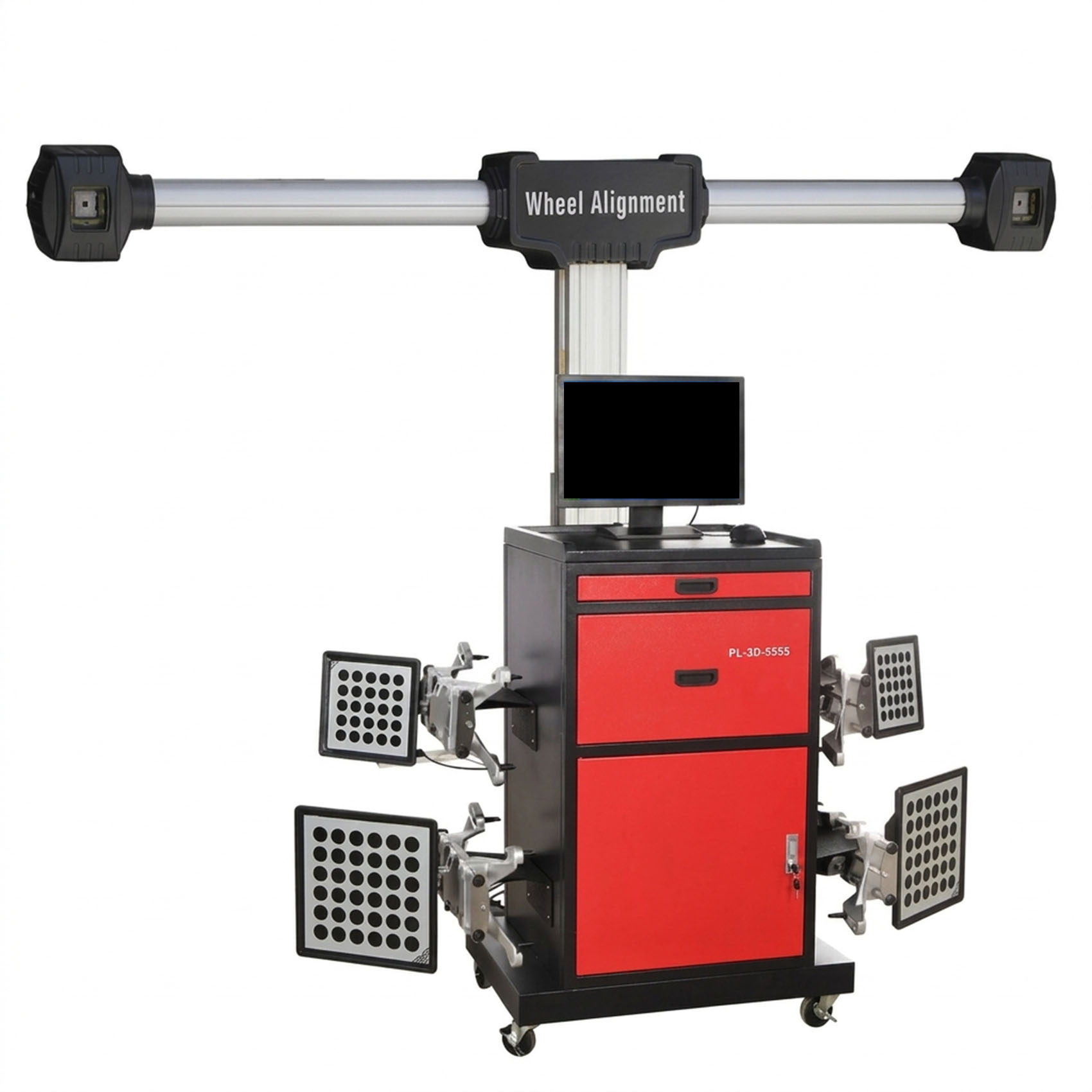

BRAND : PIONEER
ITEM NO.: PL-3D-5555
ORIGIN : CHINA
DISPLAY ACCURACY : ACCURACY 1’ / 0.01O / MM
CAMBER : ACCURACY ±2‘ - RANGE ±10°
CASTER : ACCURACY ±6‘ - RANGE ±20°
KING - PING(SAL) : ACCURACY ±6‘ - RANGE ±20°
TOE : ACCURACY ±2‘ - RANGE ±20°
SET BACK : ACCURACY ±2‘ - RANGE ±5°
THRUST ANGLE : ACCURACY ±2‘ - RANGE ±5°
TRACK WIDTH : ACCURACY ±2‘ - RANGE 1800MM
WHEEL BASE : ACCURACY ±2‘ - RANGE 4200MM
. THE MACHINE IN THE FACTORY WITH VALID CALIBRATION AND IT IS NOT NECESSARY TO PERFORM CALIBRATION AT THE CUSTOMER SITE.
. ROLL THE VEHICLE TO COMPLETE THE COMPENSATION, QUICKLY TO GET THE MEASUREMENT DATA IN TWO MINUTES.

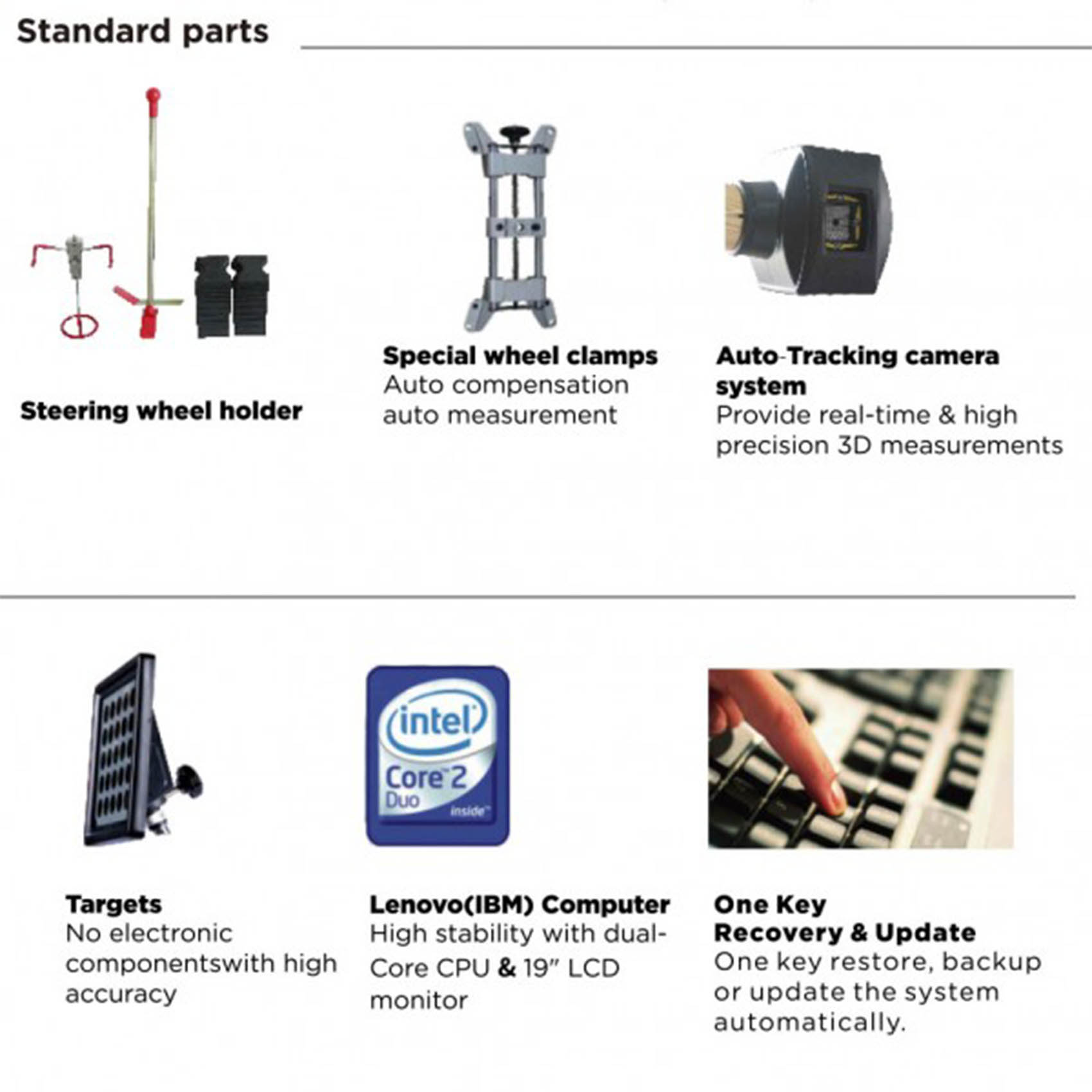

. AUTO COMPENSATION WITH SPECIAL CLAMPS AND NO NEED TO ROLL THE VEHICLE.
. FUNCTIONS OF THE TRACK WIDTH, WHEELBASE, TIRE DIAMETER, CASTER TRAIL, ETC...
. FREE FROM THE INFLUENCE OF AMBIENT LIGHT AND TEMPERATURE, STABLE AND RELIABLE.

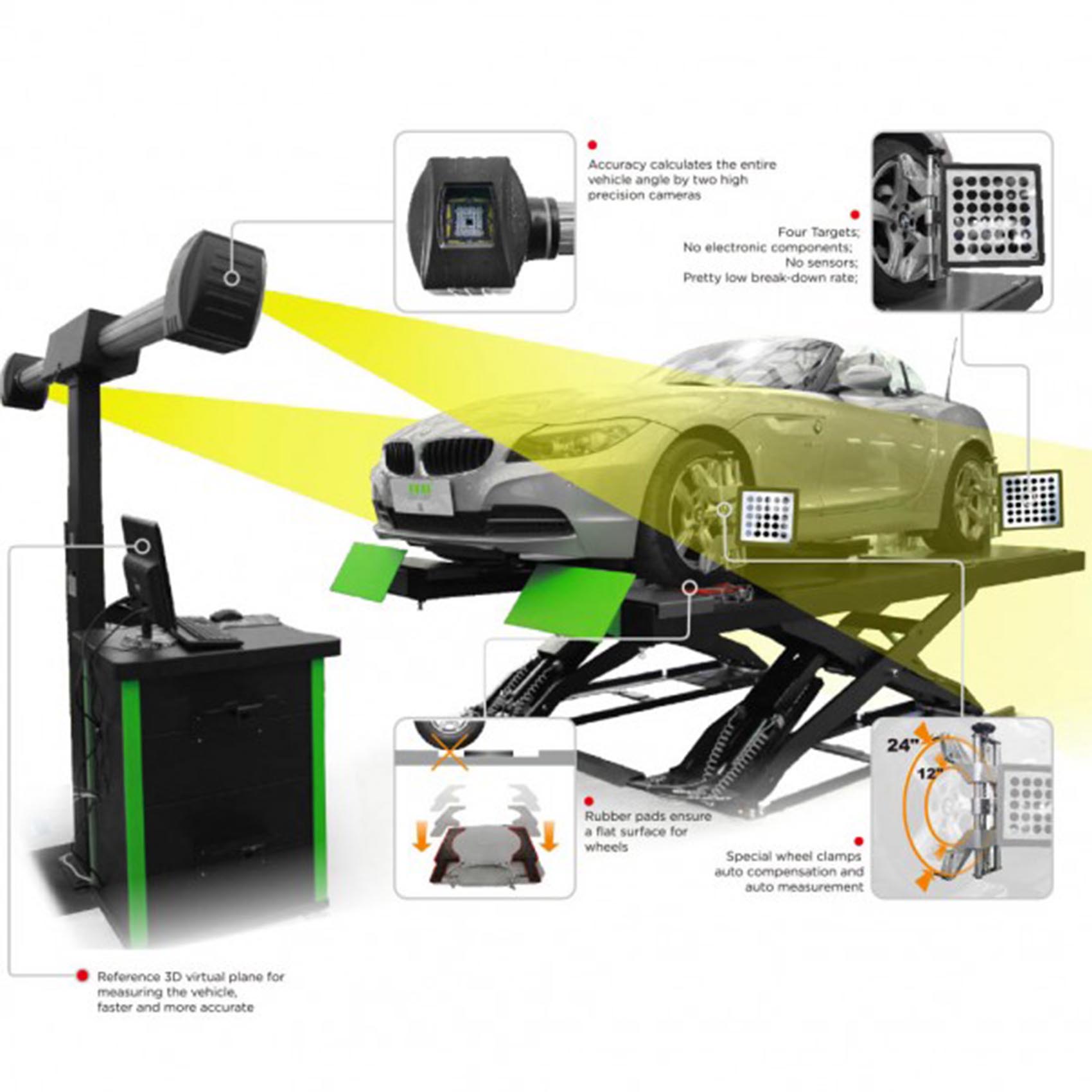

. THE CAMERA BAR TRACKS FOUR TARGETS AUTOMATICALLY, MORE CONVENIENT AND WIDESPREAD MEASUREMENT IN LESS TIME.
| Item Code | CHIPPL-3D-5555U |
|---|---|
| Barcode | 6291116313663 |
| Brand | PIONEER |

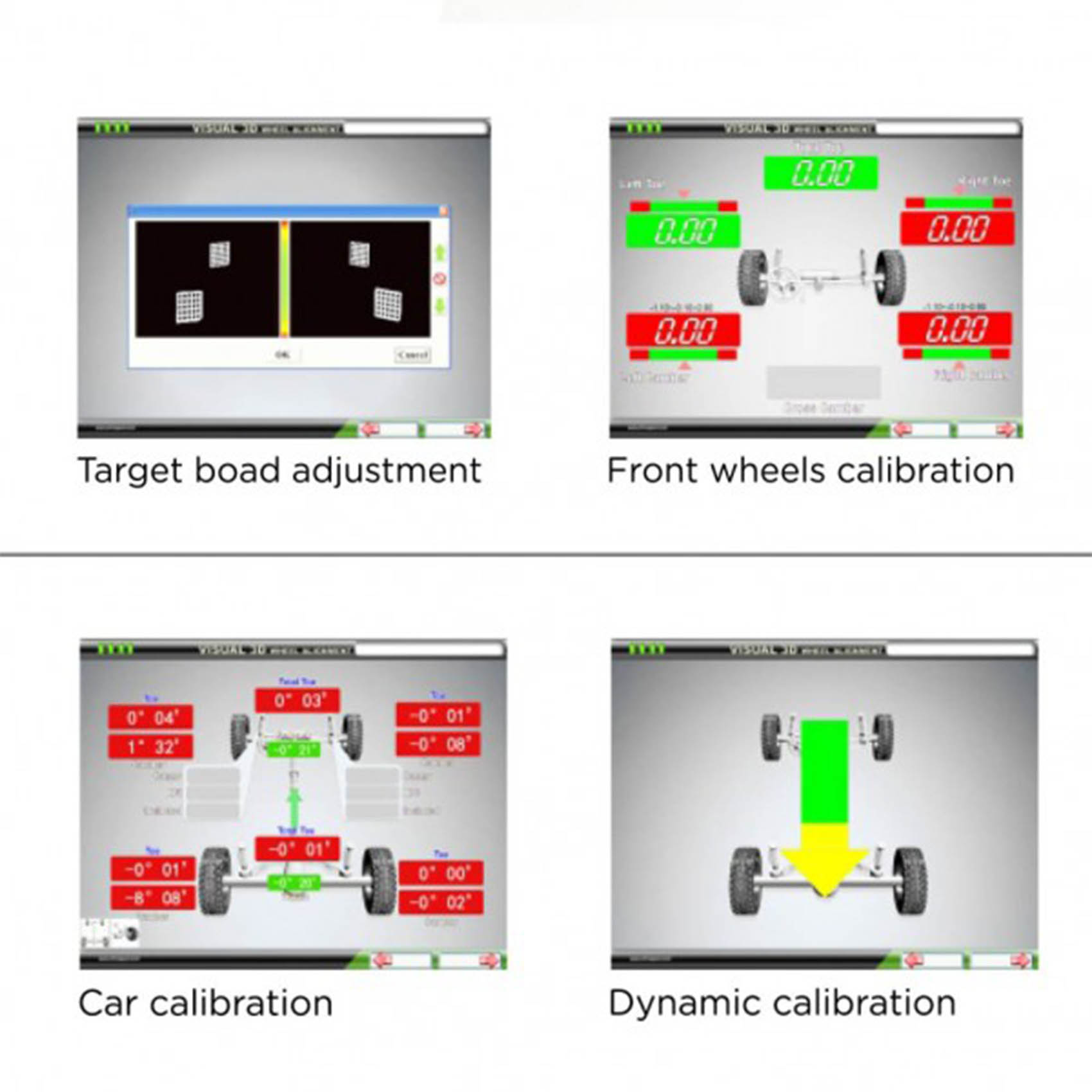

Using the PIONEER Wheel Alignment Machine is simple and efficient. First, position the vehicle on the alignment platform and securely attach the special clamps with targets to each wheel. The advanced camera bar will automatically detect and track all four targets. Depending on the mode, either roll the vehicle slightly for compensation or use the auto-compensation feature without movement. Within minutes, the system displays precise alignment data such as camber, caster, toe, and thrust angle. Adjust the vehicle accordingly based on the readings and confirm alignment results on the screen.
The primary purpose of this wheel alignment machine is to measure and correct wheel angles to ensure optimal vehicle performance. Proper alignment improves tire lifespan, enhances driving safety, ensures fuel efficiency, and provides better steering control. It is an essential tool for maintaining vehicle stability and preventing uneven tire wear.
This machine stands out for its reliability, speed, and accuracy. It minimizes human error with automated tracking and delivers results quickly, saving time in busy workshops. Its durable construction and stable performance make it ideal for long-term professional use. With minimal setup and high efficiency, it boosts productivity and service quality.
The machine provides accurate measurement data in approximately two minutes, making it highly efficient for professional use.
No, the machine comes factory-calibrated and does not require calibration at the customer site.
Yes, it is designed to operate independently of ambient light and temperature, ensuring stable and accurate performance.
The system supports both rolling compensation and auto compensation without moving the vehicle, depending on the setup.
