PIONEER YIHUA 220-240V 700W DIGITAL SOLDERING STATION WITH LED 858D HOT AIR REWORK STATION RANGE | HIGH QUALITY | HOT AIR GUN + ELECTRIC IRON SET FOR SMD SMT DIP | 100°C～500°C STATION RANGE | 200°C～450°C IRON | 120L/MIN ADJUSTABLE | INDUSTRIAL EQUIPMENT, WORKSHOPS, REPAIR SHOPS, PLUMBING AND MORE

BRAND : PIONEER YIHUA

ITEM NO.: 858D

ORIGIN : CHINA

MATERIAL: ABS + IRON SHEET SPRAY SAND

INPUT VOLTAGE: AC220-240V - 50HZ

OUTPUT VOLTAGE: 24V

DISPLAY TYPE: LED NIXIE TUBE

SOLDERING STATION RATED POWER: 700W

TYPE OF AIR PUMP FLOW: BRUSHLESS FAN GENTLE WIND

AIR VOLUME: ≤120L/MIN (ADJUSTABLE)

AIR DELIVERY : BRUSHLESS FAN WITH SMOOTH AIR DELIVERY

HEATING COMPONENTS: CHINAWARE

SOLDERING STATION TEMPERATURE RANGE: 100°C～500°C

OPERATING AMBIENT TEMPERATURE : 0°C～40°C

SOLDERING IRON POWER: 60W

SOLDERING IRON TEMPERATURE RANGE: 200°C～450°C

HANDLE LENGTH : APPROX.110CM

HOT AIR GUN SIZE: 245 X 60 X 40MM / 9.65 X 2.36 X 1.57IN

SOLDERING IRON SIZE: 220 X 22 X 22MM / 8.66 X 0.87 X 0.87IN

SOLDERING STATION SIZE: 93 X 155 X 138MM / 3.66 X 6.10 X 5.43IN

SOLDERING STATION WEIGHT: 882G / 31.10OZ

PAKAGING DIMENSIONS : L 26 X W 16 X H 14 CM

PAKAGING WEIGHT : 1.78.5G

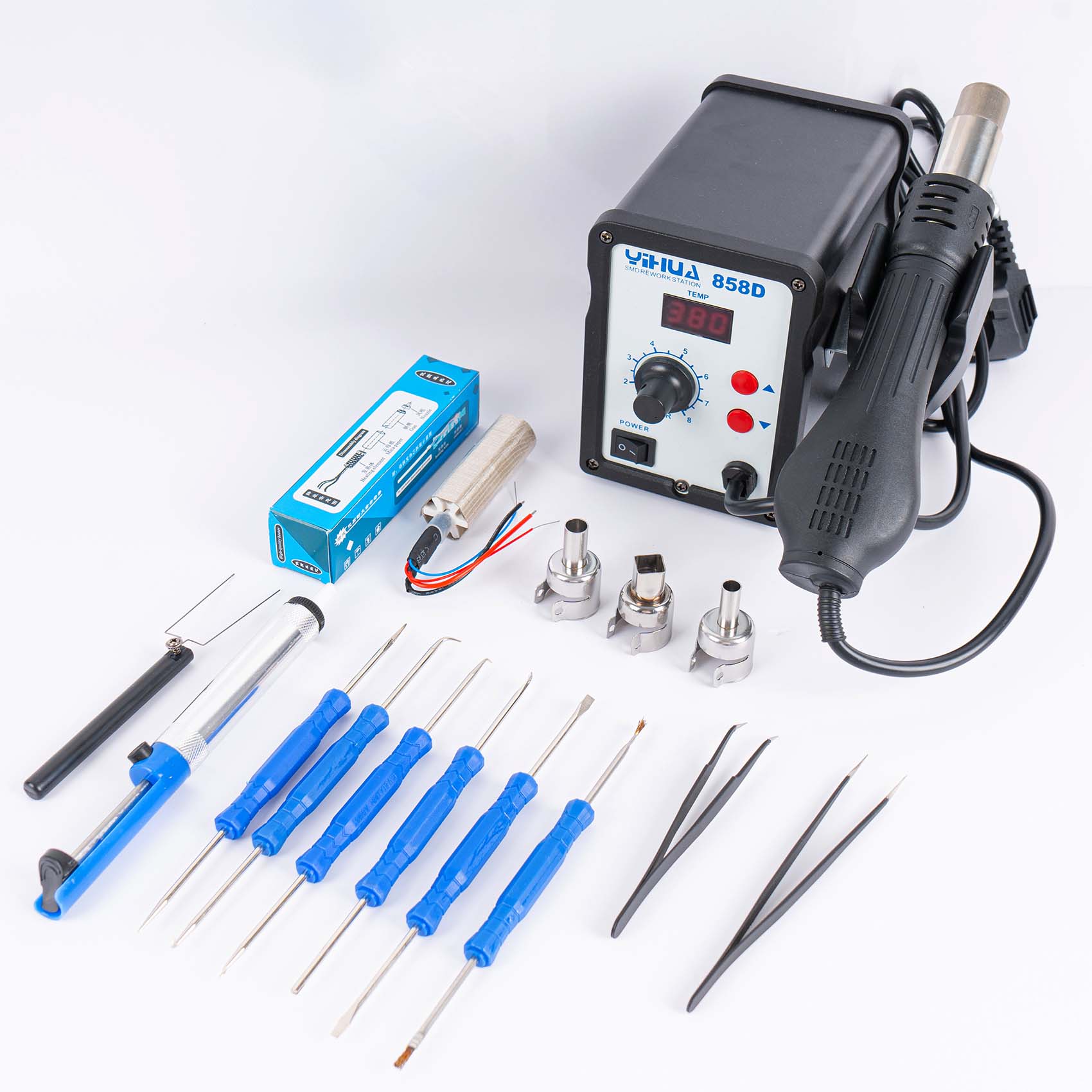

INCLUDES :

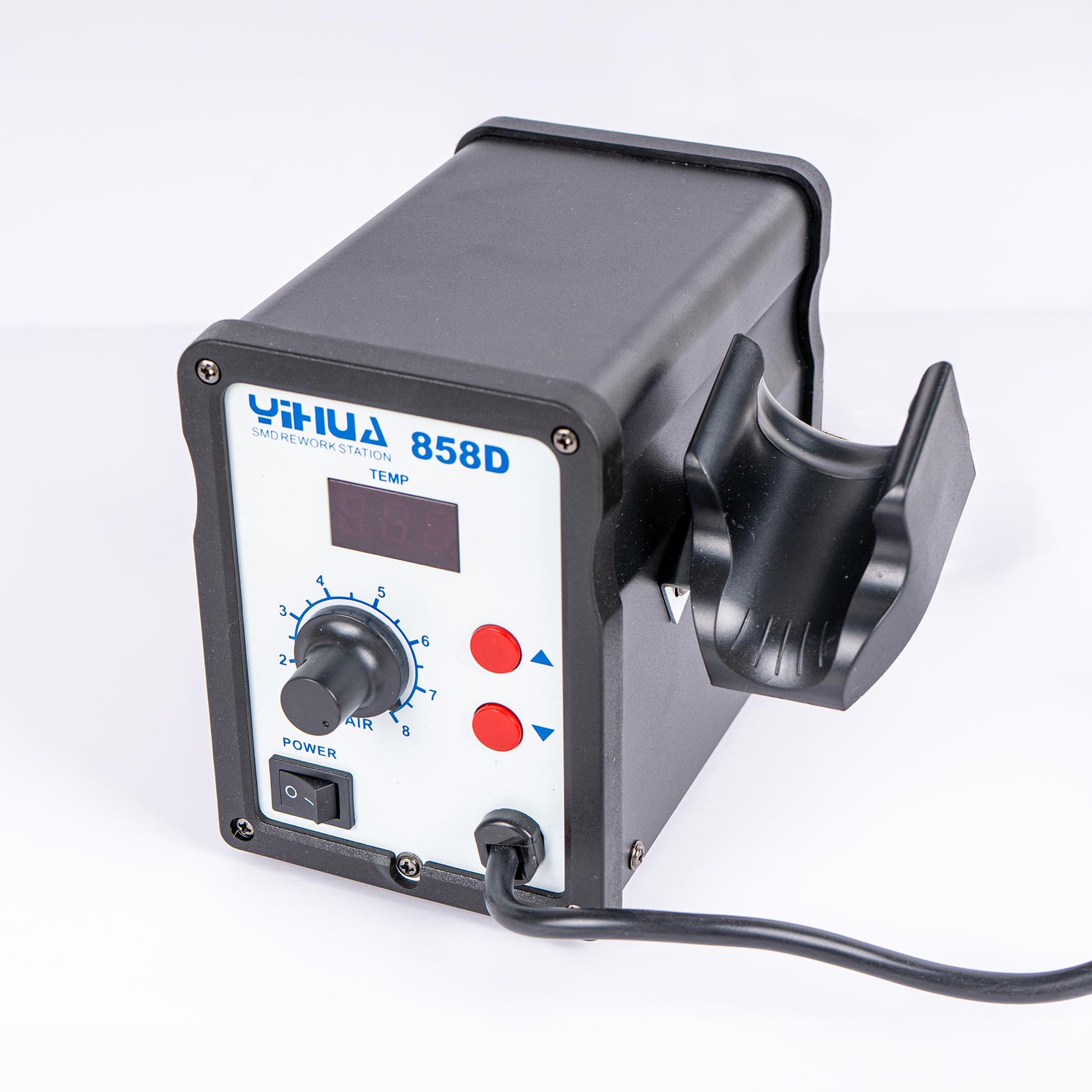

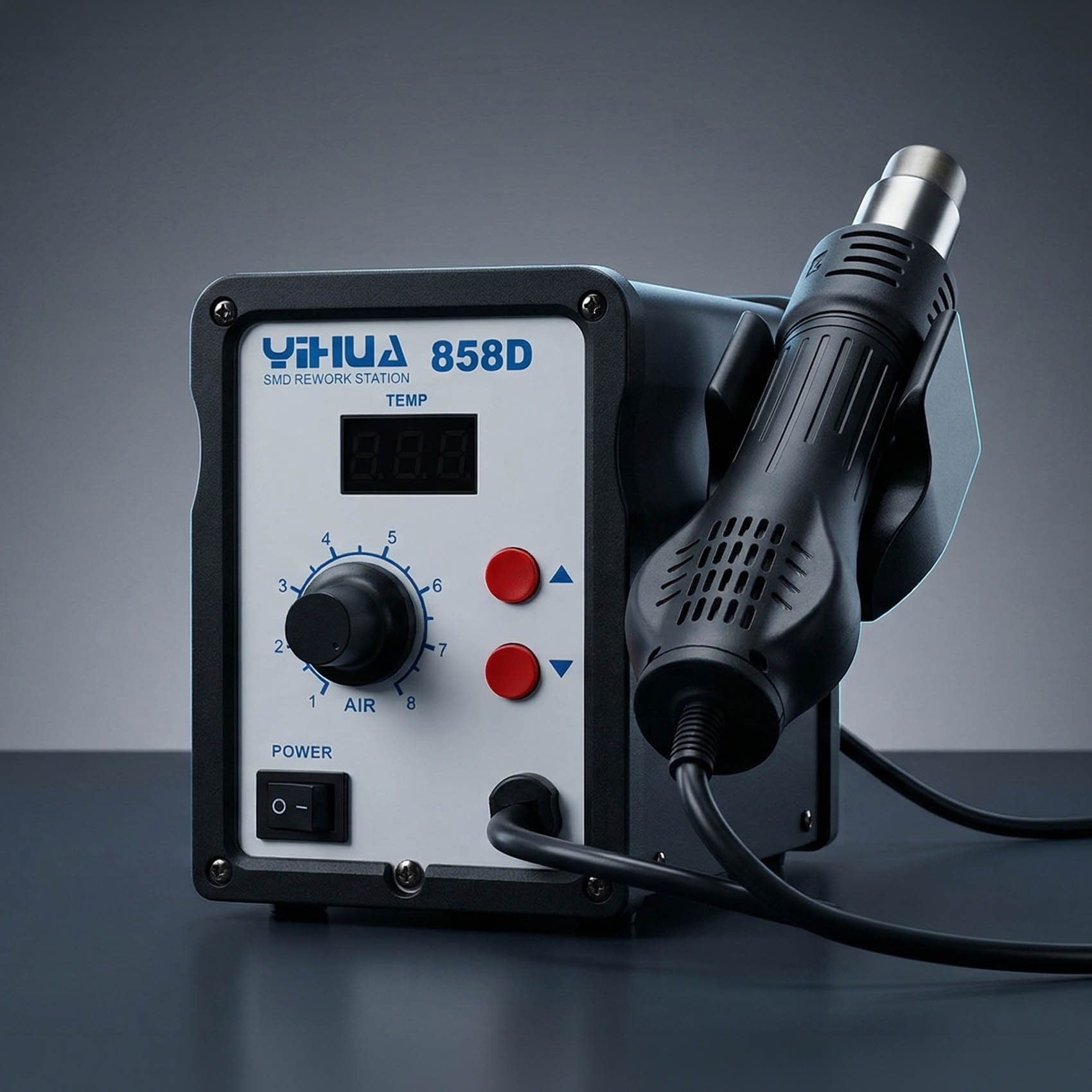

1 . SOLDERING STATION

1 . HOT AIR GUN

1 . HOT AIR GUN HOLDER

1 . HOT AIR GUN HEATING CORE

1 . 60W SOLDER IRON

3 . BGA AIR NOZZLES

1 . Y-SHAPED SOLDERING IRON STAND

1 . SOLDER TIP

1 . TIN WIRE

1 . POWER LINE

1 . USER MANUAL

. FAST HEATING, IT CAN START SOLDERING IN A MINUTE.

. ADJUSTABLE TEMPERATURE WITH THERMOSTAT RANGE OF 100～500°C.

. ADJUSTABLE AIR VOLUME OF HOT AIR GUN.

. WITH STRONG TEMPERATURE RECOVERY FUNCTION. LOWER TEMPERATURE IS ENOUGH TO WELD AND PROTECT THE TEMPERATURE SENSITIVE COMPONENTS.

. SMALL SIZE, BRUSHLESS FAN, SEPARATE DESIGN AND MORE ACCURATE WITH LED TEMPERATURE DISPLAY.

THIS HIGH QUALITY SOLDERING STATION IN SMALL SIZE IS PERFECT FOR SOLDERING, DESOLDERING AND PHONE MAINTENANCE. IT'S FAST HEATING AND IT CAN START WORKING IN A MINUTE.
