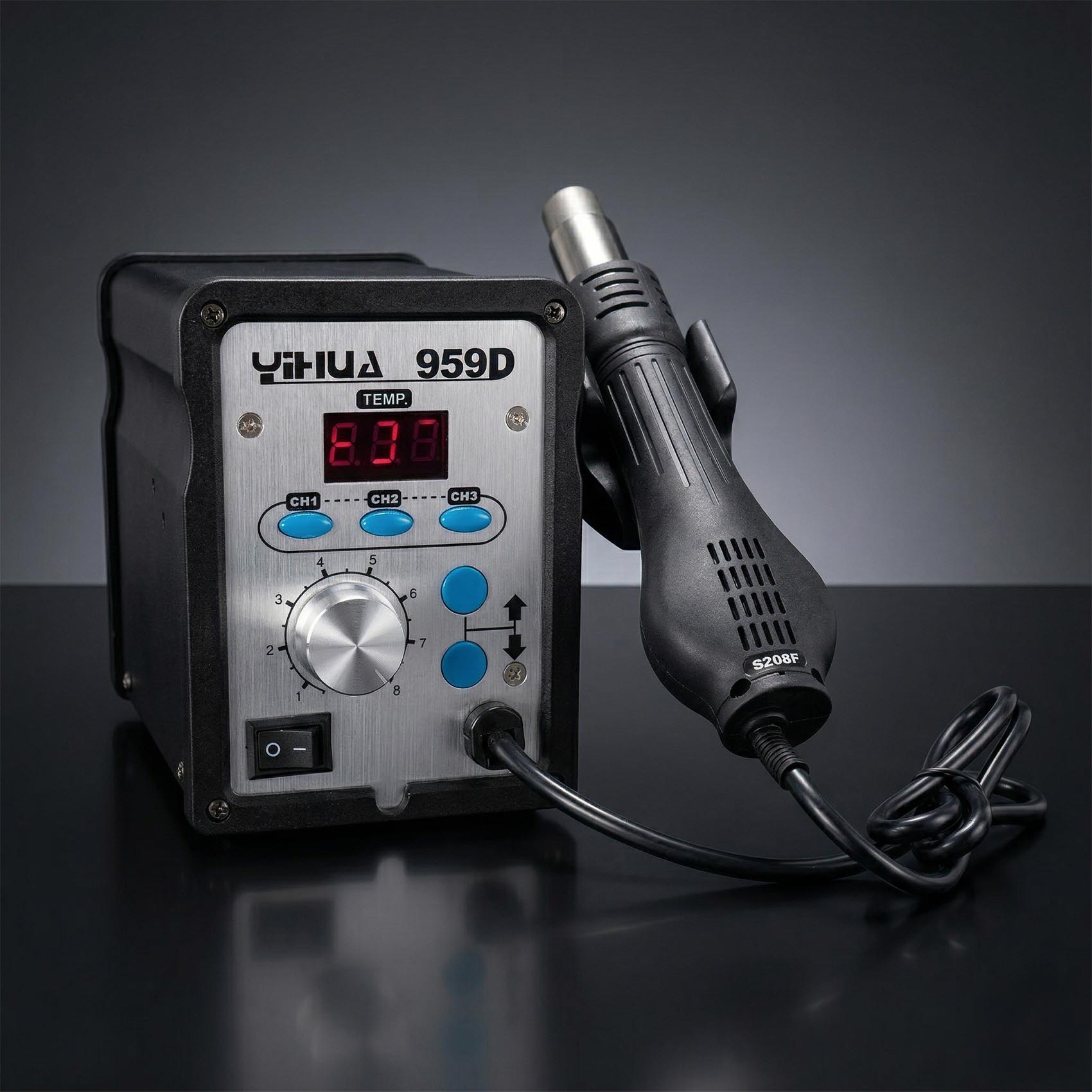

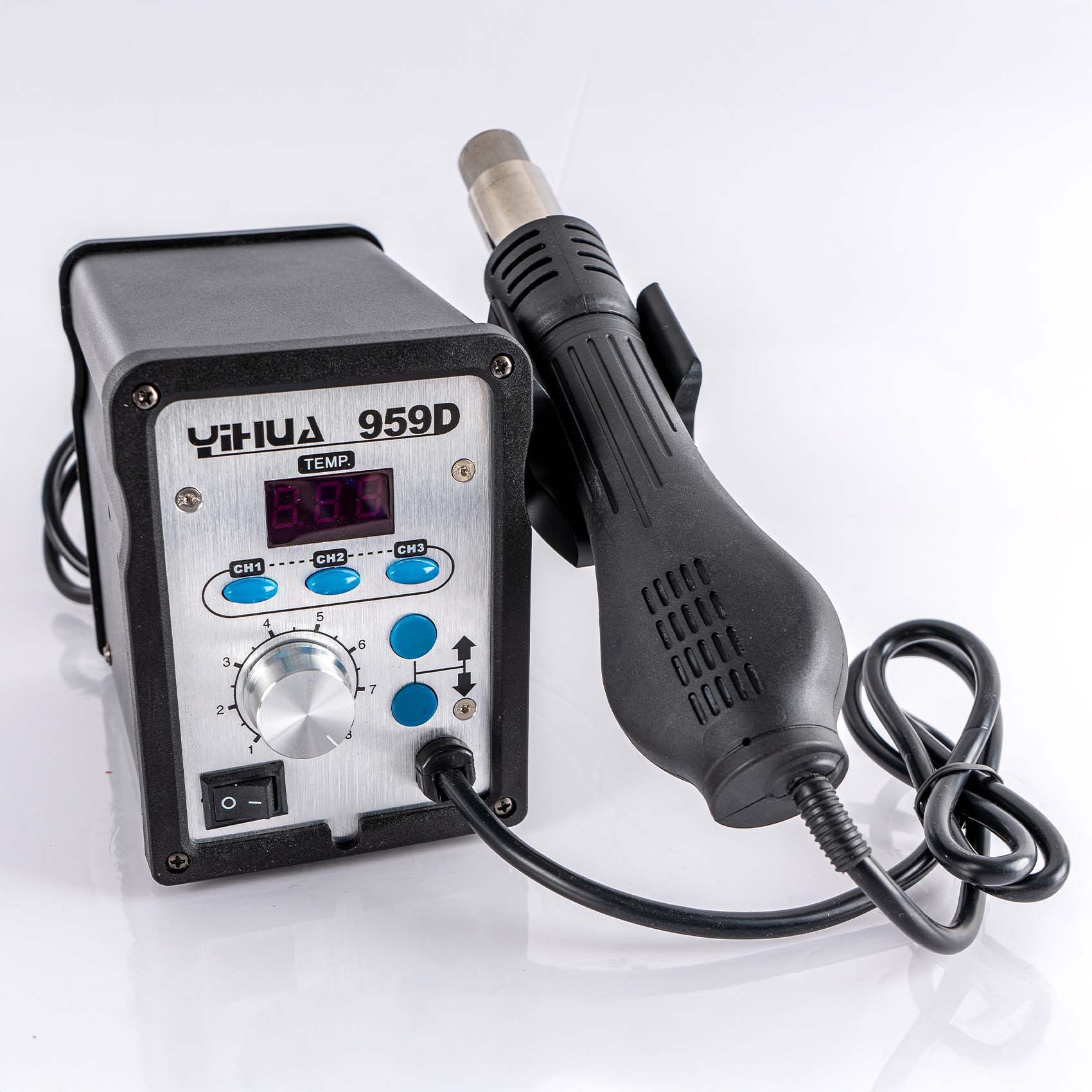

PIONEER YIHUA 220-240V 700W DIGITAL SOLDERING STATION WITH LED 959D HOT AIR REWORK STATION RANGE | 3 PRESET CHANNELS | HIGH QUALITY | HOT AIR GUN + ELECTRIC IRON SET FOR SMD SMT DIP | 100°C～500°C STATION | 200°C～450°C IRON | 120L/MIN ADJUSTABLE | INDUSTRIAL EQUIPMENT, WORKSHOPS, REPAIR SHOPS, PLUMBING AND MORE

BRAND : PIONEER YIHUA

ITEM NO.: 959D

ORIGIN : CHINA

MATERIAL: ABS + IRON SHEET SPRAY SAND

INPUT VOLTAGE: AC220-240V - 50HZ

OUTPUT VOLTAGE: 24V

DISPLAY TYPE: LED NIXIE TUBE

SOLDERING STATION POWER: 700W

TYPE OF AIR PUMP FLOW: BRUSHLESS FAN GENTLE WIND

AIR VOLUME: ≤120L/MIN (ADJUSTABLE)

AIR DELIVERY : BRUSHLESS FAN WITH SMOOTH AIR DELIVERY

HEATING COMPONENTS: CHINAWARE

SOLDERING STATION TEMPERATURE RANGE: 100°C～500°C

OPERATING AMBIENT TEMPERATURE : 0°C～40°C

SOLDERING IRON TEMPERATURE RANGE: 200°C～450°C

HANDLE LENGTH : APPROX.120CM

HOT AIR GUN SIZE: 245 X 60 X 40MM / 9.65 X 2.36 X 1.57IN

SOLDERING IRON SIZE: 220 X 22 X 22MM / 8.66 X 0.87 X 0.87IN

SOLDERING STATION SIZE: 93 X 155 X 138MM / 3.66 X 6.10 X 5.43IN

SOLDERING STATION WEIGHT: 882G / 31.10OZ

PAKAGING DIMENSIONS : L 26 X W 16 X H 14 CM

PAKAGING WEIGHT : 1.78 KG

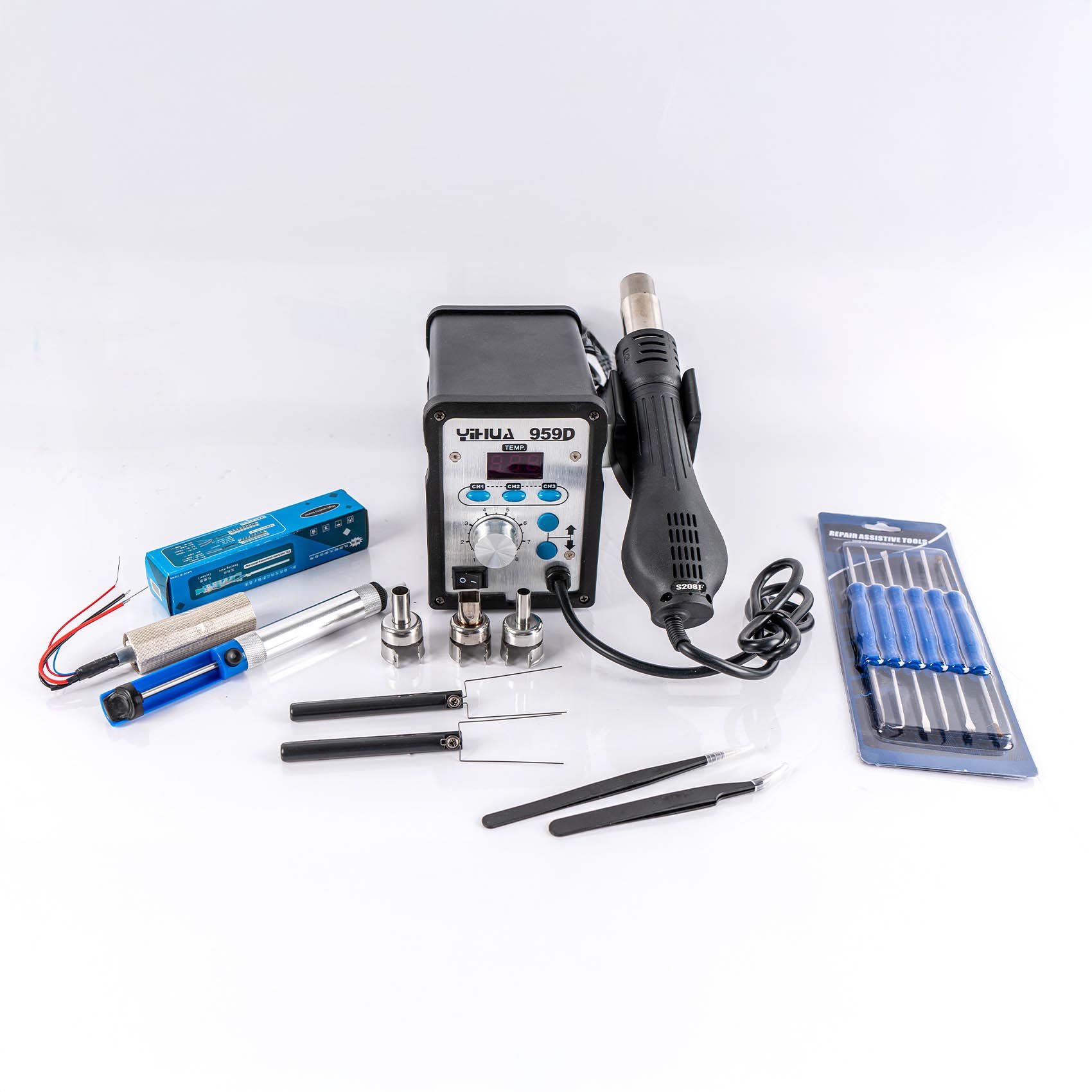

INCLUDES :

1 . YIHUA 959D HOT AIR REWORK STATION (230V TYPE-G UK PLUG)

1 . HOT AIR GUN

1 . PROFESSIONAL SOLDER WORK MAT (330*209*3MM)

1 . IC EXTRACTOR (IC POPPER)

4 . HOT AIR GUN NOZZLES

2 . PAIRS OF ESD SAFE TWEEZERS

. CAPABLE OF HOT AIR REWORK OPERATIONS

. FOR SURFACE-MOUNT COMPONENTS

. ON COMPONENTS SUCH AS SOIC, PLCC, BGA, QFP, CHIP, AND MORE.

. 3 PRESET CHANNELS.

. PID TEMPERATURE STABILIZATION.

. HOT AIR START / STOP.

. DIGITAL TEMPERATURE CALIBRATION.

A REWORK STATION EQUIPPED WITH ADVANCED FUNCTIONS, ESSENTIAL ACCESSORIES AND TOOLS. THIS STATION COMES WITH 3 PRESET CHANNELS, PID TEMPERATURE STABILIZATION，IN-HOLDER STANDBY MODE, DIGITAL TEMPERATURE CALIBRATION, °C/°F TEMPERATURE DISPLAY MODES, AND MORE. YOU CAN USE THIS STATION FOR APPLICATIONS INCLUDING BUT NOT LIMITED TO SMD SOLDERING, SMD HOT AIR REWORK.

3 PRESET CHANNELS

YOU CAN SAVE UP TO THREE SETS OF TEMPERATURE SETTINGS INTO THE THREE PRESET CHANNELS, SO YOU DON'T HAVE TO CONSTANTLY ADJUST TEMPERATURE SETTINGS FOR WORKS THAT ARE DIFFERENT IN TEMPERATURE REQUIREMENT
