BRAND : KUKEN
ITEM NO.: KS-22
ORIGIN : JAPAN
STROKE LENGTH : 3/8" - 9.0 MM
HOSE SIZE : 1/4" (6.5 MM)
AIR CONSUMPTION: 0.32 M³/MIN (APPROX. 11.3 CFM)
OPERATING PRESSURE: 0.62 MPA (90 PSI)
RECIPROCATING SPEED : 9,000 F.P.M.
CUTTING SPEED : 600 MM/MIN
OVERRALL LENGHTH : 9-3/16" (232.0 MM)
AIR CONSUMPTION(NORMAL) : 7.1 C.F.M. (0.20 M³(NORMAL)/MIN)
WEIGHT : 0.75KG (1.7 LBS)
. APPICABLE FOR VARIOUS WORKS BY CHANGING SAW BLADE.
. 5MM DIA.FILE CAN BE INSTALLED.
. NOISE REDUCTION EXHAUST HOSE AVOIDS DUST FLYING AND IMPROVE WORKING ENVIRONMENT
. COMPACT SIZE, LIGHT WEIGHT & HIGH-SPEED MODEL FOR EASY HANDLING APPLICATIONS
. FOR VARIOUS CUTTING WORKS OF AUTOMOTIVE MAINTENANCE & SHEET-METAL.
. FOR CUTTING WORKS OF VARIOUS MATELIALS, SUCH AS ALUMINUM, PLASTIC & WOOD.
. FOR FILING-DOWN WORKS OF DEBURRING OR CHAMFERING AFTER DRILLED.

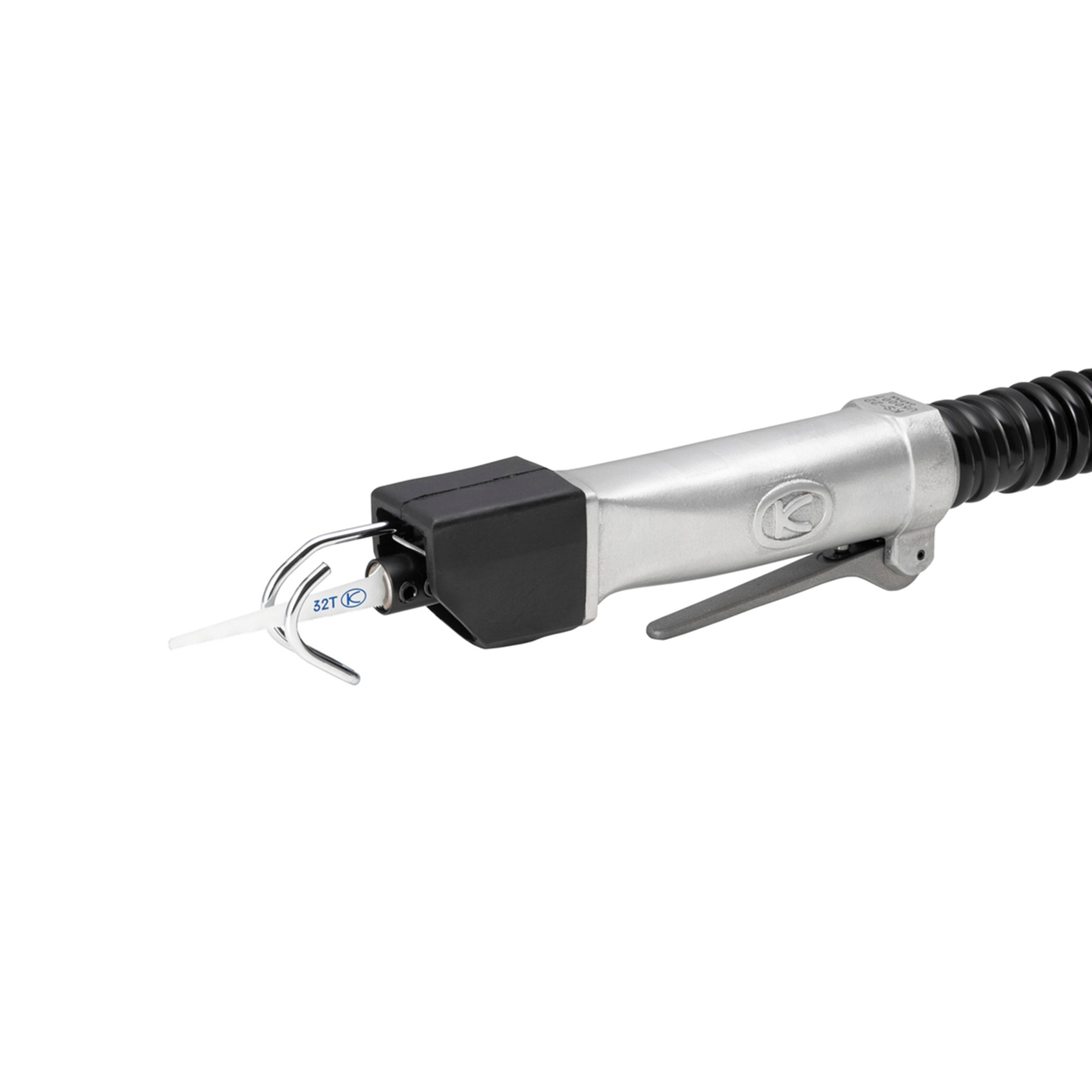

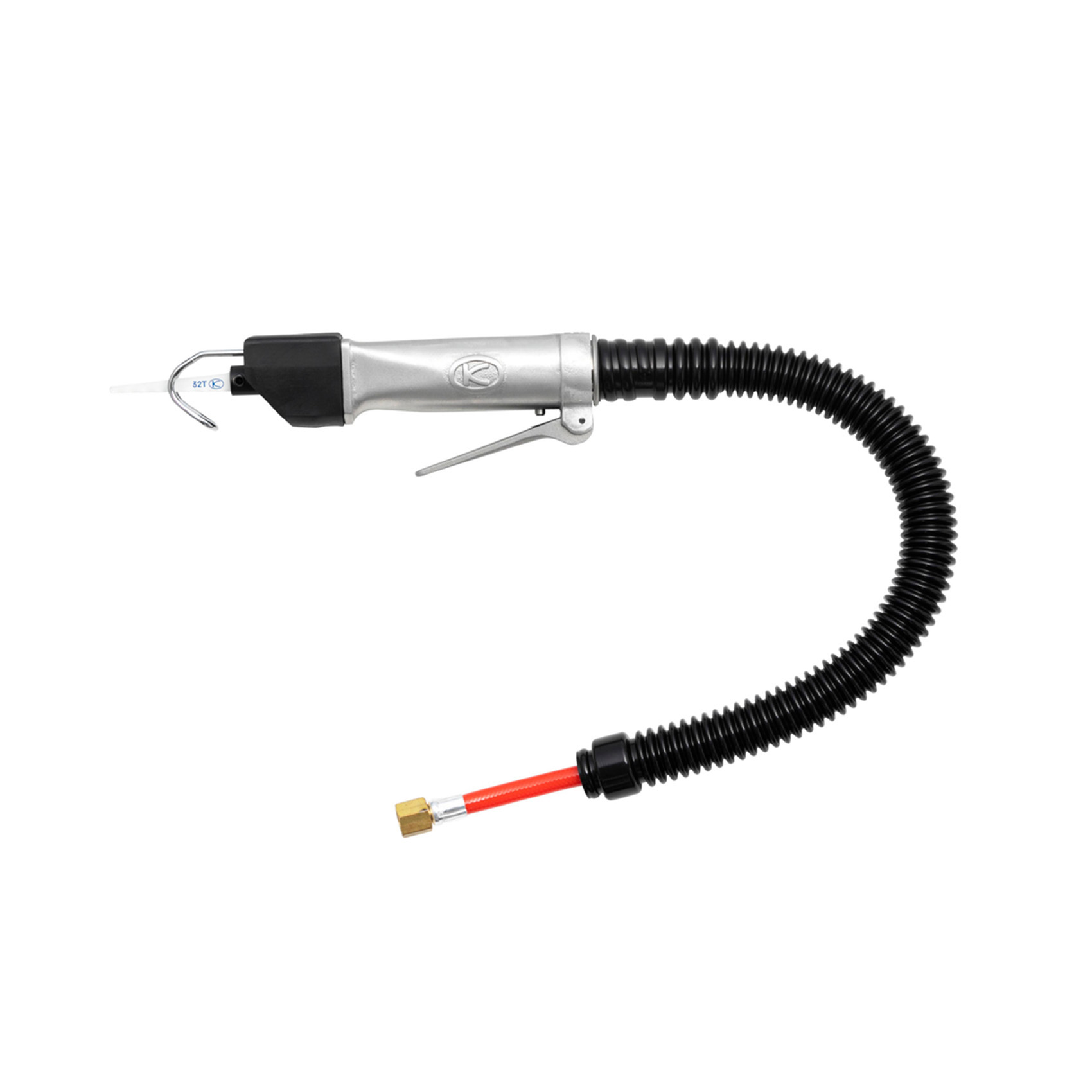

THE KUKEN KS-22 IS A COMPACT, LIGHTWEIGHT PNEUMATIC AIR SAW. OPERATING AT 9,000 STROKES PER MINUTE, IT IS WIDELY USED FOR AUTOMOTIVE SHEET METAL WORK, CUTTING VARIOUS MATERIALS (ALUMINUM, PLASTIC, WOOD), AND FILING/DEBURRING. IT WEIGHS JUST 0.75 KG (1.7 LBS) AND FEATURES A NOISE-REDUCING EXHAUST HOSE
| Item Code | JAPKUKKS-22 |
|---|---|
| Barcode | 456024602093 |
| Brand | KUKEN |
The KUKEN KS-22 Air Saw is a compact, lightweight, and high-speed pneumatic cutting tool manufactured in Japan for professional automotive, industrial, and fabrication applications. Designed to deliver fast and precise cutting performance, this air saw operates at high reciprocating speed while maintaining excellent control and low operator fatigue. It is suitable for cutting sheet metal, aluminum, plastic, wood, fiberglass, and other materials, while also supporting filing, deburring, and chamfering tasks using compatible attachments.
1. Connect the air saw to a clean compressed air supply using the recommended air hose.
2. Install the appropriate saw blade or compatible round file for the intended application.
3. Secure the workpiece before beginning the cutting or filing operation.
4. Maintain the recommended operating air pressure for optimum performance.
5. Hold the tool firmly and guide it steadily along the cutting line without forcing the blade.
6. Allow the high-speed reciprocating action to perform the cutting efficiently.
7. After use, disconnect the air supply, clean the tool, lubricate if required, and store it in a dry location.
The KUKEN KS-22 is designed for accurate cutting, trimming, shaping, deburring, and chamfering in automotive body repair, sheet metal fabrication, industrial maintenance, and general workshop applications. It provides clean cuts while allowing excellent control in confined spaces.
The KUKEN KS-22 offers outstanding cutting precision, lightweight handling, and reliable Japanese quality in one compact pneumatic tool. Its high reciprocating speed, versatile blade compatibility, and low-noise operation make it an excellent choice for professionals who require fast, accurate, and comfortable cutting performance in demanding automotive and industrial environments.
The KS-22 is suitable for cutting sheet metal, aluminum, plastic, wood, fiberglass, and similar materials when equipped with the appropriate blade.
Yes. The tool supports compatible round files, making it suitable for deburring, chamfering, and finishing drilled holes and cut edges.
Yes. It is widely used for automotive body repairs, sheet metal trimming, panel cutting, and restoration work due to its compact size and precise cutting capability.
Its lightweight construction, ergonomic handling, and noise-reduction exhaust system help reduce operator fatigue during long working hours.
The KS-22 is commonly used in automotive workshops, fabrication shops, manufacturing plants, maintenance facilities, engineering workshops, and industrial repair centers.
