Brand: MECLUBE
Model / Series :GIULY-BLU
Product Type :AdBlue® Electric Transfer System with Trolley
Application: AdBlue® / DEF Transfer and Vehicle Tank Filling
Country of Origin: Italy
Voltage:230 V / 50 Hz AC
Power:350 W
Electricity :20 A
Nozzle: Aut.AP80
Packaging : (385x325x655)+(920x790x250) mm
Fluid :AdBlue
Max Nominal Flow Rate :4 - 40 / 1 - 9 LPM/GPM
Delivery Hose :19x27 Ø/mm
Trolley : Yes

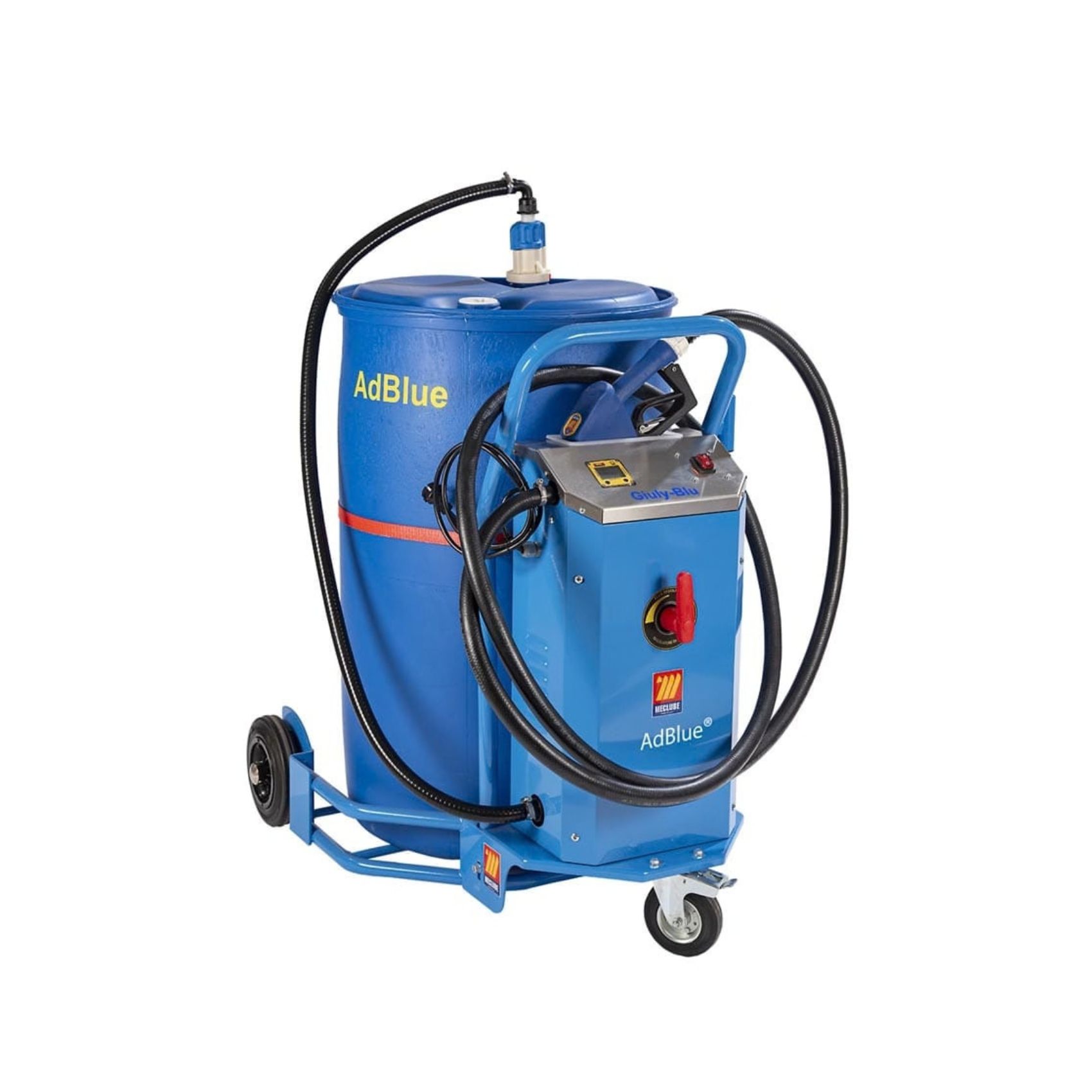

The MECLUBE GIULY-BLU 097-5752-230 is a complete mobile AdBlue® transfer and dispensing system designed for filling vehicle AdBlue® / DEF tanks from compatible barrels, IBC containers and storage tanks. It combines an electric diaphragm pump, automatic dispensing nozzle, digital flow meter, suction hoses, delivery hose and a three-wheel trolley with brake.
This complete AdBlue® transfer system is suitable for automotive workshops, truck and bus service centers, fleet maintenance facilities, agricultural machinery workshops, construction equipment service centers and other professional applications.
Components Included

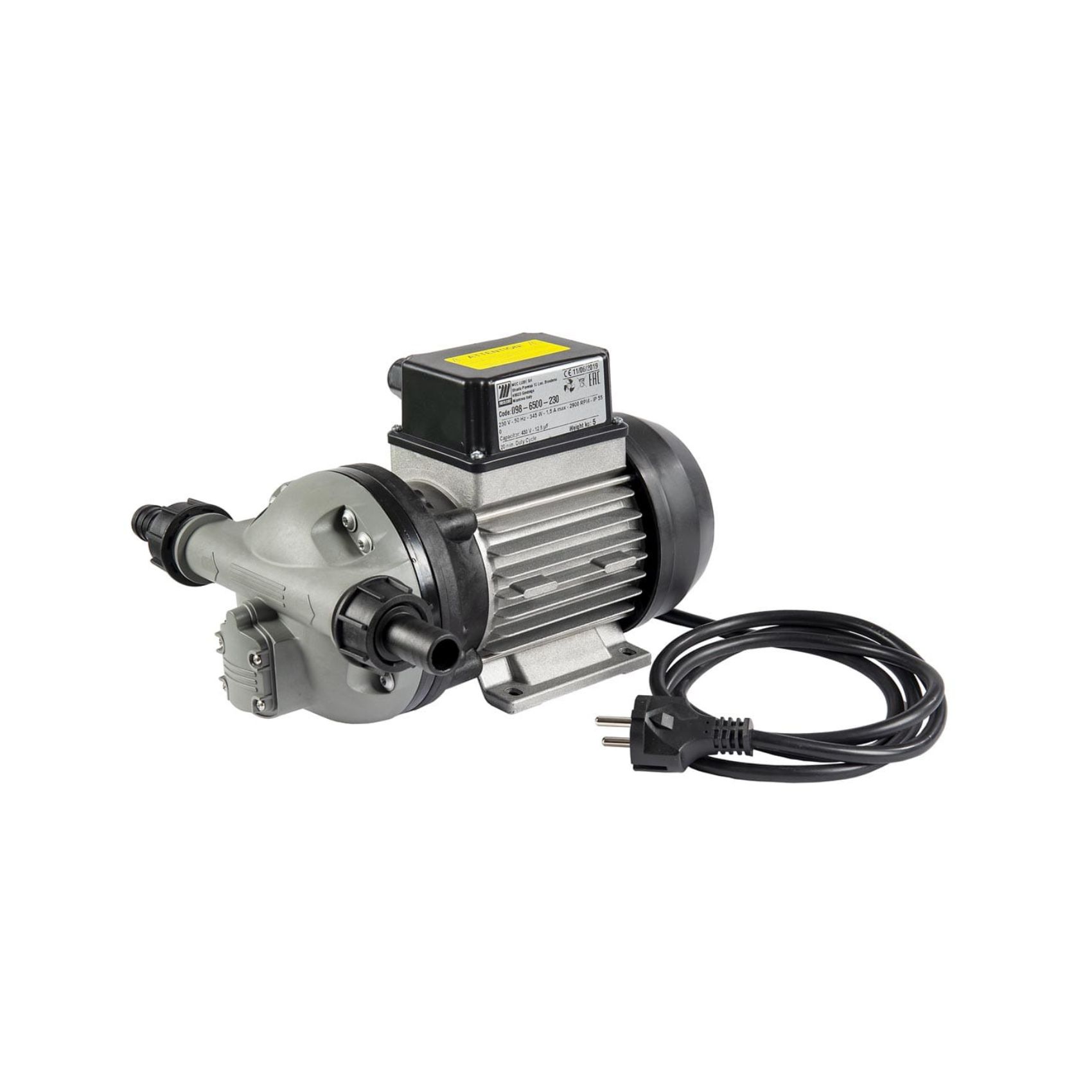

1. Electric Diaphragm Pump – MECLUBE ART. 098-6500-230
The MECLUBE 098-6500-230 is a self-priming electric double diaphragm pump specifically designed for transferring AdBlue®. It operates at 230V / 50Hz and provides a flow rate of up to 40 L/min. The pump features a polypropylene housing, EPDM diaphragm, Viton check valve, stainless steel 316 check valve spring and stainless steel 316 motor shaft.
Article: 098-6500-230
Pump Type: Electric self-priming diaphragm pump
Flow Rate: 40 L/min
Voltage: 230V / 50Hz AC
Power: 370W
Duty Cycle: 20 minutes
Housing: Polypropylene
Diaphragm: EPDM
Check Valve: Viton
Motor Shaft: Stainless Steel 316
Cable Length: 2 m
Fluid: AdBlue®
Connection: 3/4" - 3/4" BSPG

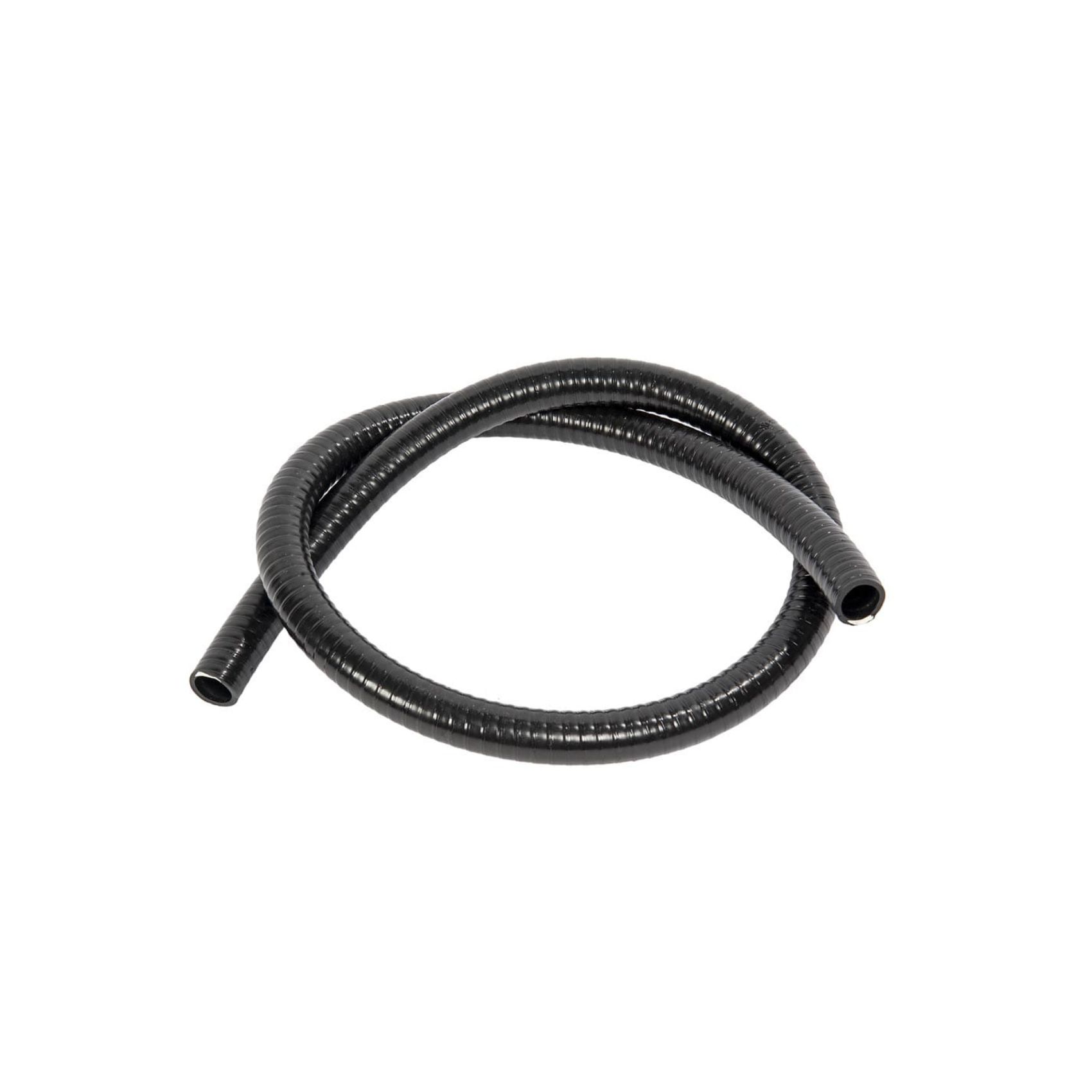

2. PU Spiral Suction Hose – MECLUBE ART. 912-0519-015
The MECLUBE 912-0519-015 PU spiral suction hose is used to draw AdBlue® from the source container to the electric pump.
Article: 912-0519-015
Material: PU
Diameter: 19 × 27 mm
Length: 1.5 m

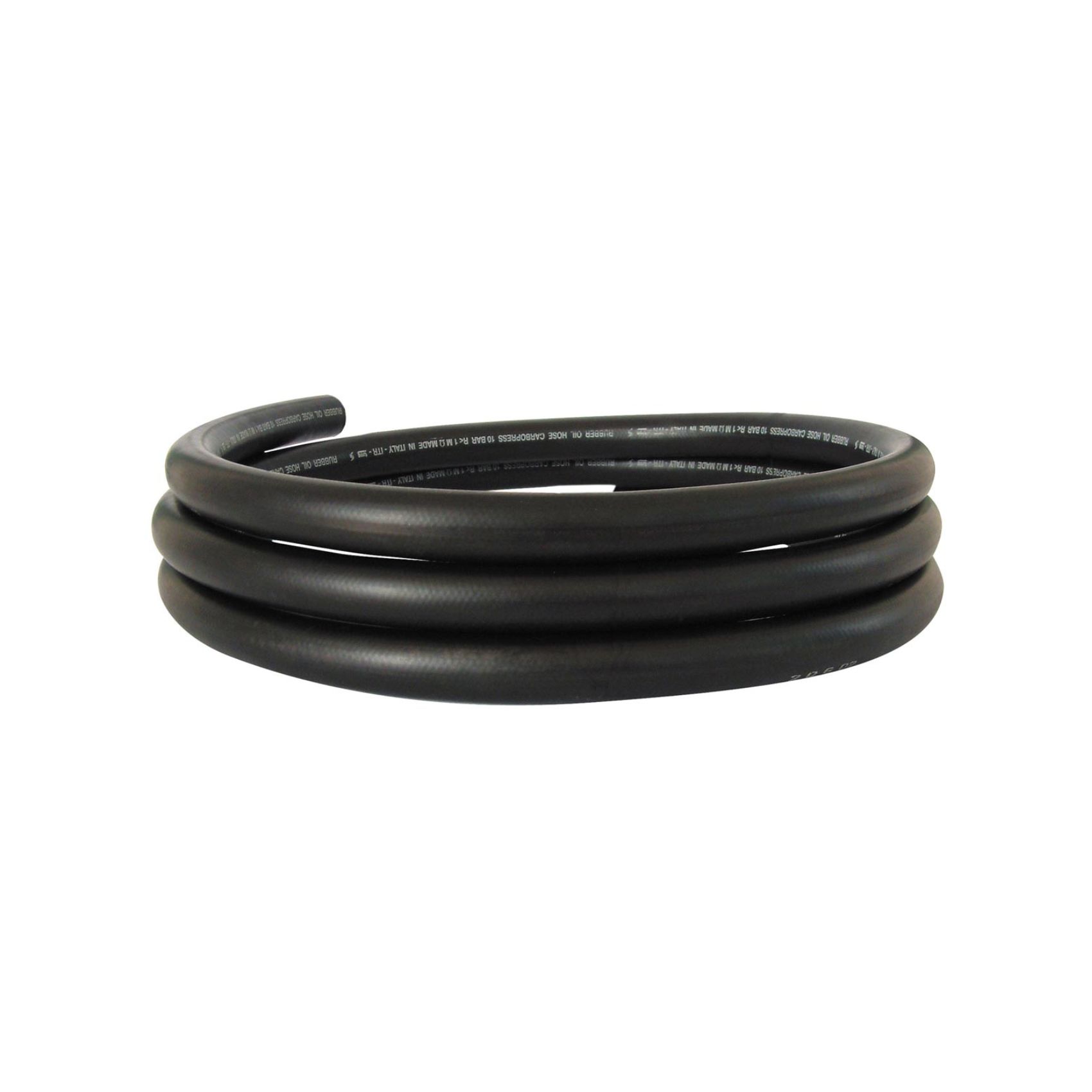

3. EPDM AdBlue® Delivery Hose – MECLUBE ART. 921-0500-040
The MECLUBE 921-0500-040 is a 4-meter EPDM delivery hose designed for AdBlue® transfer from the pump to the dispensing nozzle.
Article: 921-0500-040
Type: HTADB/10NL
Material: EPDM
Size: 19 × 27 mm
Length: 4 m
Maximum Pressure: 10 bar
Fluid: AdBlue®

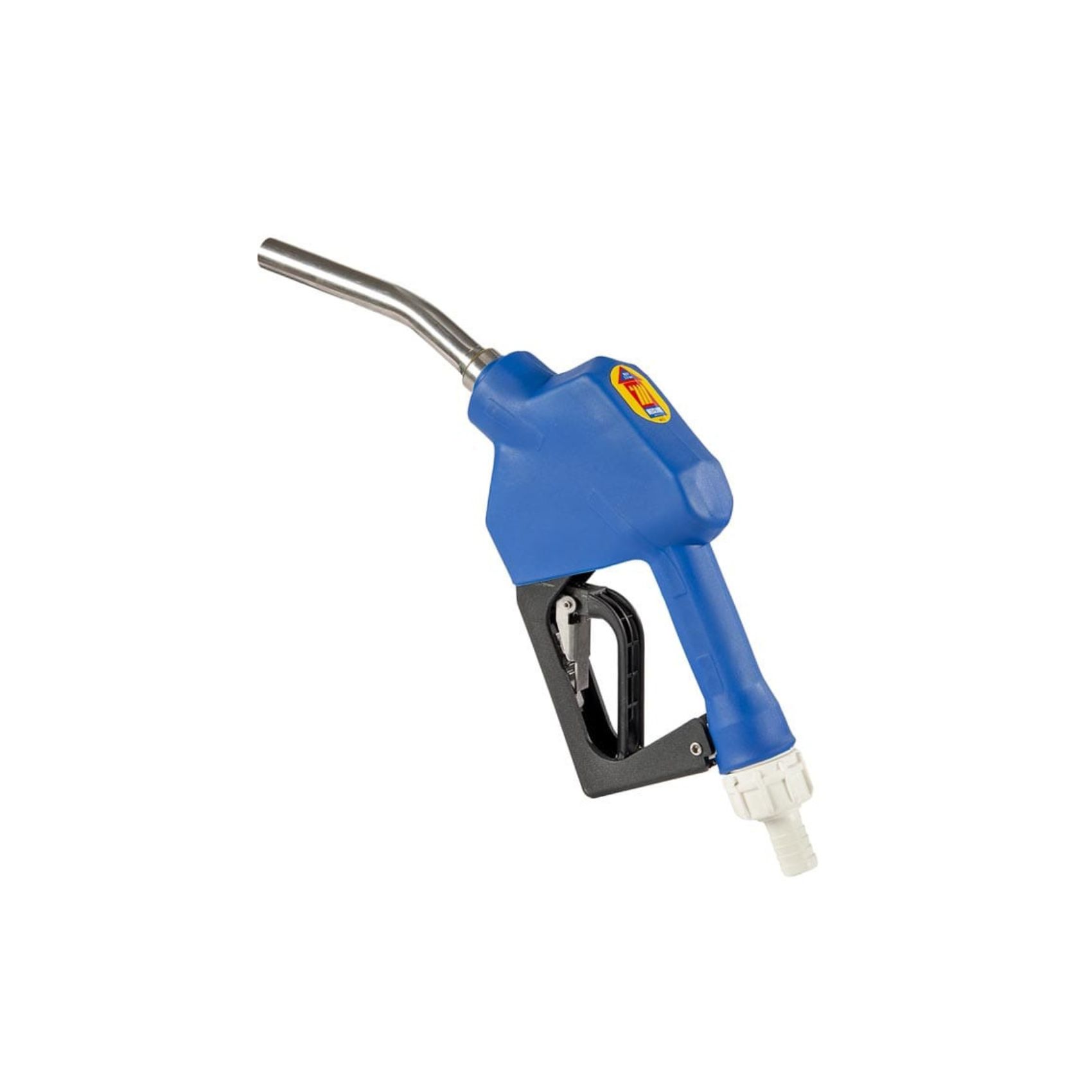

4. Plastic Automatic Nozzle AP80 – MECLUBE ART. 099-5205-000
The MECLUBE 099-5205-000 AP80 is an automatic AdBlue® dispensing nozzle with a plastic body and stainless steel end. It is designed for controlled filling of vehicle AdBlue® tanks.
Article: 099-5205-000
Model: AP80
Type: Automatic nozzle
Flow Rate: 80 L/min
Body: Plastic
End: Stainless Steel
Seals: Viton
Inlet: F 1" - 20 BSPG
End Diameter: 16 mm
Fluid: AdBlue®

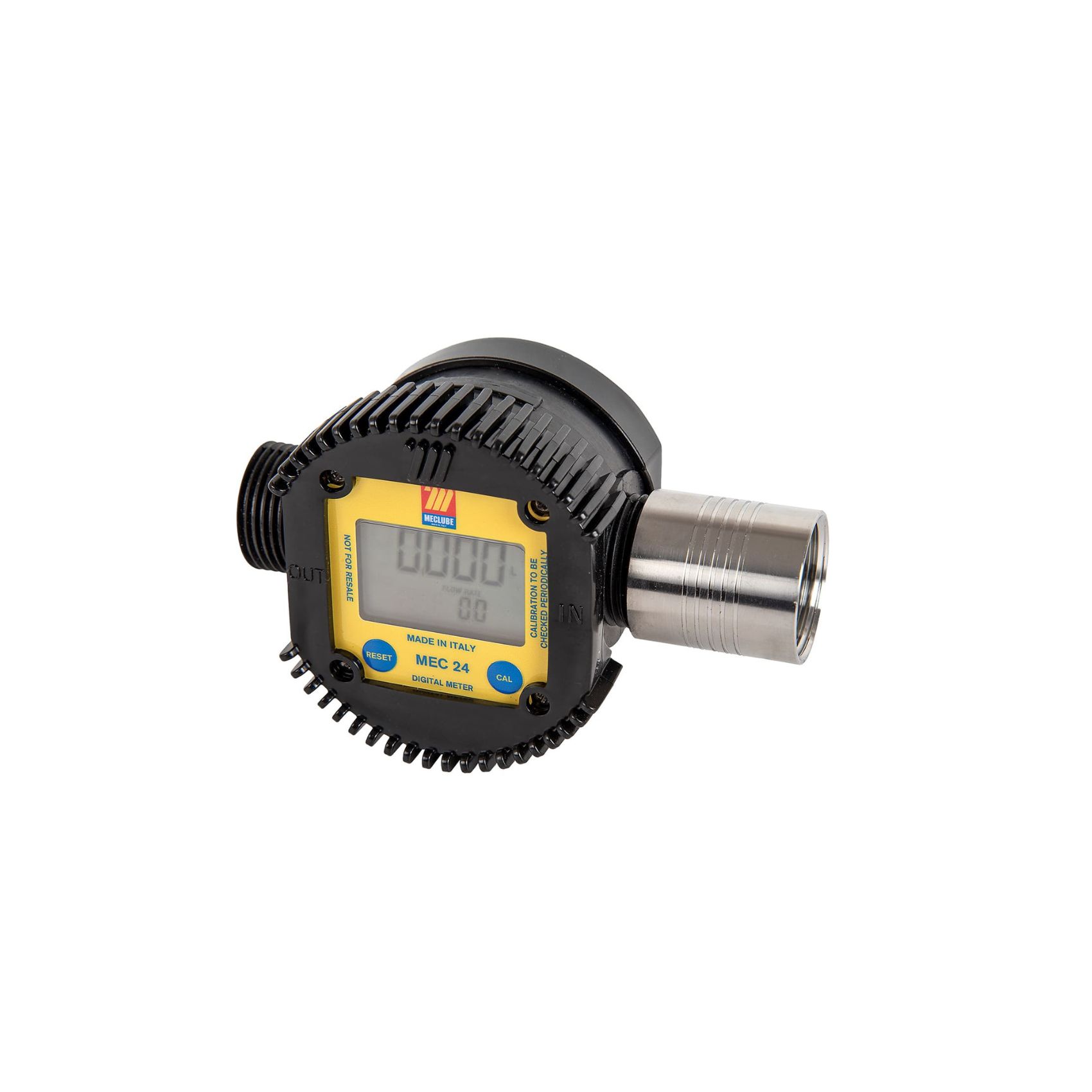

5. Digital Flow Meter MEC 24 – MECLUBE ART. 099-5124-000
The MECLUBE 099-5124-000 MEC 24 is a digital turbine flow meter designed to measure AdBlue® during dispensing and transfer operations. It features a 6-digit non-resettable totalizer and a 5-digit resettable partial counter.
Article: 099-5124-000
Model: MEC 24
Flow Range: 5–120 L/min
Accuracy: ±1%
Inlet/Outlet: F 1" – F 1" BSPG
Totalizer: 6-digit non-resettable
Partial Counter: 5-digit resettable
Compatible Fluids: AdBlue®, antifreeze and windscreen fluid

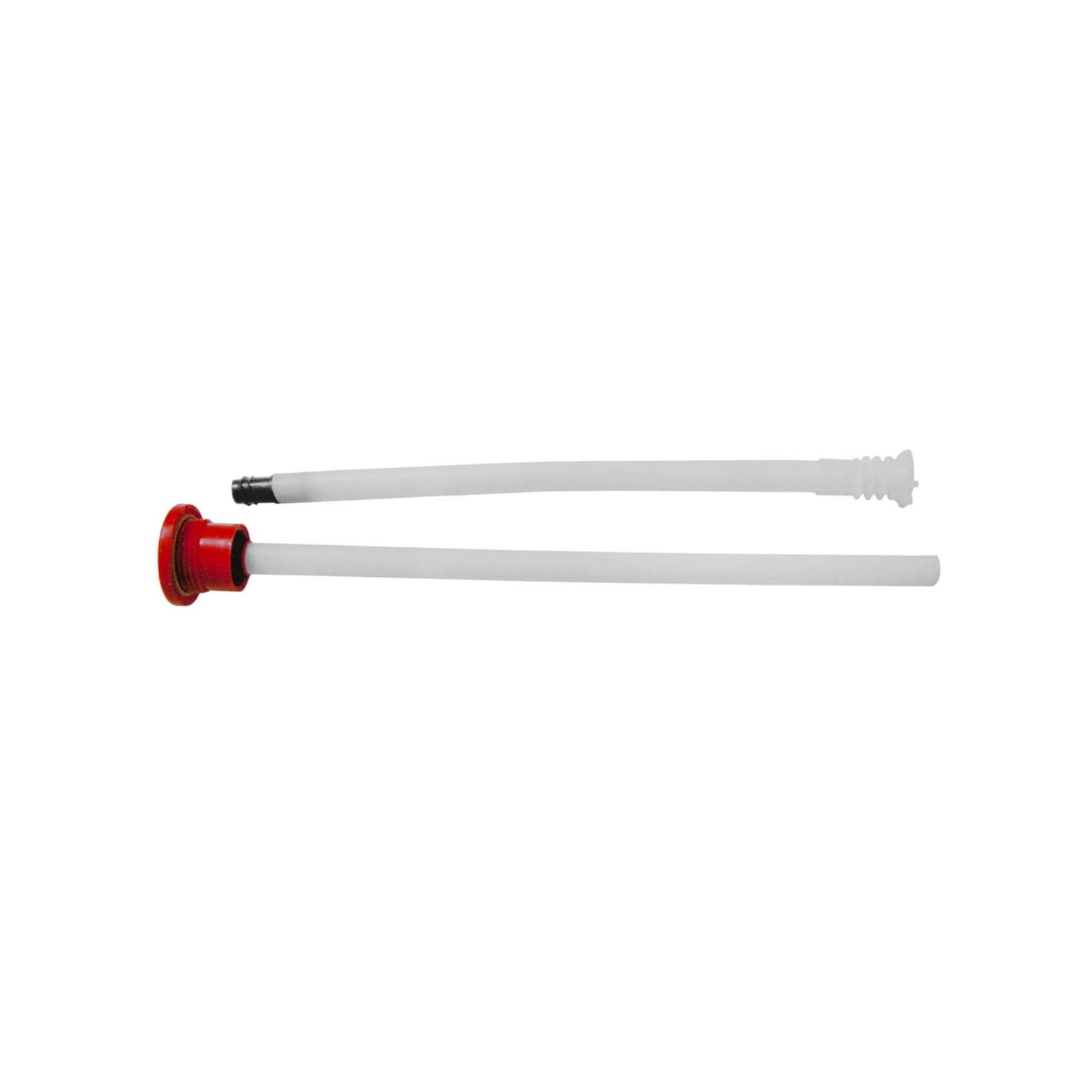

6. Suction Hose with SEC Connection – MECLUBE ART. 099-6500-000
The MECLUBE 099-6500-000 suction hose is designed for connection to compatible IBC tanks and Mauser or Greif containers.
Article: 099-6500-000
Connection: M 56 × 4 SEC
Length: 1050 mm
Application: IBC tanks, Mauser and Greif barrels

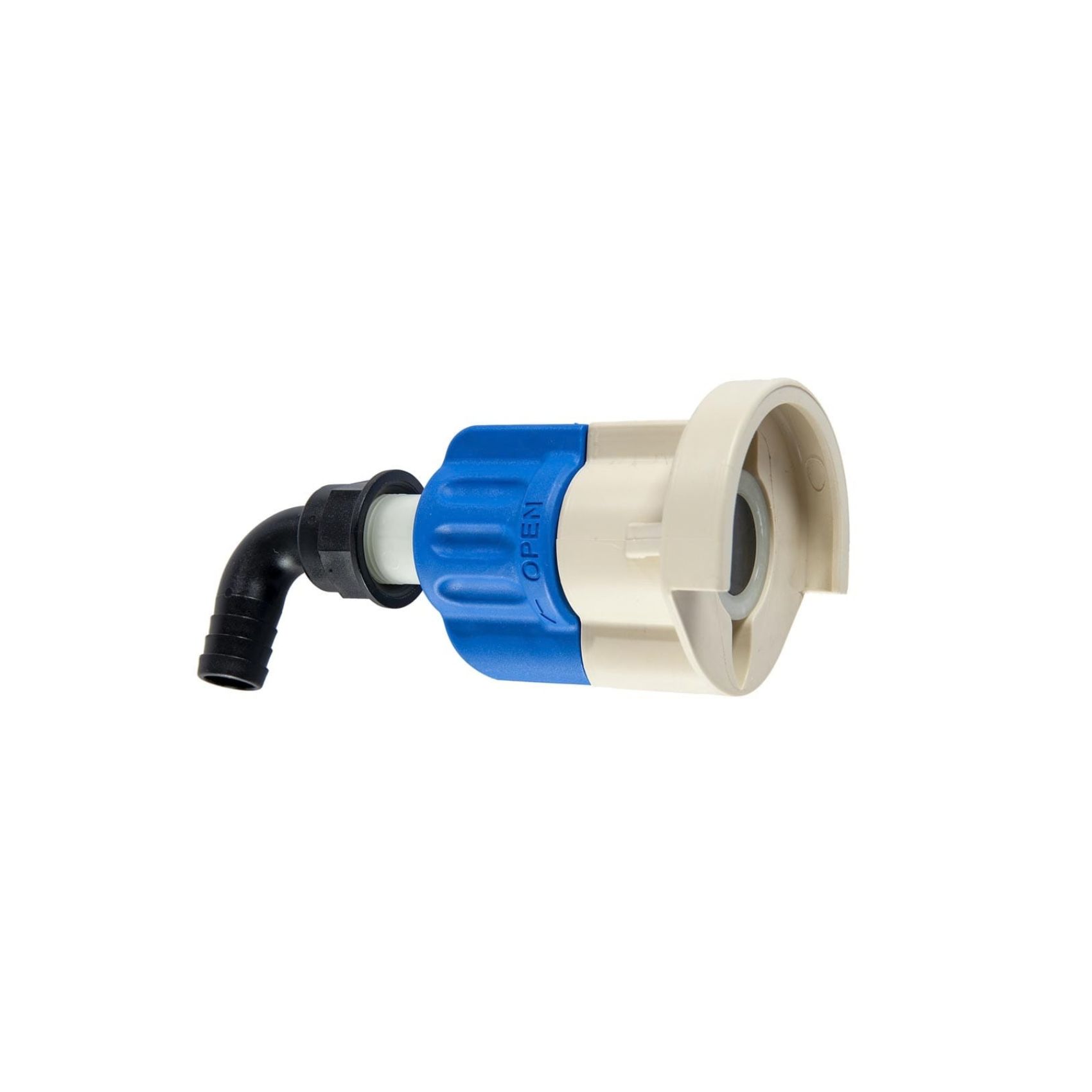

7. SEC Suction Hose Adaptor – MECLUBE ART. 099-6600-000
The MECLUBE 099-6600-000 is an adaptor designed to connect the suction hose to compatible SEC container connections.
Article: 099-6600-000
Type: SEC suction hose adaptor
Application: AdBlue® container and IBC connection
8. Three-Wheel Trolley with Brake – MECLUBE ART. 030-1398-003
The MECLUBE 030-1398-003 is a blue three-wheel trolley with brake, designed to provide easy mobility for the AdBlue® transfer equipment.
Article: 030-1398-003
Type: Three-wheel trolley
Brake: Yes
Color: Blue
Application: Transfer and dispensing equipment
| Item Code | MEC097-5752-230 |
|---|---|
| Barcode | 6295123308278 |
| Brand | MECLUBE |
The MECLUBE GIULY-BLU 097-5752-230 is a complete mobile AdBlue® / DEF transfer and dispensing system designed for professional vehicle tank filling. It combines an electric self-priming diaphragm pump, automatic AP80 dispensing nozzle, MEC 24 digital flow meter, suction and delivery hoses, and a three-wheel trolley with brake.
The MECLUBE GIULY-BLU is designed to make AdBlue® / DEF transfer and vehicle tank filling easier and more convenient. The mobile trolley allows the complete dispensing system to be moved to the vehicle or work area, while the electric diaphragm pump transfers AdBlue® from a compatible barrel, IBC container or storage tank.
The automatic AP80 nozzle helps control the filling process, while the MEC 24 digital flow meter allows the quantity of transferred fluid to be monitored during dispensing.
The GIULY-BLU provides a complete solution instead of requiring separate equipment for AdBlue® transfer, measurement and dispensing. The combination of the electric diaphragm pump, automatic nozzle, digital flow meter and mobile trolley makes it suitable for professional environments where AdBlue® needs to be transferred and dispensed regularly.
Its mobile design is particularly useful when the AdBlue® source and vehicles are located in different areas of a workshop, service centre or maintenance facility.
The MECLUBE GIULY-BLU is suitable for businesses and professionals who regularly handle AdBlue® / DEF, including:
The system can be used wherever AdBlue® / DEF needs to be transferred from compatible storage containers to vehicle tanks. Typical applications include workshops, fleet service facilities, truck and bus maintenance centres, agricultural machinery workshops and construction equipment service facilities.
The MECLUBE GIULY-BLU is used for transferring and dispensing AdBlue® / DEF from compatible barrels, IBC containers and storage tanks into vehicle AdBlue® tanks.
Yes. The system is specifically designed for AdBlue® transfer and vehicle tank filling.
Yes. The system includes an AP80 automatic AdBlue® dispensing nozzle.
Yes. The GIULY-BLU includes the MEC 24 digital flow meter for measuring the transferred fluid.
The system includes a self-priming electric double diaphragm pump designed for AdBlue® transfer.
The electric diaphragm pump has 3/4-inch BSPG inlet and outlet connections.
Yes. It is mounted on a three-wheel trolley with a brake for convenient movement around professional work areas.
It is suitable for automotive workshops, truck and bus service centres, fleet maintenance facilities, agricultural machinery workshops, construction equipment service centres and other professional AdBlue® applications.
