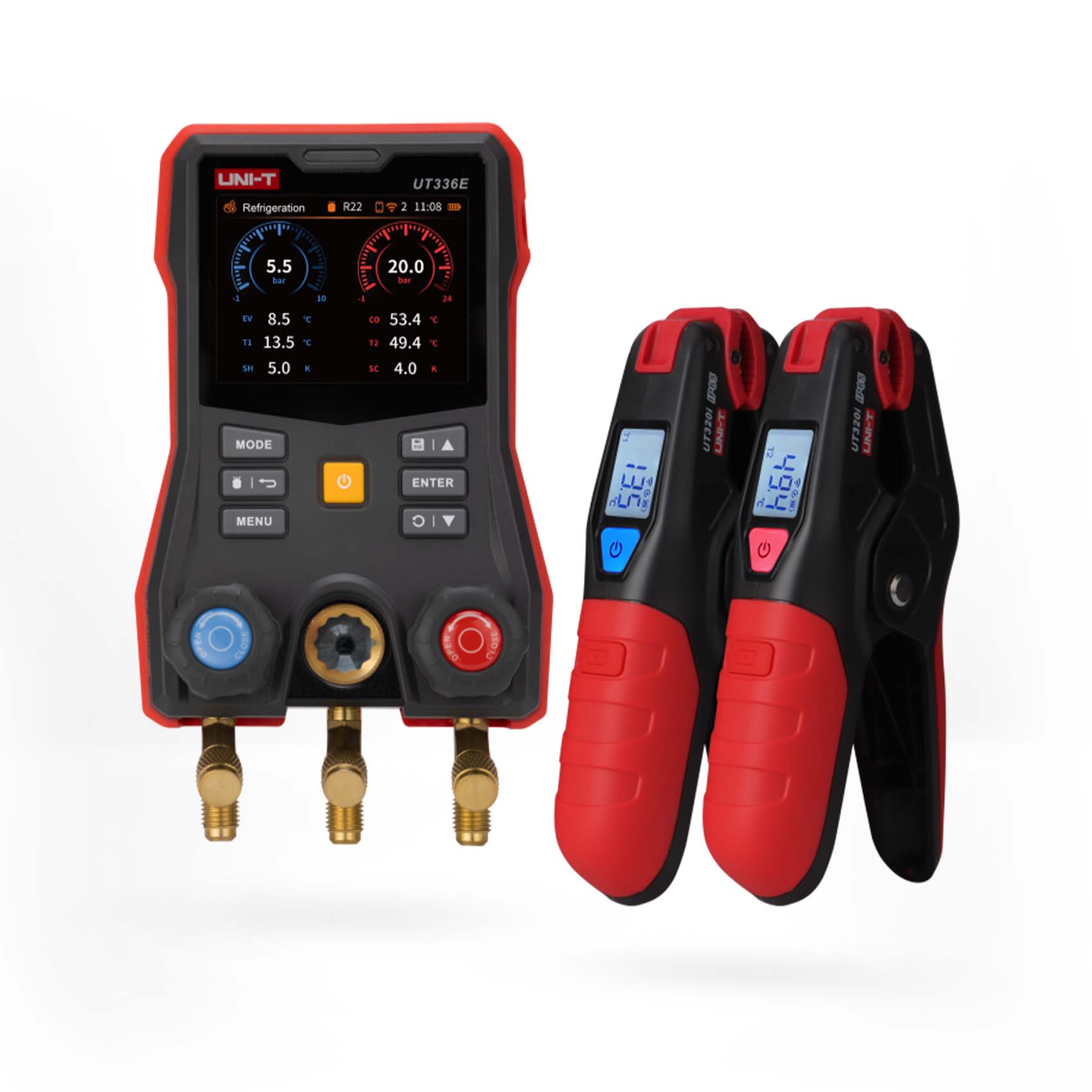

UNI-T 3.5" DIGITAL MANIFOLD UT336E KIT with MOBILE APP | -50~150℃ - 0.1℃ | 5200MAH RECHARGEABLE BATTERY | AUTOMATIC SUPERHEAT/SUBCOOLING CALCULATION |

BRAND : UNI-T

ITEM NO.: UT336E KIT

ORIGIN : CHINA

PRESSURE ACCURACY : ±0.5% FS

TEMPERATURE ACCURACY : ±0.5℃（-50~80℃）, ±1℃(OTHER)

PRESSURE UNIT : BAR, KPA, MPA, PSI, KGCM2, CMHG, INHG

TEMPERATURE UNIT : ℃, ℉

ALARM : YELLOW LED/BUZZER ALARM

WIRELESS RANGE : 100M

IP RATING : UT336E:IP54

UT320I : IP65

REFRIGERANT TYPE : 162+

EVAPORATION & CONDENSATION TEMPERATURE : ✔

HIGH/LOW-PRESSURE MEASUREMENT : ✔

SUPERHEAT/SUBCOOLING : ✔

PRESSURE ZEROING : ✔

REFRIGERATION/HEAT PUMP MODE : ✔(AUTO DETECTION)

EVACUATION MODE : ✔

PRESSURE HOLDING MODE : ✔

DATA RECORD : 10000

TEMPERATURE COMPENSATION : ✔

MOBILE APP : ✔

OTA UPGRADE : ✔

LANGUAGE SETTING : EN, FR, DE, IT, ES, SV, PL, CZ, CN

AUTO SCREEN OFF : ✔

AUTO POWER OFF : ✔

INTERFACE : 3×1/4” SAE

WORKING TEMPERATURE & HUMIDITY : -20～50℃＜90%RH (NON-CONDENSING)

STORAGE TEMPERATURE & HUMIDITY : 20～60℃ ＜90%RH (NON-CONDENSING)

BATTERY : BUILT-IN RECHARGEABLE LITHIUM BATTERY: 3.7V 5200MAH

BATTERY LIFE : > 30H, (BACKLIGHT 50%, WIRELESS CONNECTION OFF)

ACCESSORIES : DIGITAL MANIFOLD GAUGEX1, WIRELESS TEMPERATURE CLAMPX2, USER MANUALX1, SAFETY GUIDEX1, REFRIGERANT HOSEX3, USB-C CHARGING CABLEX1, TOOL BOXX1

SIZE : UT336E: 203×117×70MM

WEIGHT : UT336E: ABOUT 836G

PRESSURE RANGE/RESOLUTION :

-1.00~+60.00 BAR - 0.01 BAR

-100~+6000 KPA - 1 KPA

-0.100~+6.000 MPA - 0.001 MPA

-14.5~+870.2 PSI - 0.1 PSI

-1.02~+61.18  KGCM² - 0.01 KGCM²

-75.0 TO 4500 CMHG - 0.1 CMHG

-29.5 TO 1771 INHG - 0.1 INHG

TEMPERATURE RANGE :

-50~150℃ - 0.1℃

-58 -302℉ - 0.1℉

. CERTIFICATIONS: CE, ROHS

. LANGUAGE: EN, FR, DE, IT, ES, SV, PL, CZ

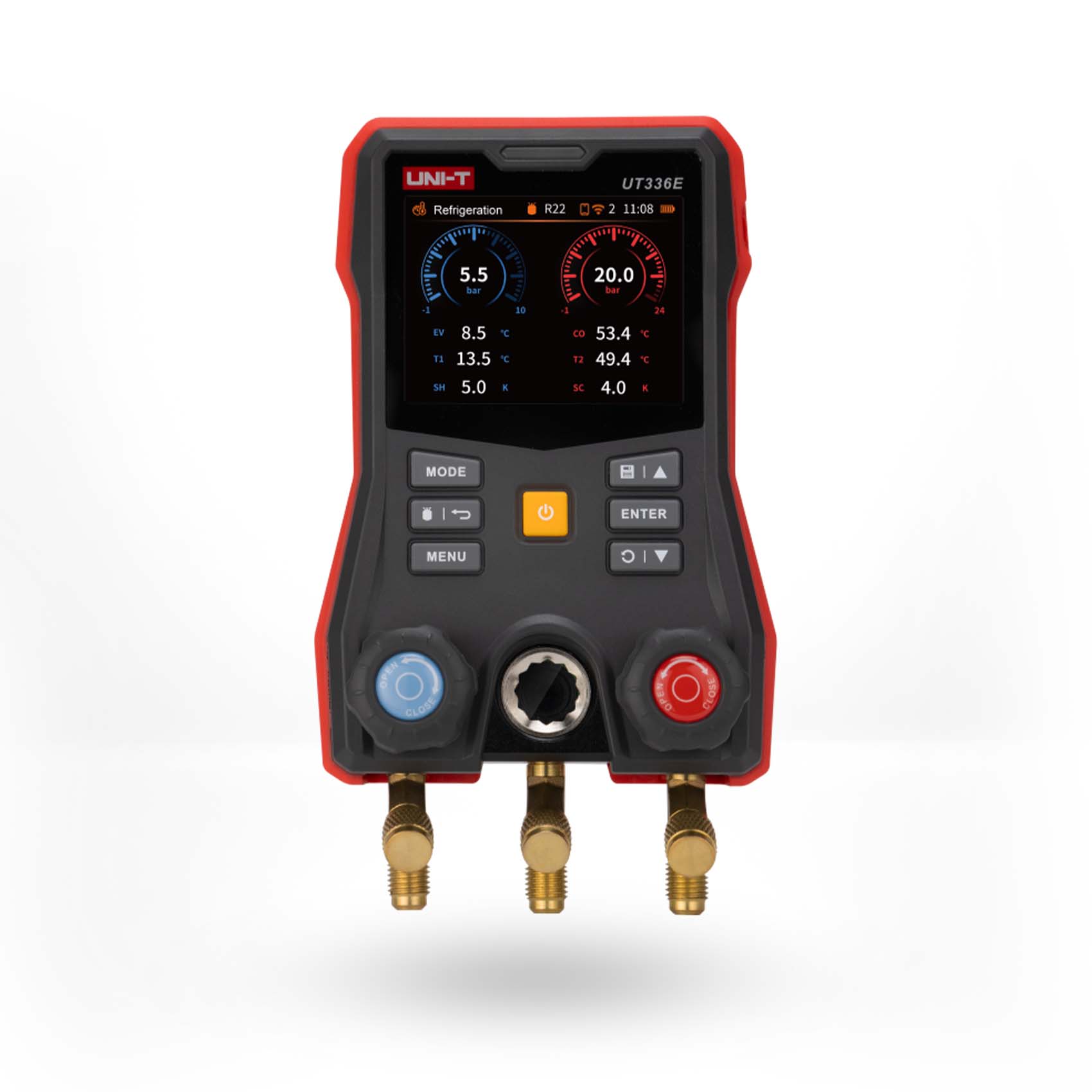

. 3.5”HD COLOR SCREEN

. 10000 DATA STORAGE

. TAP-TO-WAKE BACKLIGHT

. IP54 RATING

. 5200MAH RECHARGEABLE LITHIUM BATTERY

. BUILT-IN 160+ DATABASE

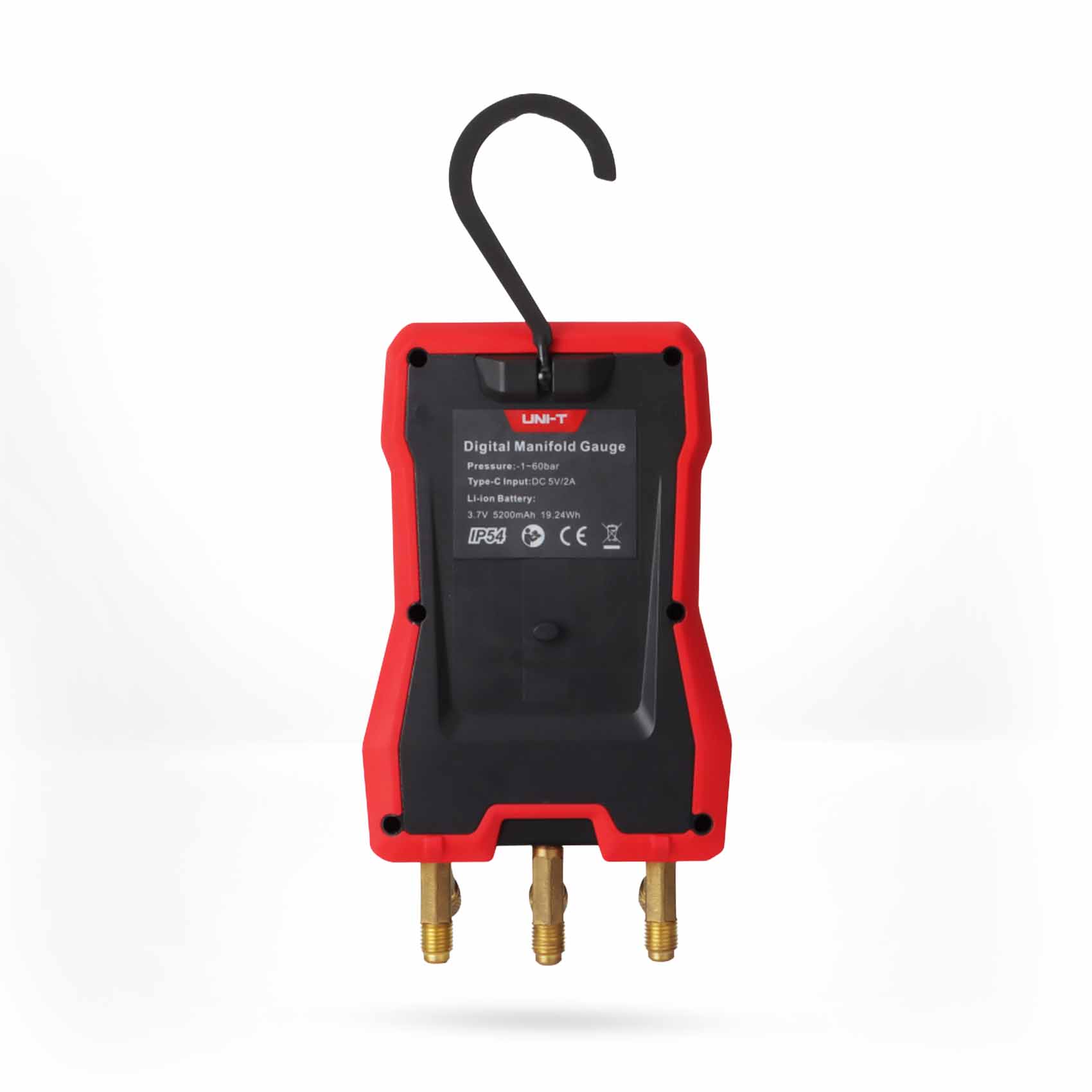

. METAL HOOK DESIGN

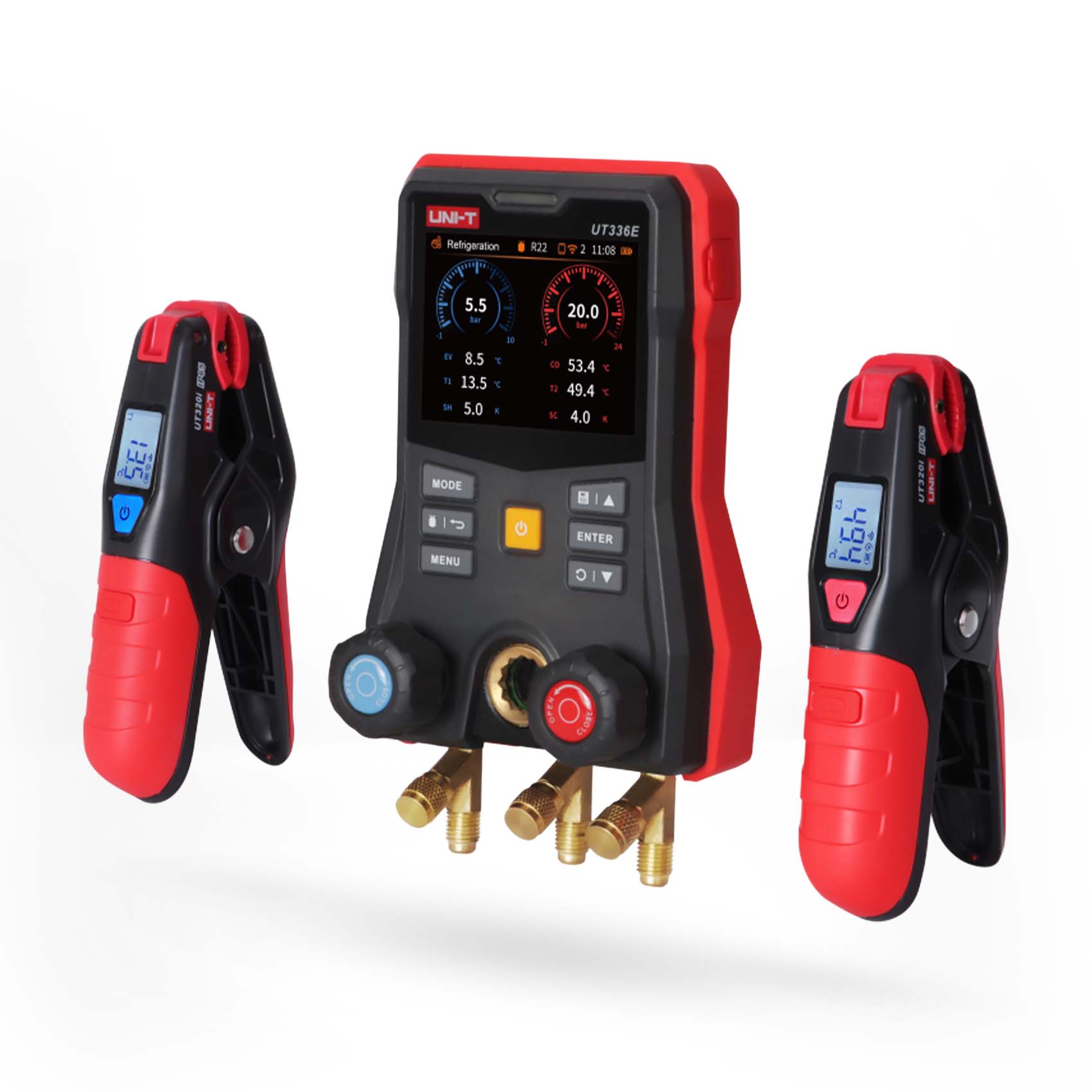

. WIRELESS TEMPERATURE CLAMPS AND VACUUM GAUGE CONNECTION

. MOBILE APP

. AUTOMATIC SUPERHEAT/SUBCOOLING CALCULATION

UT336E KIT IS DESIGNED FOR THE INSTALLATION, DEBUGGING, AND MAINTENANCE OF REFRIGERATION AND HEAT PUMP SYSTEMS, PROVIDING ACCURATE MEASUREMENT OF HIGH AND LOW-SIDE PRESSURES. WHEN USED WITH WIRELESS TEMPERATURE CLAMPS, IT CAN MEASURE THE HIGH/LOW-PRESSURE REFRIGERANT PIPE TEMPERATURES AND AUTOMATICALLY CALCULATE SUPERHEAT AND SUBCOOLING, HELPING OPTIMIZE SYSTEM PERFORMANCE. THE DEVICE COMES WITH BUILT-IN REFRIGERANT PARAMETERS AND SUPPORTS WIRELESS APP CONNECTIVITY FOR REMOTE MONITORING AND DATA MANAGEMENT. NO MATTER IF IT’S FOR NEW INSTALLATIONS, ROUTINE COMMISSIONING, OR MAINTENANCE, UT336E KIT OFFERS PRECISE, INTELLIGENT SUPPORT FOR REFRIGERATION AND HEAT PUMP SYSTEMS, ENSURING EFFICIENT AND STABLE OPERATION.

* COMPATIBLE WITH A1 / A2L / A2 / A3 AND PART OF B1 REFRIGERANTS.

* THE DEVICE CANNOT BE USED WITH AMMONIA REFRIGERANTS (NH3 / R717).
