BRAND : UNI-T
ITEM NO.: UT219PV
ORIGIN : CHINA
CURRENT (ACA) : 999.9 A - 40HZ~100HZ: Β±(2.0%+5), 100HZ~1000HZ: Β±(2.5%+5)
CURRENT (DCA) : 999.9 A - Β±(2.0%+5)
VOLTAGE (ACV) : 999.9V/1500V - 40HZ~1000HZ: Β±(1.0%+5)
VOLTAGE (DCV) : 999.9V/2500V - Β±(1.0%+5)
VOLTAGE (DC MV) : 999.9 MV - Β±(1.0%+5)
ACV(WITH LPF) : 999.9V - Β±(2.0οΌ οΌ9)
ACA(WITH LPF) : 999.9A - Β±(2.5οΌ οΌ9)
ACA(WITH LPF): FLEX CLAMP SENSOR : 30.00A/300.0A/3000A - Β±(4.0%+9)(CENTER AREA)
ACA;WITH FLEX CLAMP SENSOR : 30.00A/300.0A/3000A - Β±(3.0%+5) (CENTER AREA)
POWER (DC) : 999.9 KVA/2500 KVA - Β±(2.0%+20)
FREQUENCY (A&V) : 5.0 HZ TO 999.9HZ - Β±(0.5%+5)
RESISTANCE (Ξ©) : 999.9Ξ©/9.999KΞ©/99.99KΞ© - Β±(1.0οΌ +5οΌ
CPACITANCE (F) : 100.0ΞF/1000 ΞF - Β±(1.0οΌ +5οΌ
TEMPERATURE : -40β~400β/-40β~752β - Β±(1.0%+30); Β±(1.0%+60)
. CERTIFICATIONS (UT219PV ONLY) : CE, ROHS, CETLUS

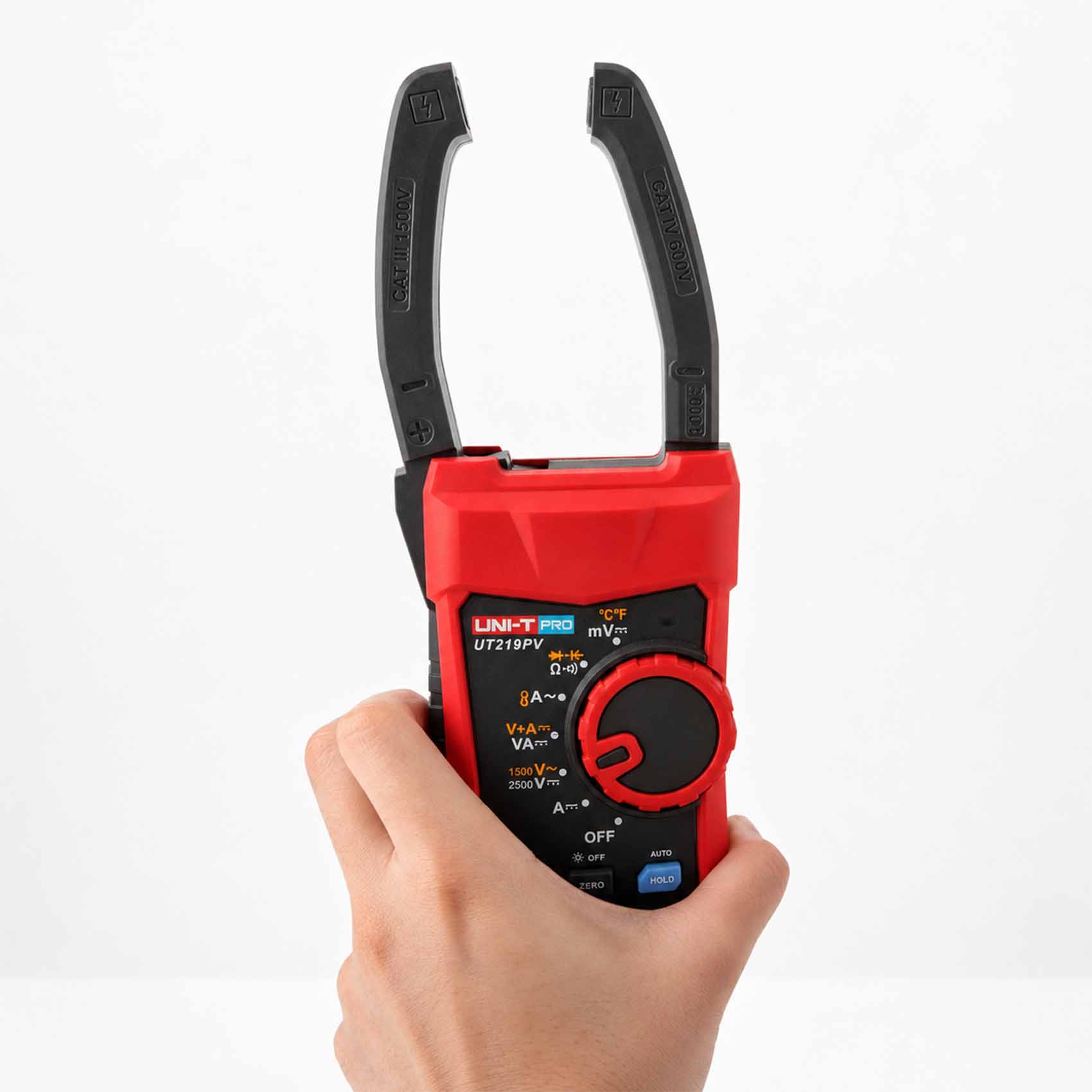

. 35MM ULTRA-THIN JAW : SUITABLE FOR INVERTER OR COMBINER BOX
. VOLTAGE MEASUREMENT : AC1500V/DC2500V
. CURRENT MEASUREMENT : AC/DC 1000A
. POWER DC : 2500KVA
. EXTERNAL CLAMP SENSOR: UT-CS09D(AC 3000A)
. SOLAR PANEL POLARITY INDICATION: WHEN <-10 DCV, AUDIBLE & VISUAL ALARM
. BLUETOOTH APP
. AUTO BACKLIGHT & AUTO POWER OFF
. CERTIFICATES : CE (EMC, LVD), CETLUS, ROHS
. SAFETY RATING : CAT III 1500V/ CAT IV 600V
. IP65

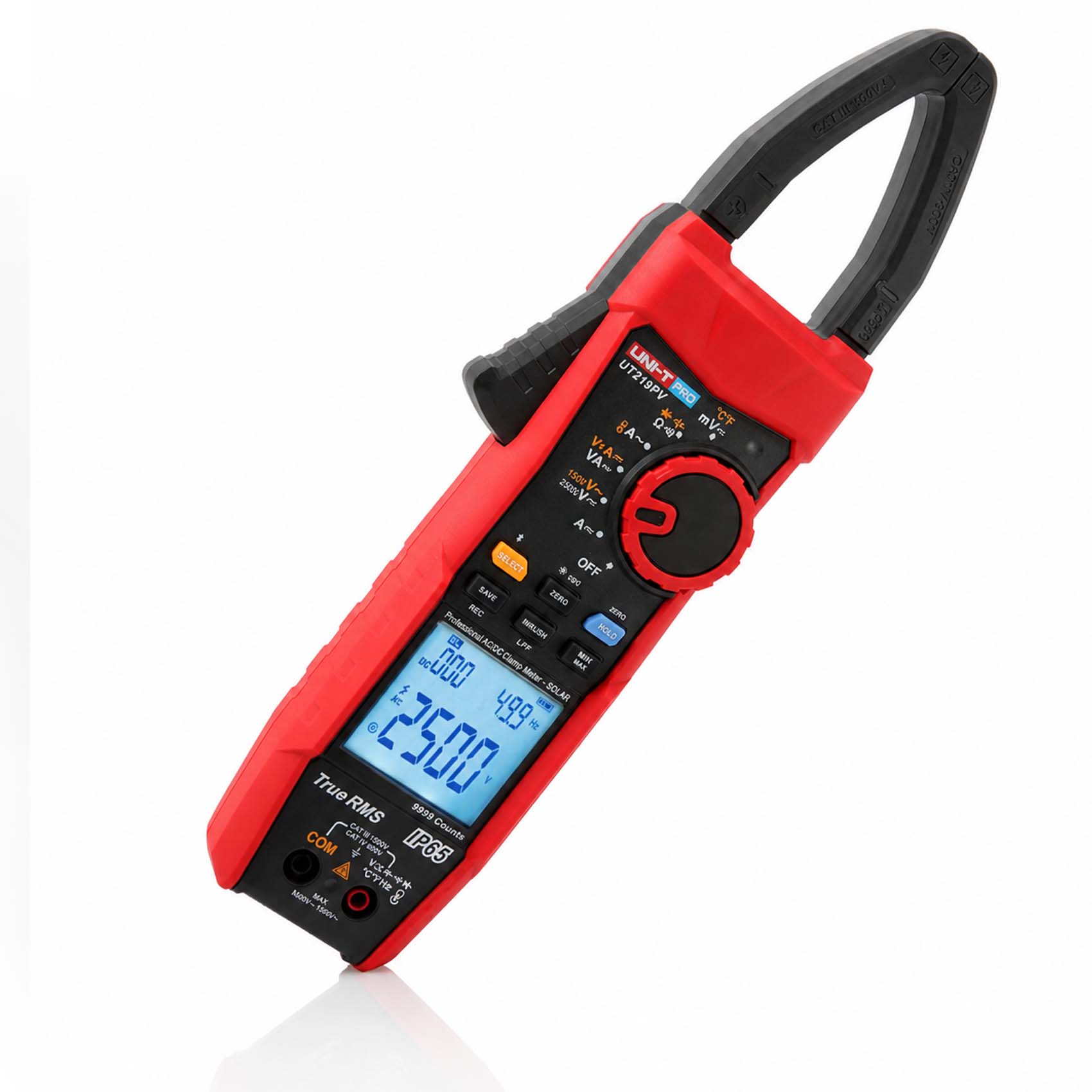

THE UT219PV IS AN ADVANCED AC/DC CLAMP METER SPECIALLY DESIGNED FOR HIGH-VOLTAGE PHOTOVOLTAIC ENVIRONMENTS. IT OFFERS EXCEPTIONAL ACCURACY AND PERFORMANCE, WITH A WIDE RANGE OF FEATURES. WITH ITS AUTOMATIC RANGE SELECTION AND A CLEAR DISPLAY CAPABLE OF SHOWING UP TO 9999 DIGITS, THIS CLAMP METER ALLOWS FOR PRECISE MEASUREMENTS OF AC/DC VOLTAGE, CURRENT, LOW-PASS FILTERED VOLTAGE/CURRENT, SURGE CURRENT, PEAK CURRENT, DC POWER (USING AN EXTERNAL FLEXIBLE CLAMP HEAD), RESISTANCE, CIRCUIT CONTINUITY, DIODES, CAPACITANCE, AND TEMPERATURE. ITS VERSATILITY EXTENDS BEYOND PHOTOVOLTAIC APPLICATIONS, AS IT CAN ALSO BE USED IN OTHER HIGH-VOLTAGE SETTINGS LIKE ENERGY STORAGE SYSTEMS, UNINTERRUPTIBLE POWER SUPPLIES (UPS), AND LARGE MOTORS.
| Item Code | UNITUT219PV |
|---|---|
| Barcode | 6935750521939 |
| Brand | UNI-T |

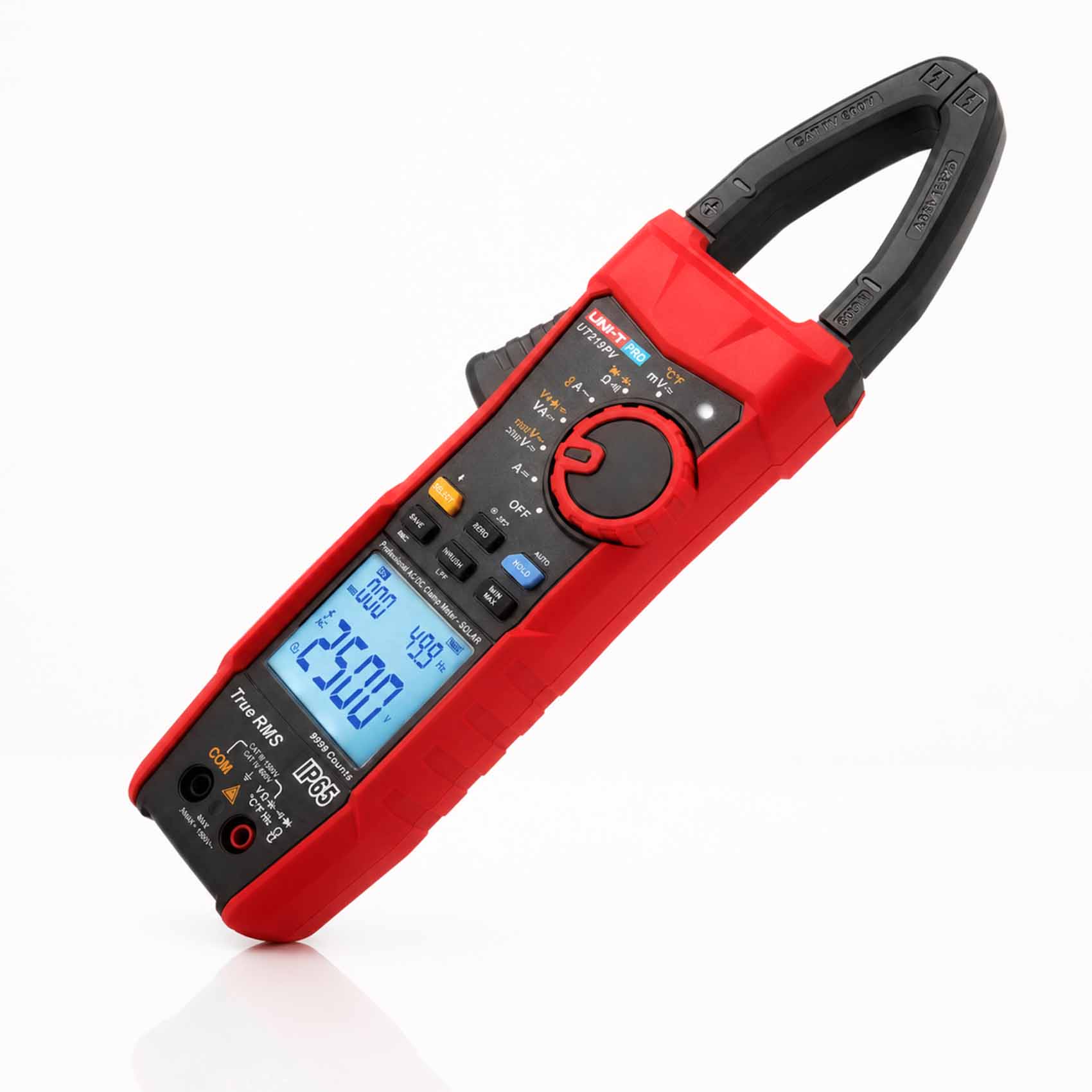

The UNI-T UT219PV Professional AC/DC Solar Clamp Meter is an advanced electrical testing instrument specially designed for high-voltage photovoltaic and solar power applications. It provides accurate measurement of AC/DC voltage, AC/DC current, DC power, resistance, frequency, capacitance, temperature, and other electrical parameters required for installation, inspection, maintenance, and troubleshooting.
With a 35mm ultra-thin clamp jaw, the UT219PV is designed to access conductors inside solar inverters, combiner boxes, electrical panels, and other confined areas. It supports AC voltage up to 1500V, DC voltage up to 2500V, and AC/DC current up to 1000A, making it suitable for demanding photovoltaic and high-voltage electrical environments.
The meter also supports an external flexible clamp sensor for high-current measurements, DC power measurement, solar panel polarity indication, Bluetooth connectivity, low-pass filtering, automatic ranging, auto backlight, and auto power-off. Its CAT III 1500V / CAT IV 600V safety rating and IP65 protection make it suitable for professional field applications.
The primary purpose of the UNI-T UT219PV solar clamp meter is to safely and efficiently measure electrical parameters in photovoltaic systems and other high-voltage electrical installations. It allows technicians to check current flow, voltage levels, DC power, frequency, resistance, capacitance, temperature, and other electrical conditions without requiring conventional current interruption for clamp-current measurements.
The UT219PV is particularly useful for solar panel troubleshooting, photovoltaic inverter testing, combiner box inspection, current-load checking, electrical vehicle systems, energy storage systems, UPS systems, and large motors.
Important: High-voltage photovoltaic systems can present serious electrical hazards. Always follow the instrument manual, applicable electrical safety procedures, and the required personal protective equipment when performing measurements.
The UNI-T UT219PV combines high-voltage measurement capability with the convenience of a professional clamp meter. Its ability to measure up to 2500V DC, 1500V AC, and 1000A AC/DC makes it particularly useful for modern photovoltaic installations where conventional general-purpose clamp meters may not provide the required measurement range.
The slim 35mm clamp jaw is another major advantage for solar technicians because it helps access conductors in compact inverter and combiner-box installations. Solar polarity indication, Bluetooth connectivity, LPF measurement, external flexible clamp compatibility, and multiple electrical test functions further increase its versatility.
For professionals working across different electrical environments, the UT219PV can also be used beyond solar applications, including energy storage systems, UPS installations, large motors, and other high-voltage electrical equipment.
The UNI-T UT219PV is designed for professional users who need high-voltage AC/DC electrical measurement and troubleshooting capabilities.
The UNI-T UT219PV is a professional AC/DC clamp meter designed mainly for high-voltage photovoltaic system testing and troubleshooting. It can also be used for energy storage systems, UPS systems, large motors, electrical vehicle systems, and other electrical applications.
What is the maximum DC voltage measurement of the UT219PV?The UT219PV can measure DC voltage up to 2500V according to the supplied product information.
What is the maximum AC voltage measurement of the UT219PV?The UT219PV supports AC voltage measurement up to 1500V.
What is the maximum current measurement of the UT219PV?The integrated clamp supports AC/DC current measurement up to 1000A. An external flexible clamp sensor can also be used for higher-current applications.
Why does the UT219PV have a 35mm ultra-thin clamp jaw?The 35mm ultra-thin jaw is designed to make it easier to access conductors in confined areas such as solar inverters, PV combiner boxes, electrical panels, and other compact installations.
Can the UT219PV measure both AC and DC current?Yes. The UT219PV supports both AC current and DC current measurement, with the integrated clamp supporting measurements up to 1000A.
Does the UT219PV support solar panel polarity detection?Yes. The UT219PV includes solar panel polarity indication and provides an audible and visual alarm when the specified negative DC voltage condition is detected.
Does the UNI-T UT219PV support Bluetooth?Yes. The UT219PV includes Bluetooth connectivity for use with a compatible mobile application.
Can the UT219PV measure DC power?Yes. The UT219PV supports DC power measurement and can be used with a compatible external flexible clamp sensor for applicable high-current measurements.
What external clamp sensor is compatible with the UT219PV?The UT219PV supports the UT-CS09D external flexible clamp sensor for AC current measurements up to 3000A according to the supplied product information.
Is the UT219PV suitable for solar inverter testing?Yes. Its high-voltage AC/DC measurement capability and slim clamp jaw make it suitable for testing and troubleshooting electrical conditions around photovoltaic inverters.
What safety rating does the UNI-T UT219PV have?The UT219PV has a CAT III 1500V / CAT IV 600V safety rating according to the supplied product information. Users should always follow the meter's operating instructions and applicable electrical safety procedures.
Is the UNI-T UT219PV suitable for industrial use?Yes. In addition to photovoltaic applications, the UT219PV can be used for troubleshooting energy storage systems, UPS equipment, large motors, electrical vehicle systems, and other high-voltage electrical installations.
Is the UT219PV protected against dust and water?Yes. The UT219PV has an IP65 protection rating according to the supplied product information.
