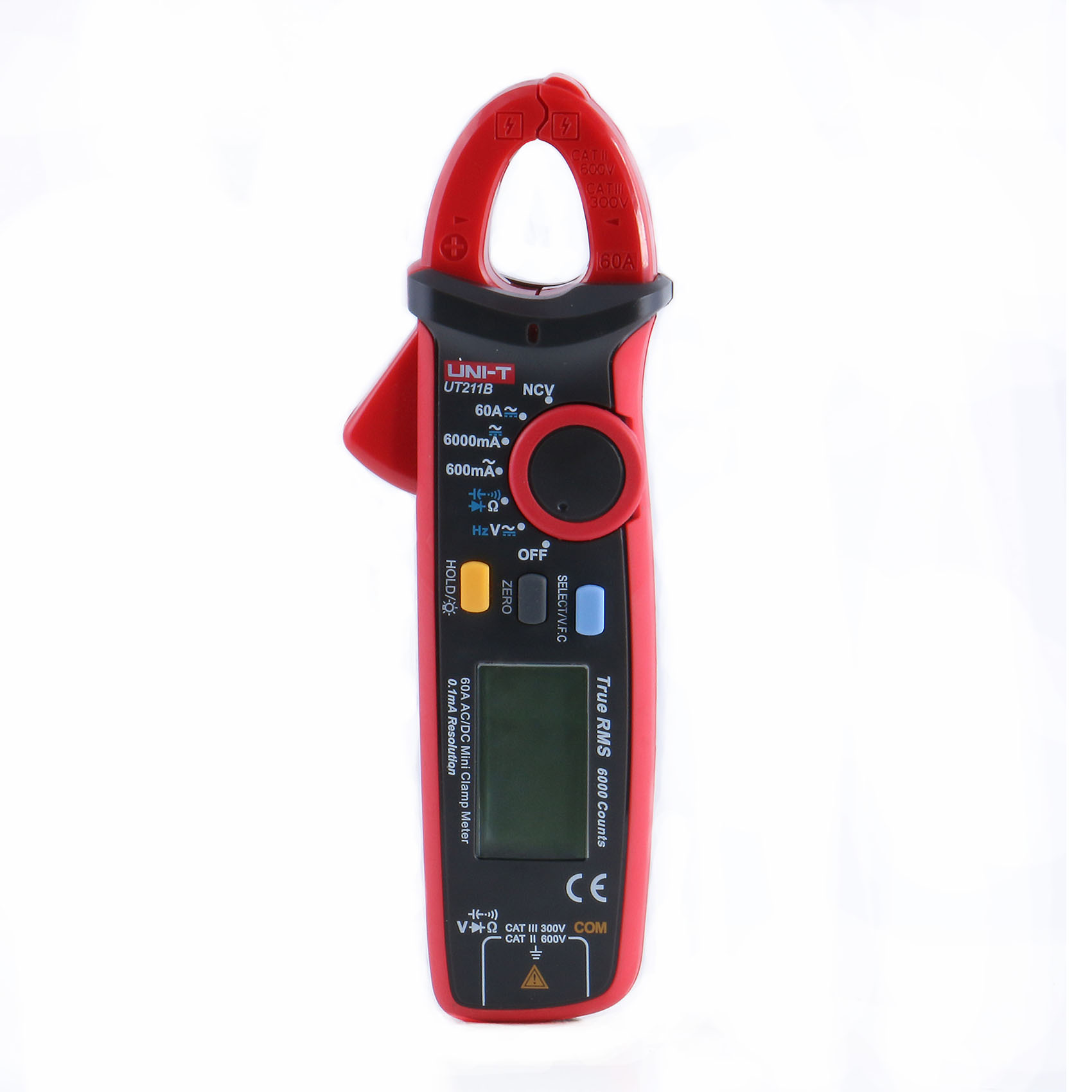

UNI-T 60A HIGH PRECISION MINI CLAMP METER UT211B | TROUBLESHOOTING SOLAR POWER SYSTEMS CURRENT LOAD, ELECTRICAL CARS, ETC

BRAND : UNI-T

ITEM NO.: UT211B

ORIGIN : CHINA

POWER : 1.5V BATTERY (R03) X 2

DISPLAY : 39.3MM X 26.5MM

PRODUCT COLOR : RED AND GREY

AC CURRENT (A) : RANGE 60A (0.01A RESOLUTION) ±(2.0%+5)

DC CURRENT (A) : RANGE 60A - ±(2%+3)

AC VOLTAGE (V) : RANGE 600V - ±(0.8%+3)

DC VOLTAGE (V) : RANGE 600V - ±(0.7%+3)

RESISTANCE (Ω) : RANGE 60MΩ - ±(0.8%+2)

CAPACITANCE (F) : RANGE 62MF - ±(4%+5)

DISPLAY COUNT : 6000

AUTO RANGE : √

TRUE RMS : √

DIODE TEST : RANGE AROUND 3.0V - √

V.F.C.: √

NCV : √

DATA HOLD : √

ZERO MODE : √

LCD BACKLIGHT : √

AUTO POWER OFF : RANGE AROUND 15 MINUTES - √

CONTINUITY BUZZER : √

LOW BATTERY INDICATION : RANGE ≤2.5V - √

INPUT PROTECTION : √

INPUT IMPEDANCE FOR DCV : RANGE ≥10MΩ - √

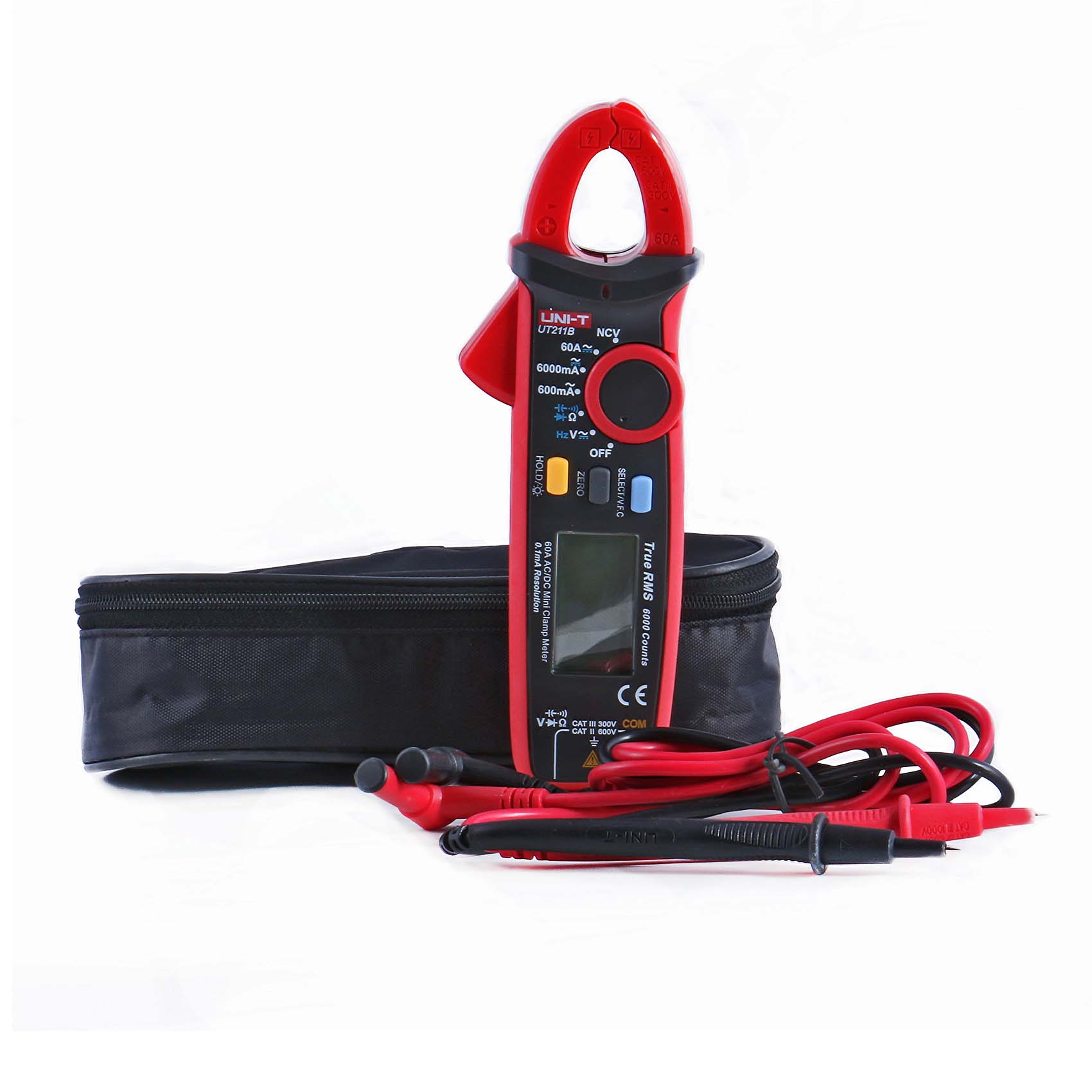

STANDARD ACCESSORIES : BATTERIES, TEST LEADS

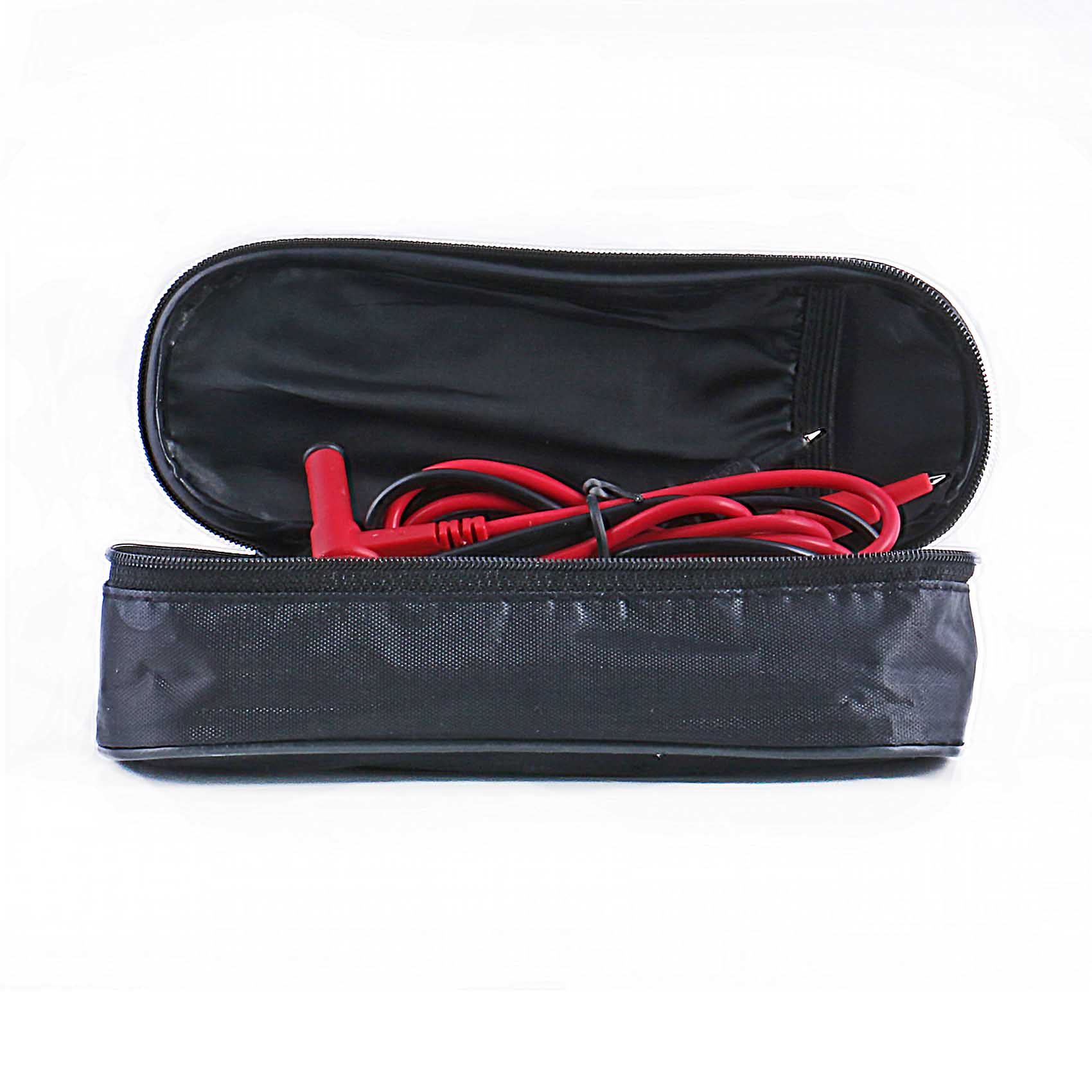

STANDARD INDIVIDUAL PACKING : GIFT BOX, CARRYING BAG, ENGLISH MANUAL

PRODUCT SIZE : 175MM X 60MM X 33.5MM

PRODUCT NET WEIGHT : 170G

UT211B 60A MINI CLAMP METER IS A HIGH PRECISION TOOL DESIGNED WITH THE RESOLUTION OF 0.1MA. UT211B IS PERFECT FOR ANYONE REQUIRING HIGH PRECISION AND ACCURATE RESULTS WHEN WORKING WITH ELECTRONICS, SUCH AS TROUBLESHOOTING SOLAR POWER SYSTEMS CURRENT LOAD, ELECTRICAL CARS, ETC. IT IS ERGONOMICALLY DESIGNED AND ALSO LIGHTWEIGHT, MAKING IT A CONVENIENT TOOL FOR WORKING IN TIGHT SPACES.

MASTERBOX DETAILS :

STANDARD QUANTITY PER CARTON : 40PCS

STANDARD CARTON MEASUREMENT : 385MM X 345MM X 305MM

STANDARD CARTON GROSS WEIGHT : 12.9KG
