UNI-T AC FLEX CLAMP UT281E+ | TROUBLESHOOTING SOLAR POWER SYSTEMS CURRENT LOAD, ELECTRICAL CARS, ETC

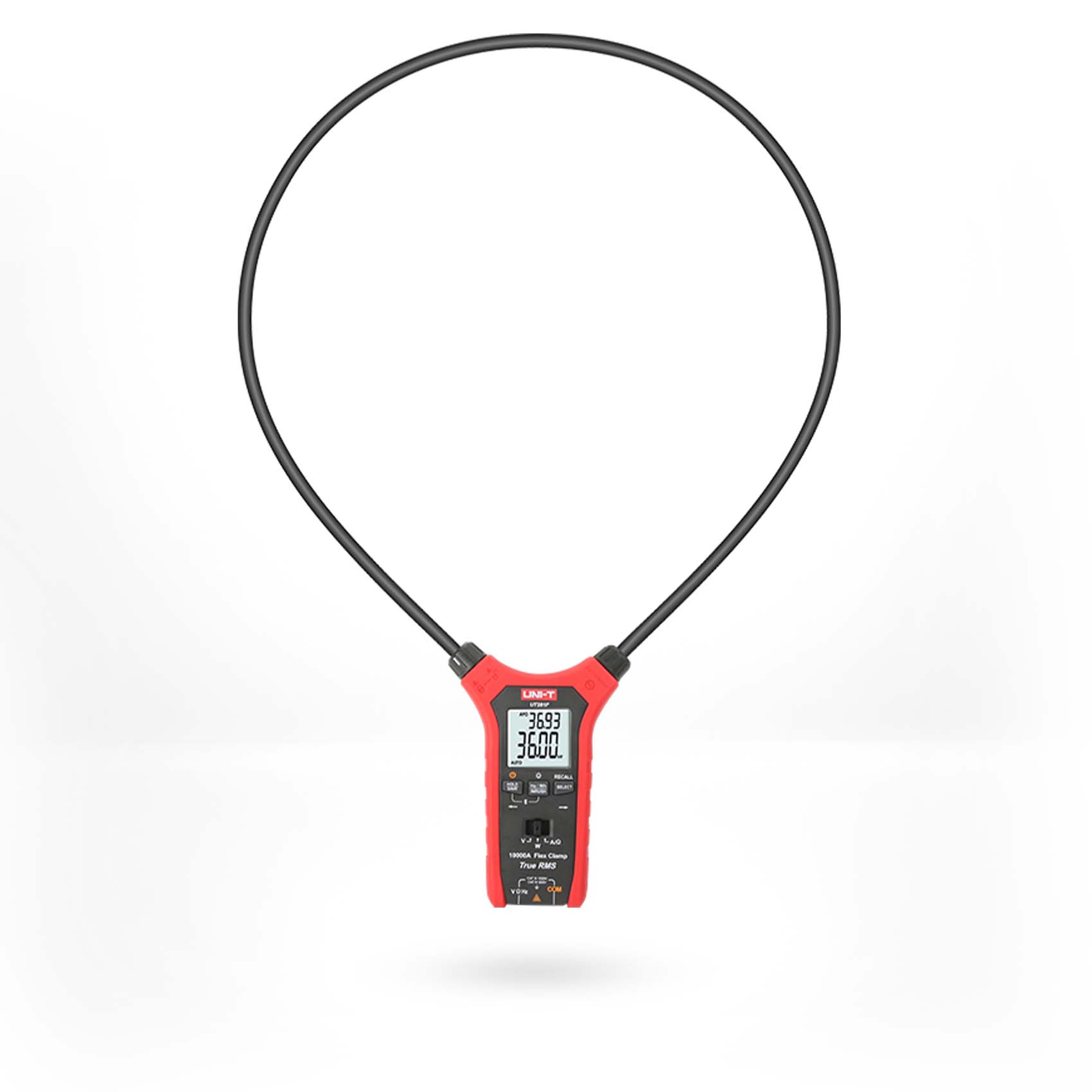

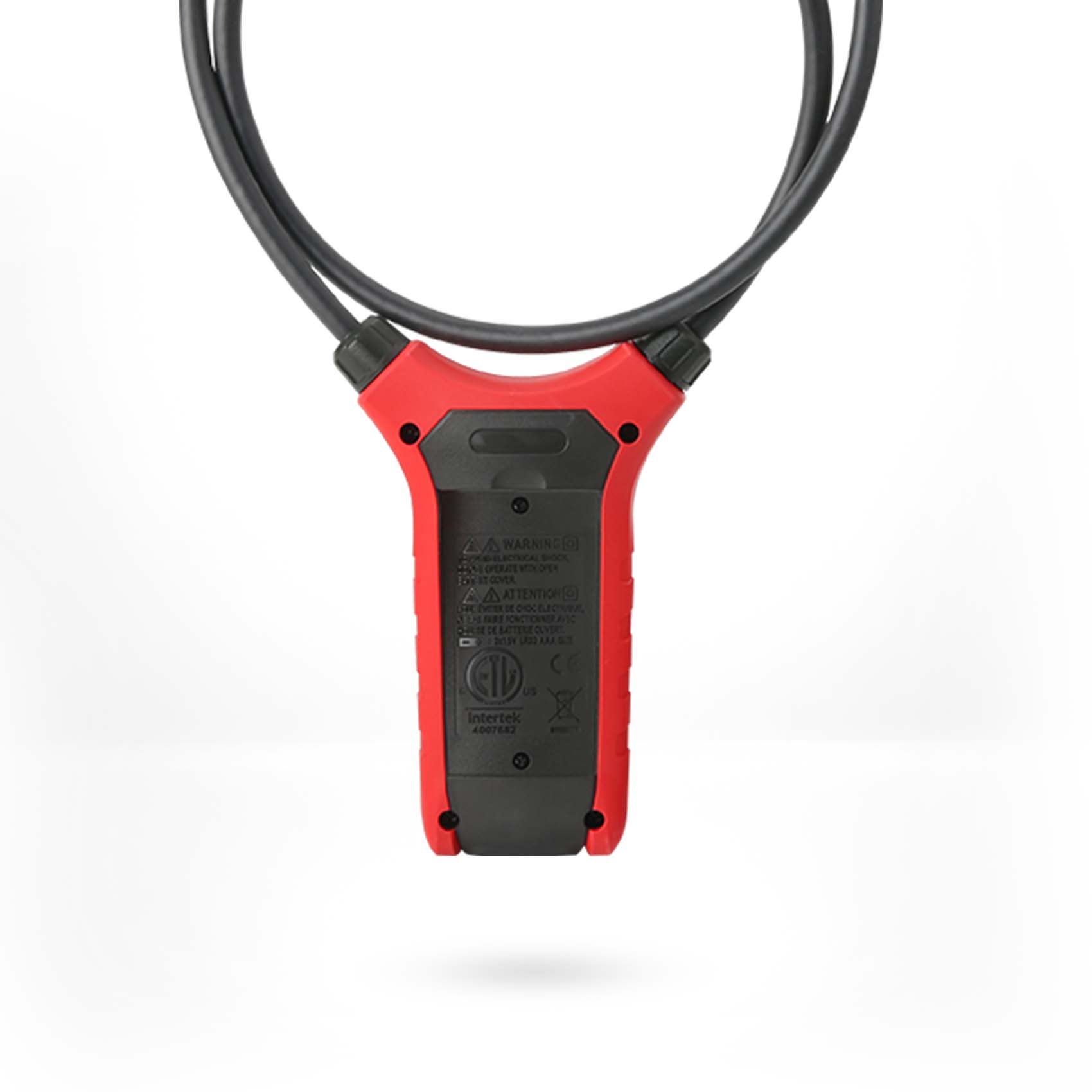

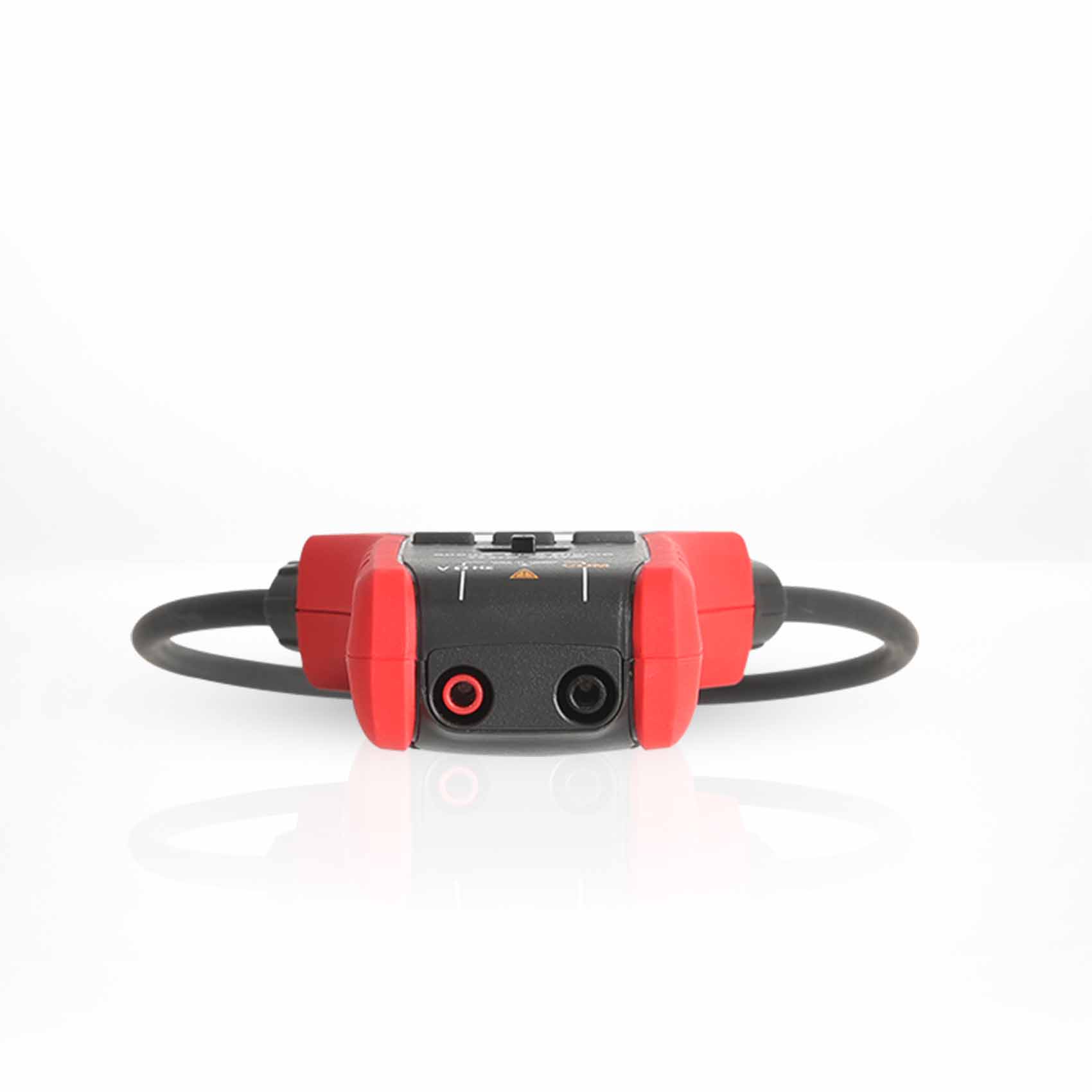

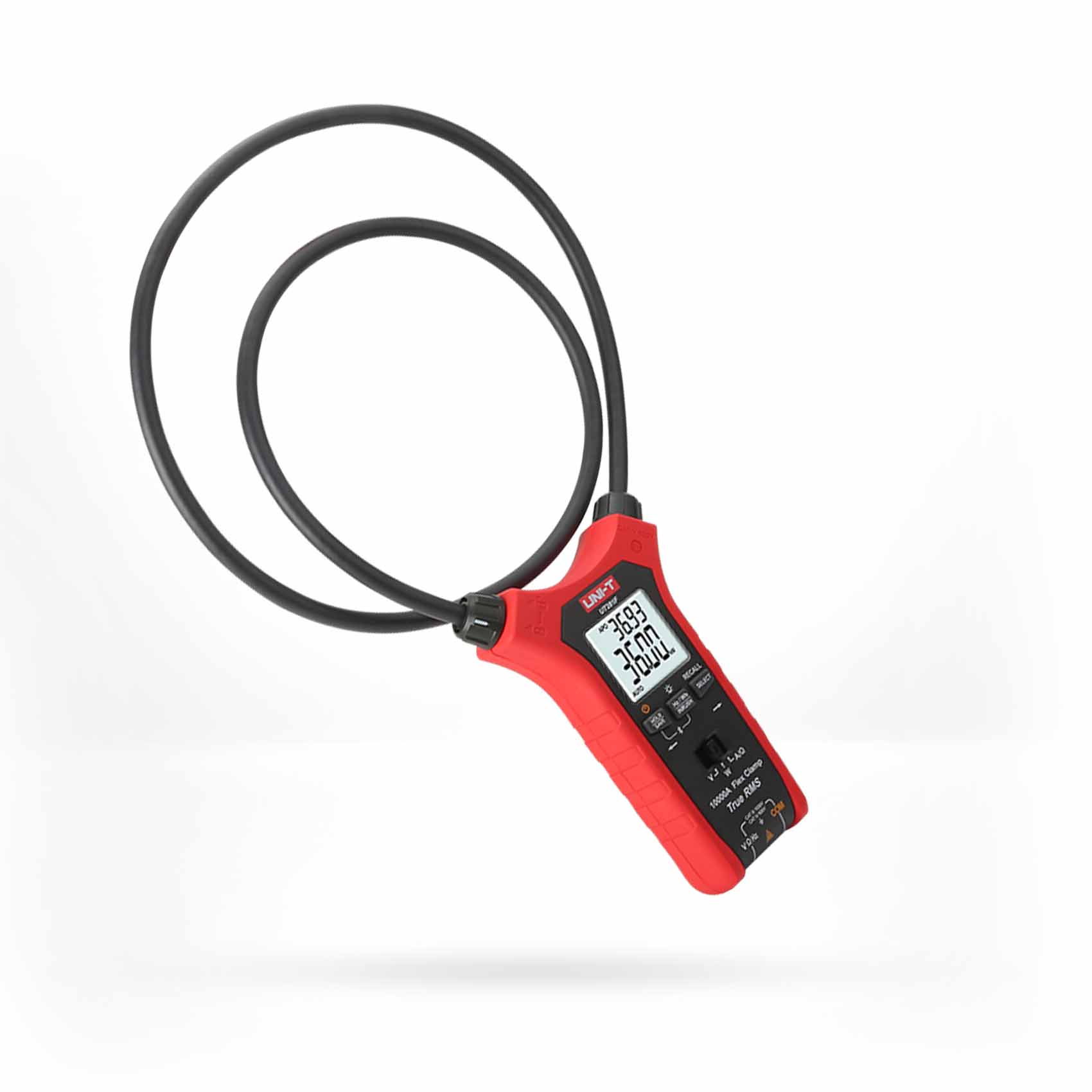

UNI-T AC Flex Clamp UT281E+

The UNI-T UT281E+ AC Flex Clamp Meter is a high-precision True RMS electrical measuring instrument designed for troubleshooting, maintenance, and testing of electrical systems. Its flexible 1100mm coil allows technicians to measure AC current around large or difficult-to-reach conductors without disconnecting the circuit.

With current measurement capability up to 6000A, the UT281E+ is suitable for demanding applications such as solar power system troubleshooting, electrical vehicle systems, power distribution, industrial equipment, manufacturing facilities, and electrical engineering.

What Is the Purpose of the UNI-T UT281E+?

The main purpose of the UNI-T UT281E+ is to provide safe and convenient electrical measurements during installation, inspection, troubleshooting, and preventive maintenance. The flexible clamp coil makes it particularly useful when conventional clamp meters cannot easily fit around large cables, busbars, or tightly packed conductors.

It can be used to measure AC/DC voltage, AC current, frequency, resistance, and inrush current, making it a versatile diagnostic tool for professional electricians and technicians.

How to Use the UNI-T UT281E+?

1. Install the three 1.5V AAA batteries and switch on the meter.
2. Select the required measurement function according to the electrical parameter being tested.
3. For current measurement, open the flexible clamp coil and place it around one conductor of the circuit being tested.
4. Close and secure the flexible coil around the conductor before taking the reading.
5. Keep the flexible coil positioned away from unnecessary magnetic interference where practical.
6. Read the measured value on the LCD backlit display.
7. Use the Data Hold function when you need to retain a measurement on the screen.
8. Use the frequency, voltage, resistance, or continuity functions when carrying out additional electrical diagnostics.
9. For motor and equipment startup testing, use the inrush-current function to capture high starting-current events.
10. After testing, switch off the meter or allow the automatic power-off function to operate.

Safety note: Electrical measurements should only be performed by suitably trained personnel. Always select the correct measurement function and range, observe the meter's CAT rating, and follow applicable electrical safety procedures before working on energized systems.

Key Features of the UNI-T UT281E+

• Up to 6000A AC current measurement: Suitable for high-current electrical systems and demanding troubleshooting applications.
• 1100mm flexible coil: Makes it easier to measure current around large cables, conductors, and hard-to-access electrical installations.
• True RMS measurement: Provides reliable measurement of AC signals, particularly useful for modern electrical and power systems.
• AC/DC voltage measurement: Supports electrical troubleshooting across a wide range of voltage applications.
• Inrush current measurement: Helps identify startup-current characteristics of motors, electrical equipment, and other loads.
• Frequency measurement: Supports frequency testing for both AC current and AC voltage.
• 6000-count LCD display: Provides clear and detailed measurement readings.
• Data storage: Stores up to 999 measurement sets for later review.
• Data Hold, Review and Delete: Provides convenient management of stored and displayed readings.
• LCD backlight: Helps improve visibility when working in dimly lit areas.
• High-voltage OL alarm: Provides an alarm for over-limit AC/DC voltage conditions.
• Continuity testing: Helps technicians quickly check electrical continuity.
• Over-range alarm: Alerts the user when the measured value exceeds the selected measurement range.
• Low-voltage indication: Warns when the meter's batteries require attention.
• Auto power-off: Helps conserve battery power when the instrument is not being used.
• CAT III 1000V / CAT IV 600V safety rating: Designed for professional electrical measurement environments within the specified safety category.

Why Choose the UNI-T UT281E+?

The UNI-T UT281E+ is a strong choice for professionals who need to measure current on large conductors and difficult-to-access electrical systems. Its flexible 1100mm coil provides greater installation flexibility than rigid-jaw clamp meters, while its high current capability makes it suitable for industrial and power-related applications.

The combination of True RMS technology, voltage measurement, current measurement, frequency testing, resistance, continuity, and inrush-current measurement allows one instrument to handle a wide range of electrical diagnostic tasks.

Its data storage, backlit LCD, alarms, automatic power-off, and professional CAT safety rating further support practical field use.

Who Should Buy the UNI-T UT281E+?

The UT281E+ is suitable for professionals and organizations involved in electrical installation, maintenance, inspection, and troubleshooting, including:

• Electricians
• Electrical engineers
• Solar PV technicians
• Photovoltaic system installers
• Electrical vehicle technicians
• Industrial maintenance technicians
• Power system technicians
• Manufacturing maintenance teams
• Electrical contractors
• Automation and control technicians
• Power distribution technicians
• Service and commissioning engineers

Where Is the UNI-T UT281E+ Used?

The UNI-T UT281E+ can be used across a wide range of professional environments, including solar photovoltaic stations, electrical vehicle systems, power distribution installations, manufacturing facilities, industrial plants, electrical engineering projects, communications systems, petroleum facilities, and power-related applications.

Its flexible coil is especially useful for installations containing large conductors, busbars, bundled cables, or restricted access points where positioning a conventional clamp meter can be difficult.

Is the UNI-T UT281E+ Suitable for Solar Power Systems?

Yes. The UT281E+ is suitable for troubleshooting and maintenance work in solar power and photovoltaic systems. Technicians can use its electrical measurement functions to investigate current, voltage, frequency, resistance, and other electrical conditions during system inspection and troubleshooting.

Is the UNI-T UT281E+ Suitable for Electrical Vehicles?

The UT281E+ can be useful for electrical vehicle-related electrical diagnostics where the measurement requirements fall within the instrument's specified capabilities and safety category. Its flexible coil is particularly convenient when access around conductors is limited.

What Makes a Flexible Clamp Meter Useful?

A flexible clamp meter uses a flexible current-sensing coil instead of a conventional rigid clamp jaw. This allows the coil to be routed around conductors in confined or crowded electrical installations. The 1100mm coil of the UT281E+ provides additional reach and flexibility for large conductors and challenging measurement locations.
