UNI-T DIGITAL MULTIMETER CLAMP METER UT60S | MEASURE UP TO 1000V AC/DC VOLTAGE, 10A AC/DC CURRENT AND 100MΩ RESISTANCE | 0℃～40℃ OPERATION TEMPERATURE | BLUETOOTH DATA TRANSMISSION AC DC VOLTMETER CAPACITANCE TEMPERATURE TESTER

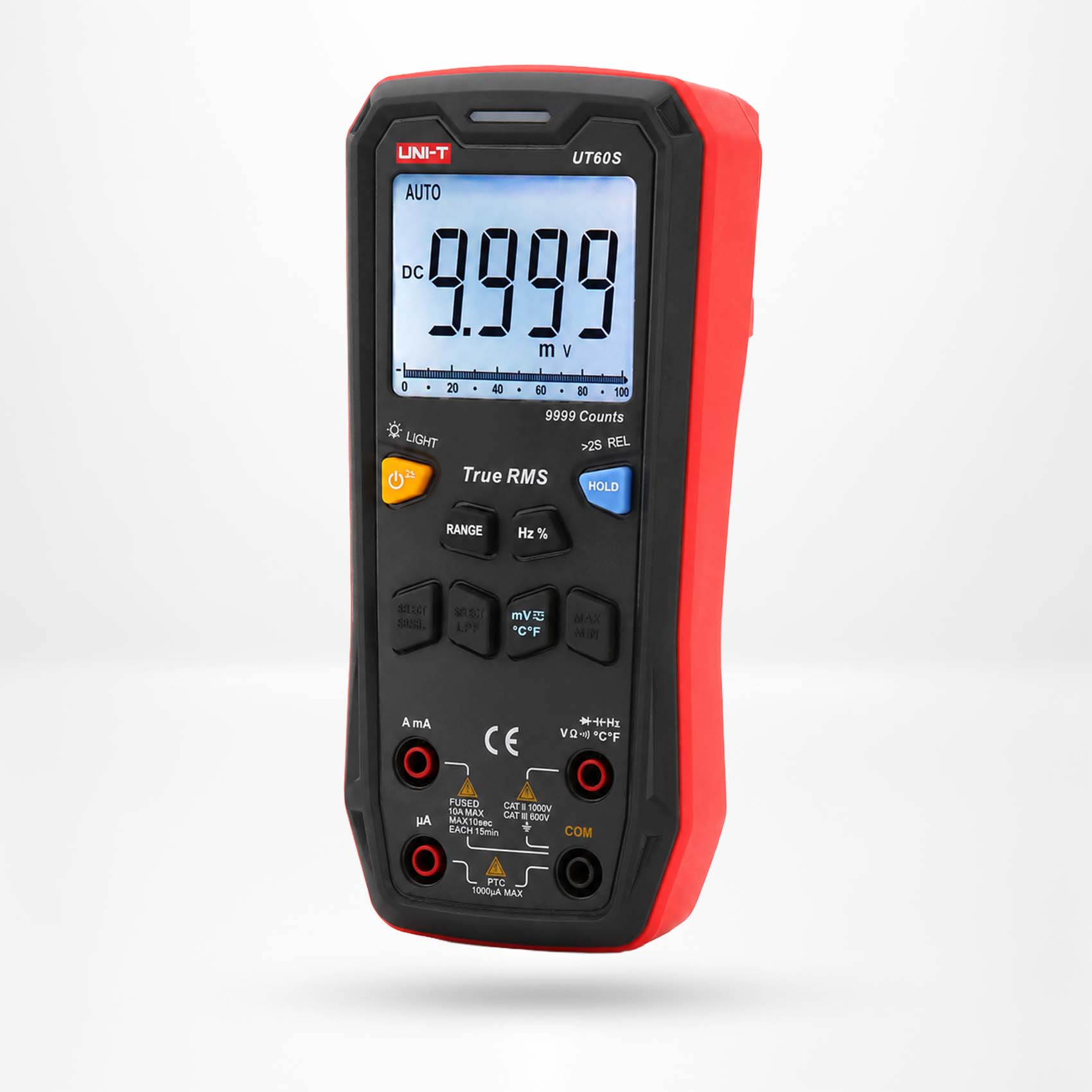

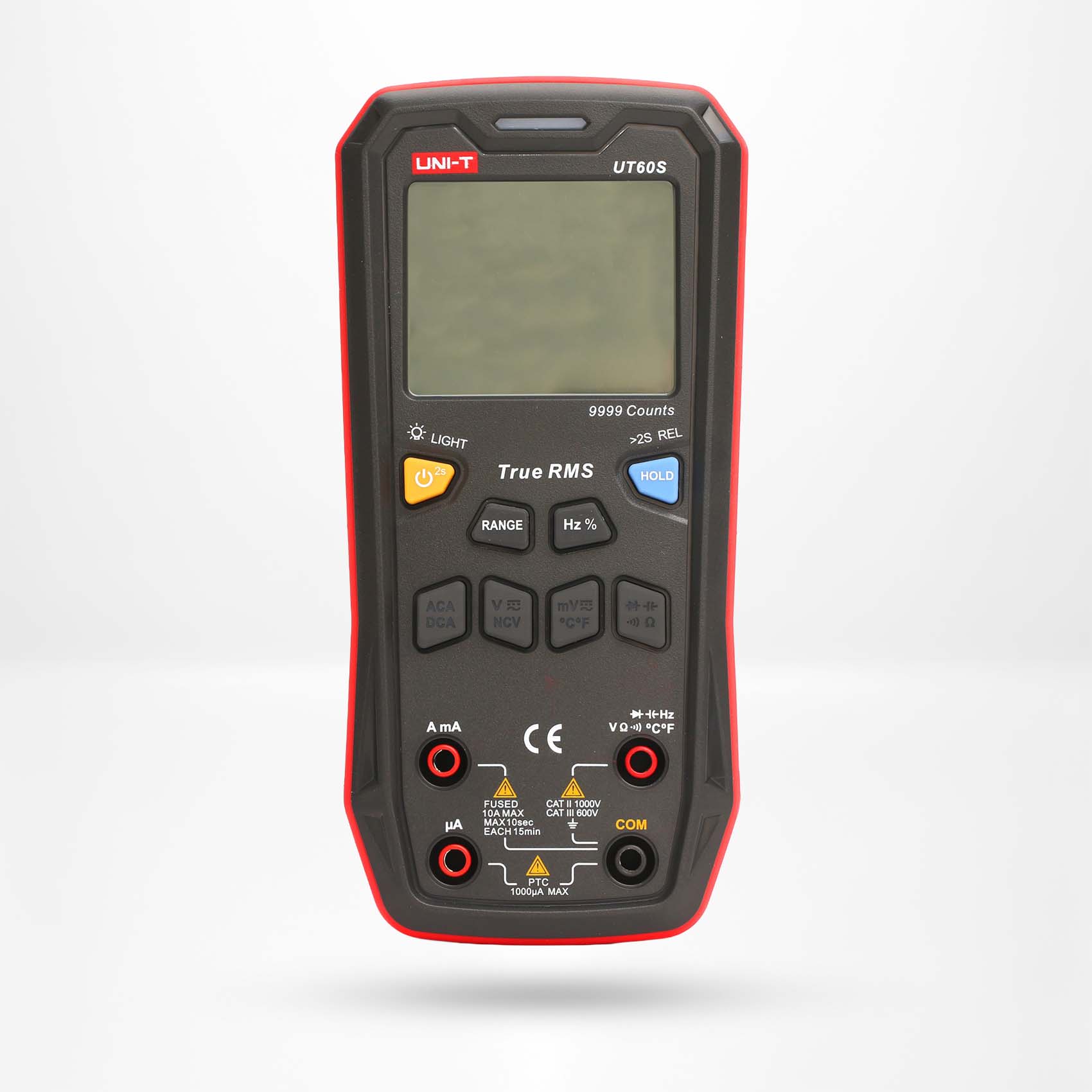

UNI-T UT60S Digital Multimeter Clamp Meter | True RMS | 1000V AC/DC | 10A AC/DC | 100MΩ Resistance | Bluetooth

The UNI-T UT60S Digital Multimeter Clamp Meter is a professional True RMS digital multimeter designed for electrical testing, troubleshooting, maintenance, and measurement applications. With a 9999-count display, the UT60S provides clear and detailed readings while supporting measurements of AC/DC voltage, AC/DC current, resistance, capacitance, frequency, duty cycle, and temperature.

Designed for versatility, the UNI-T UT60S can measure up to 1000V AC/DC voltage, 10A AC/DC current, and 100MΩ resistance. It also includes useful functions such as Bluetooth data transmission, non-contact voltage detection (NCV), True RMS measurement, auto/manual ranging, diode testing, continuity testing, relative mode, data hold, and backlight.

The UT60S combines professional measurement capability with a rugged double-injection housing and a CAT II 1000V / CAT III 600V safety rating. Its three-color LED indicator, acoustic-optic alerts, low-battery indication, and backlit display make electrical testing easier in workshops, service environments, control panels, and darker working areas.

What Is the Purpose of the UNI-T UT60S Digital Multimeter?

The primary purpose of the UNI-T UT60S digital multimeter is to measure and troubleshoot electrical and electronic circuits. It helps technicians identify voltage levels, current flow, resistance, capacitance, frequency, temperature, and other electrical conditions during installation, maintenance, servicing, and fault diagnosis.

With True RMS measurement, the UT60S is suitable for measuring AC electrical signals where accurate RMS readings are important. The NCV function also allows users to detect the presence of AC voltage without making direct electrical contact with the conductor.

The built-in Bluetooth data transmission capability provides additional convenience for users who need to transfer measurement information wirelessly for monitoring, recording, or analysis.

How to Use the UNI-T UT60S Digital Multimeter

1. Install the batteries: Insert three 1.5V AAA batteries correctly according to the polarity markings.
2. Switch on the meter: Turn on the UT60S and check the battery indication before beginning measurements.
3. Select the required measurement: Choose AC voltage, DC voltage, AC current, DC current, resistance, capacitance, frequency, duty cycle, temperature, diode, or continuity according to the application.
4. Connect the test leads: Insert the test leads into the appropriate terminals for the selected measurement.
5. Select the range: Use the automatic range function for convenient testing or manually select a suitable range when required.
6. Perform the measurement: Connect the probes correctly to the circuit or component being tested and observe the reading on the 9999-count display.
7. Use True RMS: For AC measurements, use the meter's True RMS capability to obtain reliable RMS measurements on applicable electrical signals.
8. Use NCV when appropriate: For non-contact voltage detection, hold the NCV sensing area near the suspected live conductor while following safe working procedures.
9. Hold important readings: Use the Data Hold function when you need to retain a measurement on the display for easier recording.
10. Use REL mode: Activate relative measurement when you need to compare readings or remove an initial reference value.
11. Use the backlight: Turn on the display backlight when testing inside electrical panels, cabinets, equipment, or other low-light locations.
12. Transmit data via Bluetooth: Enable Bluetooth when wireless measurement data transmission is required.
13. Power off after testing: Switch the meter off after completing the inspection. The automatic power-off function helps conserve battery life.

Safety Note: Always select the correct measurement function and terminal before testing. Do not exceed the meter's specified safety ratings or measurement limits. Follow appropriate electrical safety procedures when working on energized circuits.

Key Features of UNI-T UT60S

• True RMS Measurement: Provides True RMS measurement capability for accurate analysis of applicable AC signals.
• 9999-Count Display: High-resolution digital display provides detailed measurement readings.
• 1000V AC/DC Voltage Measurement: Suitable for a wide range of electrical testing and troubleshooting applications.
• 10A AC/DC Current Measurement: Supports current measurements for electrical and electronic circuits.
• 100MΩ Resistance Measurement: Provides a broad resistance measurement range for component and circuit testing.
• Bluetooth Data Transmission: Enables convenient wireless transfer of measurement information.
• Non-Contact Voltage Detection: NCV function helps identify the presence of AC voltage without direct contact.
• Capacitance Measurement: Allows technicians to test capacitors across a wide measurement range.
• Frequency Measurement: Measures frequency up to the supplied maximum range for electrical and electronic testing.
• Duty Cycle Measurement: Supports duty-cycle testing from 0.1% to 99.9%.
• Temperature Measurement: Supports temperature measurement using the supplied thermocouple.
• Diode and Continuity Testing: Useful for checking semiconductor junctions, wiring, connections, and circuit paths.
• Auto and Manual Range: Provides convenient automatic ranging while allowing manual range selection when required.
• Data Hold and Relative Mode: Helps retain measurements and perform comparative testing.
• Backlight: Improves display visibility when working in dark or poorly illuminated areas.
• Three-Color LED Indicator: Provides visual indication for selected electrical test conditions and alerts.
• Low Battery Indication: Alerts users when the battery voltage is low.
• Automatic Power Off: Turns the meter off after approximately 15 minutes without operation.

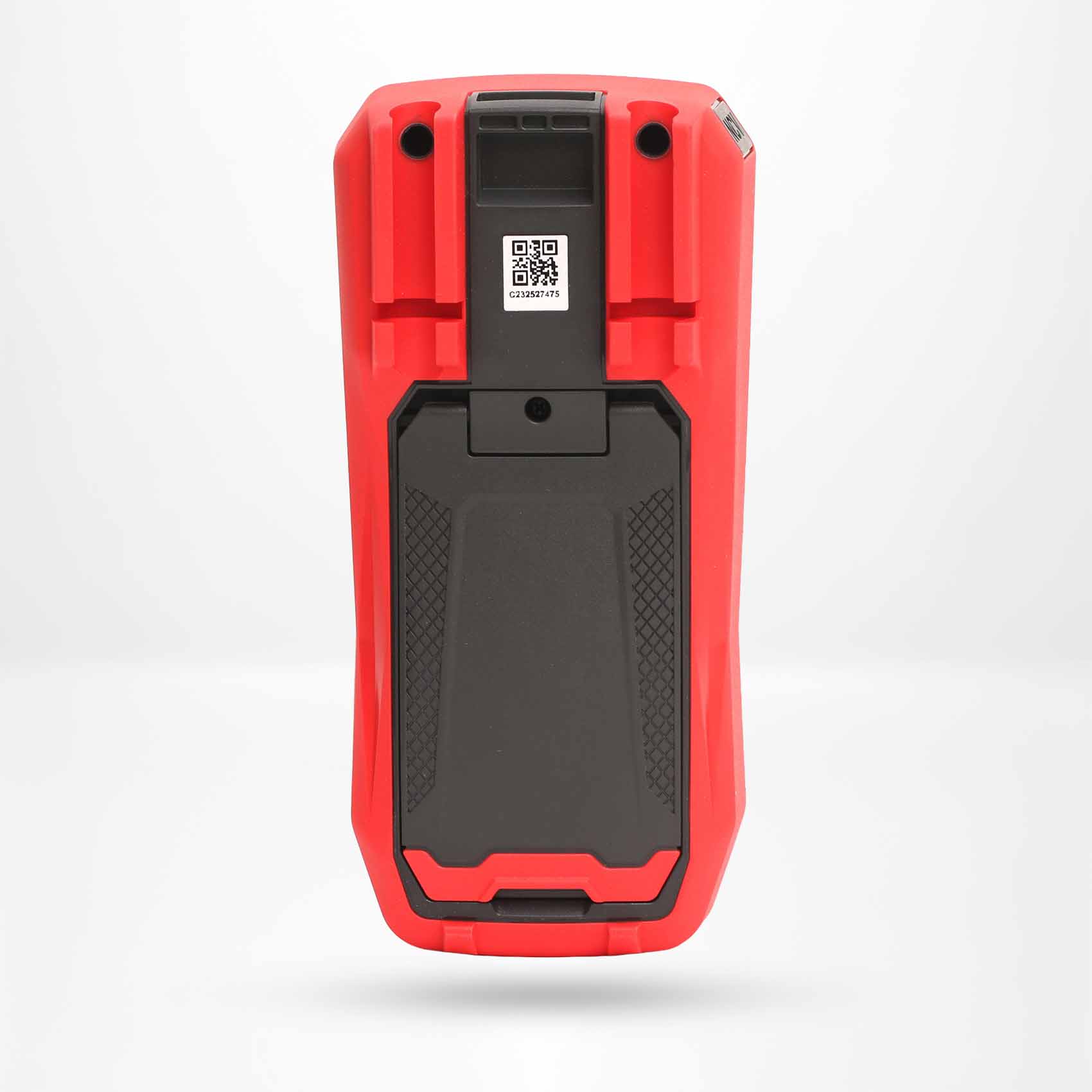

• Rugged Double-Injection Housing: Designed for reliable use in professional workshop and field environments.

Why Choose the UNI-T UT60S?

The UNI-T UT60S is a strong choice for technicians who need a versatile digital multimeter capable of handling a wide range of electrical measurements in one compact instrument. Its combination of True RMS, 9999 counts, 1000V AC/DC voltage measurement, 10A AC/DC current measurement, and 100MΩ resistance measurement makes it suitable for professional electrical troubleshooting and maintenance.

One of its major advantages is its wide range of additional functions. Bluetooth connectivity, NCV detection, capacitance, frequency, duty cycle, temperature, diode, continuity, REL mode, data hold, and backlight reduce the need for multiple separate testing instruments.

Safety is another important consideration. The UT60S is rated CAT II 1000V / CAT III 600V and features acoustic-optic indications, NCV detection, low-battery indication, and a rugged double-injection housing. These features make it well suited for professional electrical service and troubleshooting when used within its specified limits.

The backlit display and compact 290g design also make the UT60S convenient for technicians who regularly move between equipment, control panels, electrical installations, and service locations.

Who Should Buy the UNI-T UT60S?

• Electricians: For voltage, current, resistance, continuity, and electrical troubleshooting work.
• Electrical Maintenance Technicians: For routine inspection and servicing of electrical equipment.
• Industrial Maintenance Teams: For electrical testing on machinery, control systems, and industrial equipment.
• HVAC Technicians: For electrical measurements and troubleshooting of HVAC equipment and control circuits.
• Automotive Technicians: For electrical and electronic circuit testing in suitable automotive applications.
• Electronics Technicians: For measuring resistance, capacitance, frequency, voltage, current, and diode characteristics.
• Electrical Engineers: For field testing, troubleshooting, and equipment diagnostics.
• Service Engineers: For portable electrical testing during installation, repair, and maintenance activities.
• Solar and Energy Technicians: For suitable low-voltage electrical testing and troubleshooting applications within the meter's safety limits.
• Technical Students and Training Centers: For learning and practical electrical measurement techniques.

Where Is the UNI-T UT60S Used?

• Electrical Maintenance: Used for checking voltage, current, resistance, continuity, and other electrical parameters.
• Industrial Equipment: Suitable for troubleshooting electrical systems in machinery and production equipment.
• Control Panels: Useful for testing electrical circuits, wiring, and components inside control cabinets.
• Electrical Installations: Supports electrical inspection and troubleshooting during installation and maintenance work.
• HVAC Systems: Can be used for electrical measurements on HVAC equipment, controls, and related circuits.
• Automotive Electrical Systems: Useful for suitable vehicle electrical and electronic diagnostic applications.
• Electronics Repair: Supports testing of components, circuit boards, capacitors, diodes, and electrical connections.
• Power and Distribution Equipment: Can assist with electrical troubleshooting within the instrument's applicable CAT rating and measurement limits.
• Workshop Testing: Suitable for general-purpose electrical and electronic measurement in professional workshops.
• Field Service: The compact handheld design makes it convenient for technicians performing on-site electrical inspections.
