UNI-T HIGH-PRECISION DIGITAL VIBRATION METER UT312A | VELOCITY DISPLACEMENT TESTER | ACCELERATION, VELOCITY, DISPLACEMENT MEASUREMENT | 2.4-INCH TFT AUTOMATIC ROTATING SCREEN | 3.7V RECHARGEABLE BATTERY

UNI-T UT312A High-Precision Digital Vibration Meter | Acceleration, Velocity & Displacement Tester | 2.4-Inch TFT Rotating Screen

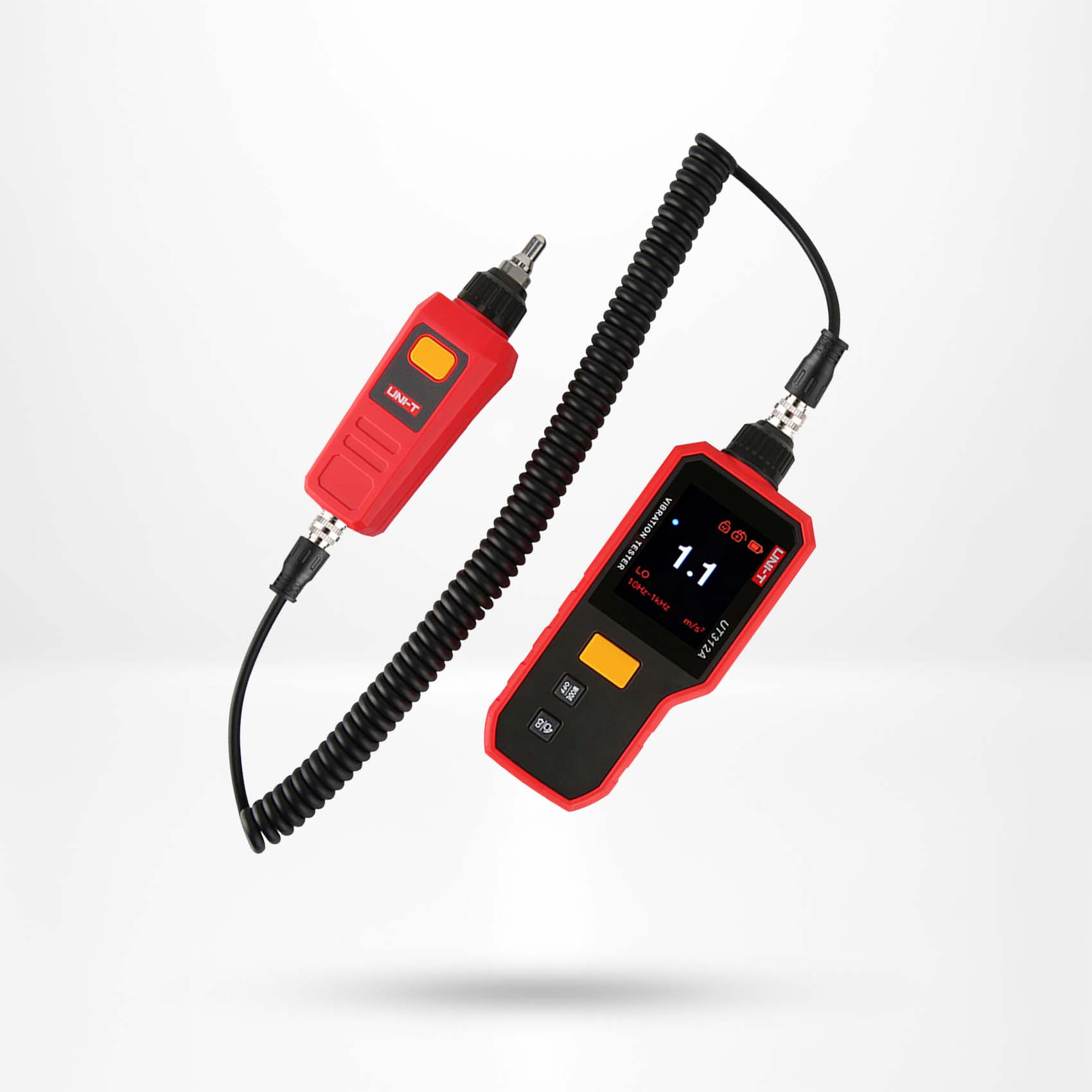

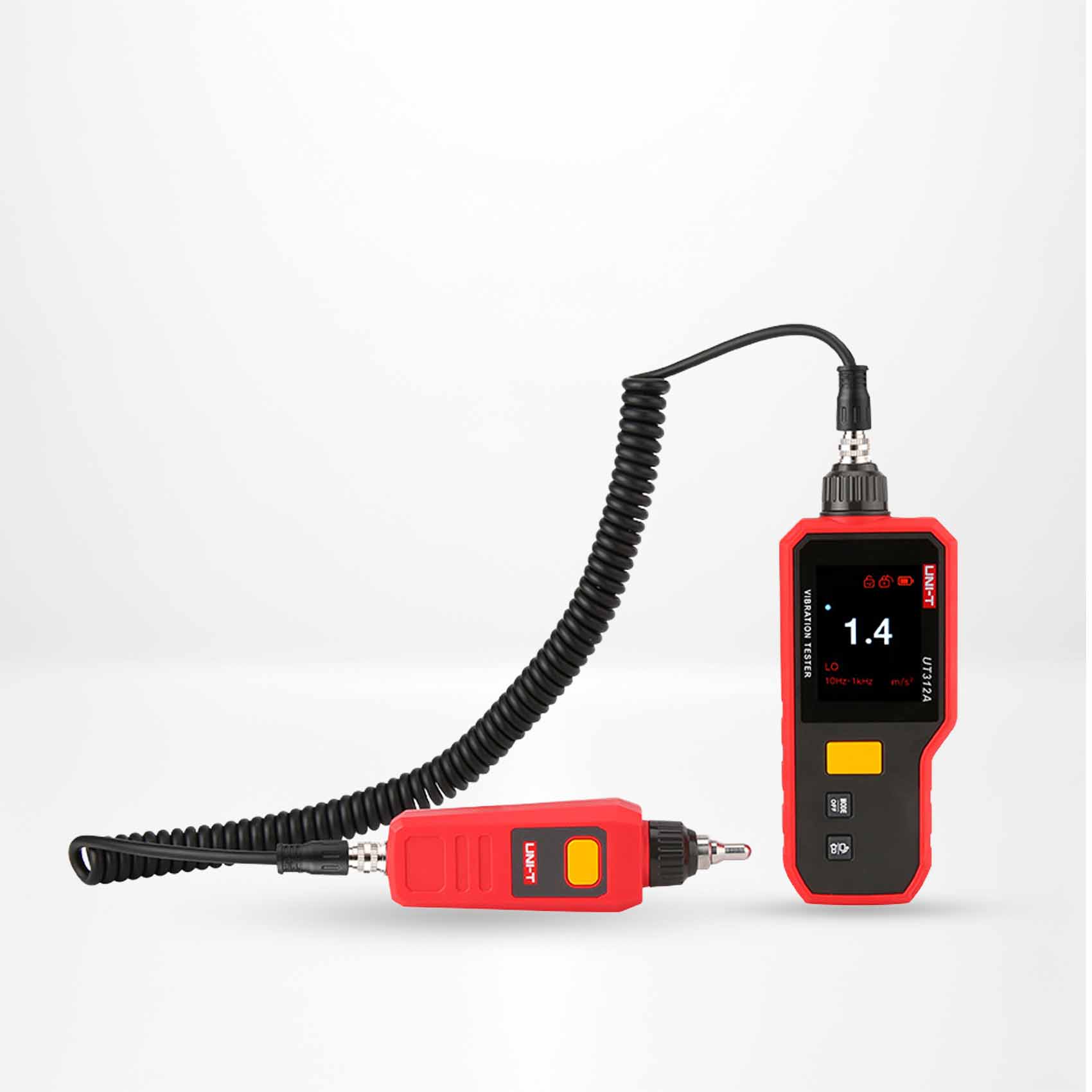

The UNI-T UT312A High-Precision Digital Vibration Meter is a compact and professional handheld vibration tester designed to measure the vibration condition of mechanical equipment. It measures acceleration, velocity, and displacement, helping maintenance professionals identify abnormal vibration and assess the operating condition of motors, pumps, fans, compressors, gearboxes, bearings, and other rotating machinery.

Equipped with a high-sensitivity vibration sensor, high and low frequency acceleration measurement modes, multiple probe options, and a clear 2.4-inch TFT color display with automatic screen rotation, the UT312A provides convenient operation during equipment inspection and maintenance.

The UNI-T UT312A also features a 1350mAh rechargeable lithium battery with Type-C charging, approximately 12 hours of battery duration, data hold, battery indication, LCD backlight, and a built-in flashlight. Its compact handheld design makes it practical for routine vibration monitoring and preventive maintenance in industrial environments.

What Is the Purpose of the UNI-T UT312A Digital Vibration Meter?

The primary purpose of the UNI-T UT312A vibration meter is to measure mechanical vibration and help determine whether equipment is operating normally. Excessive vibration can indicate issues such as imbalance, misalignment, looseness, bearing wear, mechanical deterioration, or other developing equipment problems.

The UT312A measures three important vibration parameters: acceleration, velocity, and displacement. This allows technicians to evaluate machine vibration from different measurement perspectives and use the results as part of a preventive maintenance program.

It is especially useful for patrol inspection, routine equipment checks, predictive maintenance, troubleshooting, and vibration condition monitoring in industrial facilities.

How to Use the UNI-T UT312A Vibration Meter

1. Charge the meter: Fully charge the rechargeable lithium battery using the supplied Type-C charging cable before extended inspection work.
2. Power on the instrument: Turn on the UT312A and allow the display and vibration sensor to initialize.
3. Select the measurement parameter: Choose acceleration, velocity, or displacement according to the equipment inspection requirement.
4. Select the appropriate acceleration mode: Use the high or low frequency acceleration mode when applicable to the vibration being investigated.
5. Choose the probe: Select the appropriate long or short probe according to the measurement location and accessibility.
6. Position the sensor: Place the probe firmly against the machine or measurement point to obtain a stable vibration reading.
7. Read the measurement: Observe the vibration value on the 2.4-inch TFT color screen.
8. Use the magnetic sucker when suitable: The supplied U-type magnetic sucker can be used for convenient attachment to compatible metal measurement surfaces.
9. Use Data Hold: Activate the data-hold function when you need to retain a measured value on the display.
10. Record and compare results: Compare measurements from different inspection points or previous inspections to help identify changes in machine vibration.
11. Turn off after use: Switch off the instrument when the inspection is complete. The automatic power-off function helps conserve battery power when the meter is not operated.

Key Features of UNI-T UT312A

• Three Vibration Measurement Parameters: Measures acceleration, velocity, and displacement for comprehensive mechanical vibration analysis.
• High-Sensitivity Sensor: Provides responsive vibration measurement for routine equipment condition checks.
• High/Low Frequency Acceleration Modes: Provides flexibility for different vibration measurement requirements.

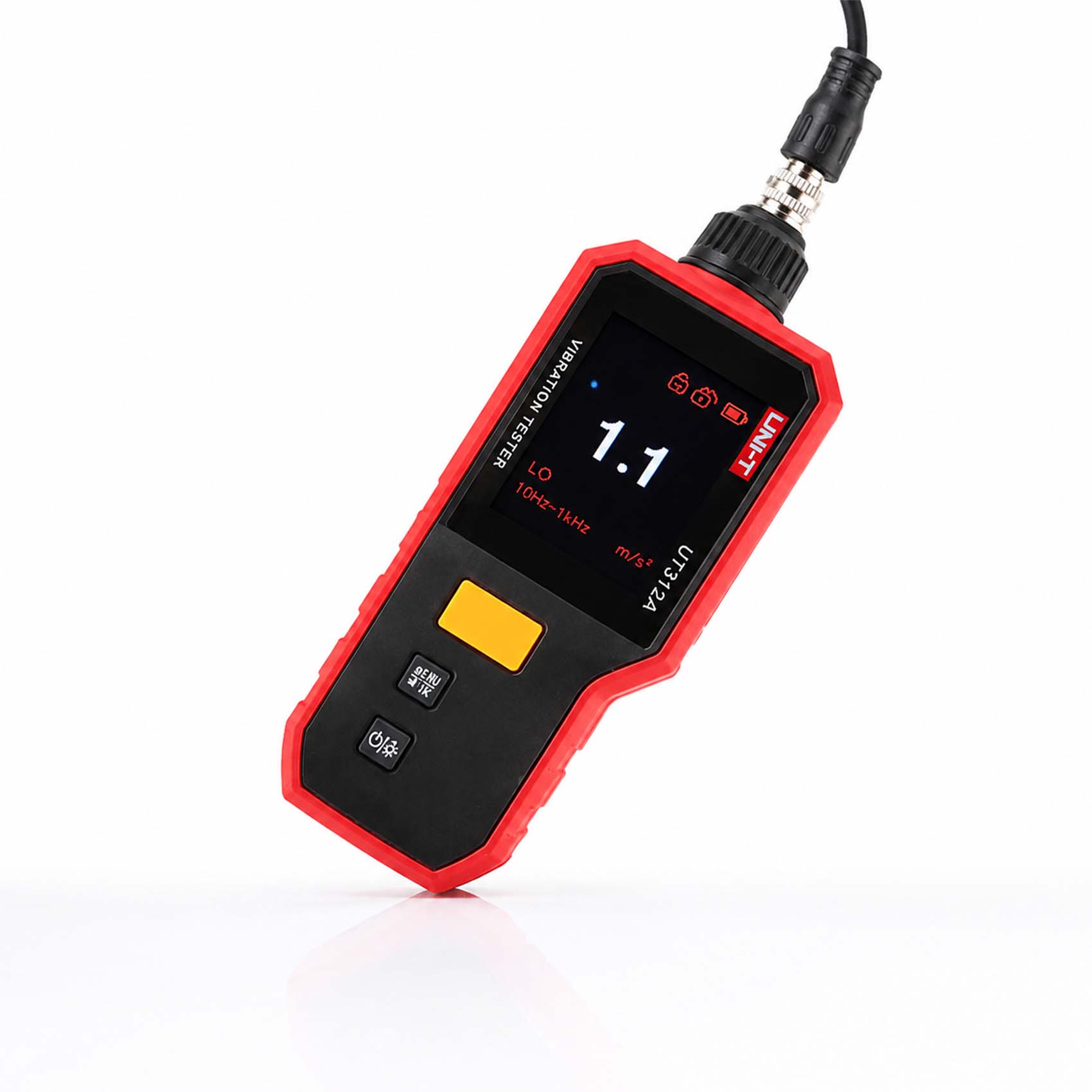

• 2.4-Inch TFT Color Display: Full-view color screen provides clear visibility of measurement information.
• Automatic Rotating Screen: Automatically rotates the display orientation for convenient viewing during different measurement positions.

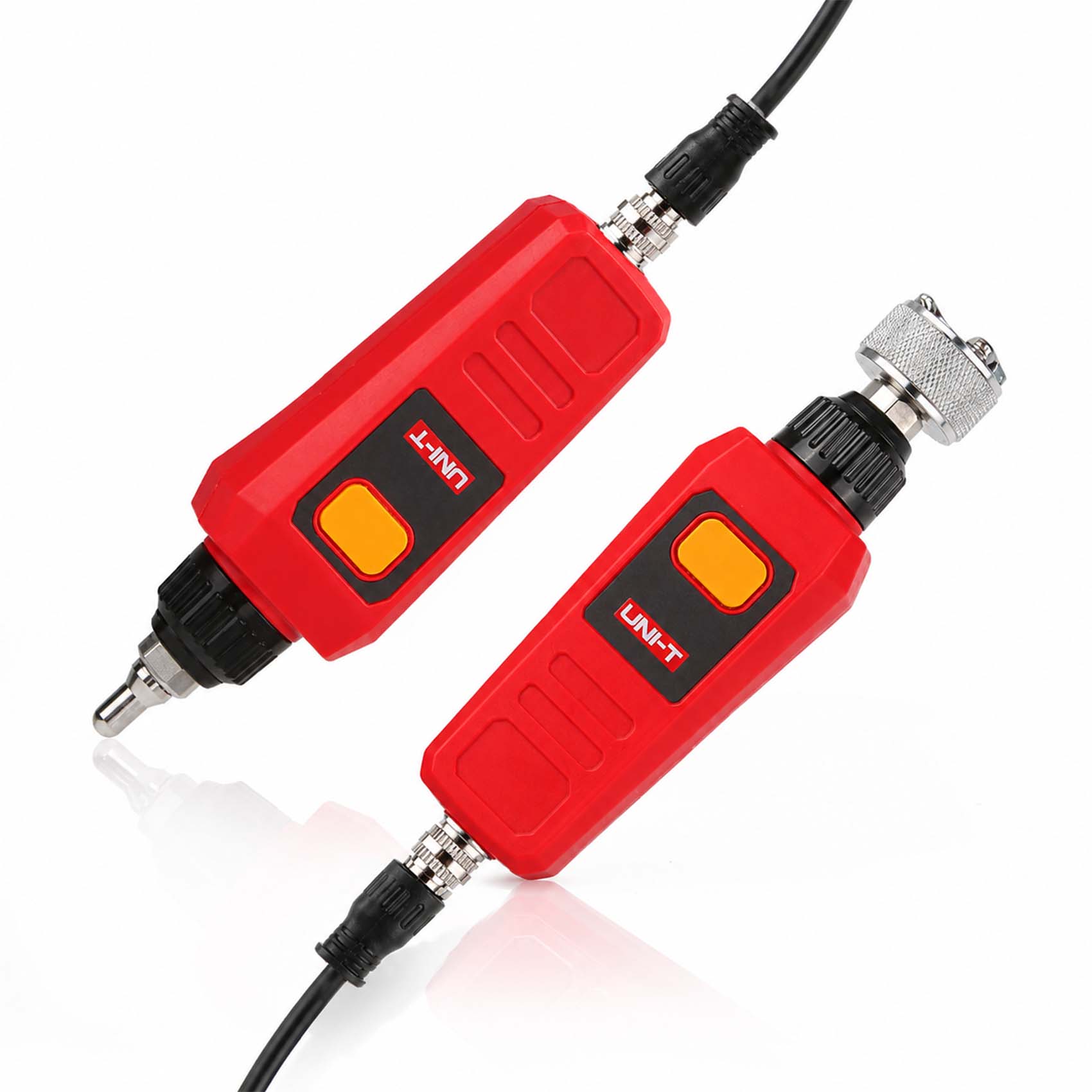

• Multiple Probe Options: Long and short probes support measurements in different equipment locations and access conditions.
• U-Type Magnetic Sucker: Provides convenient attachment to compatible metallic measurement surfaces.
• Data Hold Function: Allows users to freeze the displayed measurement for easier reading and recording.
• Built-In Flashlight: Helps illuminate dark or difficult-to-access equipment inspection areas.
• Rechargeable Lithium Battery: The 3.7V 1350mAh rechargeable battery supports approximately 12 hours of operation.
• Type-C Charging: Convenient USB-C charging interface with a DC 5V charging requirement.
• LCD Backlight: Improves screen visibility when working in lower-light environments.
• Battery Indication: Allows users to monitor the remaining battery condition during inspections.
• Automatic Power Off: The instrument automatically powers off after approximately 5 minutes without operation.
• Compact Handheld Design: The lightweight and portable structure makes the meter convenient for routine industrial inspection.

Why Choose the UNI-T UT312A?

The UNI-T UT312A is a practical choice for professionals who need a portable vibration measuring instrument for routine machinery inspection. Instead of measuring only one vibration parameter, it provides acceleration, velocity, and displacement measurements, allowing technicians to gather more useful information from a single handheld device.

Its high-sensitivity sensor, high/low frequency acceleration modes, and multiple probes provide flexibility for different equipment and inspection locations. The automatic rotating TFT display also makes the instrument easier to read when measuring machinery from different angles.

For field maintenance, the UT312A combines useful functions such as Data Hold, flashlight, battery indication, automatic power off, rechargeable battery, and Type-C charging in a compact design. With approximately 12 hours of battery duration, it is suitable for extended inspection rounds and routine maintenance activities.

The UT312A is therefore a valuable inspection tool for organizations that want to support preventive maintenance, vibration monitoring, equipment troubleshooting, and early identification of mechanical abnormalities.

Who Should Buy the UNI-T UT312A?

• Maintenance Technicians: For routine vibration checks and mechanical equipment inspection.
• Industrial Maintenance Teams: For monitoring vibration conditions across production equipment.
• Mechanical Engineers: For investigating vibration behavior in rotating machinery.
• Predictive Maintenance Professionals: For regular condition monitoring and trend comparison.
• Electrical and Mechanical Service Teams: For field inspection of motors, pumps, fans, and other machinery.
• Power Plant Maintenance Teams: For patrol inspection of mechanical equipment and rotating systems.
• Petrochemical Industry Professionals: For vibration monitoring of industrial machinery and equipment.
• Metallurgical Industry Professionals: For routine equipment vibration inspection in demanding industrial environments.
• Factory Maintenance Departments: For preventive maintenance and machinery condition checks.
• Equipment Service Companies: For portable vibration testing during installation, maintenance, and troubleshooting work.

Where Is the UNI-T UT312A Used?

• Power Industry: Used for patrol vibration inspection of motors, generators, pumps, fans, and other mechanical equipment.
• Metallurgical Plants: Suitable for monitoring vibration in industrial machinery and production equipment.
• Petrochemical Facilities: Helps maintenance teams inspect vibration conditions in pumps, motors, compressors, and related machinery.
• Manufacturing Plants: Used for preventive maintenance and routine vibration checks on production machinery.
• Motor Inspection: Helps technicians evaluate vibration levels in electric motors and rotating equipment.
• Pump Maintenance: Useful for monitoring vibration conditions in industrial pumps and pump assemblies.
• Fan and Blower Inspection: Supports vibration checks on rotating fans, blowers, and ventilation equipment.
• Compressor Maintenance: Can be used as part of routine vibration inspection of compressors and associated machinery.
• Gearbox and Bearing Inspection: Helps technicians identify changes in mechanical vibration that may require further investigation.
• Preventive Maintenance Programs: Useful for establishing routine vibration inspection procedures and comparing measurements over time.

Frequently Asked Questions About UNI-T UT312A
